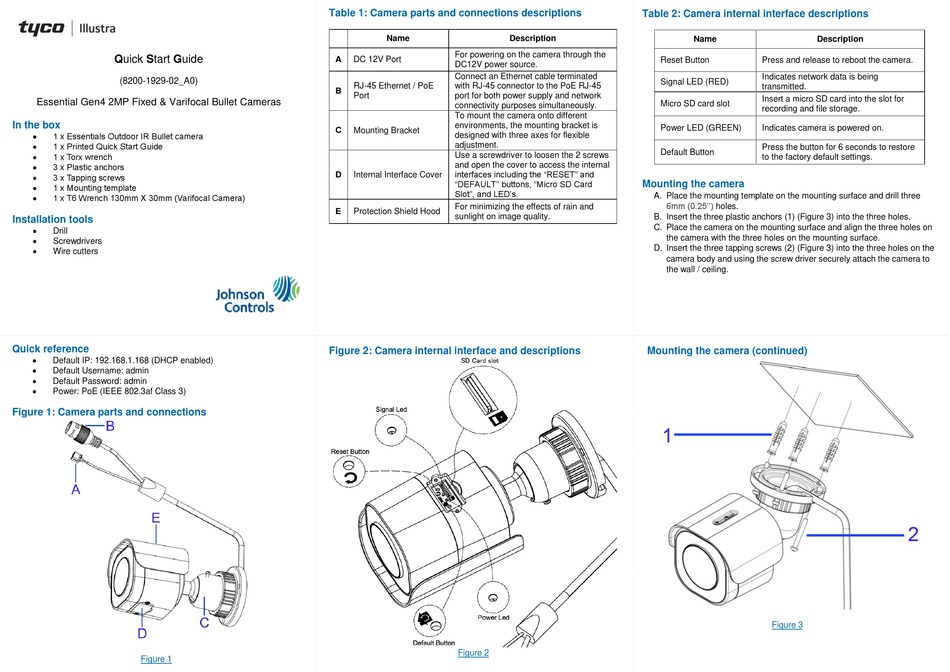

Quick Start Guide
(8200-1929-02_A0)

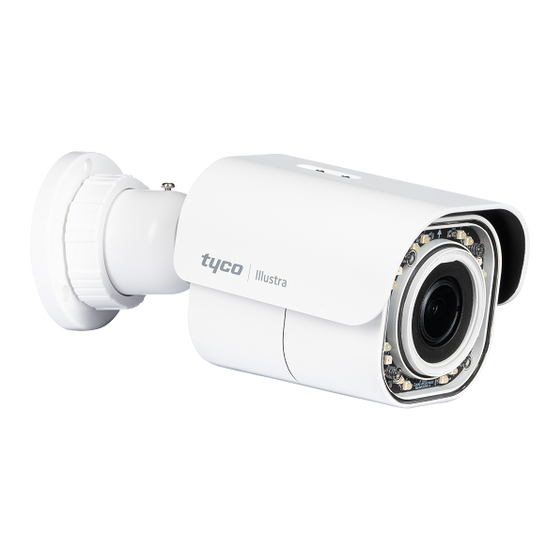

Essential Gen4 2MP Fixed & Varifocal Bullet Cameras
In the box

1 x Essentials Outdoor IR Bullet camera

1 x Printed Quick Start Guide

1 x Torx wrench

3 x Plastic anchors
 3 x Tapping screws

1 x Mounting template

1 x T6 Wrench 130mm X 30mm (Varifocal Camera)
Installation tools

Drill

Screwdrivers

Wire cutters
Quick reference

Default IP: 192.168.1.168 (DHCP enabled)

Default Username: admin

Default Password: admin

Power: PoE (IEEE 802.3af Class 3)
Figure 1: Camera parts and connections
Figure 1
Table 1: Camera parts and connections descriptions
Security
Name
A DC 12V Port
RJ-45 Ethernet / PoE
B
Port
C
Mounting Bracket
D Internal Interface Cover
E Protection Shield Hood
Figure 2: Camera internal interface and descriptions
Description
For powering on the camera through the
DC12V power source.
Connect an Ethernet cable terminated
with RJ-45 connector to the PoE RJ-45
port for both power supply and network
connectivity purposes simultaneously.
To mount the camera onto different
environments, the mounting bracket is
designed with three axes for flexible
adjustment.
Use a screwdriver to loosen the 2 screws
and open the cover to access the internal
interfaces including the "RESET" and
"DEFAULT" buttons, "Micro SD Card
Slot", and LED's.
For minimizing the effects of rain and
sunlight on image quality.
Figure 2
Table 2: Camera internal interface descriptions
Name Description
Reset Button Press and release to reboot the camera.
Indicates network data is being
Signal LED (RED)
transmitted.
Insert a micro SD card into the slot for
Micro SD card slot
recording and file storage.
Power LED (GREEN) Indicates camera is powered on.
Press the button for 6 seconds to restore
Default Button
to the factory default settings.
Mounting the camera
A. Place the mounting template on the mounting surface and drill three
6mm (0.25'')
holes.
B. Insert the three plastic anchors (1) (Figure 3) into the three holes.
C. Place the camera on the mounting surface and align the three holes on
the camera with the three holes on the mounting surface.
D. Insert the three tapping screws (2) (Figure 3) into the three holes on the
camera body and using the screw driver securely attach the camera to
the wall / ceiling.
Mounting the camera (continued)
Figure 3
