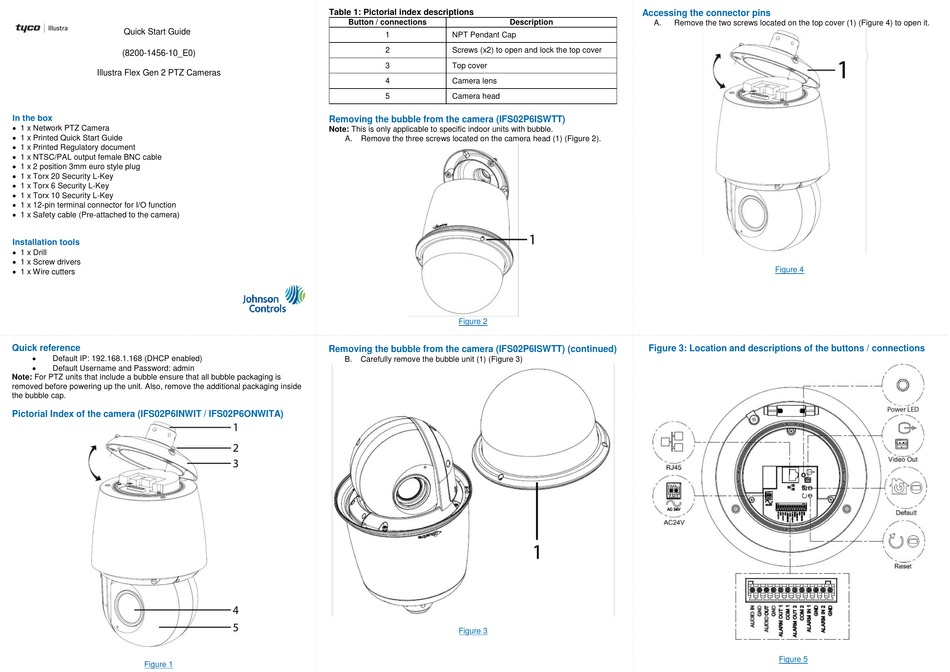

Quick Start Guide
(8200-1456-10_E0)
Illustra Flex Gen 2 PTZ Cameras
In the box
 1 x Network PTZ Camera
 1 x Printed Quick Start Guide
 1 x Printed Regulatory document
 1 x NTSC/PAL output female BNC cable
 1 x 2 position 3mm euro style plug
 1 x Torx 20 Security L-Key
 1 x Torx 6 Security L-Key
 1 x Torx 10 Security L-Key
 1 x 12-pin terminal connector for I/O function
 1 x Safety cable (Pre-attached to the camera)
Installation tools
 1 x Drill
 1 x Screw drivers
 1 x Wire cutters
Quick reference

Default IP: 192.168.1.168 (DHCP enabled)

Default Username and Password: admin
Note: For PTZ units that include a bubble ensure that all bubble packaging is
removed before powering up the unit. Also, remove the additional packaging inside
the bubble cap.
Pictorial Index of the camera (IFS02P6INWIT / IFS02P6ONWITA)
Figure 1
Table 1: Pictorial index descriptions
Button / connections
Security
1
2
3
4
5
Removing the bubble from the camera (IFS02P6ISWTT)
Note: This is only applicable to specific indoor units with bubble.
A. Remove the three screws located on the camera head (1) (Figure 2).
Removing the bubble from the camera (IFS02P6ISWTT) (continued)
B. Carefully remove the bubble unit (1) (Figure 3)
Description
NPT Pendant Cap
Screws (x2) to open and lock the top cover
Top cover
Camera lens
Camera head
Figure 2
Figure 3
Accessing the connector pins
A. Remove the two screws located on the top cover (1) (Figure 4) to open it.
Figure 4
Figure 3: Location and descriptions of the buttons / connections
Figure 5
