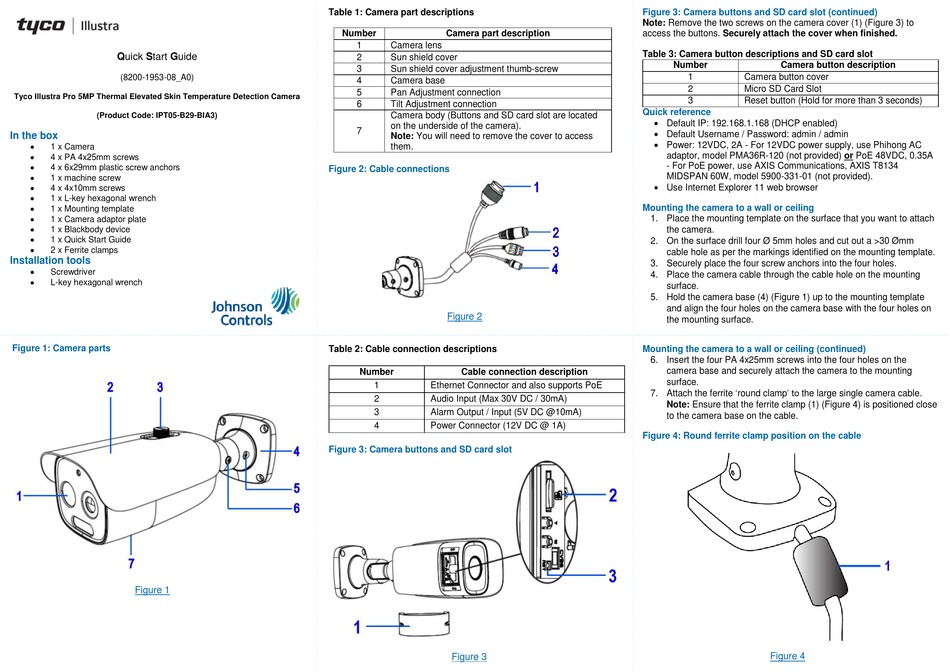

Johnson Controls Tyco Illustra Pro Quick Start Manual

Quick Start Guide
(8200-1953-08_A0)

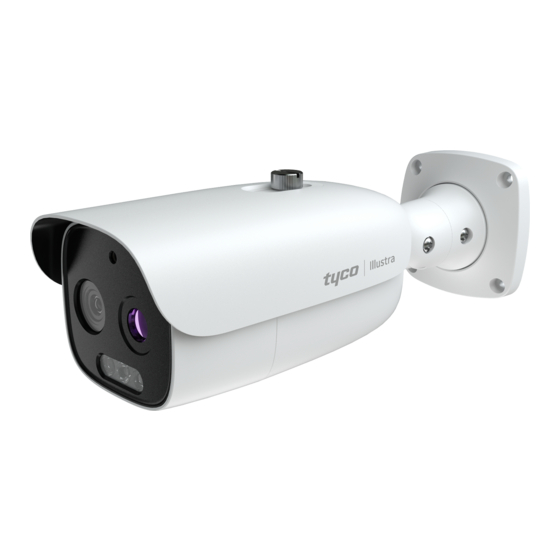

Tyco Illustra Pro 5MP Thermal Elevated Skin Temperature Detection Camera
(Product Code: IPT05-B29-BIA3)
In the box

1 x Camera

4 x PA 4x25mm screws

4 x 6x29mm plastic screw anchors

1 x machine screw

4 x 4x10mm screws

1 x L-key hexagonal wrench

1 x Mounting template

1 x Camera adaptor plate

1 x Blackbody device

1 x Quick Start Guide

2 x Ferrite clamps
Installation tools

Screwdriver

L-key hexagonal wrench
Figure 1: Camera parts
Figure 1
Table 1: Camera part descriptions
Security
Number
1 Camera lens
2 Sun shield cover
3 Sun shield cover adjustment thumb-screw
4 Camera base
5 Pan Adjustment connection
6 Tilt Adjustment connection
Camera body (Buttons and SD card slot are located
on the underside of the camera).
7
Note: You will need to remove the cover to access
them.
Figure 2: Cable connections
Table 2: Cable connection descriptions
Number
1
2
3
4
Figure 3: Camera buttons and SD card slot
Camera part description
Figure 2
Cable connection description
Ethernet Connector and also supports PoE
Audio Input (Max 30V DC / 30mA)
Alarm Output / Input (5V DC @10mA)
Power Connector (12V DC @ 1A)
Figure 3
Figure 3: Camera buttons and SD card slot (continued)
Note: Remove the two screws on the camera cover (1) (Figure 3) to
access the buttons. Securely attach the cover when finished.
Table 3: Camera button descriptions and SD card slot
Number Camera button description
1 Camera button cover
2 Micro SD Card Slot
3 Reset button (Hold for more than 3 seconds)
Quick reference
 Default IP: 192.168.1.168 (DHCP enabled)
 Default Username / Password: admin / admin
 Power: 12VDC, 2A - For 12VDC power supply, use Phihong AC
adaptor, model PMA36R-120 (not provided) or PoE 48VDC, 0.35A
- For PoE power, use AXIS Communications, AXIS T8134
MIDSPAN 60W, model 5900-331-01 (not provided).
 Use Internet Explorer 11 web browser
Mounting the camera to a wall or ceiling
1. Place the mounting template on the surface that you want to attach
the camera.
2. On the surface drill four Ø 5mm holes and cut out a >30 Ømm
cable hole as per the markings identified on the mounting template.
3. Securely place the four screw anchors into the four holes.
4. Place the camera cable through the cable hole on the mounting
surface.
5. Hold the camera base (4) (Figure 1) up to the mounting template
and align the four holes on the camera base with the four holes on
the mounting surface.
Mounting the camera to a wall or ceiling (continued)
6. Insert the four PA 4x25mm screws into the four holes on the
camera base and securely attach the camera to the mounting
surface.
7. Attach the ferrite 'round clamp' to the large single camera cable.
Note: Ensure that the ferrite clamp (1) (Figure 4) is positioned close
to the camera base on the cable.
Figure 4: Round ferrite clamp position on the cable
Figure 4
