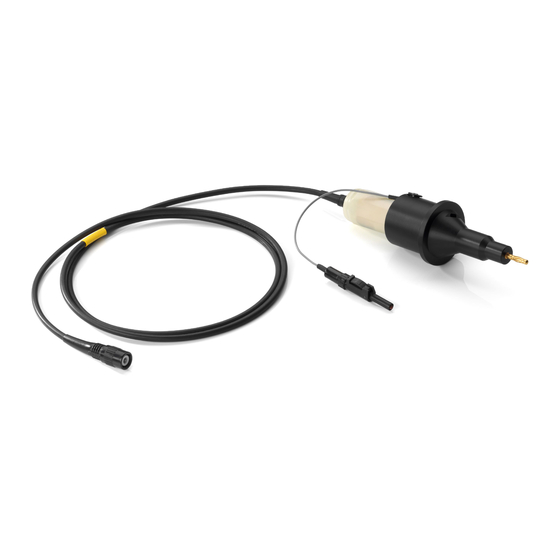

- Page 1 Test and Measurement Division Manual Passive Voltage Probe R&S ESH2-Z3 299.7810.56 Attenuator R&S ESH2Z31 827.6513.06 Printed in the Federal Republic of Germany 1156.6124.32-01...
- Page 2 R&S ESH2-Z3 Safety Instructions Safety instructions on the use of Passive Voltage Probe ESH2-Z3 The International Electrotechnical Commission (IEC) for measuring instruments has replaced the IEC348 standard by the more stringent IEC61010-1 standard. Due to this change, we see it necessary to draw your attention again to the following safety-relevant information: 1.
-
Page 3: Table Of Contents
Determining the Interference Source Impedance Zs ..............6 Measuring and Evaluating the Interference Level.................6 Practical Effects of the EUT Source Impedance on the measurement results with the Pasive Probe R&S ESH2-Z3 and R&S ESH2Z31..................8 3 Required Measuring Equipment ......................9 Recalibration .............................9 4 Circuit Description ..........................10... - Page 4 Grouped Safety Messages Make sure to read through and observe the following safety instructions! All plants and locations of the Rohde & Schwarz group of companies make every effort to keep the safety standard of our products up to date and to offer our customers the highest possible degree of safety. Our products and the auxiliary equipment required for them are designed and tested in accordance with the relevant safety standards.
- Page 5 Grouped Safety Messages Tags and their meaning DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
- Page 6 Grouped Safety Messages 5. If handling the product yields hazardous of the connecting cable is regarded as the substances or fuels that must be disposed of disconnecting device. In such cases, it must in a special way, e.g. coolants or engine oils be ensured that the power plug is easily that must be replenished regularly, the safety reachable and accessible at all times...
- Page 7 Grouped Safety Messages 20. For permanently installed equipment without national regulations regarding waste built-in fuses, circuit breakers or similar disposal and recycling. protective devices, the supply circuit must be 28. Please be aware that in the event of a fire, fused in such a way that suitable protection toxic substances (gases, liquids etc.) that is provided for users and products.
- Page 8 R&S ESH2-Z3 Supplement to Data Sheet Supplement to Data Sheet ESH2-Z3 In comparison to data sheet 756.4320.14, the following has changed: Specifications: ± 2 % || 6 pF Input impedance 1.5 k Ordering information: Passive probe ESH2-Z3 0299.7810.56 1156.6124.32...
- Page 9 EC Certificate of Conformity Certificate No.: 2002-15 This is to certify that: Equipment type Stock No. Designation ESH2-Z3 0299.7810.54 /.56 Passive Voltage Probe ESH2-Z31 0827.6513.06 Attenuator complies with the provisions of the Directive of the Council of the European Union on the...
- Page 10 Certified Quality System DIN EN ISO 9001 : 2000 DIN EN 9100 : 2003 DIN EN ISO 14001 : 2004 DQS REG. NO 001954 QM UM QUALITÄTSZERTIFIKAT CERTIFICATE OF QUALITY CERTIFICAT DE QUALITÉ Sehr geehrter Kunde, Dear Customer, Cher Client, Sie haben sich für den Kauf eines you have decided to buy a Rohde &...
- Page 11 Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz equipment, contact one of our Customer Support Centers. A team of highly qualified engineers provides telephone support and will work with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...
-
Page 12: Preparation For Use And Operating Instructions
Preparation for Use Insert the BNC plug of the Passive Voltage Probe R&S ESH2-Z3 into the RF input socket of the test instrument. When using the an R&S Test Receiver, use the transducer table to enter the values of the voltage division factor and activate the transducer factor. -
Page 13: Measurement
2 Measurement Determining the Interference Source Impedance Zs Generally, interference sources have low impedance so that measurements using the R&S ESH2-Z3 produce correct results. Though, the levels measured with an undefined source impedance may be incorrect. In order to determine the impedance Zs of the interference source, first measure the level without and then with attenuator 6 at a test frequency complying with CISPR Publication 16-2-1, Section 2.4.6.2 (see Fig. - Page 14 R&S ESH2-Z3 Measurement Test point ESH2-Z3 Measuring M. O. Receiver Ground lead Ground Attenuater ESH2Z31 ESH2-Z3 Measuring M. O. Receiver Fig. 1 Determination of interference source impedance Z s | Zs | / 1000 10000 100000 Measurement error Reduction of indication...
-
Page 15: Practical Effects Of The Eut Source Impedance On The Measurement Results With The Pasive Probe R&S Esh2-Z3 And R&S Esh2Z31
Test setup for the measurement of the measurement of the effect of the EUT source impedance on results. Screening box und mit “R” beschriften) The results are shown in Fehler! Verweisquelle konnte nicht gefunden werden. Fig. 4 Comparison of test results with R&S ESH2-Z3 (2) and R&S ESH2-Z3 + R&S ESH2Z31 (3)Maintenance 1156.6124.32... -
Page 16: Required Measuring Equipment
Adapter BNC-banana plug 0017.6742.00 Recalibration Recalibration of the Passive Voltage Probe R&S ESH2-Z3 is carried out by a two-port measurement using the test setup shown below. Test setup: Remove crocodile clamp from earth cable. So the banana plug can be put into the BNC-banana adapter. -
Page 17: Circuit Description
Circuit Description R&S ESH2-Z3 4 Circuit Description Electrical Function (See circuit diagram 349.7099 S) The Passive Probe is designed to comply with CISPR Publication 16-1-2 in conjunction with IEC 61010- 1 and thus includes a Y-capacitor to decouple it from any AC supply voltages which may be present in the equipment under test.
