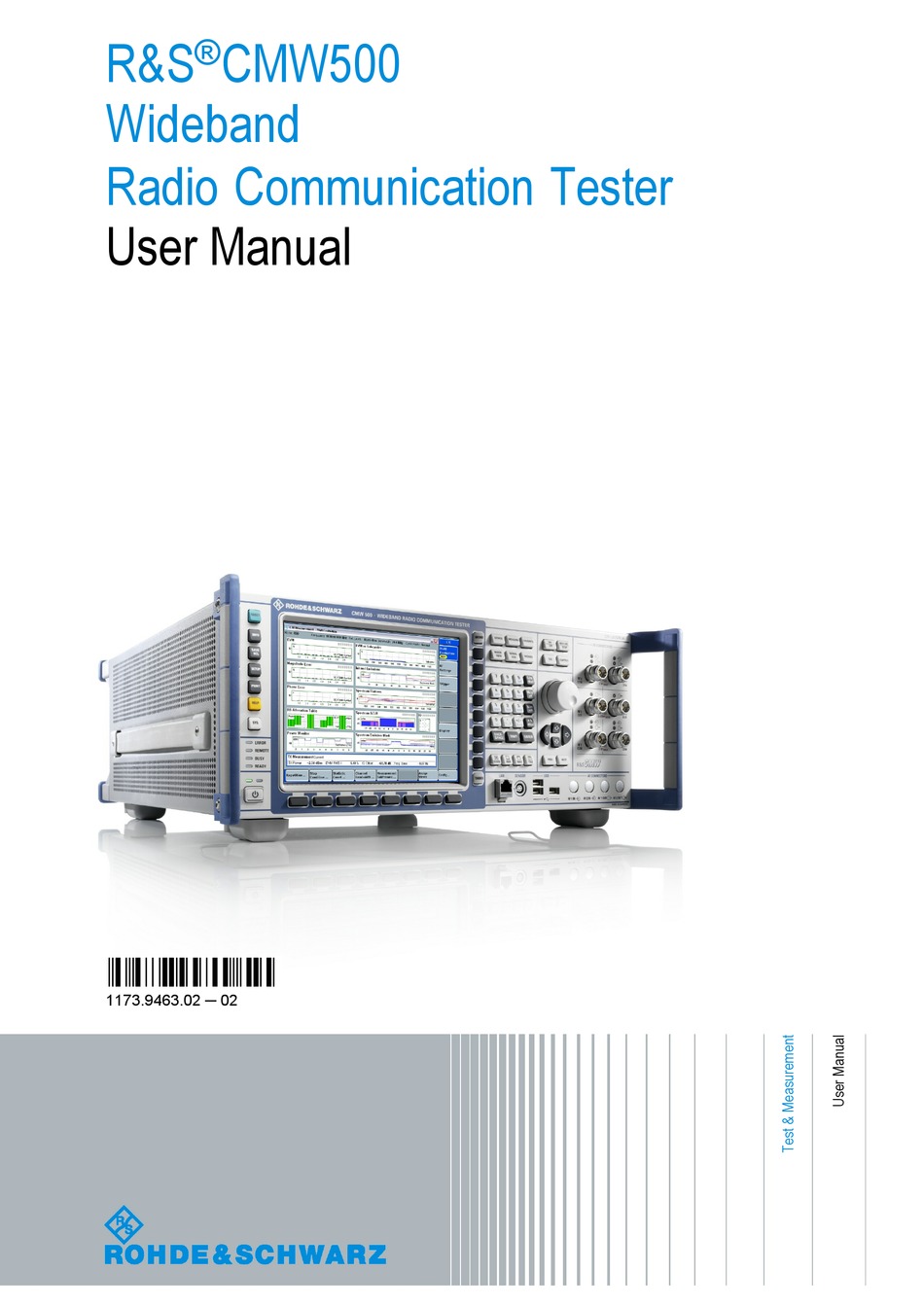

Page 1 ® R&S CMW500 Wideband Radio Communication Tester User Manual (;×ìÍ2) 1173.9463.02 ─ 02...
Page 2 ® This user manual applies to the following R&S CMW models: ● ® ® R&S CMW500 1201.0002K50 (with display, selection R&S CMW-S600B) ● R&S ® CMW500 1201.0002K50 (without display, selection R&S ® CMW-S600A) The manual describes the base software, common features of the firmware applications and basic principles for manual operation and remote control.
Page 3: Table Of Contents
® Contents R&S CMW500 Contents 1 Preface....................9 What's New in this Revision..................9 Documentation Map......................9 1.2.1 Help System........................9 1.2.2 Quick Start Guide......................10 1.2.3 Documentation CD-ROM....................10 1.2.4 Documentation Update via Internet................10 Note about Faceless Instruments................10 2 Preparing for Use.................13 Front Panel Tour......................13 2.1.1 Utility Keys........................14 2.1.2...
Page 4 ® Contents R&S CMW500 Connecting External Accessories................27 2.5.1 Connecting a Mouse.....................27 2.5.2 Connecting a Keyboard....................28 2.5.3 Connecting a Printer.....................28 2.5.4 Connecting a Monitor....................29 2.5.5 Connecting a LAN Cable....................30 Starting the Instrument and Shutting Down.............30 Remote Operation in a LAN..................31 2.7.1 Assigning an IP Address....................32 2.7.2 Remote Desktop Connection..................33...
Page 5 ® Contents R&S CMW500 4.1.2 Two Sub-Instruments....................56 Generators........................57 4.2.1 Generator Control......................57 4.2.2 RF Path Settings (Generators)..................58 4.2.3 Real-Time and Arbitrary (ARB) Generators..............59 Measurements......................60 4.3.1 Measurement Control....................60 4.3.2 Connection Control (Measurements)................61 4.3.3 Statistical Settings......................62 4.3.4 Statistical Results......................64 4.3.5 Limit Check........................67 4.3.6 Measurement Triggers....................68 4.3.7 TX Measurements......................70...
Page 6 ® Contents R&S CMW500 5.3.7 External Trigger......................108 5.3.8 Logging........................109 5.3.9 Digital IQ........................110 Instrument Setup Dialog...................111 Measurement Controller Dialog................112 Generator/Signaling Controller Dialog..............113 Blockview Dialog.......................113 5.7.1 Show Active Routing....................115 5.7.2 Show Selectable Routing....................115 System Messages.....................117 6 Remote Control..................119 Remote Control Operation..................119 6.1.1 Drivers for Graphical Programming Interfaces............121 6.1.2 Setting the Device Addresses..................121...
Page 7 ® Contents R&S CMW500 6.5.1 Input Unit........................164 6.5.2 Command Recognition....................165 6.5.3 Data Base and Instrument Hardware................165 6.5.4 Status Reporting System....................166 6.5.5 Output Unit........................166 Status Reporting System..................166 6.6.1 Overview of Status Registers..................167 6.6.2 Structure of an SCPI Status Register................167 6.6.3 Contents of the Status Registers................169 6.6.4 Application of the Status Reporting System..............175 6.6.5...
Page 8 ® Contents R&S CMW500 7.3.7 STATus Commands....................219 7.3.8 SYSTem Commands....................241 7.3.9 TRACe Commands.....................260 7.3.10 TRIGger Commands....................264 8 Annexes....................267 Interfaces and Connectors..................267 8.1.1 Rear Panel Connectors....................267 8.1.2 LAN Interface......................270 8.1.3 GPIB Bus Interface.....................273 Comparison with R&S CMU..................276 8.2.1 Segmentation, Addressing and Resource Management..........276 8.2.2 RF Path Settings......................277 8.2.3...
Page 9: Preface
® Preface R&S CMW500 What's New in this Revision 1 Preface This chapter provides an overview of new features and an overview of the R&S CMW500 operating documentation. 1.1 What's New in this Revision This revision describes version 2.1.10 of the R&S CMW500 base software. Compared to the previous software version it provides the new features listed below.
Page 10: Quick Start Guide
® Preface R&S CMW500 Note about Faceless Instruments You can use the help also if you control the instrument from an external monitor. Fur- thermore you can transfer the help to your PC and use it as a standalone help. 1.2.2 Quick Start Guide The quick start guide describes everything that is needed to put the instrument into oper- ation and helps you to get familiar with the R&S CMW500.
Page 11 ® Preface R&S CMW500 Note about Faceless Instruments the instrument into operation and connect external devices. The application examples in the other chapters are also based on an R&S CMW500 with display. The measurement functionality of the two instrument types is identical. You can test all measurement examples reported in this manual using an R&S CMW500 without display that is controlled from the Graphical User Interface displayed on an external monitor or For specific information concerning faceless instruments, refer to your quick start guide.
Page 13: Preparing For Use
® Preparing for Use R&S CMW500 Front Panel Tour 2 Preparing for Use The following topics will help you to get familiar with the instrument and perform the first steps: ● Front Panel Tour ● Rear Panel Tour ● Putting the Instrument into Operation General Safety Instructions Please make sure to observe the instructions for instrument setup and connection so that you cannot cause damage to the instrument or endanger people.
Page 14: Utility Keys
® Preparing for Use R&S CMW500 Front Panel Tour Soft-Front Panel When using a remote desktop connection or an external monitor a soft-front panel is available. See Using the Soft-Front Panel and Keyboard Shortcuts. 2.1.1 Utility Keys The keys to the left of the display cause the R&S CMW500 to return to a definite instru- ment state and provide information on the instrument and assistance.
Page 15: Display
® Preparing for Use R&S CMW500 Front Panel Tour The status LEDs light to indicate the following instrument states: ● ERROR: An error that impairs the correct functioning (e.g. a hardware error) occurred during operation. The error must be eliminated before correct instrument operation can be ensured.
Page 16: Setup Keys
® Preparing for Use R&S CMW500 Front Panel Tour 2.1.4 Setup Keys The keys to the right of the display select views and control the measurements and win- dows. See also Data Entry Keys. The keys above the numeric key pad provide access to the following dialogs and views: ●...
Page 17: Data Entry Keys
® Preparing for Use R&S CMW500 Front Panel Tour ● MAX – for future extensions ● TILE – for future extensions 2.1.5 Data Entry Keys The keys in the data entry keypad are used to enter numbers and units. Data entry keys are only enabled while the cursor is placed on a data input field in a dialog.
Page 18: Front Panel Connectors
® Preparing for Use R&S CMW500 Front Panel Tour PREV and NEXT ● Switch between several active elements in dialogs, e.g. in order to access all buttons, input fields etc. in a dialog. 2.1.7 Front Panel Connectors The RF and AF connectors and various additional control interface connectors are loca- ted on the front panel.
Page 19: Rear Panel Tour
® Preparing for Use R&S CMW500 Rear Panel Tour 2.1.7.2 LAN Connector 8-pin connector RJ-45 used to connect the R&S CMW500 to a Local Area Network (LAN). Refer to Remote Operation in a LAN. It supports up to 100 Mbit/s. A second LAN con- nector labeled LAN REMOTE is available on the rear panel of the instrument.
Page 20 ® Preparing for Use R&S CMW500 Rear Panel Tour The following connectors are available on all instruments: ● LAN REMOTE is an RJ-45 connector. Use this connector to integrate the instrument to a Local Area Network, primarily for remote control purposes. ●...
Page 21: Putting The Instrument Into Operation
® Preparing for Use R&S CMW500 Putting the Instrument into Operation ● IEEE 488 CH 1 and IEEE 488 CH 2 are two equivalent GPIB bus connectors accord- ing to standard IEEE 488 /IEC 625, see "GPIB Bus Interface" in the annex of the operating manual.
Page 22: Instrument Setup
® Preparing for Use R&S CMW500 Putting the Instrument into Operation 5. Check the instrument for any damage. If there is damage, immediately contact the carrier who delivered the instrument. In this case, make sure not to discard the box and packing material.
Page 23: Mounting In A 19" Rack
® Preparing for Use R&S CMW500 Putting the Instrument into Operation Danger of injury The feet may fold in if they are not folded out completely or if the instrument is shifted. The feet may break if they are overloaded. Fold the feet completely in or completely out to ensure stability of the instrument and personal safety.
Page 24: Emi Suppression
® Preparing for Use R&S CMW500 Putting the Instrument into Operation Operation in a rack ● Allow for sufficient air supply in the rack. ● Make sure that there is sufficient space between the ventilation holes and the rack casing. 2.3.5 EMI Suppression To suppress generated Electromagnetic Interference (EMI), operate the instrument only while it is closed, with all shielding covers fitted.
Page 25: Replacing Fuses
® Preparing for Use R&S CMW500 Putting the Instrument into Operation ● To turn the power on or off, press the AC power switch to position I (On) or 0 (Off). ● See also Replacing Fuses. After power-on, the R&S CMW500 is in standby or ready state, depending on the state of the standby toggle switch at the front panel of the instrument when the instrument was switched off for the last time, see Standby and Ready...
Page 26: Optional Cabling
® Preparing for Use R&S CMW500 Maintenance Shock hazard The instrument is still power-supplied while it is in standby mode. 2.3.10 Optional Cabling Option R&S CMW-B661A, "Ethernet Switch H661A", is delivered with a separate ethernet cable (patch cable). This patch cable must be connected if a R&S CMW500 with a SUW Signaling Unit (option R&S CMW-B300) is used for the "Unit Test >...
Page 27: Storing And Packing
® Preparing for Use R&S CMW500 Connecting External Accessories Instrument damage caused by cleaning agents Cleaning agents contain substances that may damage the instrument, e.g. solvent-con- taining cleaning agents may damage the front panel labeling or plastic parts. Never use cleaning agents such as solvents (thinners, acetone, etc), acids, bases, or other sub- stances.
Page 28: Connecting A Keyboard
® Preparing for Use R&S CMW500 Connecting External Accessories The mouse is detected automatically when it is connected. It is safe to connect or dis- connect the mouse during the measurement. Mouse configuration Use the "Start - Control Panel - Mouse" menu of Windows XP to configure the mouse properties.
Page 29: Connecting A Monitor
® Preparing for Use R&S CMW500 Connecting External Accessories Print dialog Generating a hardcopy of a file requires the operating system and an appropriate appli- cation program. While in the R&S CMW500 software application, you can use the Print Dialog to save the display contents to a file.
Page 30: Connecting A Lan Cable
® Preparing for Use R&S CMW500 Starting the Instrument and Shutting Down 2.5.5 Connecting a LAN Cable A LAN cable can be connected to a LAN connector of the R&S CMW500. To establish a LAN connection proceed as follows: 1. Refer to section Assigning an IP Address and learn how to avoid connection errors.
Page 31: Remote Operation In A Lan
® Preparing for Use R&S CMW500 Remote Operation in a LAN 2. If necessary, press the standby toggle switch on the front panel to switch the instru- ment to ready state (the green LED is on). See also Standby and Ready State In ready state, the tester automatically performs a system check, boots the Windows operating system and then starts the CMW application, see...
Page 32: Assigning An Ip Address
® Preparing for Use R&S CMW500 Remote Operation in a LAN Virus protection An efficient virus protection is a prerequisite for secure operation in a network. Please notice the following recommendations when using anti-virus software on the R&S CMW500: ● To avoid adverse effects on the performance of the instrument, download of signature files from the internet and hard disk scans must not be performed during the use of testing capabilities.
Page 33: Remote Desktop Connection
® Preparing for Use R&S CMW500 Remote Operation in a LAN 2. Connect an external monitor and an external keyboard to your instrument and per- form the startup procedure. 3. Press the SETUP key to open the "Setup" dialog. 4. In the "Lan Services" section, disable DHCP and enter your address information, e.g.: 5.
Page 34: Windows Firewall Settings
® Preparing for Use R&S CMW500 Remote Operation in a LAN "Remote Desktop" also provides access to all of the applications, files, and network resources of the R&S CMW500. To set up a "Remote Desktop" connection, proceed as follows: 1. Access the operating system by pressing the Windows key on the external keyboard or the SYS key on the front panel (only instruments with display).
Page 35: Windows Xp
® Preparing for Use R&S CMW500 Windows XP Risks of changing the firewall settings Disabling the firewall or allowing exceptions may make your instrument more vulnerable to viruses and intruders. It is recommend to restore the default firewall configuration after completing a task which requires modified settings.
Page 36: Software Update
® Preparing for Use R&S CMW500 Software Update 2.9 Software Update The following sections are related to software updates. ● Software Packages....................36 ● Compatibility of SW Versions and Parallel Installation..........36 ● Update Procedure....................37 ● R&S Software Distributor..................39 ● R&S Version Selector.....................40 2.9.1 Software Packages The R&S CMW500 software consists of the mandatory CMW base software package...
Page 37: Update Procedure
® Preparing for Use R&S CMW500 Software Update Software versions < V2.0.10 can not be installed in parallel to any other software version. So any software version < V2.0.10 must be uninstalled before one or several software branches ≥ V2.0.10 can be installed. 2.9.3 Update Procedure Connection to power supply Ensure that the instrument remains connected to the power supply during software mod-...
Page 38 ® Preparing for Use R&S CMW500 Software Update See also R&S Version Selector. 5. Double-click the setup file to be executed, e.g. "Setup_CMW_BASE(Release)_<Ver- sion>.exe". In the "R&S Software Distributor" opened, select either "Local Installation" or "Remote Installation", depending on the location of your setup files. If you want to install additional packages provided by other setup files, enable "Add other setups from current directory".
Page 39: R&S Software Distributor
® Preparing for Use R&S CMW500 Software Update Test 2: ● Adjustment and verification with the new software. ● Downgrade to the latest official software and verification. The tests are passed if all verification results show comparable values. Rohde & Schwarz is certified according to ISO 9001 since May 1995. 2.9.4 R&S Software Distributor The "R&S Software Distributor"...
Page 40: R&S Version Selector
® Preparing for Use R&S CMW500 Software Update 2. Start one setup file. 3. In the "R&S Software Distributor" dialog enable "Add other setups from current direc- tory". As a result the packages of all setup files in the same directory are offered for instal- lation when you press "Next".
Page 41 ® Preparing for Use R&S CMW500 Software Update If you want to perform an automatic restart of the instrument when the action is com- plete, enable "with Restart". 2. Click the relevant action button to the right and follow any instructions of the "R&S Version Selector"...
Page 43: Getting Started
® Getting Started R&S CMW500 Basic Tasks 3 Getting Started This chapter helps you to get familiar with the R&S CMW500 and explains how to solve basic tasks that you will frequently encounter when working with the instrument. Risk of shock hazard and instrument damage Before starting any measurement on your R&S CMW500, please note the instructions given in chapter Preparing for...
Page 44 ® Getting Started R&S CMW500 Basic Tasks Press the "MEASURE" key to open the Measurement Controller Dialog, from where you can select each of the measurement applications which are enabled on your instrument. Press the "SIGNAL GEN" key to open the Generator/Signaling Controller Dialog activate a generator or signaling application.
Page 45: Data Entry
® Getting Started R&S CMW500 Basic Tasks Keyboard Shortcuts Keyboard shortcuts (e.g. "Ctrl + M" for the "Measurement Controller"; see above) provide direct access to all utility dialogs of the R&S CMW500. See also Using the Soft-Front Panel and Keyboard Shortcuts 3.1.2 Data Entry The R&S CMW500 provides dialogs with various types of input fields where you can enter numeric values and character data.
Page 46: Using Front Panel Keys
® Getting Started R&S CMW500 Basic Tasks 3.1.2.3 Entering Characters Use the Data Entry Keys to enter characters. ● Press 0 to 9 repeatedly to enter different characters. ● Press the dot key for special characters. ● Press plus/minus to switch between upper and lower case. ●...
Page 47: Using An External Keyboard
® Getting Started R&S CMW500 Basic Tasks 3.1.4 Using an External Keyboard The Graphical User Interface can also be controlled by means of an external keyboard. To access and activate control elements in dialogs: ● Access the dialog using one of the methods described in Accessing Dialogs.
Page 48: Using The Soft-Front Panel And Keyboard Shortcuts
® Getting Started R&S CMW500 Basic Tasks ● Press SIGNAL GEN to open the "Generator/Signaling Controller". ● Expand a measurement/generator/signaling application and select/clear the "Task- bar entry" checkbox. Selected items are added to the task bar, cleared items are removed. 3.1.6 Using the Soft-Front Panel and Keyboard Shortcuts The keys on the soft-front panel provide access to the utility dialogs of the Graphical User Interface (GUI) and to the task bar.
Page 49: Sample Session
® Getting Started R&S CMW500 Sample Session Extended soft-front panel With a horizontal screen resolution of 1280 pixels or higher, you can display an extended soft-front panel with softkey/hotkey symbols, standby key, data entry and cursor keys, and a rotary knob. The extended soft-front panel emulates the front panel controls of a R&S CMW500 that is equipped with a display.
Page 50 ® Getting Started R&S CMW500 Sample Session Fig. 3-1: General Purpose RF Generator dialog 2. Click "Routing > Connector" and select your RF output connector. In the following we assume that RF1 COM is used. 3. Select the "Frequency" (1200 MHz) and "Level (RMS)" (–30 dBm) of the RF output signal.
Page 51: Measuring An Rf Signal
® Getting Started R&S CMW500 Sample Session Fig. 3-2: SSB modulated generator signal You can now tap the RF generator signal with the selected properties at the RF1 COM connector. For an instructive configuration check, you can connect RF1 COM to RF2 COM using a coax cable and observe your signal using the "GPRF Power"...
Page 52: Performing Signaling Measurements
® Getting Started R&S CMW500 Sample Session 3. Press the TASKS key and select the "GPRF Meas Power" measurement from the task bar across the bottom of the display (see also Configuring the Task Bar). The "General Purpose RF - Power" dialog is opened. 4.
Page 53 ® Getting Started R&S CMW500 Sample Session A signaling test session involves the following steps. 1. Connect your MS to the R&S CMW500, preferably using one of the bidirectional RF connectors RF 1 COM or RF 2 COM at the front panel. 2.
Page 54 ® Getting Started R&S CMW500 Sample Session In principle, a signaling test session involves the following steps. 1. Connect your MS to the R&S CMW500, preferably using one of the bidirectional RF connectors RF 1 COM or RF 2 COM at the front panel. 2.
Page 55: System Overview
® System Overview R&S CMW500 Sub-Instruments 4 System Overview This chapter provides an overview of the capabilities of the R&S CMW500 and their use. This includes a description of the basic concepts that the tester uses to organize, process and display measurement data. These basic concepts are valid for all firmware applica- tions.
Page 56: Two Sub-Instruments
® System Overview R&S CMW500 Sub-Instruments Depending on the installed baseband link option each firmware application instance can access an arbitrary RX and TX signal path or only a fixed signal path. The available baseband link options are the flexible link (R&S CMW-S550B/M) and the fixed link (R&S CMW-S550A).
Page 57: Generators
® System Overview R&S CMW500 Generators The table below summarizes these assignments. All assignments are fixed. The firmware application instances of the two sub-instruments are named identically, but are inde- pendent of each other. Table 4-3: Assignments for two sub-instruments Sub-instrument 1 Sub-instrument 2 Generator Controller entry...
Page 58: Rf Path Settings (Generators)
® System Overview R&S CMW500 Generators ► To turn the generator on or off, press ON | OFF. It is not necessary to select the generator control softkey. As soon as an output signal is available at the selected connector, the control softkey indicates the "ON"...
Page 59: Real-Time And Arbitrary (Arb) Generators
® System Overview R&S CMW500 Generators independent attenuating component in the test setup (e.g. a non-ideal cable, a test fixture or an RF shielding chamber used to hold the DUT), or an amplifier. Additional settings for compensation of a frequency-dependent attenuation/gain are pro- vided by the base system of the instrument.
Page 60: Measurements
® System Overview R&S CMW500 Measurements Use an ARB generator if you wish to: ● Utilize the flexibility of R&S WinIQSIM2 in configuring the signal properties ● Re-use signal that you have once configured ● Quickly alternate between signals with different properties (multi-segment files) Use a real-time generator if you wish to: ●...
Page 61: Connection Control (Measurements)
® System Overview R&S CMW500 Measurements 4.3.2 Connection Control (Measurements) The R&S CMW500 provides a number of settings that are very similar in different meas- urements but can be configured independently. These settings control the routing of input signals, the correction of the input power, the RF analyzer and trigger system. Signal Routing Settings (Input) The R&S CMW500 provides RF input connectors for different power ranges, see Connectors.
Page 62: Statistical Settings
® System Overview R&S CMW500 Measurements The external attenuation also enters into the internal calculation of the maximum input power that the R&S CMW500 can measure (see "Expected Nominal Power" below). Frequency-independent attenuations are defined as part of the measurement settings, refer to the description of the measurement application.
Page 63 ® System Overview R&S CMW500 Measurements Statistic Count / Measurement Cycle The statistic count (also termed statistic length) is the integer number of measurement intervals per measurement cycle (statistics cycle, single-shot measurement). The length of a measurement interval is measurement-specific. Conformance measurement speci- fications often request a certain number of repetitions of a particular measurement.
Page 64: Statistical Results
® System Overview R&S CMW500 Measurements 4.3.4 Statistical Results The R&S CMW500 repeats the measurements according to the selected statistic count and repetition mode; see Statistical Settings. Consecutive measurement values are stored and used to calculate statistical results. The following sections describe the cal- culation of statistical results in detail.
Page 65 ® System Overview R&S CMW500 Measurements The statistics type is often combined with detector settings, see Detectors. 4.3.4.2 Detectors The detector setting specifies how a single measurement result is calculated from a set of adjacent measurement points: ● RMS: The displayed result represents the RMS average (e.g. the mean power) in a specified measurement interval.
Page 66 ® System Overview R&S CMW500 Measurements 4.3.4.3 Peak Values "Peak" values are calculated as the maximum of the magnitude times the sign: ● For positive quantities such as the EVM, the peak value is equal to the maximum. ● For negative quantities such as the I/Q offset and the I/Q imbalance, expressed in dB, the peak value is equal to the minimum.
Page 67: Limit Check
® System Overview R&S CMW500 Measurements 4.3.4.5 Standard Deviation The "Standard Deviation" σ indicates the spread of the n values at each measurement point. It is defined as the square root of the variance, which is the mean square of the deviation of the values from their own arithmetic mean.
Page 68: Measurement Triggers
® System Overview R&S CMW500 Measurements The following example shows the template for an 8PSK-modulated GSM burst: To pass the limit check all "Power vs. Time" results must be between the upper and the lower limit lines. Fig. 4-3: Example of limit lines (GSM) The pass/fail indication in the result tables have the following meaning.
Page 69 ® System Overview R&S CMW500 Measurements ● Real-time or ARB generators can generate marker signals, to be used for synchro- nization of a measurement; see Marker Signals. ● Signaling applications provide trigger events which are synchronized to their downlink (forward link) signals. Due to the known downlink/uplink timing of the mobile station under test, a signaling trigger is generally appropriate for TX measurements run in parallel.
Page 70: Tx Measurements
® System Overview R&S CMW500 Measurements 4.3.7 TX Measurements The purpose of a TX measurement is to assess the performance of an RF transmitter. Despite the differences in detail, TX measurements for different network standards have many properties in common. 4.3.7.1 Power Results Power measurements are essential, e.g.
Page 71 ® System Overview R&S CMW500 Measurements Error Vector Magnitude (EVM), Phase Error, Magnitude Error, Code Domain Error The error vector E = Z - R’ is calculated as an array at each sample in the measurement interval. From E and Z the following arrays can be calculated: | E | = | Z - R’...
Page 72 ® System Overview R&S CMW500 Measurements I/Q Offset, I/Q Imbalance, Waveform Quality The following figure is an idealized representation of the modulation errors where the effects of a pure origin offset (first diagram) and of a pure I/Q imbalance (second diagram) are completely disentangled.
Page 73 ® System Overview R&S CMW500 Measurements The I/Q offset in dB (or dBc, according to some network standards) is the logarithmic ratio of the I/Q offset vector (i.e. the estimated DC-offset of the measured signal) to the average offset-corrected signal vector: In the equation above, | Offset - corrected signal vector | denotes the magnitude of the offset-corrected signal vector that is RMS-averaged over all samples.
Page 74 ® System Overview R&S CMW500 Measurements The off-carrier power can be assessed by several complementary quantities: ● The Adjacent Channel Leakage power Ratio (ACLR) is the ratio of the power mea- sured in an adjacent channel (Adjacent Channel Power, ACP) to the transmitted car- rier power, expressed in dB.
Page 75 ® System Overview R&S CMW500 Measurements Occupied Bandwidth (OBW) For wideband and OFDM(A) signals, the "Occupied Bandwidth" is the width of a sym- metric frequency interval around the nominal RF carrier frequency that contains 99 % of the total integrated power of the transmitted spectrum. The occupied bandwidth shows whether the signal is confined to the assigned bandwidth of the channel.
Page 76 ® System Overview R&S CMW500 Measurements In the following figure, the CDP of the DPCCH and the DPDCH in an uplink WCDMA signal is displayed over a measurement period of 120 WCDMA slots. The average DPDCH power is approximately 1 dB above the average DPCCH power. 4.3.7.5 I/Q Constellation Diagram The constellation diagram shows the modulation symbols as points in the I/Q plane.
Page 77 ® System Overview R&S CMW500 Measurements The constellation diagrams depend on the modulation type; for details refer to the description of the individual firmware applications. The diagrams are normalized such that the average distance of all points from the origin is 1. Constellation diagrams give a graphical representation of the signal quality and can help to reveal typical modulation errors causing signal distortions, as shown in the table below.
Page 78: Rx Measurements
® System Overview R&S CMW500 Measurements bed in section "Measurement Results" in the description of the "WiMAX measurement" firmware application. Compared to independent TX measurements, multi evaluation measurements provide several advantages: ● They ensure highest measurement speed. ● They provide a comprehensive picture of the performance of a tested RF transmitter with a minimum of effort for configuring the R&S CMW500.
Page 79: Signaling Applications
® System Overview R&S CMW500 Signaling Applications ● In a single-ended receiver quality test, the received bit sequence is evaluated at the DUT. The measurement requires a real-time or ARB RF generator; no R&S CMW500 measurement application is needed. ● In a loop test the DUT is commanded into an operating mode where it loops back the received data.
Page 80: Control Of The Cell State
® System Overview R&S CMW500 Signaling Applications The R&S CMW500 provides various RF input and output connectors, see RF Connec- tors. The standard test setup corresponds to a bidirectional connection between the mobile under test and one of the bidirectional (COM) connectors of the R&S CMW500. The RF connectors and other basic signal settings appear in the "RF Settings"...
Page 81: Connection States
® System Overview R&S CMW500 Markers "Pending" state Depending on the signaling application and its configuration, the R&S CMW500 may require some time to provide the generator signal. While the signaling generator is turned on but still waiting for resource allocation, adjust- ment, hardware switching, a yellow sandglass symbol in the control softkey indicates the "pending"...
Page 82 ® System Overview R&S CMW500 Markers The marker settings are accessed via the "Marker" softkey. No remote control for markers is provided. User Manual 1173.9463.02 ─ 02...
Page 83: Basic Instrument Functions
® Basic Instrument Functions R&S CMW500 Startup Dialog 5 Basic Instrument Functions The following sections describe dialogs and settings for general use. The dialogs are not related to a particular general purpose or network test application. 5.1 Startup Dialog The "Startup" dialog shows the progress of the startup procedure and the available options.
Page 84: Utility Dialogs
® Basic Instrument Functions R&S CMW500 Utility Dialogs Factory Default Reset the instrument settings made in previous sessions, load factory default settings (see Reset Dialog). This softkey affects all firmware applications of the R&S CMW500. Continue / Wait Resume or interrupt the startup procedure. "Wait" is appropriate e.g. for a check of the installed hardware and software options;...
Page 85 ® Basic Instrument Functions R&S CMW500 Utility Dialogs Fig. 5-2: Dialog for 1 sub-instrument Fig. 5-3: Dialog for several sub-instruments The reset/preset can be performed for the entire R&S CMW500 or it can be limited to the current firmware application. If the R&S CMW500 has been split into sub-instruments (see Instrument Setup Dialog),...
Page 86: Save/Recall Dialog
® Basic Instrument Functions R&S CMW500 Utility Dialogs ● The instrument setup SCPI command: etc. SYSTem: P RESet Reset Sets the instrument parameters to values suitable for remote operation. In particular, the "Reset" state comprises the following settings: ● All measurements are performed in Single-Shot mode ("Repetition: Single-Shot"). ●...
Page 87 ® Basic Instrument Functions R&S CMW500 Utility Dialogs Fig. 5-4: Save/Recall dialog The "Save/Recall" dialog provides the following control softkeys and hotkeys. Save / Partial Save Saves the current configuration (or a part of it) to a file. Save files are stored in a default directory on drive D: of the internal hard disk.
Page 88: Print Dialog
® Basic Instrument Functions R&S CMW500 Utility Dialogs Add Folder Adds a new subfolder to the selected folder. Rename / Delete Renames / deletes the selected folder or file. Copy / Paste Copies / pastes a folder or file. An object can only be copied from one folder to another. The destination folder must not yet contain an object of the same type with the same name.
Page 89: Info Dialog
® Basic Instrument Functions R&S CMW500 Utility Dialogs The R&S CMW500 supports the following bitmap data formats for print files: ● .bmp, .emf, .jpeg, .pbm, .pgm, .png, .ppm, .wmf, .xbm, .xpm The default file format (for file names entered without extension) is .jpeg. 5.2.4 Info Dialog The "Info"...
Page 90 ® Basic Instrument Functions R&S CMW500 Utility Dialogs Fig. 5-6: Info – Current State State Generator state, signaling generator state or measurement state, see Generator Con- trol, Measurement Control Control of the Cell State. Reliability The reliability indicator describes the validity of measurement results and the possible source of inaccuracies or errors.
Page 91 ® Basic Instrument Functions R&S CMW500 Utility Dialogs Last Calibration Display the type and date of the last calibration of the instrument. Remote commands allow also to query information about previous calibrations. Possible types of calibration are: ● F/S Correction: Correction performed in factory or service ●...
Page 92 ® Basic Instrument Functions R&S CMW500 Utility Dialogs Fig. 5-7: Info – Problem Reporting The dialog provides the following hotkeys. Prepare for sending Stores the selected log file directory into one or more compressed files, located in the "Output" directory. Max.
Page 93: Setup Dialog
® Basic Instrument Functions R&S CMW500 Setup Dialog 5.3 Setup Dialog The "Setup" dialog helps you perform various basic and administrative tasks. To open the dialog press SETUP. The "Setup" dialog is subdivided into the following sections: ● "System" - defines the overall appearance of the dialogs and address information for remote control.
Page 94 ® Basic Instrument Functions R&S CMW500 Setup Dialog Fig. 5-8: Setup - System Display Configures the look of the GUI at the display. SCPI command: SYSTem:DISPlay:... SYSTem:BASE:DISPlay:... Display Settings Lan Services The available network adapters can be configured independently. One is accessed via the LAN connector on the front panel, the other via the LAN REMOTE connector on the rear panel.
Page 95: Remote Settings
® Basic Instrument Functions R&S CMW500 Setup Dialog subnet mask 255.255.0.0) must not be changed. For test setup details, refer to the "Data Application Unit" user manual. SCPI command: SYSTem:COMMunicate:NET:... LAN Services Data Appl. Control If a Data Application Unit (DAU) is installed, "Go to config" opens the "Data Application Control"...
Page 96 ® Basic Instrument Functions R&S CMW500 Setup Dialog Fig. 5-9: Setup - Remote Most connection parameters are fixed and displayed for information only. The most important parameters are described below. Visa Resource (all protocol types) The "Visa Resource" string depends on the protocol type and the assigned address information.
Page 97 ® Basic Instrument Functions R&S CMW500 Setup Dialog For VXI-11 the "Assigned Instrument" number is also part of the VISA resource string, with instrument 1 mapped to "inst0" and instrument 2 mapped to "inst1". SCPI command: Data Port (TCPIP only) The data port number is part of the TCPIP VISA resource string.
Page 98: Activating Options
® Basic Instrument Functions R&S CMW500 Setup Dialog Enabled (IEC only) Enables or disables a GPIB remote channel. Up to four channels are available. Two sub- instruments can be controlled using/enabling either two channels of one board or one channel per board. SCPI command: SYSTem:...
Page 99: Sw/Hw Equipment
® Basic Instrument Functions R&S CMW500 Setup Dialog Manual Activation Type in the key code using an input box. The separating dots are entered automatically. Manual Deactivation Not needed at present, for future extensions. Install License File Avoid typing in your key code; use a license file instead. The file is supplied with the key code;...
Page 100: Selftests
® Basic Instrument Functions R&S CMW500 Setup Dialog Fig. 5-11: Setup - Remote A list of options can also be retrieved using the remote command SYSTem:BASE:OPTion:LIST?. A list of options can also be retrieved via remote command, see SYSTem: B ASE: on page 254.
Page 101 ® Basic Instrument Functions R&S CMW500 Setup Dialog Fig. 5-12: Selftest dialog In the dialog you can select one or several tests. Each selftest may be performed once or continuously. Moreover you can save any configuration of the "Selftest" dialog to a "profile"...
Page 102 ® Basic Instrument Functions R&S CMW500 Setup Dialog 5.3.5.2 Board Tests A board test verifies that a particular hardware module works properly. Depending on the board, the R&S CMW500 may provide different types of board tests described below. Diagnosis Test The R&S CMW500 measures a series of selectable diagnostic voltages and checks whether they are within the permitted range.
Page 103 ® Basic Instrument Functions R&S CMW500 Setup Dialog An EEprom test is provided for all modules. Driver Init Test The R&S CMW500 checks whether the operating system has properly initialized the hardware driver for a specific board. If driver initalization failed, or if the board is defective, the "Driver Init Test" is the only board test shown.
Page 104 ® Basic Instrument Functions R&S CMW500 Setup Dialog RF Loop Test A signal which is generated on one of the installed TRX modules is routed to a frontend connector RF <n> COM and back to the TRX module. The main purpose of the test is to verify the connections between the TRX module and the frontend.
Page 105 ® Basic Instrument Functions R&S CMW500 Setup Dialog 5.3.5.4 Performing Selftests Selftests are controlled like any other measurement. The following example shows an "RF Loop Test" which is appropriate for a general check of the RF path. RF Loop Test The "RF Loop Test"...
Page 106 ® Basic Instrument Functions R&S CMW500 Setup Dialog Save Profile, Load Profile A profile is a particular selftest configuration that you store for later reuse. The profile contains all enabled selftests together with their user-defined parameters (if there are any) and the Selftest Configuration parameters.
Page 107: Sync Settings
® Basic Instrument Functions R&S CMW500 Setup Dialog As an alternative to the selection filter, use the "Enable/Disable All" or "Enable/Disable Subtree" hotkeys. Enable/Disable All, Enable/Disable Subtree Selects all or a current group (subtree) of selftests for execution or clears the current selection.
Page 108: External Trigger
® Basic Instrument Functions R&S CMW500 Setup Dialog External Ref. Frequency Value of the external reference frequency. If "Frequency Source: External" is used this value must be equal to the frequency of the signal fed in at the rear panel connector REF IN.
Page 109: Logging
® Basic Instrument Functions R&S CMW500 Setup Dialog 2. An output trigger signal is generated by the R&S CMW500 in order to synchronize external devices. Input and output trigger signals can be routed to the bidirectional BNC connectors TRIG A or TRIG B at the rear panel of the instrument. To open the dialog press SETUP and select "Measurement >...
Page 110: Digital Iq
® Basic Instrument Functions R&S CMW500 Setup Dialog Fig. 5-16: Setup - Misc - Logging Enable Enables or disables the general support of message monitoring. If disabled, no signaling application can use this feature. If enabled, signaling applications supporting this feature can use it.
Page 111: Instrument Setup Dialog
® Basic Instrument Functions R&S CMW500 Instrument Setup Dialog Ext. Time Delay / Ext. Sample Delay Inform the instrument about the delays in the individual external I/Q paths. For each I/Q connector you can enter the delay either in time units or in samples. Relevant delays can be caused by instruments or devices inserted into the external path, e.g.
Page 112: Measurement Controller Dialog
® Basic Instrument Functions R&S CMW500 Measurement Controller Dialog See also: Resource and Path Management SCPI command: SYSTem: B ASE: D EVice: C OUNt SYSTem: B ASE: D EVice: R ESet SYSTem: B ASE: D EVice: S UBinst Go to Sub Instrument 1/2 These buttons are available if "Two Sub Instruments"...
Page 113: Generator/Signaling Controller Dialog
® Basic Instrument Functions R&S CMW500 Generator/Signaling Controller Dialog 5.6 Generator/Signaling Controller Dialog The "Generator/Signaling Controller" dialog gives an overview of the available generator and signaling firmware applications. It also loads the selected applications configures the task bar; see Configuring the Task Bar.
Page 114 ® Basic Instrument Functions R&S CMW500 Blockview Dialog Fig. 5-21: Blockview dialog - Active Routing The blockview dialog shows the most important hardware blocks relevant for RF and baseband signal paths. If the instrument is split into several sub-instruments, the block- view dialog displays only the resources assigned to the currently selected sub-instrument.
Page 115: Show Active Routing
® Basic Instrument Functions R&S CMW500 Blockview Dialog sub-instrument which means that the same name (e.g. "RF TX 1") in different sub- instruments addresses physically different modules. One module can be used by only one firmware application at a time. ●...
Page 116 ® Basic Instrument Functions R&S CMW500 Blockview Dialog Fig. 5-22: Blockview dialog - Selectable Routing Note that each drop-down menu to the left lists only the installed firmware applications supported by the block. The first (uppermost) "BB Generator" supports the first instance of generator applications, the second "BB Generator"...
Page 117: System Messages
® Basic Instrument Functions R&S CMW500 System Messages Reconfiguring a signal path for a specific application 1. Select a block to the left supporting the firmware application to be configured. Example: For the first instance of a measurement select the uppermost "BB Mea- surement"...
Page 118 ® Basic Instrument Functions R&S CMW500 System Messages System Information System information boxes describe the effects of an action that is about to be performed. The information box still allows you to "Cancel" the action. Fig. 5-24: System information System information boxes use different icons, depending on the consequences of the performed action.
Page 119: Remote Control
® Remote Control R&S CMW500 Remote Control Operation 6 Remote Control This chapter provides instructions on how to set up the tester for remote control, a general introduction to remote control of programmable instruments, and the description of the tester's remote control concept. For reference information about all remote control com- mands implemented by the instrument, complemented by comprehensive program examples, refer to the "Command Reference"...
Page 120 ® Remote Control R&S CMW500 Remote Control Operation Table 6-1: Remote control interfaces and protocols Inter- Remarks Protocols, VISA resource string face VXI-11 protocol The LAN device name equals inst0 | inst 1 for sub- instrument 1 | 2. TCPIP[board]::host address[::LAN device name][::INSTR] The LAN REMOTE connector is located on the rear panel.
Page 121: Drivers For Graphical Programming Interfaces
® Remote Control R&S CMW500 Remote Control Operation USB connection A USB connection requires the VISA library to be installed. VISA will detect and configure the R&S CMW500 automatically when it is plugged to the computer. No separate driver installation is necessary. SCPI Compatibility SCPI (Standard Commands for Programmable Instruments) commands - instrument- control commands - are used for remote control.
Page 122: Establishing And Testing A Lan Connection
® Remote Control R&S CMW500 Remote Control Operation 6.1.3 Establishing and Testing a LAN Connection In the following example, a direct LAN connection is set up to the R&S CMW500. The connection is tested using a simple test script. The steps in detail depend on the test environment in use. The present example is based on a test tool which requires an additional VISA installation.
Page 123: Switchover To Remote Control
® Remote Control R&S CMW500 Remote Control Operation 6.1.4 Switchover to Remote Control On power-up, the instrument is always in the manual operating state. It can be operated via the front panel controls (for instruments equipped with a display), a connected key- board and mouse or via the Graphical User Interface (GUI) displayed on an external monitor.
Page 124 ® Remote Control R&S CMW500 Remote Control Operation The displayed remote trace is similar to the remote trace displayed via the LXI home- page, with the softkeys provided in ANALYSE mode corresponding to toolbar buttons of the LXI remote trace. For a detailed description of the LXI remote trace see chap- ter 6.9.4, "SCPI Remote Trace", on page 189.
Page 125: Multiple Channels For Remote Access
® Remote Control R&S CMW500 Remote Control Operation ● Via VXI-11 protocol: &NREN message 6.1.5 Multiple Channels for Remote Access Several remote channels can be used simultaneously. The R&S CMW500 supports up to four parallel channels. No restriction is placed upon the combination of channels: It is possible to combine several channels of the same type (e.g.
Page 126: Messages
® Remote Control R&S CMW500 Messages Examples for channel-dependent registers The Event Status Register (ESR) is similar to the EVENt part of an SCPI register; it indicates instrument events. This register is channel dependent and cleared upon reading The Event Status Enable (ESE) register can be programmed individually for different remote channels.
Page 127: Scpi Command Structure And Syntax
® Remote Control R&S CMW500 Messages are messages the controller sends to the instrument. They operate the device func- tions and request information. ● Device responses are messages the instrument sends to the controller after a query. They can contain measurement results, instrument settings and information on the instrument status.
Page 128 ® Remote Control R&S CMW500 Messages Command Description *RST RESET, resets the sub-instrument. *ESE 253 EVENT STATUS ENABLE, sets the bits of the event status enable registers. *IDN? IDENTIFICATION QUERY, queries the instrument identification string. 6.2.4.2 Instrument-Control Commands Instrument-control commands are based on a hierarchical structure and can be repre- sented in a command tree.
Page 129 ® Remote Control R&S CMW500 Messages ● [ ] Parts in square brackets can be omitted when composing the command header. The complete command must be recognized by the instrument for reasons of com- patibility with the SCPI standard. Parameters in square brackets are optional as well. They may be entered in the command or omitted.
Page 130 ® Remote Control R&S CMW500 Messages Numeric suffixes Symbols in angular brackets (<ch>, , <n>,...) denote numeric suffixes. Numeric suf- fixes have to be replaced by integer numbers to distinguish various items of the same type. The R&S CMW500 provides numeric suffixes for firmware application instances, signal sources etc.
Page 131 ® Remote Control R&S CMW500 Messages the semicolon starts with the level that lies below the common levels. The colon following the semicolon must be omitted in this case. Example: SOURce:GPRF:GENerator:RFSettings:FREQuency 1GHz; :SOURce:GPRF: GENerator:RFSettings:LEVel -80 This command line is written in its full length and contains two commands separated from each other by the semicolon.
Page 132 ® Remote Control R&S CMW500 Messages 6.2.4.5 SCPI Parameters Most commands require one or more parameters to specify their function. The parame- ters must be separated from the header by a "white space". Permissible parameters are numeric values, boolean parameters, text, character strings and block data. The param- eter types and the permissible ranges of values are specified in the command description.
Page 133 ® Remote Control R&S CMW500 Messages Example: Setting command: SOURce:GPRF:GENerator:STATe ON Query: SOURce:GPRF:GENerator:STATe? returns ON Text Parameters Text parameters observe the syntax rules for keywords, i.e. they can be entered using a short or long form. Like any parameter, they have to be separated from the header by a white space.
Page 134: R&S Cmw Software And Command Structure
® Remote Control R&S CMW500 R&S CMW Software and Command Structure Element Usage The hash sign # introduces block data. Block: #21312 A "white space" (ASCII-Code 0 to 9, 11 to 32 decimal, e.g. blank) separates header and parameter. 6.2.4.6 Use of SCPI Subsystems The structure of the instrument-control commands implemented by the R&S CMW500 is described in sections...
Page 135: Firmware Applications
® Remote Control R&S CMW500 R&S CMW Software and Command Structure The purpose and format of the four command parts is as follows: ● SCPI Subsystem One of the root mnemonics specified in the SCPI standard, indicating the SCPI sub- system.
Page 136: Measurement Contexts And Views
® Remote Control R&S CMW500 R&S CMW Software and Command Structure See also Sub-Instruments. The following table provides examples of FWAs of the R&S CMW500 and their mne- monics: Firmware Application Description BLUetooth:MEASurement Bluetooth network standard, measurements CDMA:GENerator CDMA2000 network standard, generator CDMA:MEASurement...
Page 137: Control Of The Instrument
® Remote Control R&S CMW500 Control of the Instrument ● Measurement results are assigned to a particular view. The commands used to define the measurement statistics and to retrieve results are also view-specific, which makes it possible to transfer a subset of results actually needed. Example for context-specific commands The following measurement control command affects the EPSensor measurement con- text (external power sensor measurement) in the GPRF:MEASurement firmware appli-...
Page 138 ® Remote Control R&S CMW500 Control of the Instrument The OFF and PENDing/ON states correspond to the status indication "Off" and "On" in the generator softkeys. The relationship between generator commands and generator states is shown in the following diagram: Generator control commands are of the following type (see also Firmware Applications):...
Page 139: Measurement Control
® Remote Control R&S CMW500 Control of the Instrument Command synchronization Before you use the generator signal, use the query SOURce:<Application>:GENerator:STATe? to ensure that the generator has reached its ON state and that the generator signal is available. SOURce:<Application>:GENerator:STATe OFF Switches the generator off, releases the hardware resources for other generators, and changes to the generator state "OFF".
Page 140 ® Remote Control R&S CMW500 Control of the Instrument The relationship between measurement states and measurement control commands is shown in the following diagram: Measurement control commands are of the following type (see also Firmware Applica- tions): SCPI subsys- <Application>, Measurement instance Context e.g.
Page 141 ® Remote Control R&S CMW500 Control of the Instrument the hardware and system resources are already assigned to another firmware applica- tion, this firmware application is released in order to start the measurement; see Resource and Path Management. If a previously initiated measurement (which may be of the same type) is still running, the new measurement remains in the "PENDing"...
Page 142 ® Remote Control R&S CMW500 Control of the Instrument Substate For main state Values Description Resources QUEued Measurement without resources, no results available ACTive Resources allocated, acquisition of results in progress but not complete RDY or OFF No substate (invalid) Querying substates The main measurement state and the substates can be queried using FETCh:<FWA>:<context>:STATe:ALL? where <FWA>...
Page 143 ® Remote Control R&S CMW500 Control of the Instrument Manual and remote control In contrast to mode other instrument settings, the repetition modes in manual and remote control are independent and do not overwrite each other. The default repetition mode in manual control is Continuous (observe results over an extended period of time), the default mode in remote control is Single-Shot (perform one measurement and retrieve results).
Page 144 ® Remote Control R&S CMW500 Control of the Instrument Simplified statistics Some measurement contexts provide simplified statistical settings. Refer to the mea- surement and remote control description for details. 6.4.2.4 Retrieving Measurement Results The results of a measurement can be retrieved by means of FETCh...? or READ...? queries.
Page 145 ® Remote Control R&S CMW500 Control of the Instrument Repeated FETCh...? commands It is possible to use repeated FETCh...? commands without re-starting the measure- ment, e.g. in order to monitor the variation in time of a measured quantity in continuous measurement mode.
Page 146 ® Remote Control R&S CMW500 Control of the Instrument for Single Results. A typical application is the limit check, where the error indicators are set to one of the following values: ● OK: The result is located within the limits or no limit has been defined/enabled for this result.
Page 147 ® Remote Control R&S CMW500 Control of the Instrument FETCh:<FWA>:<Context>:TRACe:<View>:<Statistics>...? READ:<FWA>:<Context>:TRACe:<View>:<Statistics>...? e.g. FETCh:GSM:MEASurement:MEValuation:EVMagnitude? FETCh:GSM:MEASurement:MEValuation:TRACe:EVMagnitude:CURRent? The <View> mnemonic is used in multi evaluation measurements where it distinguishes different subsets of results. For detailed information about the returned values refer to the command reference description. See also Multi Evaluation Measurements.
Page 148 ® Remote Control R&S CMW500 Control of the Instrument The measurement could not be started because the configured RF input path was not active. This problem may occur e.g. when a measurement is started in combined signal path mode and the master application has not yet activated the input path. The LEDs above the RF connectors indicate whether the input and output paths are active.
Page 149 ® Remote Control R&S CMW500 Control of the Instrument Some measurements provide only a subset of values. Example: in the "GPRF Power" measurement, no user limits are defined and no under- flow is indicated. The values ULEL, ULEU, and UFL are never returned. 6.4.2.6 Multi Evaluation Measurements In a multi evaluation measurement, the R&S CMW500 acquires a wide range of mea-...
Page 150: Signaling Generator Control
® Remote Control R&S CMW500 Control of the Instrument Example: READ:WIMax:MEASurement:MEValuation:EVM:DATA:AVERage? Retrieving results for disabled views In some measurements it is possible to disable individual views and results in order to gain measurement speed. The READ...? and FETCh...? queries act differently on disabled views: ●...
Page 151 ® Remote Control R&S CMW500 Control of the Instrument Signaling generator control commands are of the following type (see also Firmware Applications): SCPI subsystem <Application>, e.g. Generator instance State SOURce :GSM :SIGNaling :CELL:STATe ON | OFF Example: SOURCe:GSM:SIGNaling:CELL:STATe ON | OFF The :CELL mnemonic is omitted in some signaling applications.
Page 152: Signal Path Settings
® Remote Control R&S CMW500 Control of the Instrument Command synchronization Before you use the generator signal, use the query SOURce:<Application>:SIGNaling:CELL:STATe:ALL? to ensure that the signaling generator is turned on and that the cell signal is available (response: ON, ADJ; see below). SOURce:<Application>:SIGNaling:CELL:STATe OFF Switches the generator off, releases the hardware resources for other generators, and changes to the generator state "OFF".
Page 153 ® Remote Control R&S CMW500 Control of the Instrument ● ROUTe:<Application>:SIGNaling:SCENario:SCELl ROUTe commands changed in V2.0.10 Routing commands of the type ROUTe:<Application>:<Instance>:RFSettings:CONNector are no longer supported for software versions ≥ V2.0.10. The old routing commands select only an RF connector but no RX/TX module and must no longer be used. Furthermore the selection of connectors RF 3 COM, RF 3 OUT and RF 4 COM has changed in software version V2.0.10.
Page 154 ® Remote Control R&S CMW500 Control of the Instrument You may also use the following rules and the subsequent sections to determine the sup- ported signal paths: ● One frontend provides three RF connectors at the front panel: either RF 1 COM + RF 1 OUT + RF 2 COM or RF 3 COM + RF 3 OUT + RF 4 COM.
Page 155 ® Remote Control R&S CMW500 Control of the Instrument – The number of active software licenses limits the number of instances that can be run in parallel. 6.4.4.2 RF Connector Values The following list contains all parameter values generally available for selection of an RF connector.
Page 156 ® Remote Control R&S CMW500 Control of the Instrument All instances can access both frontends. The following table lists the supported parameter values and used *RST values for selection of RF connectors and TX/RX boards. Instance 1 Instance 2 Input connector RF1C | RF2C | RF3C | RF4C | RFAC | RFBC Output connector RF1C | RF1O | RF2C | RF3C | RF3O | RF4C | RFAC |...
Page 157 ® Remote Control R&S CMW500 Control of the Instrument Each sub-instrument uses one specific frontend and supports one instance per firmware application. The TX and RX module numbering is a logical numbering per sub-instrument, not per instrument. That means e.g. that within sub-instrument 1 the value TX1 refers to another physical TX module than within sub-instrument 2.
Page 158 ® Remote Control R&S CMW500 Control of the Instrument sub-instrument, not per instrument. That means e.g. that within sub-instrument 1 the value TX1 refers to another physical TX module than within sub-instrument 2. The following table lists the supported parameter values and used *RST values for selec- tion of RF connectors and TX/RX boards.
Page 159: Resource And Path Management
® Remote Control R&S CMW500 Control of the Instrument 6.4.4.10 Four RF Output Paths, Two Frontends, Two Sub-Instruments This section applies to an instrument with four RF output paths, two RF input paths and two advanced frontends. It provides four instances for generator applications and two instances for measurement applications.
Page 160 ® Remote Control R&S CMW500 Control of the Instrument Remote and manual control The RPM principles described in this section are valid in remote as well as in manual control. In remote control, running different tasks in parallel enhances the speed and performance of the tester.
Page 161 ® Remote Control R&S CMW500 Control of the Instrument Two non-conflicting measurements, executed in parallel RPM acts on sub-instrument level If the R&S CMW500 is split into several sub-instruments, each of them is equipped with independent hardware and software resources in order to run the tasks assigned to it. The RPM principles apply to each sub-instrument separately.
Page 162 ® Remote Control R&S CMW500 Control of the Instrument Command Comment FETCh:<FWA>:<Meas1>...CURRent? Wait until the end of the statistics cycle of measurement 1 and retrieve the results. (or similar command syntax for reading measurement results) FETCh:<FWA>:<Meas2>:STATe:ALL? Query the measurement substates of measurement 2. The response (RUN, ADJ, ACT) indicates that measurement 2 is now active.
Page 163 ® Remote Control R&S CMW500 Control of the Instrument The number of tasks that the instrument can service in parallel depends on the number of independent paths. The R&S CMW500 can be equipped with up to 2 independent input/output paths. System resource conflicts In addition to the hardware resources required for TX and RX paths, other system resour- ces may cause limitations: memory size, possible connections between modules (e.g.
Page 164: Command Processing
® Remote Control R&S CMW500 Command Processing 6.5 Command Processing The block diagram below shows how remote commands are serviced in the instrument. The individual components work independently and simultaneously. They communicate with each other by means of so-called "messages". The instrument model consists of the following components.
Page 165: Command Recognition
® Remote Control R&S CMW500 Command Processing during command recognition and execution. The receipt of a DCL clears the input buffer and immediately initiates a message to the command recognition. 6.5.2 Command Recognition The command recognition stage analyzes the data received from the input unit. It pro- ceeds in the order in which it receives the data.
Page 166: Status Reporting System
® Remote Control R&S CMW500 Status Reporting System 6.5.4 Status Reporting System The status reporting system collects information on the instrument state and makes it available to the output unit on request. The exact structure and function are described in section Status Reporting System.
Page 167: Overview Of Status Registers
® Remote Control R&S CMW500 Status Reporting System All status registers have the same internal structure, see Structure of an SCPI Status Register. For more information on the individual status registers see Contents of the Status Reg- isters. SRE register The service request enable register SRE can be used as ENABle part of the STB if the STB is structured according to SCPI.
Page 168 ® Remote Control R&S CMW500 Status Reporting System significant bit) is set to zero for all parts. Thus the contents of the register parts can be processed by the controller as positive integer. The sum bit is obtained from the EVENt and ENABle part for each register. The result is then entered into a bit of the CONDition part of the higher-order register.
Page 169: Contents Of The Status Registers
® Remote Control R&S CMW500 Status Reporting System ● NTR bit = 1: the EVENt bit is set. ● NTR bit = 0: the EVENt bit is not set. This part can be overwritten and read at will. Reading the PTRansition register is non- destructive.
Page 170 ® Remote Control R&S CMW500 Status Reporting System The STatus Byte (STB) is linked to the Service Request Enable (SRE) register on a bit- by-bit basis. ● The STB corresponds to the EVENt part of an SCPI register, it indicates general instrument events.
Page 171 ® Remote Control R&S CMW500 Status Reporting System Related common commands The IST flag is queried using the command *IST?. The PPE can be set using *PRE / *XPRE and read using command *PRE? / *XPRE?. See also Common Commands 6.6.3.3 ESR and ESE The Event Status Register (ESR) indicates general instrument states.
Page 172 ® Remote Control R&S CMW500 Status Reporting System Related common commands The Event Status Register (ESR) can be queried using ESR? / XESR?. The Event Status Enable (ESE) register can be set using the command *ESE / *XESE and read using *ESE? / *XESE?. See also Common Commands 6.6.3.4...
Page 173 ® Remote Control R&S CMW500 Status Reporting System Each single status register in the figure above consists of five parts as described in section Structure of an SCPI Status Register. The following simplified presentation is used: Fig. 6-2: Legend for figure above The following table lists the assignment of network standards (and GPRF) to the bits of the register STATus:OPERation:TASK:A.
Page 174 ® Remote Control R&S CMW500 Status Reporting System identified in remote commands. For the status register of this application the mnemonic UNIVersal is used (e.g. STATus:OPERation:TASK:A:GPRF:GENerator1:UNIVersal). Signaling applications are not supported by the STATus:OPERation register. Table 6-3: Bit definition for function group registers Bit No.
Page 175: Application Of The Status Reporting System
® Remote Control R&S CMW500 Status Reporting System ● STATus:OPERation:TASK:A:GPRF:GENerator2:UNIVersal:EVENt? etc. Waiting until a certain state is reached or a certain state transition occurrs is possible using the following commands: ● STATus:OPERation:TASK:A:GPRF:GENerator1:UNIVersal:WCONdition? etc. ● STATus:OPERation:TASK:A:GPRF:GENerator2:UNIVersal:WEVent? etc. These commands are also available as extended versions, providing more comfort: ●...
Page 176 ® Remote Control R&S CMW500 Status Reporting System 6.6.4.1 Service Request The measuring device can send a service request (SRQ) to the controller. Usually this service request causes an interrupt, to which the control program can react appropriately. It is also possible to wait until an SRQ is generated, see *SRQ? in chapter 7.1, "Common Commands", on page 193).
Page 177 ® Remote Control R&S CMW500 Status Reporting System 2. Wait until the measurement reaches the state RDY. If the state has not been reached after 1 minute (60000 ms), continue nevertheless: STAT:OPER:TASK:A:GPRF:MEAS:POW:XWEVent? (RDY),60000 Evaluate the returned value: () indicates that a timeout occurred, (RDY) indicates that the state has been reached.
Page 178: Reset Values Of The Status Reporting System
® Remote Control R&S CMW500 Status Reporting System All queries return a decimal number which represents the bit pattern of the status register. This number is evaluated by the controller program. Queries are usually used after an SRQ in order to obtain more detailed information on the cause of the SRQ.
Page 179: Regular Expressions
® Remote Control R&S CMW500 Status Reporting System Event Switching on sup- DCL, SDC *RST or STA- *CLS ply voltage (Device Tus:PRE- SYS- Power-On-Status- Clear, Tem:PRE- Clear Selected Set:ALL Device Clear) Clear ENABle parts of all OPERation-and QUESTiona- ble registers, Fill ENABle parts of all other registers with "1".
Page 180: Command Macros
® Remote Control R&S CMW500 Command Macros Meta Character Meaning Matches the preceding element zero or one time. Example: 'M[0-9][0-9]?' matches 'M1', 'M25', 'M0', 'M00', ... Matches the preceding element one or more times. Example: 'TR[AB]+' matches 'TRA', 'TRB', 'TRABBBABA', ... Matches the preceding element zero or more times.
Page 181: Macro Contents And Macro Commands
® Remote Control R&S CMW500 Command Macros Queries in macros, response buffers A query in a macro sequence suspends program execution until the controller has retrieved the response. The R&S CMW500 provides response buffers to avoid delays; chapter 6.8, "Response Buffers", on page 182.
Page 182: Response Buffers
® Remote Control R&S CMW500 Response Buffers *EMC ON SetFrequency SOURce:GPRF:GENerator:RFSettings:FREQuency? // Delete the macro, delete all macros in the active connection, // Check whether all macros have been deleted (response: ""). *RMC 'SetFrequency' *PMC *LMC? Macros with parameters // Reset the instrument, define a macro to set the GPRF generator frequency // and level to arbitrary values using macro parameters.
Page 183: Buffer Contents And Buffer Commands
® Remote Control R&S CMW500 Response Buffers Response buffers improve the efficiency of command macros containing queries. Similar to command macros, the buffers are created at the beginning of a remote script. Buffers remain valid until the active remote control connection is closed; they are not transferable from one remote channel to another.
Page 184: Lxi Configuration
® Remote Control R&S CMW500 LXI Configuration // Execute the macro repeatedly, stop recording in order to query the number of // buffer lines (3) and the buffer line contents // (the responses should be 3 GHz, 2 GHz, 1GHz) Query_macro 1 GHz Query_macro 2 GHz Query_macro 3 GHz...
Page 185: Lxi Browser Interface
® Remote Control R&S CMW500 LXI Configuration ● Class C instruments are characterized by a common LAN implementation, including an ICMP ping responder for diagnostics, see Ping Client. The instruments can be configured via the LXI Browser Interface; a LAN Configura- tion Initialize (LCI) mechanism resets the LAN configuration.
Page 186 ® Remote Control R&S CMW500 LXI Configuration The instrument home page displays the device information required by the LXI standard including the VISA resource string in read-only format. The "Device Indicator" toggle but- ton has no effect in the current software version. The navigation pane of the browser interface contains the following elements: ●...
Page 187: Lan Configuration
® Remote Control R&S CMW500 LXI Configuration – "Web Control" provides remote access to the instrument via VNC. Enter "VNC" both as user name and as password. ● "License Manager" – "Manage Licenses" allows to install or uninstall license keys and to activate, reg- ister or unregister licenses.
Page 188 ® Remote Control R&S CMW500 LXI Configuration Password protection Changing the LAN configuration is password-protected. The password reads LxiWe- bIfc (notice upper and lower case characters). This password cannot be changed in the current software version. 6.9.3.2 Advanced Config The navigation entry "Advanced Config" provides access to additional LAN parameters that are not declared mandatory by the LXI standard.
Page 189: Scpi Remote Trace
® Remote Control R&S CMW500 LXI Configuration The ping utility is not password-protected. To initiate a ping at the instrument: 1. Ensure that "ICMP Ping" is enabled (see Advanced Config). 2. Enter the IP address of the second device into the "Destination Address" field (e.g. 10.123.11.22).
Page 190 ® Remote Control R&S CMW500 LXI Configuration Toolbars The toolbar at the top of the dialog provides basic settings and functions. ● live mode / logging: If logging is switched on, messages are traced. They are stored in an internal database and can be displayed upon request, using the refresh button (live mode off) or they can be displayed automatically (live mode on).
Page 191 ® Remote Control R&S CMW500 LXI Configuration gle to scroll through the message log. The position of certain messages is indicated by colored bars: – red bar: indicates an error message – orange bar: indicates an error message containing the search string –...
Page 193: Command Reference
® Command Reference R&S CMW500 Common Commands 7 Command Reference This chapter lists all commands for the R&S CMW500 platform. Contents of this chapter The commands listed in this chapter control the R&S CMW500 platform. Application- specific commands (e.g. GPRF commands) are listed in the relevant sections. ●...
Page 194 ® Command Reference R&S CMW500 Common Commands Command Parameters/ Short Description Remarks *IDN? – IDentifica- – Queries the instrument identification string of the R&S CMW500. tion Query query only *IST? – Individual – Returns the contents of the IST flag in decimal form (0 | 1). The STatus query IST-flag is the status bit which is sent during a parallel poll.
Page 195: Emulation Codes
® Command Reference R&S CMW500 Emulation Codes Command Parameters/ Short Description Remarks *SRE – Service 0...255 Sets the service request enable register to the value indicated. Request Enable Bit 6 (MSS mask bit) remains 0. This command determines under which conditions a service request is triggered. The query *SRE? returns the contents of the service request enable register in dec- imal form.
Page 196: Instrument-Control Commands
® Command Reference R&S CMW500 Instrument-Control Commands Code Meaning Effect on the instrument &LLO (Local Lockout) Disables switchover from remote control to manual control by means of the front panel keys or remote commands. &NREN (Not Remote Enable) Enables switchover from remote control to manual control by means of the front panel keys or remote commands.
Page 197 ® Command Reference R&S CMW500 Instrument-Control Commands ....................199 MMEMory: S TORe: M ACRo *DMC '<MacroLabel>', <MacroSequence> Creates a macro, defined by an identifier string '<MacroLabel>' and the macro contents <MacroSequence>. If the macro label exists already, the macro contents are overwritten. Macro execution must be enabled using *EMC ON.
Page 198 ® Command Reference R&S CMW500 Instrument-Control Commands *GMC? '<MacroLabel>' Returns the contents of a macro identified by its <MacroLabel>. Query parameters: '<MacroLabel>' String parameter, also used to execute the macro and to reference it in other macro commands (e.g. MMEMory: S TORe: M ACRo *DMC, *RMC).
Page 199: Buffer Commands
® Command Reference R&S CMW500 Instrument-Control Commands Example: Macro Programming Examples Usage: Event Firmware/Software: V2.1.10 MMEMory:LOAD:MACRo '<MacroLabel>', '<MacroFile>' Loads a macro file, assigning an identifier <MacroLabel> to the macro file contents. Mac- ros are deleted when the remote connection is closed. Macro files can be created e.g. using the command.
Page 200 ® Command Reference R&S CMW500 Instrument-Control Commands ....................200 DELete: B ASE: B UFFer ....................200 FETCh: B ASE: B UFFer ..................201 FETCh: B ASE: B UFFer: L INecount .....................201 STARt: B ASE: B UFFer ......................201 STOP: B ASE: B UFFer CLEar:BASE:BUFFer '<BufferLabel>' Clears the contents of a buffer, maintaining the buffer for further program execution.
Page 201: Frequency-Dependent Correction Settings
® Command Reference R&S CMW500 Instrument-Control Commands Parameters: '<BufferLabel>' String parameter, used to identify the buffer in all buffer commands <LineNo> Line of results in the buffer Example: Buffer Programming Example Usage: Query only Firmware/Software: V2.1.10 FETCh:BASE:BUFFer:LINecount? '<BufferLabel>' Returns the size (number of lines) of a buffer. Parameters: '<BufferLabel>' String parameter, used to identify the buffer in all buffer commands...
Page 202 ® Command Reference R&S CMW500 Instrument-Control Commands the tables refer to RF Path Settings (Generators) Connection Control (Measure- ments). Reset / Preset of base settings Please note that a reset or preset of the base settings deactivates all correction tables. A reset or preset of a sub-instrument or application does not affect the correction tables.
Page 203 ® Command Reference R&S CMW500 Instrument-Control Commands Example: CONFigure:BASE:FDCorrection:CTABle:CREate 'mytable', 1900000000, 0.5, 2000000000, 0.7 Create the table 'mytable' with two entries: 0.5 dB at 1900 MHz and 0.7 dB at 2000 MHz Usage: Setting only Firmware/Software: V1.0.5.3 CONFigure:BASE:FDCorrection:CTABle:ADD '<TableName>', <Frequency_0>, <Attenuation_0>[, ..., <Frequency_n>, <Attenuation_n>] Adds entries to an existing correction table.
Page 204 ® Command Reference R&S CMW500 Instrument-Control Commands Firmware/Software: V1.0.5.3 CONFigure:BASE:FDCorrection:CTABle:CATalog? Returns a comma separated list of table names. All correction tables currently stored on the hard disk are listed. Example: CONFigure:BASE:FDCorrection:CTABle:CATalog? Returns: 'mytable','setup 1','setup 3G'. Usage: Query only Firmware/Software: V1.0.5.3 CONFigure:BASE:FDCorrection:CTABle:DETails? '<TableName>'[, <Start>[, <Count>]] Returns the entries of a correction table.
Page 205 ® Command Reference R&S CMW500 Instrument-Control Commands Usage: Query only Firmware/Software: V1.0.5.3 CONFigure:FDCorrection:ACTivate <Connector>, '<TableName>'[, <Direction>] Activates a correction table for the signal path using a specific RF connector. For bidirectional connectors the table can be applied to both directions or to one direction. It is possible to assign different tables to the directions of a bidirectional connector, see example.
Page 206: Calibration Commands
® Command Reference R&S CMW500 Instrument-Control Commands Depending on the installed hardware and the active sub-instrument only a subset of the listed connector values is allowed. The mapping of virtual connector names to physical connectors also depends on the active sub-instrument. For details see Signal Path Set- tings.
Page 207 ® Command Reference R&S CMW500 Instrument-Control Commands CALibration:BASE:ALL? Query the stored calibration information. A comma separated list is returned, containing three parameters per calibration, as described below. Return values: <Date> Date of the calibration as string <Time> Time of the calibration as string <Type>...
Page 208: Format Commands
® Command Reference R&S CMW500 Instrument-Control Commands Firmware/Software: V2.0.10 CALibration:BASE:LATest:SPECific? <Mode> Query date and time of the latest calibration of the specified type. Query parameters: <Mode> FSCorrection | UCORrection | CALibration | OGCal Type of the calibration for which information is queried FSCorrection: Correction performed in factory or service UCORrection: Correction performed by the user CALibration: Verification in the factory...
Page 209: Mmemory Commands
® Command Reference R&S CMW500 Instrument-Control Commands Usage: SCPI confirmed Firmware/Software: V1.0.5.3 7.3.6 MMEMory Commands The MMEMory system provides mass storage capabilities for the R&S CMW500. For MMEMory commands related to command macros see chapter 7.3.1, "Macro Com- mands", on page 196. The following rules apply to parameters specifying files or directories: ●...
Page 210 ® Command Reference R&S CMW500 Instrument-Control Commands numbers are allowed, as well as the special characters "_", "^", "$", "~", "!", "#", "%", "&", "-", "{", "}", "(", ")", "@" and "`". Reserved file names are CON, AUX, COM1, ..., COM4, LPT1, ..., LPT3, NUL and PRN.
Page 211 ® Command Reference R&S CMW500 Instrument-Control Commands MMEMory:ATTRibute '<FileName>', '<Action>' MMEMory:ATTRibute? ['<FileName>'] Sets or removes file attributes for files and directories. Parameters: '<Action>' Attribute actions to be performed. The attributes are R (read-only), A (archive), S (system), H (hidden). Set an attribute with a plus or clear an attribute with a minus as prefix.
Page 212 ® Command Reference R&S CMW500 Instrument-Control Commands Return values: <UsedSize> Disk space in bytes used by the listed files, excluding subdirecto- ries <FreeDiskSpace> Available free disk space in bytes '<Information_1>' ... Information strings are returned for the directories "." and "..", for '<Information_n>' files and for subdirectories.
Page 213 ® Command Reference R&S CMW500 Instrument-Control Commands MMEMory:CATalog:LENGth? ['<DirectoryName>'] Returns the number of files and subdirectories of the current or of a specified directory. The number includes the directory strings "." and ".." so that it corresponds to the number of strings returned by the command after the initial numeric param- MMEMory:...
Page 214 ® Command Reference R&S CMW500 Instrument-Control Commands '<FileDestination>' String parameter to specify the path and/or name of the new file. If no file destination is specified the source file is written to the current directory (see MMEMory: C DIRectory Wildcards are not allowed. Example: MMEM:COPY 'D:\USER\DATA\File1.pdf','D:\Archive' Copies File1.pdf in directory D:\USER\DATA to directory D:...
Page 215 ® Command Reference R&S CMW500 Instrument-Control Commands Parameters: '<DirectoryName>' String parameter to specify the directory. If this parameter is omit- ted, the command queries the contents of the current directory (see MMEMory: C DIRectory If the wildcards ? or * are used, only the subdirectories matching this pattern are returned.
Page 216 ® Command Reference R&S CMW500 Instrument-Control Commands Parameters: '<FileName>' String parameter specifying the file to be deleted. The wildcards * and ? are allowed. Specifying a directory instead of a file is not allowed. Example: MMEM:DEL 'C:\TEMP\TEST01.HCP' Deletes file TEST01.HCP in directory C:\TEMP Example: MMEM:DEL 'C:\TEMP\*.*' Deletes all files in directory C:\TEMP...
Page 217 ® Command Reference R&S CMW500 Instrument-Control Commands MMEMory:MDIRectory '<DirectoryName>' Creates a new directory. If required, an entire path consisting of several subdirectories is created. Parameters: '<DirectoryName>' String parameter to specify the directory. Wildcards are not allowed. Example: MMEM:MDIR 'D:\User\Data\Images\Recent' Assuming that D:\User\Data already exists, the subdirectories Images and Recent are created.
Page 218 ® Command Reference R&S CMW500 Instrument-Control Commands If '<StorageUnit>' is omitted, the storage unit is set to D:. When the default storage unit is changed, it is checked whether the current directory (see ) is also available on the new storage unit. If not, the current MMEMory:...
Page 219: Status Commands
® Command Reference R&S CMW500 Instrument-Control Commands MMEMory:SAV '<FileDestination>' Stores the current instrument settings to the specified file. This command has the same effect as the combination of *SAV and MMEMory:STORe:STATe. Parameters: '<FileDestination>' String parameter specifying path and filename of the target file. Wildcards are not allowed.
Page 220 ® Command Reference R&S CMW500 Instrument-Control Commands ● General STATus Commands................220 ● STATus:OPERation (Elementary Commands).............221 ● STATus:OPERation (Extended Commands)............228 ● STATus:OPERation (Overall Evaluation)..............235 ● STATus:QUEStionable..................239 7.3.7.1 General STATus Commands The following general status commands preset the status registers and query the error queue.
Page 221 ® Command Reference R&S CMW500 Instrument-Control Commands 7.3.7.2 STATus:OPERation (Elementary Commands) The STATus:OPERation subsystem controls the status reporting structures of the STA- Tus:OPERation register, see STATus:OPERation. The commands listed below control all levels of the STATus:OPERation register hierar- chy. They require the knowledge of the register hierarchy at bit level. For additional com- mands refer to the following sections: ●...
Page 222 ® Command Reference R&S CMW500 Instrument-Control Commands ..................223 STATus: O PERation: T ASK: E SRQ .................223 STATus: O PERation: T ASK: A : E SRQ ...............223 STATus: O PERation: T ASK: A : < netw_std>: E SRQ .
Page 223 ® Command Reference R&S CMW500 Instrument-Control Commands For a description of the variables <netw_std>, <func_grp> and <appl> refer to table 7-1. Return values: <ConditionBits> Range: 0 to 65535 (decimal representation) Example: STAT:OPER:TASK:A:GPRF:GEN:UNIV:COND? Query the CONDition part of the GPRF generator status register to check the current generator state.
Page 224 ® Command Reference R&S CMW500 Instrument-Control Commands Example: STAT:OPER:TASK:A:GPRF:MEAS:POW:ESRQ 4 Sets bit no. 2 (decimal 4) and disables all other bits in the ENABle part of the following status register: STAT:OPER:TASK:A:GPRF:MEAS:POW Also sets the relevant bit in the ENABle part of the following status registers, without changing the other bits of these ENABle parts: STAT:OPER:TASK:A:GPRF:MEAS: set bit no.
Page 225 ® Command Reference R&S CMW500 Instrument-Control Commands Parameters: <FilterBits> Range: 0 to 65535 (decimal representation) Example: STAT:OPER:TASK:A:GPRF:NTR 1536 Set bits no. 9 and 10 of the NTRansition part of the GPRF status register (1536 = 512 + 1024 = 2 Firmware/Software: V1.0.4.11 STATus:OPERation:PTRansition <FilterBits>...
Page 226 ® Command Reference R&S CMW500 Instrument-Control Commands Query parameters: <WaitBits> Range: 0 to 65535 (decimal representation) <Timeout> Timeout in ms Return values: <Result> Result of the AND operation. A 0 indicates that a timeout occured. Range: 0 to 65535 (decimal representation) Example: INIT:GPRF:MEAS:POW STAT:OPER:TASK:A:GPRF:MEAS:POW:WCON? 9,1000...
Page 227 ® Command Reference R&S CMW500 Instrument-Control Commands Example: STAT:OPER:TASK:A:GPRF:MEAS:POW:PTR 0 STAT:OPER:TASK:A:GPRF:MEAS:POW:NTR 65535 Configure the transition registers so that the EVENt part of the status register reports only transitions from 1 to 0. INIT:GPRF:MEAS:POW STAT:OPER:TASK:A:GPRF:MEAS:POW:WEV? 4,1000 Initiate a GPRF power measurement and wait until it has left the state RUN (bit number 2, decimal 4).
Page 228 ® Command Reference R&S CMW500 Instrument-Control Commands Example: STAT:OPER:BIT9:ENAB 1 Set bit no. 9 of the ENABle part of the STATus:OPERation regis- ter. Firmware/Software: V1.0.4.11 7.3.7.3 STATus:OPERation (Extended Commands) The commands listed in this section serve the same purpose as the elementary com- mands, see chapter 7.3.7.2, "STATus:OPERation (Elementary Commands)",...
Page 229 ® Command Reference R&S CMW500 Instrument-Control Commands STATus:OPERation:TASK:A:GPRF:MEAS1:XENable (POWer,12) STATus:OPERation:TASK:A:GPRF:MEAS1:XENable (13) Queries A query using an extended command returns a list of mnemonics, i.e. the returned bit pattern is translated into the corresponding mnemonics. If the bit pattern contains also bits set to true that can not be translated because they have no mnemonics assigned in the register hierarchy, these bits are summed up and listed as an additional decimal number.
Page 230 ® Command Reference R&S CMW500 Instrument-Control Commands ......232 STATus: O PERation: T ASK: A : < netw_std>: < func_grp>: < appl>: X NTRansition ...................232 STATus: O PERation: X PTRansition .................232 STATus: O PERation: T ASK: X PTRansition .
Page 231 ® Command Reference R&S CMW500 Instrument-Control Commands STATus:OPERation:TASK:A:<netw_std>:<func_grp>:XENable <List> STATus:OPERation:TASK:A:<netw_std>:<func_grp>:<appl>:XENable <List> Sets the enable mask which allows true conditions in the EVENt part of the status register to be reported in the summary bit. If a bit is 1 in the enable register and its associated event bit transitions to true, a positive transition will occur in the summary bit reported to the next higher level.
Page 232 ® Command Reference R&S CMW500 Instrument-Control Commands STATus:OPERation:XEVent? STATus:OPERation:TASK:XEVent? STATus:OPERation:TASK:A:XEVent? STATus:OPERation:TASK:A:<netw_std>:XEVent? STATus:OPERation:TASK:A:<netw_std>:<func_grp>:XEVent? STATus:OPERation:TASK:A:<netw_std>:<func_grp>:<appl>:XEVent? Returns the contents of the EVENt part of the status register. Reading an EVENt part clears it. See also Structure of an SCPI Status Register. For a description of the variables <netw_std>, <func_grp> and <appl> refer to table 7-1.
Page 233 ® Command Reference R&S CMW500 Instrument-Control Commands STATus:OPERation:TASK:A:<netw_std>:<func_grp>:XPTRansition <List> STATus:OPERation:TASK:A:<netw_std>:<func_grp>:<appl>:XPTRansition <List> Sets the positive transition filter. If a bit is set, a 0 to 1 transition in the corresponding bit of the associated condition register causes a 1 to be written in the associated bit of the corresponding event register.
Page 234 ® Command Reference R&S CMW500 Instrument-Control Commands Example: INIT:GPRF:MEAS:POW STAT:OPER:TASK:A:GPRF:MEAS:POW:XWC?(RDY),1000 Initiate a GPRF power measurement and wait until it has reached the state RDY. The timeout is set to 1000 ms. The returned value is () or RDY (timeout occurred or state RDY reached).
Page 235 ® Command Reference R&S CMW500 Instrument-Control Commands Firmware/Software: V2.0.10 7.3.7.4 STATus:OPERation (Overall Evaluation) Information about the current state of tasks and state transitions of tasks can be derived from evaluation of the STATus:OPERation register hierarchy. This can be a laborious task if you have to query the registers one by one, tracing events top down and inter- preting the decimal representation of bit values.
Page 236 ® Command Reference R&S CMW500 Instrument-Control Commands It evaluates the CONDition parts of the lowest level OPERation status registers. The result consists of a comma separated list of strings. Each string indicates the state of one task and is composed of the complete path of the status register plus the state. The command is nondestructive.
Page 237 ® Command Reference R&S CMW500 Instrument-Control Commands STATus:EVENt:BITS:ALL? ['<RegExp>'] Evaluates the EVENt parts of all lowest level OPERation status registers. The result consists of a comma separated list of strings. Each string is composed of the complete path of the status register plus the state. The command is nondestructive. This command offers a comfortable way to get an overview of the EVENt parts of all lowest level registers, without querying each register individually.
Page 238 ® Command Reference R&S CMW500 Instrument-Control Commands STATus:EVENt:BITS:NEXT? ['<RegExp>'] Searches, returns and deletes the next event at the lowest level of the STATus:OPER- ation register hierarchy. An entry consists of a string composed of the complete path of the status register reporting the event and the state. This command can be used to supply state transitions to a remote control program one by one.
Page 239 ® Command Reference R&S CMW500 Instrument-Control Commands 7.3.7.5 STATus:QUEStionable The STATus:QUEStionable subsystem controls the status reporting structures of the STATus:QUEStionable register, see STATus:QUEStionable. Unless otherwise stated, all of the following commands are SCPI-confirmed. Note that *RST does not influence the status registers (see also Reset Values of the Status Report- System).
Page 240 ® Command Reference R&S CMW500 Instrument-Control Commands STATus:QUEStionable[:EVENt]? Returns the contents of the EVENt part of the status register. Reading an EVENt register clears it. See also Structure of an SCPI Status Register. Return values: <EventBits> Range: 0 to 65535 (decimal representation) Example: STAT:QUES? Query the EVENt part of the QUEStionable register to check...
Page 241: System Commands
® Command Reference R&S CMW500 Instrument-Control Commands Suffix: <n> 8 to 12 Number of the bit Return values: <BitValue> 0 | 1 Example: STAT:QUES:BIT9:COND? Query bit no. 9 of the CONDition part of the STATus:QUEStiona- ble register. Usage: Query only Firmware/Software: V1.0.4.11 STATus:QUEStionable:BIT<n>:ENABle <BitValue>...
Page 242: Device Settings
® Command Reference R&S CMW500 Instrument-Control Commands 7.3.8.1 Device Settings The following commands configure basic instrument settings..................242 SYSTem: B ASE: D EVice: C OUNt ..................242 SYSTem: B ASE: D EVice: R ESet ..................242 SYSTem: B ASE: D EVice: S UBinst .
Page 243: Display Settings
® Command Reference R&S CMW500 Instrument-Control Commands Example: SYSTem:BASE:DEVice:SUBinst? Returns 0,1 or 0,2 or 1,2. Usage: Query only Firmware/Software: V2.0.10 SYSTem:DEVice:ID? Queries the device identification (independent of sub-instruments). Return values: '<DeviceID>' Device ID string. Usage: Query only Firmware/Software: V1.0.10.1 7.3.8.2 Display Settings The following commands configure the appearance of the Graphical User Interface (GUI).
Page 244: Lan Services
® Command Reference R&S CMW500 Instrument-Control Commands Parameters: <Enable> ON | OFF ON: Display is shown and updated during remote control OFF: Display shows static image during remote control *RST: Example: SYSTem:DISPlay:UPDate ON Switch on the display update. Firmware/Software: V1.0.5.3 7.3.8.3 LAN Services The following commands define the parameters for LAN connection of the R&S CMW500.
Page 245 ® Command Reference R&S CMW500 Instrument-Control Commands Example: SYSTem:COMMunicate:NET:HOSTname 'hh303132.company.net' Define the host name. Firmware/Software: V1.0.0.4 SYSTem:COMMunicate:NET:DHCP <Boolean> Enables or disables the Dynamic Host Configuration Protocol (DHCP). Parameters: <Boolean> -1 | 0 -1: DHCP enabled, automatic TCP/IP address setting 0: DHCP disabled, manual address setting *RST: a *RST does not affect the LAN service settings Example:...
Page 246 ® Command Reference R&S CMW500 Instrument-Control Commands SYSTem:COMMunicate:NET:GATeway '<Address>' Defines the default gateway of the R&S CMW500. This address is valid if DHCP is dis- abled (SYSTem: C OMMunicate: N ET: D HCP Parameters: '<Address>' String parameter, gateway consisting of four blocks separated by dots.
Page 247: Address Settings
® Command Reference R&S CMW500 Instrument-Control Commands 7.3.8.4 Address Settings The following commands define the address information for the different remote-control interfaces of the R&S CMW500...............247 SYSTem: C OMMunicate: S OCKet: M ODE ...............247 SYSTem: C OMMunicate: S OCKet: P ORT .
Page 248 ® Command Reference R&S CMW500 Instrument-Control Commands SYSTem:COMMunicate:SOCKet:VRESource? Queries the VISA resource string of the socket resource (direct socket communication); Remote Control Operation. Suffix: 1 to 2 Selects the remote channel. Return values: '<String>' VISA address string; see example below. *RST: *RST has no effect on the value.
Page 249 ® Command Reference R&S CMW500 Instrument-Control Commands Parameters: <State> ON | OFF ON: GPIB enabled OFF: GPIB disabled *RST: a *RST has no effect on the value Example: SYSTem:COMMunicate:GPIB:ENABle ON Enable GPIB interface (channel 1). Firmware/Software: V1.0.0.4 SYSTem:COMMunicate:GPIB:VRESource? Queries the VISA resource string of the GPIB interface; see Remote Control Operation.
Page 250: Reference Frequency And System Synchronization Settings
® Command Reference R&S CMW500 Instrument-Control Commands SYSTem:COMMunicate:VXI:GTR <State> Enables or disables the VXI-11 interface. Suffix: 1 to 2 Selects the remote channel. Parameters: <State> ON | OFF ON: VXI-11 enabled OFF: VXI-11 disabled *RST: a *RST has no effect on the value Example: SYSTem:COMMunicate:VXI:GTR ON Enable VXI-11 interface for channel 1.
Page 251 ® Command Reference R&S CMW500 Instrument-Control Commands SYSTem:BASE:REFerence:FREQuency:SOURce <FrequencySource> Sets the R&S CMW500 to internal or external reference. Parameters: <FrequencySource> INTernal | EXTernal INTernal: Internal reference frequency EXTernal: External reference frequency *RST: Example: SYST:REF:FREQ:SOUR EXT Set the R&S CMW500 to an external reference frequency. SYST:REF:FREQ 10E+6 Hz Define an external reference frequency of 10 MHz.
Page 252: High Resolution Timer
® Command Reference R&S CMW500 Instrument-Control Commands Parameters: <Mode> LIST | GEN | STAN LISTener: The instrument receives a time synchronization signal at SYS SYNC IN GENerator: The instrument provides a system synchronization signal at the rear panel STANdalone: The instrument uses its internal synchronization signal Example: SYST:BASE:SSYN:MODE GEN...
Page 253: Miscellaneous Instrument Settings
® Command Reference R&S CMW500 Instrument-Control Commands SYSTem:TIME:HRTimer:ABSolute:SET This command sets a timestamp with the current system time. A timer can be started with a timeout relative to this timestamp, see SYSTem: T IME: H RTimer: A BSolute on page 252. An existing timestamp is overwritten.
Page 254 ® Command Reference R&S CMW500 Instrument-Control Commands ....................257 SYSTem: E RRor: C OUNt ....................257 SYSTem: E RRor[: N EXT] ..................257 SYSTem: H ELP: S TATus: B ITS .................258 SYSTem: H ELP: S TATus[: R EGister] ......................258 SYSTem:...
Page 255 ® Command Reference R&S CMW500 Instrument-Control Commands Firmware/Software: V1.0.10.1 2.0.10: Query parameters <OptionType> and <Validity> added SYSTem:BASE:RELiability? Returns the common reliability indicator. Return values: <Value> "Common Reliability Indicator" on page 147 Usage: Query only Firmware/Software: V2.0.10 SYSTem:CONNector:TRANslation? <Connector> Queries the relation between absolute and virtual connector names. You can query this relation for either an absolute or a virtual name.
Page 256 ® Command Reference R&S CMW500 Instrument-Control Commands <Day> Day, 1 to the number of days in the month from the previous parameter. Numbers entered are rounded to the closest integer value. *RST: a *RST does not affect the date settings Example: SYSTem:DATE? Query the current date.
Page 257 ® Command Reference R&S CMW500 Instrument-Control Commands Example: SYSTem:ERRor:CODE? Query the oldest entry in the error queue. "0" is returned if the error queue is empty. Usage: Query only SCPI confirmed Firmware/Software: V1.0.0.4 SYSTem:ERRor:COUNt? Queries the number of entries in the error queue. Example: SYSTem:ERRor:COUNt? If the queue is empty, 0 is returned.
Page 258 ® Command Reference R&S CMW500 Instrument-Control Commands SYSTem:HELP:STATus[:REGister]? Returns a list of paths for the STATus:OPERation registers. Each path is represented by a string containing all registers from highest level down to the individual register, separated by colons. For the GPRF power measurement for example the following paths are listed: "STATus:OPERation", "STATus:OPERation:TASK", "STATus:OPERation: TASK:A", "STATus:OPERation:TASK:A:GPRF", "STATus:OPERation:TASK: A:GPRF:MEASurement", "STATus:OPERation:TASK:A:GPRF:MEASurement:...
Page 259 ® Command Reference R&S CMW500 Instrument-Control Commands Example: SYSTem:PRESet:ALL Force the entire R&S CMW500 to a preset state optimized for manual operation. *RST Optimize the current sub-instrument for remote operation. Usage: Event SCPI confirmed Firmware/Software: V1.0.5.3 SYSTem:TIME <Hour>, <Minute>, <Second> Sets the time of the internal clock.
Page 260: Trace Commands
® Command Reference R&S CMW500 Instrument-Control Commands 7.3.9 TRACe Commands The commands in this section configure and control tracing of the remote interface and events into a file and enable/disable the display of the SCPI remote trace. Before you start tracing, configure all settings as desired. Modifying settings while tracing is active may result in loss of already traced data.
Page 261 ® Command Reference R&S CMW500 Instrument-Control Commands TRACe:REMote:MODE:FILE<inst>:FILTer <Input>, <Output>, <Error>, <Trigger>, <DeviceClear>, <StatusRegister>, <Connection>, <RemoteLocal> Specifies a filter for tracing of the specified sub-instrument. The filter defines which mes- sage types and events are traced into a file. The default setting is ON,ON,ON,OFF,OFF,OFF,OFF,OFF. Suffix: <inst>...
Page 262 ® Command Reference R&S CMW500 Instrument-Control Commands Parameters: <Format> ASCii | XML Default value: XML Example: TRACe:REMote:MODE:FILE1:FORMat XML Select XML as file format for sub-instrument 1. Firmware/Software: V2.0.10 TRACe:REMote:MODE:FILE<inst>:NAME '<FilePath>' Specify path and name of the target file for tracing of the remote interface. For different sub-instruments specify different files.
Page 263 ® Command Reference R&S CMW500 Instrument-Control Commands Suffix: <inst> 1..2 Selects the sub-instrument Parameters: <StartMode> AUTO | EXPLicit AUTO: Start tracing automatically when the instrument is started EXPLicit: Start tracing via the command TRACe: R EMote: MODE: F ILE<inst>: E NABle Default value: EXPLicit Example: TRACe:REMote:MODE:FILE1:STARtmode AUTO...
Page 264: Trigger Commands
® Command Reference R&S CMW500 Instrument-Control Commands Example: TRACe:REMote:MODE:DISPlay:ENABle LIVE Activate the live mode. Firmware/Software: V2.1.10 7.3.10 TRIGger Commands The following commands control the external trigger settings, see External Trigger. Contents of this chapter The commands in this section belong to the R&S CMW500 base system; they are not related to specific firmware applications.
Page 265 ® Command Reference R&S CMW500 Instrument-Control Commands Parameters: <Direction> IN | OUT IN: Input connector OUT: Output connector *RST: Example: TRIGger:BASE:EXTB:DIRection OUT Use TRIG B as an output connector. Firmware/Software: V1.0.4.11 TRIGger:BASE:EXTA:SOURce '<Source>' TRIGger:BASE:EXTB:SOURce '<Source>' Selects the output trigger signals to be routed to the TRIG A and TRIG B connectors. The signals listed below are always available.
Page 267: Annexes
® Annexes R&S CMW500 Interfaces and Connectors 8 Annexes The following sections cover mostly hardware and service-related topics. 8.1 Interfaces and Connectors This chapter provides a detailed description of the rear panel connectors of the R&S CMW500. For a graphical overview of the rear panel refer to Rear Panel Tour.
Page 268 ® Annexes R&S CMW500 Interfaces and Connectors 8.1.1.4 USB REMOTE Universal Serial Bus connector of type B (instrument acts as device), used for remote control of the instrument; see Remote Control Operation. The USB connector complies with standard USB 2.0; refer to the "Specifications". USB Connection The length of passive connecting USB cables should not exceed 1 m.
Page 269 ® Annexes R&S CMW500 Interfaces and Connectors The external reference signal must meet the specifications of the data sheet. REF OUT1, RF1 COM, RF2 COM, RF1 OUT, RF3 COM, RF4 COM, RF3 OUT Use double-shielded cables and match signal with 50 Ω in order to comply with EMC (electromagnetic compatibility) directives.
Page 270: Lan Interface
® Annexes R&S CMW500 Interfaces and Connectors For instruments with display optional (R&S CMW-B620A). 8.1.2 LAN Interface To be integrated in a LAN, the instrument is equipped with a LAN interface, consisting of a RJ-45 connector, a network interface card and protocols. The network interface card supports IEEE 802.3 for a 10 Mbps Ethernet and IEEE 802.3u for a 100 Mbps Ethernet.
Page 271 ® Annexes R&S CMW500 Interfaces and Connectors ● Program messages (control command to the instrument) ● Response messages (values returned by the instrument) ● Service request (spontaneous queries of the instrument) ● Low–level control messages (see Emulation Codes) A VXI–11 link between a controller and an instrument uses three channels: core, abort and interrupt channel.
Page 272 ® Annexes R&S CMW500 Interfaces and Connectors 8.1.2.2 Direct Socket Communication With direct socket communication the test application communicates directly with the TCP transport layer, bypassing the presentation and session layer of the OSI reference model. The following figure shows an example of the OSI layers used for direct socket communication.
Page 273: Gpib Bus Interface
® Annexes R&S CMW500 Interfaces and Connectors ● "IEEE1174" mode uses only the "Data Port", even for transfer of emulation codes. This implies that the controller must listen for service requests and emulation code responses at the data port. ● "Agilent"...
Page 274 ® Annexes R&S CMW500 Interfaces and Connectors Pin assignment Bus lines ● Data bus with 8 lines D0 to D7: The transmission is bit-parallel and byte-serial in the ASCII/ISO code. D0 is the least significant bit, D7 the most significant bit. ●...
Page 275 ® Annexes R&S CMW500 Interfaces and Connectors 8.1.3.1 Interface Functions Instruments which can be controlled via GPIB bus can be equipped with different interface functions. The interface function for the R&S CMW500 are listed in the following table. Control character Interface function Handshake source function (source handshake), full capability Handshake sink function (acceptor handshake), full capability...
Page 276: Comparison With R&S Cmu
® Annexes R&S CMW500 Comparison with R&S CMU Addressed commands Addressed commands are encoded in the range 00 through 0F hex. They are only effec- tive for instruments addressed as listeners. Command QuickBASIC com- Effect on the instrument mand IBTRG (device%) Triggers a previously active device function (e.g.
Page 277: Rf Path Settings
® Annexes R&S CMW500 Comparison with R&S CMU Task R&S CMU 200 command R&S CMW500 command R&S CMW500 upgrade hints Select sub-instrument n/a (separate remote channel per- Sub-instruments divide the instru- sub-instrument) ment into independent entities with their own hardware and soft- ware resources Select function group/ SYSTem:REMote:ADDRess:...
Page 278: Generator Control
® Annexes R&S CMW500 Comparison with R&S CMU Task R&S CMU 200 command R&S CMW500 command R&S CMW500 upgrade hints Define analyzer set- [SENSe:]LEVel:MAXimum CONFigure:<Application>: Independent analyzer settings for tings MEASurement: each firmware application [SENSe:]RFANalyzer: <Context>:RFSettings: FREQuency ENPower CONFigure:<Application>: MEASurement: <Context>:RFSettings: UMARgin CONFigure:<Application>:...
Page 279: Windows Xp Recovery And Backup
® Annexes R&S CMW500 Windows XP Recovery and Backup Task R&S CMU 200 command R&S CMW500 command R&S CMW500 upgrade hints Measurement sub- FETCh:<FWA>:<Context>: Substate also shows pending and states STATe:ALL? queued measurements; see Mea- surement Substates. Statistical settings CONFigure:<Context>: CONFigure:<FWA>: Statistics can be set independ- CONTrol:STATistics...
Page 280: Recovering The Factory Default Settings
® Annexes R&S CMW500 Windows XP Recovery and Backup Fig. 8-5: Recovery and Backup dialog 8.3.2 Recovering the Factory Default Settings The "Factory Default" image is always available on the backup/restore partition; it cannot be deleted. To restore the initial state of the instrument, recover the "Factory Default" image. 1.
Page 281: List Of Commands
® List of Commands R&S CMW500 List of Commands *DMC ................................197 *EMC ................................197 *GMC ................................198 *LMC ................................198 *PMC ................................198 *RMC ................................198 CALibration: B ASE: A LL ..........................207 CALibration: B ASE: L ATest ..........................207 CALibration:...
Page 282 ® List of Commands R&S CMW500 SENSe: B ASE: R EFerence: F REQuency: L OCKed ..................251 STARt: B ASE: B UFFer ............................201 STATus: C ONDition: B ITS: A LL ........................235 STATus: C ONDition: B ITS: C ATaloge ......................236 STATus:...
Page 283 ® List of Commands R&S CMW500 STATus: O PERation: T ASK: A : < netw_std>: < func_grp>: W CONdition .............225 STATus: O PERation: T ASK: A : < netw_std>: < func_grp>: W EVent ..............226 STATus: O PERation: T ASK: A : < netw_std>: < func_grp>: X CONdition ..............230 STATus:...
Page 284 ® List of Commands R&S CMW500 STATus: O PERation: T ASK: W CONdition ......................225 STATus: O PERation: T ASK: W EVent ......................226 STATus: O PERation: T ASK: X CONdition ......................230 STATus: O PERation: T ASK: X ENable ......................230 STATus:...
Page 285 ® List of Commands R&S CMW500 SYSTem: C OMMunicate: N ET: D HCP ......................245 SYSTem: C OMMunicate: N ET: D NS ........................246 SYSTem: C OMMunicate: N ET: D NS: E NABle ....................246 SYSTem: C OMMunicate: N ET: G ATeway ......................246 SYSTem:...
