Led Diagnostics; Terminal Identification - Altronix SMP7PM Installation Manual

Supervised power supply/charger
Table of Contents

Advertisement

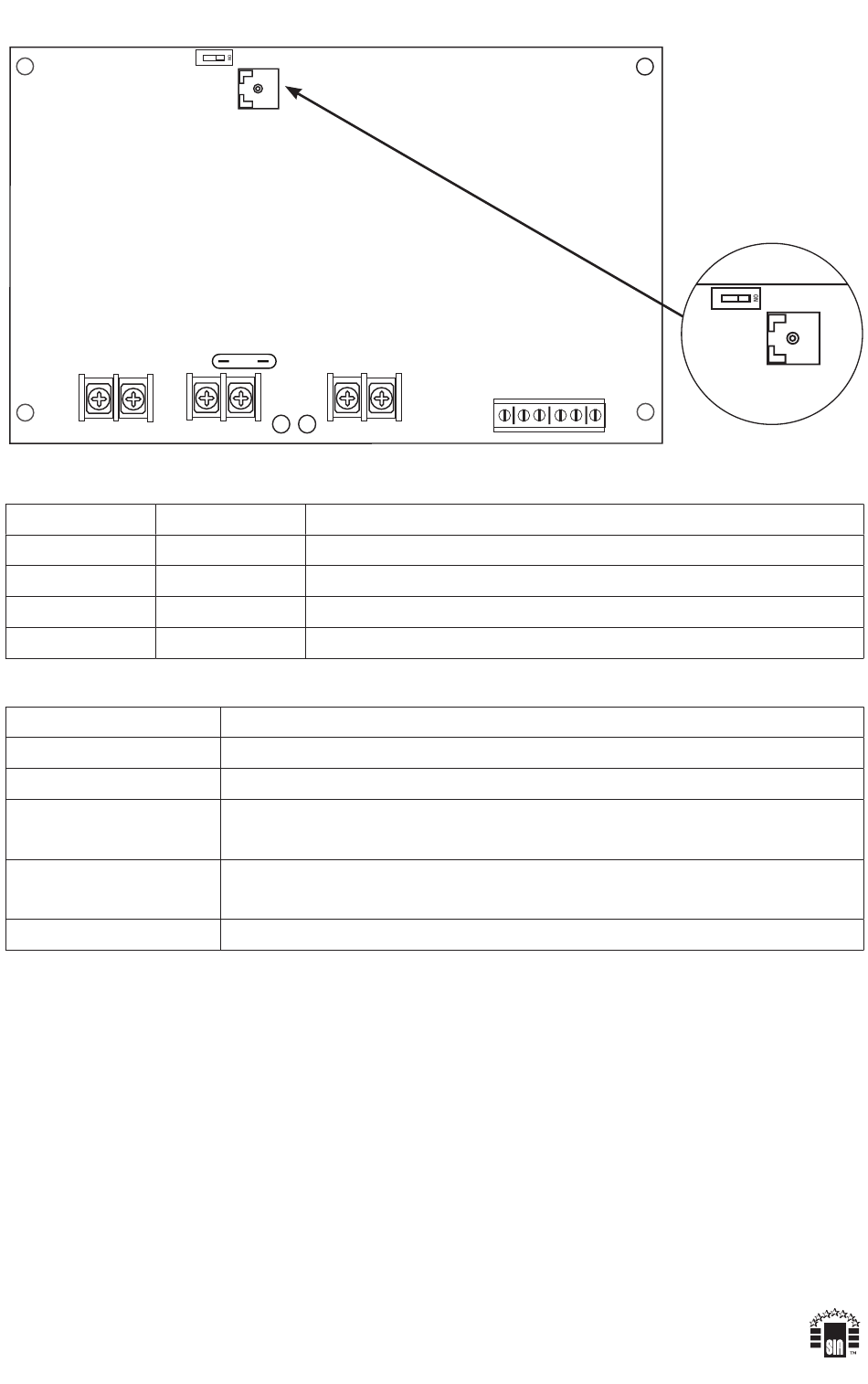

Fig. 1
AC
AC
Red (DC)
Green (AC)
ON
ON
ON
OFF
OFF
ON
OFF
OFF
Terminal Legend
AC/AC
– DC +
AC FAIL
NC, C, NO
Low Battery
NC, C, NO
– BAT +
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IISMP7PM Rev. 061603
OFF 24VDC
ON 12VDC
15
AC DC
--- DC +
--- BAT +

LED Diagnostics:

Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery is supplying power.
No DC output.
Loss of AC. Discharged or no stand-by battery. No DC output.

Terminal Identification:

Function/Description
Low voltage AC input (24VAC or 28VAC / 175VA).
12VDC / 24VDC @ 6A continuous output.
Used to notify loss of AC power, (e.g. connect to audible device or alarm panel).
Relay normally energized when AC power is present. Contact rating 1A @ 28VDC.
Used to indicate low battery condition, (e.g. connect to alarm panel).
Relay normally energized when DC power is present. Contact rating 1A @ 28VDC
Stand-by battery connections. Maximum charge rate 0.7A.
AC FAIL
NC
C
NO NC
C
NO
AC
H18U
OFF 24VDC
ON 12VDC
BAT FAIL
15
--- DC +
AC
Fig. 1a
AC DC
---
MEMBER
