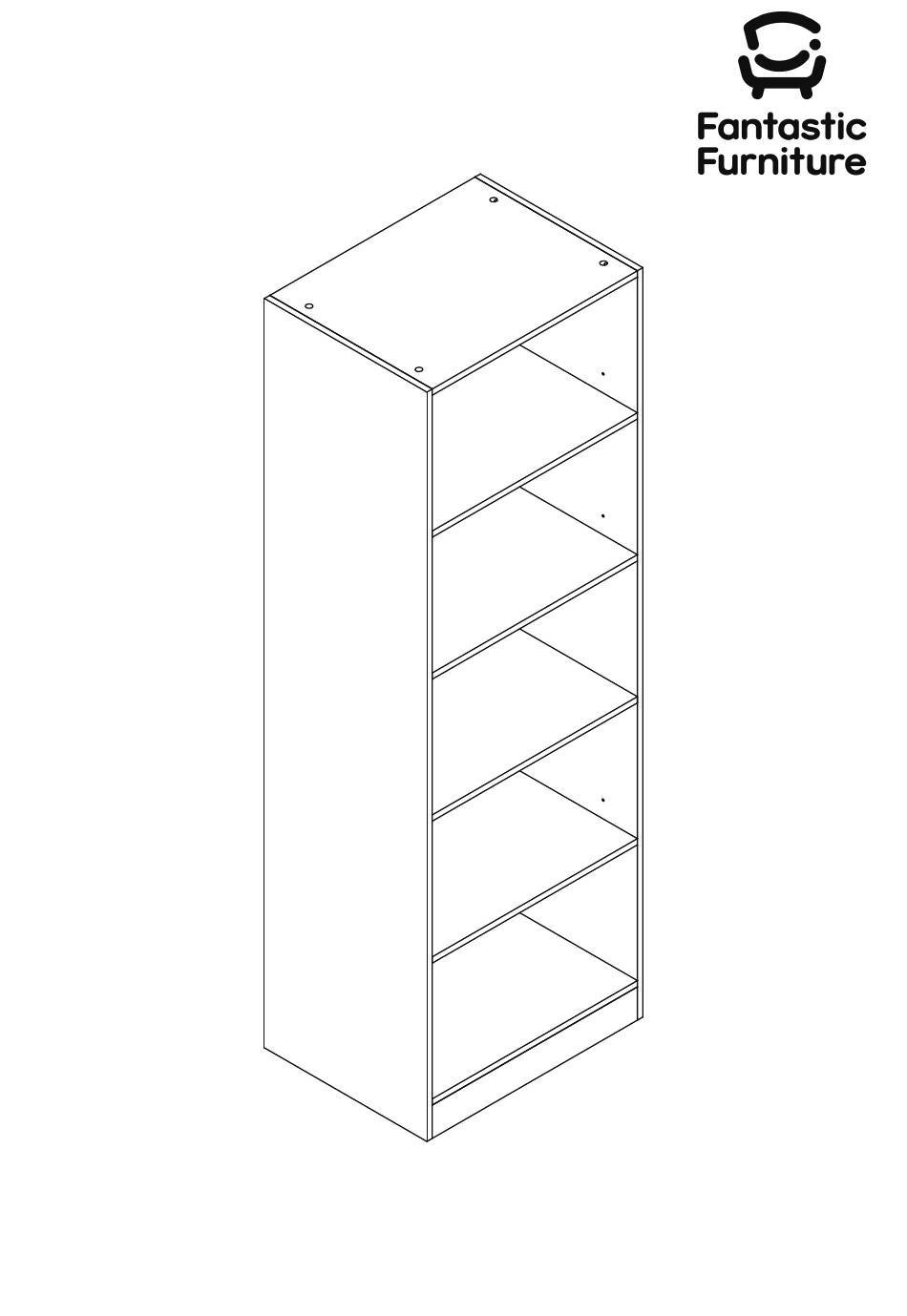

- Page 1 Version 1.0 Eden Utility 5 Shelf fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
Top/Base Panel What you need (P1) to assemble the product Shelf Panel (P4) DO NOT USE Back Back Panel Panel Other tools you need: (P6) (P6) Phillips head screwdriver; Right Side Hammer Shelf Panel Panel (P3) (P4) Back Panel Left Side Back (P8) Panel (P2) - Page 5 Step 1 You will need 8 x Cam Bolts Phillips Head (H3) Screwdriver (P2) Attach 8 x Cam Bolts (H3) to Left Side Panel (P2) as shown by tightening with the Phillips Head Screwdriver. Step 2 You will need 8 x Cam Bolts Phillips Head (H3) Screwdriver...
- Page 6 Step 3 This is how a cam nut works..The head of the cam bolt goes into the You will need open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt. (P1) 8 x Dowels 8 x Cam Nuts (H1)
- Page 7 Step 5 You will need (P3) 8 x Dowels 8 x Cam Nuts (H1) (P1) (H4) Phillips Head Screwdriver (P5) (P7) Insert 8 x Dowels (H1) into (P1) Top/Base Panels (P1 x 2), Fixed Panel (P5) (P7) and Rails (P7 x 2). Insert 8 x Cam Nuts (H4) into Top/Base Panels (P1 x 2), Fixed Shelf Panel (P5) and Rails (P7 x 2).
- Page 8 Step 7 You will need (P3) (P2) (P4) (P4) 12 x Shelf Supports (H5) (P4) Align the Shelf Support to the hole of Adjustable Shelf Panel. Insert 12 x Shelf Supports (H5) into the holes of the left & Right (P4) Side Panels (P2 &...
-
Page 9: Job Complete
Step 9 (P1) You will need 1 x Safety 1 x Safety Strap (P2) Strap (H8) Screw (H9) (P3) We strongly advise that you use the wall safety strap provided to prevent the unit 1 x Washer Phillips Head toppling. (H10) Screwdriver Attach the Safety Strap (H8) to the...
