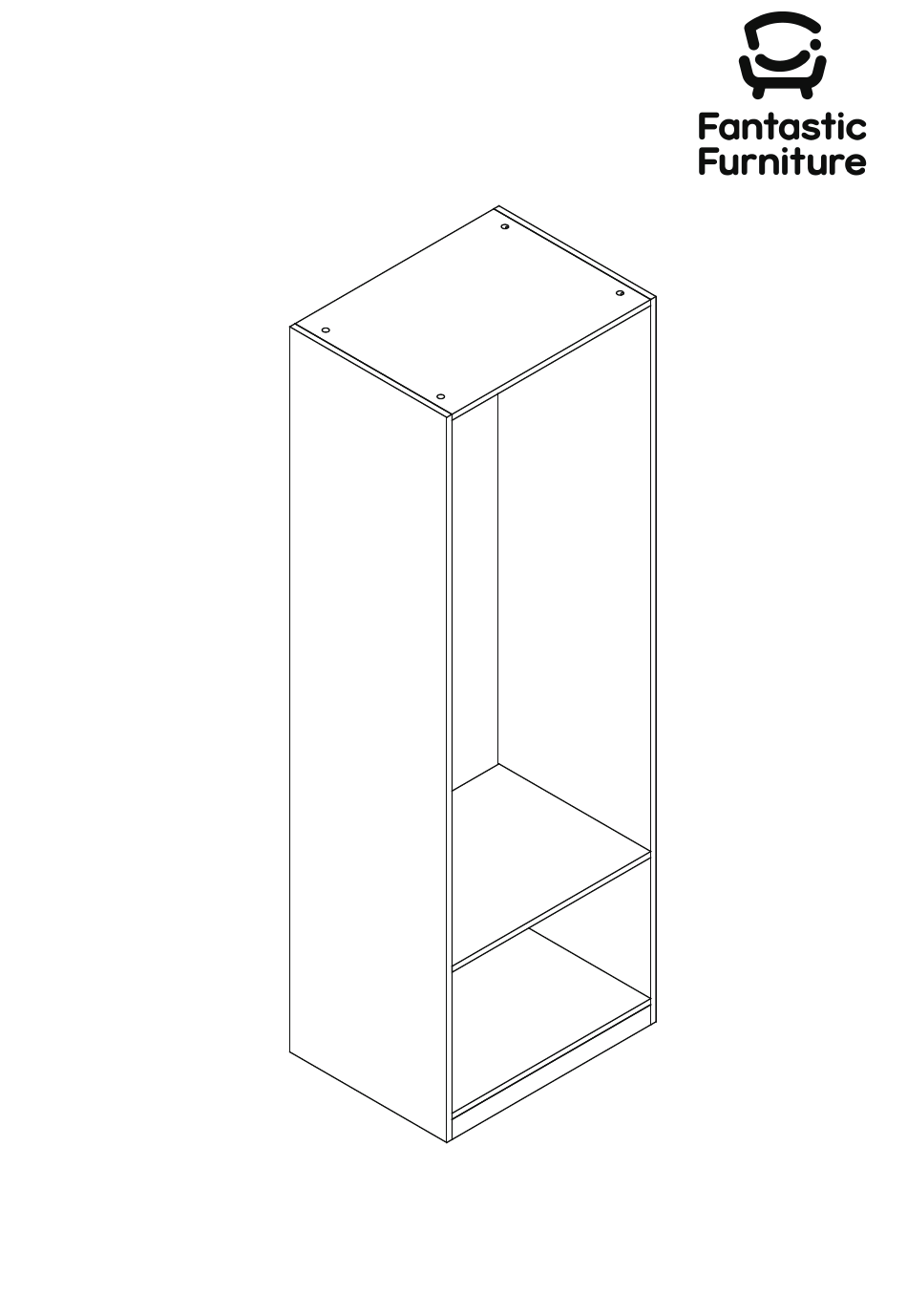

- Page 1 Version 1.0 Eden Utility 1 Shelf Clothes Rack fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need Top/Base Panel (P1) to assemble the product Support DO NOT USE Right Side Back Panel (P3) Back Panel (P7) Other tools you need: Panel (P5) Phillips head screwdriver; (P5) Hammer Support Left Side Panel (P2) (P7) Shelf Panel Back (P4) Parts list... - Page 5 Step 1 You will need 8 x Cam Bolts Phillips Head (H3) Screwdriver (P2) Attach 8 x Cam Bolts (H3) to Left Side Panel (P2) as shown by tightening with the Phillips Head Screwdriver. Step 2 You will need 8 x Cam Bolts Phillips Head (H3) Screwdriver...
- Page 6 Ensure the grooves in the Top/Base Step 3 Panels (P1 x 2) located at the back of the unit. You will need (P1) Grooves for back panels 8 x Dowels 8 x Cam Nuts (H1) (H4) (P6) Phillips Head (P4) Screwdriver (P6) (P1)
- Page 7 Step 5 You will need (P3) 8 x Dowels 8 x Cam Nuts (H1) (H4) (P1) Phillips Head Screwdriver (P4) (P6) Insert 8 x Dowels (H1) into Top/Base Panels (P1 x 2), Shelf Panel (P4) (P1) (P6) and Rails (P6 x 2). Insert 8 x Cam Nuts (H4) into Top/Base Panels (P1 x 2), Shelf Panel (P4) and Rails (P6 x 2).
- Page 8 Step 7 You will need 2 x Hanging Rail 1 x Hanging Support (H5) Rail (H6) (P3) (P2) 4 x Flat Head Phillips Head Screws (H2) Screwdriver Secure 2 x Hanging Rail Supports (H5) to Left & Right Side Panels (P2 & P3) with 4 x Flat Head Screws (H2) as shown by tightening with the Phillips Head Screwdriver.
- Page 9 Step 9 (P1) You will need 10 x Wedges 10 x Long (P5) (H8) Screws (H9) (P2) (P5) (P3) Phillips Head Screwdriver (P8) Secure Back Panels (P5 x 2 & P8) in place with 10 x Wedges (H8) and 10 x Long Screws (H9) by tightening with the Phillips Head Screwdriver. Step 10 (P1) You will need...
-
Page 10: Job Complete
Step 11 You will need (P1) 1 x Washer Phillips Head (H12) Screwdriver wall Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall. Screw Seek advice from a qualified trades person on how to attach this safety strap to your specific wall.
