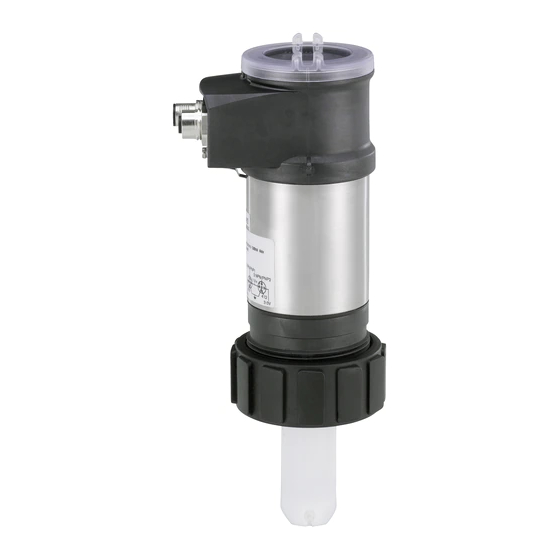

Burkert 8026 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Burkert Manuals
  4. Measuring Instruments
  5. 8026
  6. Operating instructions manual

Burkert 8026 Operating Instructions Manual

Flowmeter and flow transmitter
Hide thumbs Also See for 8026:
Table of Contents

Advertisement

Quick Links

Download this manual

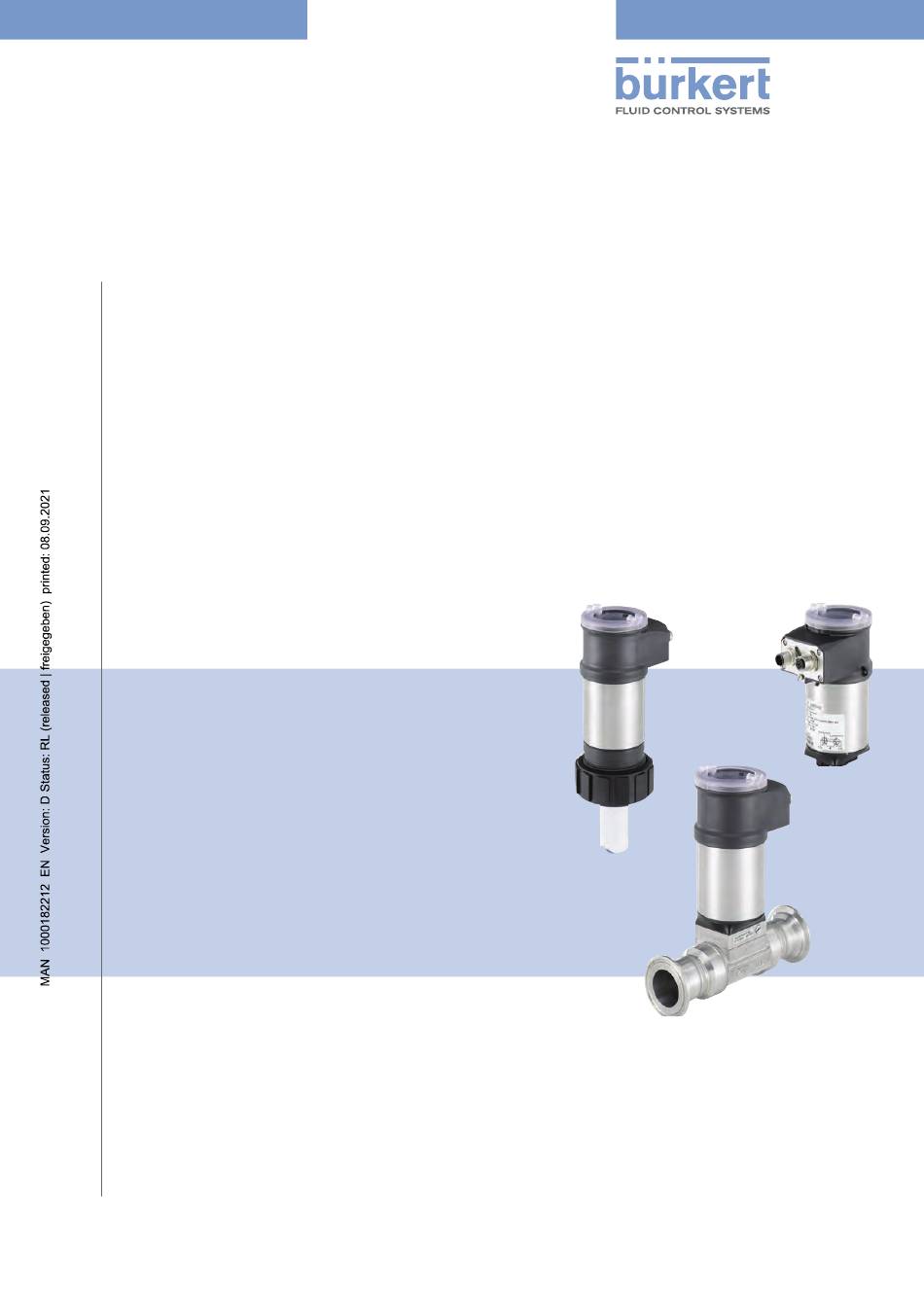

Type 8026 - 8036 - SE36
Flowmeter and Flow transmitter
Durchfluss-Messgerät und Durchfluss-Transmitter
Débitmètre et transmetteur de débit
Operating Instructions
Bedienungsanleitung
Manuel d'utilisation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8026 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Burkert 8026

Summary of Contents for Burkert 8026

  • Page 1 Type 8026 - 8036 - SE36 Flowmeter and Flow transmitter Durchfluss-Messgerät und Durchfluss-Transmitter Débitmètre et transmetteur de débit Operating Instructions Bedienungsanleitung Manuel d‘utilisation...
  • Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modification technique. © Bürkert SAS, 2009 - 2021 Operating Instructions 2109/04_EU-ML 00561367 / Original_FR...

  • Page 3: Table Of Contents

    Type 8026 - 8036 - SE36 Contents  About the operAting instructions ..........................7 1.1 Definition of the word "device" ............................7 1.2 Validity of the operating instructions ........................7 1.3 symbols used ..................................7 intenDeD use ....................................8 bAsic sAfety informAtion ..............................9 generAl informAtion ................................10 4.1 manufacturer's address and international contacts ..................10 4.2 Warranty conditions ................................10 4.3 information on the internet ............................10 Description ....................................11 Area of application ................................11 5.1 construction of the type 8026 ...........................11 5.2 construction of the type se36 ..........................11...
  • Page 4 ........................25 8.2 8.2.1 Install the Type S020 fitting in the pipe ..................25 8.2.2 Install the Type 8026 flowmeter into the fitting Type S020 ............26 8.2.3 Complete the installation of the Type 8026 ................26 8.3 installation of a type 8036 on a pipe ........................27 8.3.1 Install the Type S030 sensor-fitting in the pipe ................27...
  • Page 5 Type 8026 - 8036 - SE36  ADjustment AnD stArt-up ..............................39 9.1 safety instructions ................................39 9.2 Knowing the operating levels .............................39 9.3 using the navigation button ............................40 9.4 using the dynamic functions ............................42 9.5 entering a numerical value (example) ........................42 9.6 browsing in a menu (example) ..........................42 9.7 Knowing the display .................................43 9.7.1 Knowing the display at the power-up of the device ..............43 9.7.2 Knowing the icons and LEDs ......................43 Knowing the process level ............................45 9.8...
  • Page 6 Type 8026 - 8036 - SE36  9.14 Knowing the menu test ..............................65 9.14.1 Modifying the Test menu access code ..................65 9.14.2 Checking the output functions .......................65 9.14.3 Checking the outputs behaviour ....................66 9.15 Knowing the menu information ..........................67 mAintenAnce AnD troubleshooting ........................68 10.1 safety instructions ................................68 10.2 cleaning the device ................................68 10.3 solving problems ................................69 spAre pArts AnD Accessories ............................71 pAcKAging, trAnsport ................................71 storAge ......................................72 DisposAl of the proDuct ..............................72...

  • Page 7: About The Operating Instructions

    1.2 Validity of the operating instructions The Operating Instructions are valid for the following devices: • Type 8026 flowmeter, from the version V2, • Type 8036 flowmeter, from the version V2, • Type SE36 flow transmitter, from the version V2. Mention V2 is given on the device Type-label. Refer to chpt. 5.6.

  • Page 8: Intended Use

    Type 8026 flowmeter and Type 8036 flowmeter are intended for the measurement of the flow rate of liquids. Type SE36 flow transmitter associated with a sensor-fitting is intended for the measurement of the flow rate of liquids.

  • Page 9: Basic Safety Information

    Type 8026 - 8036 - SE36 Basicsafetyinformation bASic SAfETy informATion This safety information does not take into account any contingencies or occurrences that may arise during instal- lation, use and maintenance of the device. The operating company is responsible for the respect of the local safety regulations including staff safety.

  • Page 10: General Information

    The condition governing the legal warranty is the conforming use of the device in observance of the operating conditions specified in the Operating Instructions. 4.3 information on the internet You can find the Operating Instructions and technical data sheets for Type 8026, Type 8036 and Type SE36 at: country.burkert.com English...

  • Page 11: Description

    The device is intended to measure the flow rate of liquids: • Type 8026 and Type 8036 flowmeters are used to measure the flow of neutral or slightly aggressive liquids, • Type SE36 flow transmitter with a Type S070 or a Type S077 sensor-fitting is used to measure the flow rate of viscous liquids such as honey or oil and which are free of solid particles.

  • Page 12: Construction Of The Type 8036

    Type 8026 - 8036 - SE36 Description 5.4 construction of the Type 8036 The Type 8036 flowmeter comprises: A: a Type S030 sensor-fitting including the paddle-wheel flow sensor. Set in rotation by the flow, the 4 permanent magnets integrated in the vanes of the paddle generate pulses, the frequency of which is proportional to the flow velocity of the fluid.

  • Page 13: Type Label

    Type 8026 - 8036 - SE36 Description 5.6 Type label Type 8026 flowmeter Type 8036 flowmeter or Type SE36 flow transmitter 8026 Flow-Meter SE36/8036 Flow-Meter With Display Supply: 14-36VDC 40W max. Supply: 14-36V 40W max. Output: 1x4-20mA 2xTransistors 500 mA Max Output: 1x4-20mA 1xTransistor 700 mA Max NPN...

  • Page 14: Technical Data

    ▶ Observe the fluid nominal pressure (PN) for the device or the fitting used. The nominal pressure (PN) is given by the device manufacturer or the fitting manufacturer. Type 8026 flowmeter, Type S030, Type S070 and Type S077 fittings conform to Article 4, Paragraph 1 of the Pressure Equipment Directive 2014/68/EU under the following conditions: •...

  • Page 15: Ul Certification

    Type 8026 - 8036 - SE36 Technicaldata 6.2.2 ul certification Devices with variable key PU01 or PU02 are UL-certified devices and comply also with the following standards: • UL 61010-1 • CAN/CSA-C22.2 n°61010-1 identification on the device certification Variable key UL recognized PU01 Measuring UL listed PU02 Equipment ®...

  • Page 16: Dimensions

    Type 8026 - 8036 - SE36 Technicaldata Type 8026 flowmeter Type SE36 transmitter nickel-plated nickel-plated brass silicone silicone brass (stainless steel) (stainless steel) PPS CF30 PPS CF30 EPDM EPDM stainless steel stainless steel PVDF ceramic (Al PVDF Fig. 2 :  Materials of the device  6.4 Dimensions → Refer to the technical data sheets related to the device at: country.burkert.com...
  • Page 17 • Refer to the Operating Instructions that are delivered with the fitting used. type of fluid • Type 8026, Type 8036 • Neutral or slightly aggressive fluids • Type SE36 with a Type S070 fitting or a • Viscous fluids, free of solid particles...

  • Page 18: Electrical Data

    Type 8026 - 8036 - SE36 Technicaldata PVDF + Metal P (bar) (PN10) Metal PVC + PP PVC (PN10) PVDF (PN10) PP (PN10) +90 +110 T (°C) A: Operating range Fig. 3 :  Dependency between the fluid temperature and the fluid pressure, Type 8026 associated to a fitting Type S020  6.7 Electrical data operating voltage • device variant with 2 or 3 outputs (2 wires) •...
  • Page 19 Type 8026 - 8036 - SE36 Technicaldata transistor output • device variant with only 1 transistor output • NPN, 700 mA max., 1...36 V DC • device variant with 2 transistor outputs - type - NPN (/sink) or PNP (/source). Through wiring and through software setting - NPN output - 1...36 V DC, 700 mA max.

  • Page 20: Assembly

    Type 8026 - 8036 - SE36 Assembly ASSEmbly 7.1 Safety instructions Danger risk of injury due to electrical voltage. ▶ Before carrying out work on the system or the device, disconnect the electrical power for all the conductors and isolate it. ▶ If the device is installed either in a wet environment or outdoors, all the electrical voltages must be of max.

  • Page 21: Removing The Housing Lid

    Type 8026 - 8036 - SE36 Assembly Warning risk of injury due to unintentional switch on of power supply or uncontrolled restart of the installation. ▶ Avoid unintentional activation of the installation. ▶ Guarantee a defined or controlled restart of the process after any intervention on the device. 7.2 removing the housing lid notiCe the tightness of the device is not guaranteed when the housing lid is removed. ▶ Prevent the projection of liquid inside the housing.

  • Page 22: Mounting The Display Module

    Type 8026 - 8036 - SE36 Assembly 7.4 mounting the display module notiCe the tightness of the device is not guaranteed when the housing lid is removed. ▶ Prevent the projection of liquid inside the housing. the device may be damaged if a metal component comes into contact with the electronics. ▶ Prevent contact of the electronics with a metallic item. → Remove the housing lid. Refer to chpt. 7.2. 20° → Set the display module at an angle of ca. 20° in relation to the desired position.

  • Page 23: Dismounting The Display Module

    Type 8026 - 8036 - SE36 Assembly 7.5 Dismounting the display module → Remove the housing lid if necessary. Refer to chpt. 7.2. → Turn the module by ca. 20° counterclockwise. Once unlocked, the display module is raised slightly by the spring action. 20° → Remove the display module from its housing.

  • Page 24: Installation And Wiring

    Type 8026 - 8036 - SE36 Installationandwiring inSTAllATion AnD Wiring 8.1 Safety instructions risk of injury due to electrical voltage. ▶ Before carrying out work on the system or the device, disconnect the electrical power for all the conductors and isolate it. ▶ If the device is installed either in a wet environment or outdoors, all the electrical voltages must be of max.

  • Page 25: Installation Of A Type 8026 On A Pipe

    ▶ Respect the prevailing regulations on accident prevention and safety relating to the use of dangerous fluids. Follow the next steps to install the Type 8026 flowmeter properly: 1. Install the fitting Type S020 in the pipe, 2. Insert the Type 8026 flowmeter into the fitting Type S020, 3.

  • Page 26: Install The Type 8026 Flowmeter Into The Fitting Type S020

    → Carefully insert the device into the fitting. If assembly is correct, the device can no longer rotate on itself. → Secure the unit with nut A, tightening only by hand. Fig. 10 :  Installation of a Type 8026 flowmeter into the fitting Type S020 8.2.3 complete the installation of the Type 8026 → Wire the device. Refer to chpt. 8.5.

  • Page 27: Installation Of A Type 8036 On A Pipe

    Type 8026 - 8036 - SE36 Installationandwiring 8.3 installation of a Type 8036 on a pipe Danger risk of injury due to pressure in the installation. ▶ Before any intervention in the installation, stop the circulation of fluid, cut off the pressure and drain the pipe. ▶ Before any intervention in the installation, make sure that there is no pressure in the pipe.

  • Page 28: Complete The Installation Of The Type 8036

    Type 8026 - 8036 - SE36 Installationandwiring → 1: Insert the Type SE36 flow transmitter in the sensor holder. → 2: Turn the Type SE36 flow transmitter by a quarter turn. SE36 → 3: To fix the Type SE36 flow transmitter to the Type S030 sensor-fitting, tighten the screw to a torque of max.

  • Page 29: Assemble The Type Se36 Flow Transmitter On The Type S070 Or The Type S077 Sensor-Fitting

    Type 8026 - 8036 - SE36 Installationandwiring Caution risk of damage when installing the fitting. ▶ Respect the installation instructions given in the Operating Instructions of the fitting. → Install the Type S070 or the Type S077 sensor-fitting in the pipe so that the oval gear axes are in the hori- zontal plane.

  • Page 30: Wiring

    Type 8026 - 8036 - SE36 Installationandwiring 8.5 Wiring Danger risk of injury due to electrical voltage. ▶ Before carrying out work on the system or the device, disconnect the electrical power for all the conductors and isolate it. ▶ If the device is installed either in a wet environment or outdoors, all the electrical voltages must be of max.

  • Page 31: Equipotentiality Of The Installation

    Type 8026 - 8036 - SE36 Installationandwiring 8.5.2 Equipotentiality of the installation To ensure the equipotentiality of the installation (power supply - device - fluid): → Connect together the various earth spots in the installation to eliminate the potential differences that may occur between different earthes. → Observe faultless grounding of the shield of the power supply cable. Refer to Fig. 15 and Fig. 16.

  • Page 32: Wiring A Device Variant With A Single M12 Fixed Connector, An Npn Transistor Output And A Current Output

    Type 8026 - 8036 - SE36 Installationandwiring 8.5.3 Wiring a device variant with a single m12 fixed connector, an npn transistor output and a current output NPN transistor output (TR1) V+ (14...36 V DC) Not connected Fig. 17 :  Pin assignment of the male fixed connector, device variant with 1 NPN transistor output and 1 current output  pin of the female m12 connector available as an accessory (article number 438680) colour of the wire brown white blue black green/yellow or grey Load (solenoid valve for in- white stance) brown green/yellow blue or grey Power supply 14-36 VDC Fig. 18 : ...

  • Page 33: Wiring A Device Variant With A Single M12 Fixed Connector, Two Transistor Outputs And One Current Output

    Type 8026 - 8036 - SE36 Installationandwiring Load white brown blue green/yellow or grey 4...20 mA input (ex- Power supply ternal instrument) 14-36 VDC Fig. 20 :  Transistor output, NPN wiring, and current output in sinking mode (parameter setting "NPN/sink", cannot be  changed), device variant with 1 M12 fixed connector, 1 NPN transistor output and 1 current output  8.5.4 Wiring a device variant with a single m12 fixed connector, two transistor outputs and one current output Transistor output 1 (TR1) V+ (14...36 V DC) Transistor output 2 (TR2) Fig. 21 :  Pin assignment of the male fixed connector, device variant with 2 transistor outputs and 1 current output  pin of the female m12 connector available as an accessory (article number 438680) colour of the wire...
  • Page 34 Type 8026 - 8036 - SE36 Installationandwiring Load 1 white (solenoid valve for instance) brown black green/yellow or grey Load 2 blue (solenoid valve Power supply for instance) 14-36 V DC Fig. 22 :  NPN wiring of both transistor outputs (parameter setting "NPN/sink"), device variant with 1 M12 fixed  connector  Load 1 white (solenoid valve for instance) brown black green/yellow or grey...

  • Page 35: Wiring A Device Variant With Two M12 Fixed Connectors, Two Transistor Out- Puts And Two Current Outputs

    Type 8026 - 8036 - SE36 Installationandwiring 4...20 mA input (external Load 1 instrument) white brown black green/yellow blue or grey Load 2 Power supply 14-36 V DC Fig. 25 :  NPN wiring of both transistor outputs and wiring the current output in sinking mode (parameter setting "NPN/ sink"), device variant with 1 M12 fixed connector  Load 1 4...20 mA input (external instrument) white blue brown black green/yellow or grey...
  • Page 36 Type 8026 - 8036 - SE36 Installationandwiring pin of the female or male m12 cables available as accessories (article number colour of the wire 438680 respectively 559177) brown white blue black green/yellow or grey Load 2 Load 1 (solenoid valve (solenoid valve for white white for instance) instance) brown brown blue green/yellow or grey Power supply 12-36 V DC Fig. 28 :  NPN wiring of both transistor outputs (parameter setting "NPN/sink"), device variant with 2 M12 fixed  connectors ...
  • Page 37 Type 8026 - 8036 - SE36 Installationandwiring 4...20 mA input 4...20 mA input (external instrument) (external instrument) black brown blue black blue green/yellow or grey Power supply 12-36 V DC Fig. 31 :  Wiring of both current outputs in sourcing mode (parameter setting "PNP/source"), device variant with 2 M12  fixed connectors  Load 1 Load 2 white white blue brown brown green/ black yellow...
  • Page 38 Type 8026 - 8036 - SE36 Installationandwiring Load 1 Load 2 white white blue brown blue green/ black black yellow or grey 4...20 mA input 4...20 mA input (external instrument) (external instrument) 12-36 V DC Power supply Fig. 33 :  PNP wiring of both transistor outputs and wiring of both current outputs in sourcing mode (parameter setting  "PNP/source"), device variant with 2 fixed connectors  English...

  • Page 39: Adjustment And Start-Up

    Type 8026 - 8036 - SE36 Adjustmentandstart-up ADjuSTmEnT AnD STArT-up • The settings can only be done on a device with a display module. • Do not remove the display module while making the settings on the device. 9.1 Safety instructions Warning risk of injury due to non-conforming adjustment. Non-conforming operating could lead to injuries and damage the device and its surroundings.

  • Page 40: Using The Navigation Button

    Type 8026 - 8036 - SE36 Adjustmentandstart-up configuration level This level comprises 5 menus: menu title relevant icon "Param": see chpt. 9.11 This is when the device is be- ing parame- tered........ "Calib": see chpt. 9.12 "Diagnostic": see chpt. 9.13 "Test": see chpt. 9.14 "Info": see chpt. 9.15 9.3...
  • Page 41 Type 8026 - 8036 - SE36 Adjustmentandstart-up you want to... press..browse in Process level • next screen: • previous screen: • ...access the Configuration level • ...display the Param menu for at least 2 sec., from any screen of the Process level ...browse in the menus of the Configuration level •...

  • Page 42: Using The Dynamic Functions

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.4 using the dynamic functions you want to... choose..go back to the Process level, without validating the modifications made dynamic function "MEAS" ...confirm the entering dynamic function "OK" ...go back to the parent menu dynamic function "BACK" ...abort the current operation and go back to the parent menu dynamic function "ABORT"...

  • Page 43: Knowing The Display

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.7 Knowing the display 9.7.1 Knowing the display at the power-up of the device When the device is powered up or the display module mounted on the transmitter, the display indicates the software version of the display module. The display then shows the first screen of the Process level: See chpt.
  • Page 44 Type 8026 - 8036 - SE36 Adjustmentandstart-up icon meaning and alternatives Sensor input frequency within the defined ranges The alternatives, in this position, if monitoring of the sensor input frequency is activated, are: • , associated with : see chpt. 9.13.2 and chpt. 10.3 • , associated with : see chpt.

  • Page 45: Knowing The Process Level

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.8 Knowing the process level 1) 2) First view of the Pro- flow_l 1243l/h cess level. flow_m3 Display of the mini- 1. 243/h mum and maximum 1250l/h Reset Yes/No input flows or fre- 1200l/h quencies measured. Zoom on the value flow_l in the first line.

  • Page 46: Accessing The Configuration Level

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.9 Accessing the configuration level > 2s Param This is when the This is This is when the Any view of the Process when the device is be- device is be- device is be- ing parame- ing parame- tered.... tered........

  • Page 47: Knowing The Structure Of The Configuration Menus

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.10 Knowing the structure of the configuration menus See chpt. 9.9 to access the Configuration level. If an "upload" has been made Param System Downl. Yes/No Up/Download Download This is when the This is device is be- when the ing parame- device is be- tered....
  • Page 48 Type 8026 - 8036 - SE36 Adjustmentandstart-up Outputs HWMode sink/NPN Param This is This is when the when the device is be- device is be- ing parame- ing parame- tered.... tered............ On a device variant with 2 transistor outputs source/PNP AC1 / AC2...
  • Page 49 Type 8026 - 8036 - SE36 Adjustmentandstart-up Outputs Mode: Hysteresis Param TR1 / TR2 This is This is when the when the device is be- device is be- ing parame- ing parame- tered.... tered............ Window Pulse If "PVar" ≠ "Warning" Low: ENTER High: ENTER If "Mode"...
  • Page 50 Type 8026 - 8036 - SE36 Adjustmentandstart-up System Diagnostic Code Confirm 0*** 0*** Sensor Frequency Activate Frequency READ Warn Hi ENTER Warn Lo ENTER Err Hi ENTER Err Lo ENTER System Code Test 0*** Confirm 0*** Outputs AC1 Simul: ENTER AC2 Simul: ENTER TR1 Simul:...

  • Page 51: Knowing The Menu Parameter

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.11 Knowing the menu parameter 9.11.1 Transferring data from one device to another See chpt. 9.9 to access the Parameters menu. This function is only possible with a display module with software version V2. → On the device, check the software version in the menu "Info -> Software -> Main".

  • Page 52: Restoring The Default Parameters Of The Process Level And The Outputs

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.11.3 restoring the default parameters of the process level and the outputs See chpt. 9.9 to access the Parameters menu. The following data can be restored to their default value: • user set data of the PARAM menu (except the date, the time, the contrast and brightness levels for the display), •...

  • Page 53: Choosing The Units For The Totalizers Displayed In Process Level

    Type 8026 - 8036 - SE36 Adjustmentandstart-up Take care to choose the time unit according to the flow rate in the pipes as the display indicates a maximum flow rate of 9999 volume units/time unit (see Tab. 4). Tab. 4 :  Displayed flow rate per unit time  selected time unit measured flow rate Displayed flow rate ≥ 0 volume units/h and 0 to 9999 volume units/h ≤...

  • Page 54: Displaying The Lowest And Highest Values Measured

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.11.6 Displaying the lowest and highest values measured See chpt. 9.9 to access the Parameters menu. Param Display Status Enabled Min/Max Disabled This is This is when the when the device is be- device is be- ing parame- ing parame- tered.... tered............

  • Page 55: Choosing The Output Wiring Mode

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.11.8 choosing the output wiring mode See chpt. 9.9 to access the Parameters menu. Param Outputs HWMode sinkNPN sourcePNP This is This is when the when the device is be- device is be- ing parame- ing parame- tered.... tered............ On a device variant with an NPN transistor output and a current output, only the choice “sink/NPN” is possible.
  • Page 56 Type 8026 - 8036 - SE36 Adjustmentandstart-up PVAR: Choose a physical parameter (flow rate volume unit or input frequency) or a totalizer combined with current output 1 or current output 2 respectively. Functions "4mA" and "20mA" are used to define the measurement range for the flow rate, the input frequency or the totalizer associated with the current on the 4...20 mA output.

  • Page 57: Setting The Parameters Of The Transistor Outputs

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.11.10 Setting the parameters of the transistor outputs See chpt. 9.9 to access the Parameters menu. The 2nd transistor output "TR2" is only available on a device variant with 2 transistor outputs. Outputs Param TR1 / TR2 PVar: Flow_L Flow_m3 This is This is when the...
  • Page 58 Type 8026 - 8036 - SE36 Adjustmentandstart-up DELAY: choose the value for the time delay prior to switching (from 0 to 60 s) for each transistor output. The time delay before switching is applicable to both switching thresholds. Switching only occurs if one of the thresholds, high or low (functions "High" or "Low"), is exceeded for a duration longer than this time delay.

  • Page 59: Knowing The Menu Calibration

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.12 Knowing the menu calibration 9.12.1 Activating/deactivating the hold function See chpt. 9.9 to access the Calibration menu. Calib System Hold Hold: Disable Hold: Enable If the mode "Hold" is activated and if there is a power interruption, then, when the device restarts, the mode "Hold"...

  • Page 60: Resetting Totalizer 1 Or Totalizer 2 Respectively

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.12.3 resetting totalizer 1 or totalizer 2 respectively See chpt. 9.9 to access the Calibration menu. Calib System Total 1 Reset Yes/No Reset Yes/No Total 2 TOTAL 1 or TOTAL 2 respectively: Reset (choice “Yes”) or do not reset (choice “No”) totalizer 1 or totalizer 2 respectively. Totalizer 2 can be reset from Process level. Refer to chpt. 9.8.

  • Page 61: Entering The K-Factor Or Determining It With Teach-In

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.12.5 Entering the K-factor or determining it with Teach-in See chpt. 9.9 to access the Calibration menu. Calib Sensor K.fact. ENTER PVar: Litre Vol.Teach Igal Start Teach Meas.Progress Input Vol. Cal. Result Flow Teach PVar: Flow_L Flow_m3 Flow_gal Flow_Igal Freq. Start Teach Measure Flow Teach Cal.
  • Page 62 Type 8026 - 8036 - SE36 Adjustmentandstart-up Detailed procedure of a teach-in by volume (“Vol.teach” function in the “sensor” menu) → Prepare a tank capable of containing 100 litres, for example. → Choose the volume unit for the Teach-In: Calib Sensor Vol.Teach PVar: Igal → Run the Teach-In: Calib Vol.Teach Start Teach Sensor → Open the valve to fill the tank.
  • Page 63 Type 8026 - 8036 - SE36 Adjustmentandstart-up FLOW TEACH: Determine the fitting K-factor using a Teach-In procedure depending on the flow rate. Detailed procedure of a teach-in by flow rate (“flow.teach” function in the “sensor” menu) → Choose the volume unit for the Teach-In: Calib Sensor Flow Teach Flow_L PVar: Flow_m3 Flow_gal Flow_Igal Freq. → Run the Teach-In: → Establish the flow in the pipe and wait until it is...

  • Page 64: Knowing The Menu Diagnostic

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.13 Knowing the menu Diagnostic 9.13.1 modifying the Diagnostic menu access code See chpt. 9.9 to access the Diagnostic menu. Confirm 0*** System 0*** Diagnostic Code Enter the new code Enter the new code a second time If the default code (0000) is entered, the code will not be requested to access the menu.

  • Page 65: Knowing The Menu Test

    Type 8026 - 8036 - SE36 Adjustmentandstart-up When the device generates a "warning" or "error" event: → go into the "Info" menu to read the cause of the event generation. → and/or go into the "Sensor" function of the menu "Diagnostic" to read the measured input frequency.

  • Page 66: Checking The Outputs Behaviour

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.14.3 checking the outputs behaviour See chpt. 9.9 to access the Test menu. The feature allows to simulate the measurement of the physical parameter or the value of the totalizer to check if the outputs are correctly configured. Make sure that the mode "Hold" is deactivated. Refer to chpt. 9.12.1.

  • Page 67: Knowing The Menu Information

    Type 8026 - 8036 - SE36 Adjustmentandstart-up 9.15 Knowing the menu information See chpt. 9.9 to access the Information menu. Error Info E:MESSAGE Warning W:MESSAGE Smiley MESSAGE Software Main Soft.Main Not set Sensor Product READ This menu allows to read: • a short description of the cause that generated an event related to the following icons, when they are displayed...

  • Page 68: Maintenance And Troubleshooting

    Type 8026 - 8036 - SE36 Maintenanceandtroubleshooting mAinTEnAncE AnD TroublEShooTing 10.1 Safety instructions risk of injury due to electrical voltage. ▶ Before carrying out work on the system or the device, disconnect the electrical power for all the conductors and isolate it. ▶ If the device is installed either in a wet environment or outdoors, all the electrical voltages must be of max.

  • Page 69: Solving Problems

    Type 8026 - 8036 - SE36 Maintenanceandtroubleshooting 10.3 Solving problems red current transistor icon message dis- possible cause recommended action output output played in the info menu → Switch the power supply off 22 mA depending on "Sensor not The connection to thresholds found" the measurement then on again. module is → If the error persists, return interrupted.
  • Page 70 Type 8026 - 8036 - SE36 Maintenanceandtroubleshooting red current transistor icon message dis- possible cause recommended action output output played in the info menu → Go into the “Sensor” OFF 4...20 mA Switched + "W:Frequency" The input frequency is out of range. function in the Diagnostic menu to read the value of This message the input frequency.

  • Page 71: Spare Parts And Accessories

    Type 8026 - 8036 - SE36 Sparepartsandaccessories SpArE pArTS AnD AccESSoriES Caution risk of injury and/or damage caused by the use of unsuitable parts. Incorrect accessories may cause injuries and damage the device and the surrounding area. ▶ Use only original accessories and original replacement parts from Bürkert. spare part (only for type 8026 flowmeter) Article number Set with 1 green FKM seal + 1 black EPDM seal...

  • Page 72: Storage

    ▶ Store the device in a dry place away from dust. ▶ Storage temperature for Type 8026: –10...+60 °C. ▶ Storage temperature for Type SE36: –10...+60 °C. ▶ Storage temperature for the fitting: refer to the related Operating Instructions.
