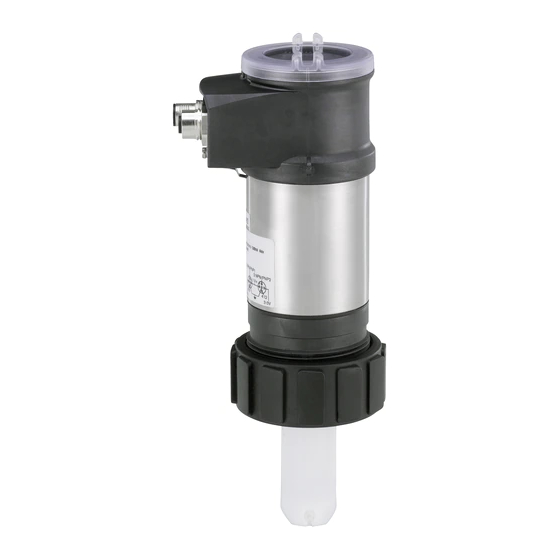

Type 8026 - 8036 - SE36
Flowmeter and Flow transmitter
Durchfluss-Messgerät und Durchfluss-Transmitter
Débitmètre et transmetteur de débit

Operating Instructions

Bedienungsanleitung
Manuel d'utilisation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8026 and is the answer not in the manual?

Questions and answers

Related Manuals for Burkert 8026

Summary of Contents for Burkert 8026

  • Page 1: Operating Instructions

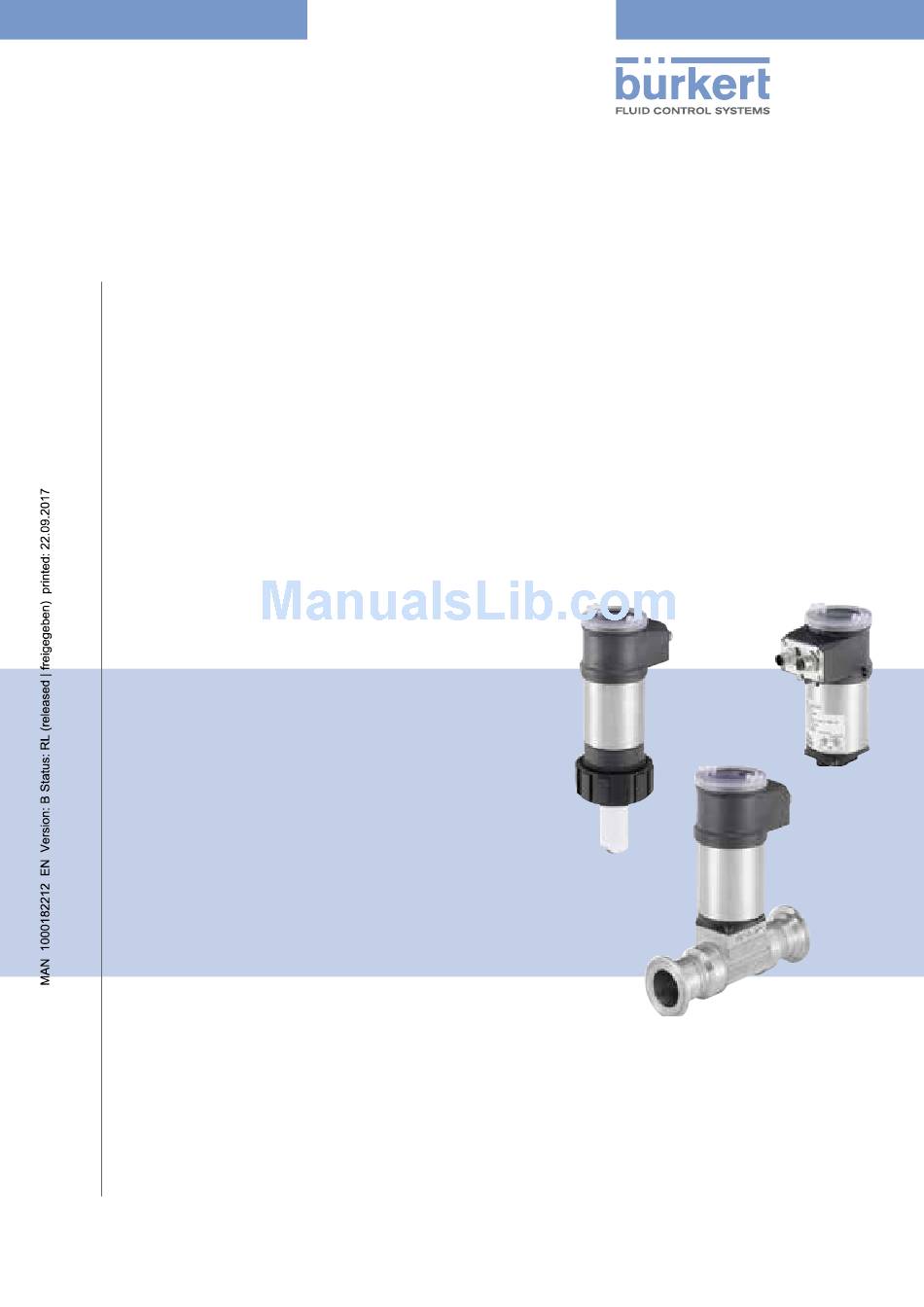

    Type 8026 - 8036 - SE36 Flowmeter and Flow transmitter Durchfluss-Messgerät und Durchfluss-Transmitter Débitmètre et transmetteur de débit Operating Instructions Bedienungsanleitung Manuel d‘utilisation...
  • Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modification technique. © Bürkert SAS, 2009 - 2016 Operating Instructions 1603/02_EU-ML 00561367 / Original_FR...

  • Page 3: Table Of Contents

    5.4 Available versions of the transmitter se36 ......................15 5.5 technicAl DAtA .....................................16 6.1 conditions of use ................................16 6.2 conformity to standards and directives .........................16 6.2.1 Conformities common to the 8026 and the SE36 ..............16 6.2.2 Conformity to the pressure equipment directive .................16 6.3 mechanical data ...................................17 6.4 fluid data ....................................18 6.5 electrical data ..................................19...
  • Page 4 8.2 installation of a 8026 on a pipe ...........................24 8.2.1 Install the fitting S020 in the pipe ....................24 8.2.2 Install the flowmeter 8026 into the fitting S020 ................25 8.2.3 Complete the installation of the 8026 ...................25 installation of a 8036 on a pipe ...........................26 8.3 8.3.1 Install the sensor-fitting S030 in the pipe ..................26 8.3.2...
  • Page 5 Type 8026 - 8036 - SE36  Knowing the operating levels ............................38 9.3 using the navigation button ............................39 9.4 using the dynamic functions ............................40 9.5 entering a numerical value (example) ........................41 9.6 browsing in a menu (example) ...........................41 9.7 Knowing the icons and leDs ............................42 9.8 Knowing the process level ............................43 9.9 9.10 Accessing the configuration level ..........................44 9.11 Knowing the structure of the configuration menus ..................45 9.12 Knowing the menu parameter .............................49 9.12.1 Transferring data from one device to another ................49 9.12.2...
  • Page 6 Type 8026 - 8036 - SE36  mAintenAnce AnD troubleshootinG ........................67 10.1 safety instructions ................................67 10.2 cleaning the device ................................67 10.3 solving problems ................................68 spAre pArts AnD Accessories ............................70 pAcKAGinG, trAnsport ................................70 storAGe ......................................70 DisposAl of the proDuct ..............................71 English...

  • Page 7: About This Manual

    ▶ Whatever the version of the device, this manual must be read and understood. 1.1 Definition of the word "device" The word "device" used within this manual refers to the flowmeter type 8026, the flowmeter type 8036 or the flow transmitter type SE36. 1.2...

  • Page 8: Intended Use

    Flowmeters 8026 and 8036 and flow transmitter SE36 associated with a sensor-fitting are intended to measure the flow rate of liquids. ▶ Use this device in compliance with the characteristics and commissioning and use conditions specified in the contractual documents and in the user manual.

  • Page 9: Basic Safety Information

    Type 8026 - 8036 - SE36 Basicsafetyinformation bASic SAfETy informATion This safety information does not take into account: • any contingencies or occurrences that may arise during installation, use and maintenance of the devices. • the local safety regulations for which the operating company is responsible including the staff in charge of installation and maintenance.

  • Page 10: General Information

    The condition governing the legal warranty is the conforming use of the device in observance of the operating conditions specified in this manual. 4.3 information on the internet You can find the user manuals and technical data sheets regarding the types 8026, 8036 and SE36 at: www.burkert.com English...

  • Page 11: Description

    8026, 8036 and SE36 devices are intended to measure the flow rate of liquids: • flowmeters 8026 and 8036 are used to measure the flow of neutral or slightly aggressive liquids, • flow transmitter SE36 with sensor-fitting S070 or S077 is used to measure the flow rate of viscous liquids such as honey or oil and which are free of solid particles.

  • Page 12: Construction Of The Se36

    Type 8026 - 8036 - SE36 Description 5.2.2 construction of the SE36 The flow transmitter SE36 comprises: A: an acquisition / conversion module for the process values measured: • acquisition of the pulse frequency • conversion of the frequency measured into flow rate units B: an electrical housing which can include a display module. The display module has a navigation button to read and/or configure the parameters of the device.

  • Page 13: Description Of The Name Plate

    Type 8026 - 8036 - SE36 Description 5.3 Description of the name plate 8026 Flow-Meter SE36/8036 Flow-Meter With Display Supply: 14-36VDC Supply: 14-36V Output: 1x4-20mA 2xTransistors 500 mA Max Output: 1x4-20mA 1xTransistor 700 mA Max NPN Cell: HALL INSERTION SHORT Cell: HALL INLINE Process: Temp -15/100°C Process: Temp -15/110°C...

  • Page 14: Available Versions Of Type 8026

    Type 8026 - 8036 - SE36 Description 5.4 Available versions of type 8026 The following versions of the 8026 flowmeter are available. Each version of the 8026 flowmeter is available without or with the display module. The display module is also available as an accessory (see chap. 11). order code of the...

  • Page 15: Available Versions Of The Transmitter Se36

    Type 8026 - 8036 - SE36 Description 5.5 Available versions of the transmitter SE36 The following versions of the transmitter SE36 are available. The references of the S030 and S077 sensor-fittings including the flow sensor can be found on the related technical data sheets for these product types. Each version of the transmitter is available without or with the display module.

  • Page 16: Technical Data

    6.2.2 conformity to the pressure equipment directive The devices 8026 and the sensor-fittings S030, S070 and S077 comply with article 3§3 of the pressure equipment directive 97/23/CE. According to this directive, the product can only be used in the following cases (depending on max. pressure,...

  • Page 17: Mechanical Data

    Fig. 2 :  Materials used in the flowmeter 8026 and the transmitter SE36 • Materials in contact with the fluid (only for 8026): PVDF, ceramic, FKM (default). • Dimensions of devices: please refer to the technical data sheets regarding the types 8026, 8036 or SE36 avalaible at www.burkert.com • Mechanical data of fittings: please refer to the technical data sheets regarding the related fittings, avalaible at www.burkert.com...

  • Page 18: Fluid Data

    • 8026 • -15 to +100 °C; Also factor in the fluid temperature/pressure dependency for the 8026 with fitting S020 : see Fig. 3 • 8036 • see the manual delivered with the sensor-fitting S030 or the technical data sheet •...

  • Page 19: Electrical Data

    Type 8026 - 8036 - SE36 Technicaldata PVDF + Metal P (bar) (PN10) Metal PVC + PP PVC (PN10) PVDF (PN10) PP (PN10) +90 +110 T (°C) A: Operating range Fig. 3 :  Fluid temperature-pressure dependency for the flowmeter 8026 associated to a fitting S020 6.5 Electrical data Power supply • version with 2 or 3 outputs (2 wires) •...

  • Page 20: Assembly

    Type 8026 - 8036 - SE36 Assembly ASSEmbly 7.1 Safety instructions Danger risk of injury due to electrical voltage. ▶ Shut down and isolate the electrical power source before carrying out work on the system. ▶ Observe all applicable accident protection and safety regulations for electrical equipment. Warning risk of injury due to non-conforming assembly. ▶ The device must only be assembled by qualified and skilled staff with the appropriate tools.

  • Page 21: Mounting The Cover

    Type 8026 - 8036 - SE36 Assembly 7.3 mounting the cover → Check that there is a seal on the housing and that it is not damaged. Replace it if necessary. → Grease the seal if necessary, using a component compatible with the seal material. → [1] Set the cover to ensure that the 4 grooves of the cover match with the 4 pins of the housing.

  • Page 22: Removing The Display Module

    Type 8026 - 8036 - SE36 Assembly 7.5 removing the display module → Remove the cover if necessary (see chapter 7.2). → Turn the module by ca. 20° counterclockwise. Once unlocked, the module is raised slightly by the spring 20° action. → Remove the module from its housing.

  • Page 23: Installation And Wiring

    Type 8026 - 8036 - SE36 Installationandwiring inSTAllATion AnD WirinG 8.1 Safety instructions Danger risk of injury due to high pressure in the installation. ▶ Stop the circulation of fluid, cut off the pressure and drain the pipe before loosening the process connections. risk of injury due to electrical voltage. ▶ Disconnect the electrical power for all the conductors and isolate it before carrying out work on the system.

  • Page 24: Installation Of A 8026 On A Pipe

    ▶ Respect the prevailing regulations on accident prevention and safety relating to the use of aggressive fluids. Follow the next steps to install the flowmeter 8026 properly: 1. Install the fitting S020 in the pipe, 2. Insert the flowmeter 8026 into the fitting S020, 3.

  • Page 25: Install The Flowmeter 8026 Into The Fitting S020

    Type 8026 - 8036 - SE36 Installationandwiring → Install the fitting S020 in the pipe so that the paddle wheel axis of the device is horizontal (Fig. 9). Fig. 9 :  The paddle wheel axis must be horizontal 8.2.2 install the flowmeter 8026 into the fitting S020 → Fit the display module to parameter the device (see chap. 7.4). →...

  • Page 26: Installation Of A 8036 On A Pipe

    Type 8026 - 8036 - SE36 Installationandwiring 8.3 installation of a 8036 on a pipe Danger risk of injury due to high pressure in the installation. ▶ Stop the circulation of fluid, cut off the pressure and drain the pipe before loosening the process connections. risk of injury due to the nature of the fluid. ▶ Respect the prevailing regulations on accident prevention and safety relating to the use of aggressive fluids.

  • Page 27: Complete The Installation Of The 8036

    Type 8026 - 8036 - SE36 Installationandwiring → 1: Insert the flow transmitter SE36 in the sensor holder. → 2: Turn the flow transmitter SE36 by a quarter turn. SE36 → 3: Secure the flow transmitter SE36 and the sensor-fitting S030 by tightening the screw to a max. torque of 1 Nm.

  • Page 28: Assemble The Flow Transmitter Se36 On The Sensor-Fitting S070 Or S077

    Type 8026 - 8036 - SE36 Installationandwiring → Install the sensor-fitting S070 or S077 in the pipe so that the oval gear axes are in the horizontal plane (see Fig. 12). Correct Incorrect Fig. 12 :  The oval gear axes must be horizontal 8.4.2 Assemble the flow transmitter SE36 on the sensor-fitting S070 or S077 → Fit the display module to parameter the device (see chap. 7.4).

  • Page 29: Electrical Connections

    Type 8026 - 8036 - SE36 Installationandwiring • Use a high quality electrical power supply (filtered and regulated). • Make sure the installation is equipotential (see chap. 8.5.3). • Use a shielded cable. • Once the device is wired, set the "HWMode" parameter depending on the wiring carried out, sink/NPN or source/PNP (see chap.
  • Page 30 Type 8026 - 8036 - SE36 Installationandwiring Power supply Fig. 15 :  Equipotentiality skeleton diagram with pipes in metal Devices such as valves, pumps,.. Power supply Pipes in plastic Fig. 16 :  Equipotentiality skeleton diagram with pipes in plastic English...

  • Page 31: Wiring A Version With A Single M12 Fixed Connector And An Npn Transistor Output And A Current Output

    Type 8026 - 8036 - SE36 Installationandwiring 8.5.4 Wiring a version with a single m12 fixed connector and an npn transistor output and a current output NPN transistor output (TR1) V+ (14-36 V DC) Not connected Fig. 17 :  Pin assignment of the male fixed connector on a version with 1 NPN transistor output and 1 current output pin of the female m12 connector available as an accessory (order code 438680) colour of the wire brown white blue black grey Load (solenoid valve for in- white stance) brown blue grey Power supply 14-36 VDC Fig. 18 :  Wiring the NPN transistor output (parameter setting "NPN/sink", cannot be changed), of a version with 1 M12 ...

  • Page 32: Wiring A Version With A Single M12 Fixed Connector And Two Transistor Outputs And One Current Output

    Type 8026 - 8036 - SE36 Installationandwiring Load white brown blue grey 4-20 mA input (exter- Power supply nal instrument) 14-36 VDC Fig. 20 :  Wiring the NPN transistor output and the current output in sinking mode (parameter setting "NPN/sink",  cannot be changed), on a version with 1 M12 fixed connector, 1 NPN transistor output and 1 current output 8.5.5 Wiring a version with a single m12 fixed connector and two transistor outputs and one current output Transistor output 1 (TR1) V+ (14-36 V DC) Transistor output 2 (TR2) Fig. 21 :  Pin assignment of the male fixed connector on a version with 2 transistor outputs and 1 current output pin of the female m12 connector available as an accessory (order code 438680) colour of the wire brown...
  • Page 33 Type 8026 - 8036 - SE36 Installationandwiring Load 1 white (solenoid valve for instance) brown black grey Load 2 blue (solenoid valve Power supply for instance) 14-36 V DC Fig. 22 :  NPN wiring of both transistor outputs (parameter setting "NPN/sink"), of a version with 1 M12 fixed connector Load 1 white (solenoid valve for instance) brown black grey blue Load 2 (solenoid valve for...

  • Page 34: Wiring A Version With Two M12 Fixed Connectors And Two Transistor Outputs And Two Current Outputs

    Type 8026 - 8036 - SE36 Installationandwiring Load 1 4-20 mA input (external instrument) white blue brown black grey Power supply Load 2 14-36 V DC Fig. 26 :  PNP wiring of both transistor outputs and wiring the current output in sourcing mode (parameter setting "PNP/ source"), of a version with 1 M12 fixed connector 8.5.6 Wiring a version with two m12 fixed connectors and two transistor outputs and two current outputs Transistor output 1 (TR1) Transistor output 2 (TR2) V+ (12-36 V DC) V+ (12-36 V DC)
  • Page 35 Type 8026 - 8036 - SE36 Installationandwiring Load 2 Load 1 (solenoid valve for (solenoid valve for white white instance) instance) brown blue grey blue Power supply 12-36 V DC Fig. 29 :  PNP wiring of both transistor outputs (parameter setting "PNP/source"), of a version with 2 M12 fixed connectors 4-20 mA input (external 4-20 mA input (external instrument) instrument) brown brown black...
  • Page 36 Type 8026 - 8036 - SE36 Installationandwiring Load 1 Load 2 white white blue brown brown grey black black 4-20 mA input (ex- 4-20 mA input ternal instrument) (external instrument) 12-36 V DC Power supply Fig. 32 :  NPN wiring of both transistor outputs and wiring of both current outputs in sinking mode, on a version with 2  fixed connectors (parameter setting "NPN/sink") Load 1 Load 2 white white blue...

  • Page 37: Adjustment And Commissioning

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning ADjuSTmEnT AnD commiSSioninG • The settings can only be done on a device with a display module. • Do not remove the display module while making the settings on the device. 9.1 Safety instructions Warning risk of injury due to non-conforming adjustment. Non-conforming operating could lead to injuries and damage the device and its surroundings.

  • Page 38: Knowing The Operating Levels

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.3 Knowing the operating levels The device has 2 operating levels: process level This level is used: • to read the value of the measured flow rate and/or the sensor input frequency • to read the values of both volume totalizers • to reset totalizer 2 •...

  • Page 39: Using The Navigation Button

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.4 using the navigation button Symbolised by Symbolised by this manual this manual Symbolised by this manual Symbolised by this manual Symbolised by this manual Fig. 35 :  Using the navigation button you want to... press..browse in Process level • next screen: • previous screen: • ...access the Configuration level •...

  • Page 40: Using The Dynamic Functions

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning you want to... press..browse in the dynamic functions bar (MEAS, BACK, next function: ABORT, OK, YES, NO) previous function: ...confirm the highlighted dynamic function ...modify a numerical value - increment the figure selected - decrement the figure selected - select the previous figure - select the next figure - allocate the "+"...

  • Page 41: Entering A Numerical Value (Example)

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.6 Entering a numerical value (example) Modify each digit of the numerical value using: to increase the digit selected, AC1 4mA to decrease the digit selected. This is where the device is be- ing parame- tered........ After confirming the numerical value entering, modify the +0.000l/h...

  • Page 42: Knowing The Icons And Leds

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.8 Knowing the icons and lEDs • The display module is not available on all versions of the device. The display module is can be ordered as an accessory (see chap. 11). Yellow LED: shows that Green LED: shows that the device is energized...

  • Page 43: Knowing The Process Level

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.9 Knowing the process level 1) 2) flow_l First view of the Pro- 1243l/h cess level. flow_m3 Display of the mini- 1. 243/h mum and maximum 1250l/h Reset Yes/No input flows or fre- 1200l/h quencies measured. Zoom on the value flow_l in the first line.

  • Page 44: Accessing The Configuration Level

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.10 Accessing the configuration level > 2s Param This is when the This is This is when the when the device is be- Any view of the Process device is be- device is be- ing parame- ing parame- tered.... tered........

  • Page 45: Knowing The Structure Of The Configuration Menus

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.11 Knowing the structure of the configuration menus See chap. 9.10 to access the Configuration level. If an "upload" has been Param System Downl. Yes/No Up/Download Download This is when the This is device is be- when the ing parame- device is be- tered....
  • Page 46 Type 8026 - 8036 - SE36 Adjustmentandcommissioning Outputs Param HWMode sink/NPN This is This is when the when the device is be- device is be- ing parame- ing parame- tered.... tered............ On a version with 2 transistor outputs source/PNP Flow_L AC1 / AC2...
  • Page 47 Type 8026 - 8036 - SE36 Adjustmentandcommissioning Outputs TR1 / TR2 Mode: Hysteresis Param This is This is when the when the device is be- device is be- ing parame- ing parame- tered.... tered............ Window Pulse If "PVar" ≠ "Warning" Low: ENTER High: ENTER If "Mode"...
  • Page 48 Type 8026 - 8036 - SE36 Adjustmentandcommissioning Diagnostic System Code Confirm 0*** 0*** Sensor Activate Frequency Frequency READ Warn Hi ENTER Warn Lo ENTER Err Hi ENTER Err Lo ENTER Test System Code 0*** Confirm 0*** Outputs AC1 Simul: ENTER AC2 Simul: ENTER TR1 Simul:...

  • Page 49: Knowing The Menu Parameter

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.12 Knowing the menu parameter 9.12.1 Transferring data from one device to another See chap. 9.10 to access the "Param" menu. • Transferring data is not possible if: - in the menu "Info -> Software -> Versions -> Main" of the sending device, the software version is V2 - in the menu "Info ->...

  • Page 50: Modifying The Access Code Of Menu "Param

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.12.2 modifying the access code of menu "param" See chap. 9.10 to access the "Param" menu. Confirm 0*** Param System Code 0*** Enter the new Confirm the new This is This is when the when the device is be- device is be- ing parame-...

  • Page 51: Setting The Data Displayed In Process Level

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.12.4 Setting the data displayed in process level See chap. 9.10 to access the "Param" menu. Param Display Line 1/Line2: Enabled Line1 / Line2 Disabled This is This is when the when the device is be- device is be- ing parame- ing parame- tered....
  • Page 52 Type 8026 - 8036 - SE36 Adjustmentandcommissioning Take care to choose the time unit according to the flow rate in the pipes as the display indicates a maximum flow rate of 9999 volume units/time unit (see Tab. 1). selected time unit measured flow rate Displayed flow rate ≥ 0 volume units/h and 0 to 9999 volume units/h ≤...

  • Page 53: Choosing The Units For The Totalizers Displayed In Process Level

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.12.5 choosing the units for the totalizers displayed in process level See chap. 9.10 to access the "Param" menu. The totalizers are saved if a power cut occurs. Param Display Unit Liter Totalizers Total1 / Total 2 This is This is when the when the device is be-...

  • Page 54: Setting The Contrast And The Backlight Of The Display

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.12.7 Setting the contrast and the backlight of the display See chap. 9.10 to access the "Param" menu. On a version with a single M12 fixed connector and if the power supply is lower than 15 V, do not increase the backlight over 30%, to not influence the 4-20mA current output.

  • Page 55: Setting The Parameters Of The Current Outputs

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.12.9 Setting the parameters of the current outputs See chap. 9.10 to access the "Param" menu. The 2nd current output "AC2" is only available on a version with 2 current outputs. Param Outputs AC1 / AC2 PVar: Flow_L This is This is Flow_m3 when the...

  • Page 56: Setting The Parameters Of The Transistor Outputs

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning FILTER: choose the level of damping for the fluctuations of the current value for each current output. Three filter levels are proposed: "slow", "fast" or "none". The damping for the current outputs is similar to the damping of the display (see Fig. 37).
  • Page 57 Type 8026 - 8036 - SE36 Adjustmentandcommissioning PVAR: Choose a physical parameter (flow rate volume unit or input frequency) or a totalizer associated with a transistor output or associate the “warning” event (see chap. 9.14.2) with transistor output. If the selected tran- sistor output is linked to the "warning" event, the transistor switches as soon as such an event is generated by the device.

  • Page 58: Knowing The Menu Calibration

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning pulse operating (choice "pulse") This function is used to generate a pulse on the transistor output each time a predetermined volume of fluid passes. Enter the desired fluid volume and, if necessary, modify the volume units/pulse in the “PULSE” function in the “Output.TR1”...

  • Page 59: Modifying The Calibration Menu Access Code

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.13.2 modifying the calibration menu access code See chap. 9.10 to access the "Calib" menu. Calib System 0*** Code 0*** Confirm Enter the new Confirm the new access code to code the CALIB menu If the default code (0000) is entered, the code will not be requested to access the menu.

  • Page 60: Entering The K-Factor Or Determining It With Teach-In

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 20mA: Adjust the span of current output 1 or current output 2. When the "20mA" function is selected, the device generates a current of 20 mA: → measure the current emitted by the 4-20 mA output using a multimeter and →...
  • Page 61 Type 8026 - 8036 - SE36 Adjustmentandcommissioning VOL.TEACH: Determine the fitting K-factor using a Teach-In procedure depending on a volume. Detailed procedure of a teach-in by volume (“Vol.teach” function in the “sensor” menu) → Prepare a tank capable of containing 100 litres, for example. → Choose the volume unit for the Teach-In: Calib Sensor Vol.Teach PVar: Igal →...
  • Page 62 Type 8026 - 8036 - SE36 Adjustmentandcommissioning FLOW TEACH: Determine the fitting K-factor using a Teach-In procedure depending on the flow rate. Detailed procedure of a teach-in by flow rate (“flow.teach” function in the “sensor” menu) → Choose the volume unit for the Teach-In: Calib Sensor Flow_L Flow Teach PVar: Flow_m3 Flow_gal Flow_Igal Freq. → Run the Teach-In: →...

  • Page 63: Knowing The Menu Diagnostic

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.14 Knowing the menu Diagnostic 9.14.1 modifying the Diagnostic menu access code See chap. 9.10 to access the "Diagnostic" menu. Confirm 0*** System 0*** Diagnostic Code Enter the new Confirm the new access code to the code DIAGNOSTIC menu If the default code (0000) is entered, the code will not be requested to access the menu.

  • Page 64: Knowing The Menu Test

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning When the device generates a "warning" or "error" event: → go into the "Info" menu to read the cause of the event generation. → and/or go into the "Sensor" function of the menu "Diagnostic" to read the measured input frequency.

  • Page 65: Checking The Outputs Behaviour

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning TR1: check that transistor output 1 is working correctly by selecting the status of the transistor ("ON" or "OFF") then "OK". TR2: check that transistor output 2 is working correctly by selecting the status of the transistor ("ON" or "OFF") then "OK".

  • Page 66: Knowing The Menu Information

    Type 8026 - 8036 - SE36 Adjustmentandcommissioning 9.16 Knowing the menu information See chap. 9.10 to access the "Info" menu. Error Info E:MESSAGE Warning W:MESSAGE Smiley MESSAGE Software Main Soft.Main Not set Sensor Product READ This menu allows to read: • a short description of the cause that generated an event related to the following icons, when they are displayed...

  • Page 67: Maintenance And Troubleshooting

    Type 8026 - 8036 - SE36 Maintenanceandtroubleshooting mAinTEnAncE AnD TroublEShooTinG 10.1 Safety instructions Danger risk of injury due to high pressure in the installation. ▶ Stop the circulation of fluid, cut off the pressure and drain the pipe before loosening the process connections. risk of injury due to electrical voltage. ▶ Shut down and isolate the electrical power source before carrying out work on the system.

  • Page 68: Solving Problems

    Type 8026 - 8036 - SE36 Maintenanceandtroubleshooting 10.3 Solving problems red current transistor icon message dis- possible cause recommended action output output played in the info menu → 22 mA depending "Sensor not The connection to Switch the power supply found" the measurement off then on again. thresholds module is → If the error persists, return interrupted.
  • Page 69 Type 8026 - 8036 - SE36 Maintenanceandtroubleshooting red current transistor icon message dis- possible cause recommended action output output played in the info menu → 4-20 Switched + "W:Frequency" The input frequency Go into the “Sensor” is out of range. function in the Diagnostic menu to read the value of This message the input frequency.

  • Page 70: Spare Parts And Accessories

    ▶ Store the device in a dry place away from dust. ▶ Storing temperature for type 8026: -10 to +60°C. ▶ Storing temperature for type SE36: -10 to +60°C. ▶ Storing temperature for the fitting: refer to the related manual...

  • Page 71: Disposal Of The Product

    Type 8026 - 8036 - SE36 Disposaloftheproduct DiSpoSAl of ThE proDucT → Dispose of the device and its packaging in an environmentally-friendly way. note Damage to the environment caused by parts contaminated by the fluid. ▶ Comply with the national and/or local regulations which concern the area of waste disposal. English...
  • Page 72 Type 8026 - 8036 - SE36 English...
