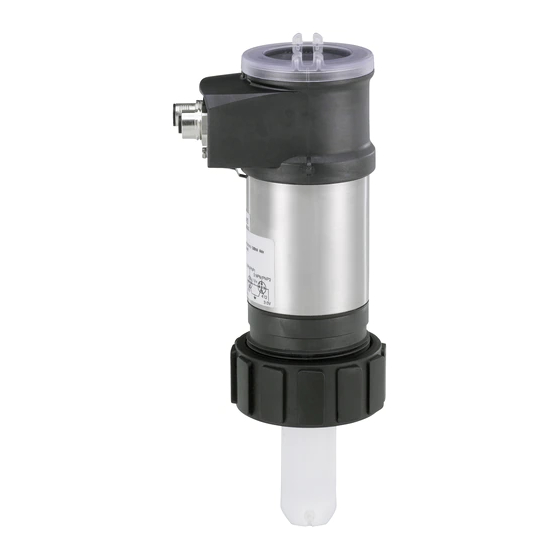

  • Page 1 Type 8026 - 8036 - SE36 Flowmeter and Flow transmitter Durchflussmessgerät und Durchflusstransmitter Débitmètre et transmetteur de débit Quickstart English Deutsch Français...
  • Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert SAS, 2009 - 2020 Operating Instructions 2012/04_EU-ML 00567366 / Original_FR...
  • Page 3: Table Of Contents

    7. insTallaTion ....................15 1.1. Definition of the term device ............5 7.1. safety instructions................15 1.2. Validity of the quickstart ..............5 7.2. installation of a Type 8026 on a pipe ........17 1.3. symbols used ..................5 7.2.1. Install the fitting Type S020 in the pipe ......17 7.2.2. Install the device into the fitting ........18 2. inTenDeD use ....................6 7.2.3.
  • Page 4 Type 8026, 8036, SE36 ELEMENT  outputs and 1 current output ..........24 10. packaGinG, TransporT ..............40 7.5.5. Device variant with 2 connectors ........25 11. Disposal ..................... 40 8. aDjusTmenT anD commissioninG ..........27 8.1. safety instructions................27 8.2. Display module ................. 27 8.2.1. Mount the display module ..........28 8.2.2. Icons and LEDs ..............28 8.2.3.
  • Page 5: The Quickstart

    The quickstart describes the entire life cycle of the device. Please keep the quickstart in a safe place, accessible to all users and any • Type 8026 flowmeter, from version V2 new owners. • Type 8036 flowmeter, from version V2 The quickstart contains important safety information.
  • Page 6: Intended Use

    Indicates additional information, advice or important environment. recommendations. Type 8026 flowmeter and Type 8036 flowmeter are intended for the measurement the flow rate of liquids. Refers to information contained in this quickstart or in other Type SE36 flow transmitter associated with a sensor-fitting is documents.
  • Page 7: Basic Safety Information

    Type 8026, 8036, SE36 ELEMENT Basicsafetyinformation BaSic SafETy iNforMaTioN This safety information does not take into account any contingencies risk of burns due to high fluid temperatures. or occurrences that may arise during installation, use and maintenance ▶ Use safety gloves to handle the device. of the device. ▶ Before opening the pipe, stop the circulation of fluid and drain The operating company is responsible for the respect of the local the pipe.
  • Page 8: General Information

    EN 61340-5-1 norm. You can find the Operating Instructions and technical data sheets for ▶ Do not touch any of the live electrical components. Type 8026, Type 8036 and Type SE36 at: country.burkert.com English...
  • Page 9: Type Label

    TypE LaBEL 10. Conformity marking 11. Article number 12. Serial number 8026 Flow-Meter 13. Warning: Before using the device, take into account the tech- Supply: 14-36VDC 40W max. nical specifications described in the Operating Instructions. Output: 1x4-20mA 2xTransistors 500 mA Max 14.
  • Page 10: Technical Data

    1) not evaluated by UL Housing lid must be fully tightened and Type 8026 flowmeter, Type S030, Type S070 and Type S077 fit- locked tings conform to Article 4, Paragraph 1 of the Pressure Equipment Directive 2014/68/EU under the following conditions:...
  • Page 11: Ul Certification

    • CAN/CSA-C22.2 n°61010-1 Holder of the electrical stainless steel 1.4404 (316L) connections identification on the device certification Variable key Screws stainless steel UL recognized PU01 G2'' nut Table 2 :  Materials specific to the Type 8026 and in contact with the  Measuring fluid Equipment UL listed PU02 ® EXXXXXX part material Flow-sensor holder PVDF...
  • Page 12: Fluid Data

    Type 8026, 8036, SE36 ELEMENT Technicaldata Type of fitting part material • Type 8026 • Type S020 Paddle wheel PVDF • Type SE36 • Type S030, Type S070 or Type S077 Table 3 :  Materials specific to the Type SE36 fluid temperature part material • Type 8026 • –15...+100 °C Quarter-turn system Take into account the...
  • Page 13 Type 8026, 8036, SE36 ELEMENT Technicaldata Type of fluid flow rate measurement for Type se36 with fitting Type s070 or fitting Type s077 • Type 8026, Type 8036 • Neutral or slightly aggressive • measurement range fluids • Type SE36 with a Type S070 • Viscous fluids, free of solid - viscosity > 5 mPa.s - Type S070: 2...1200 I/min...
  • Page 14: Electrical Data

    Type 8026, 8036, SE36 ELEMENT Technicaldata 6.5. Electrical data current consumption • device variant with 2 or 3 • 25 mA max. (at 14 V DC) Operating voltage outputs (2 wires) • device variant with 2 or 3 • 14...36 V DC • device variant with 4 outputs •...
  • Page 15: Installation

    Type 8026, 8036, SE36 ELEMENT Installation iNSTaLLaTioN Transistor output • device variant with only 1 • NPN, 700 mA max., transistor output 1...36 V DC 7.1. Safety instructions • device variant with 2 transistor outputs Danger - type - NPN or PNP. Through wir- ing and through software risk of injury due to electrical voltage.
  • Page 16 Type 8026, 8036, SE36 ELEMENT Installation Danger Warning risk of burns due to high fluid temperatures. risk of injury if the dependency between the fluid pressure and the fluid temperature is not respected. ▶ Use safety gloves to handle the device. ▶ Observe the dependency between the fluid temperature and the ▶ Before opening the pipe, stop the circulation of fluid and drain fluid pressure for the device. Refer to chpt. 6.4.
  • Page 17: Installation Of A Type 8026 On A Pipe

    Installation 7.2. installation of a Type 8026 on a Correct Incorrect pipe Follow the next steps to install the Type 8026 flowmeter properly: 7.2.1. install the fitting Type S020 in the pipe → Select a fitting that is adapted to the fluid velocity. Refer to the Correct Incorrect chart in the data sheet of the related fitting.
  • Page 18: Install The Device Into The Fitting

    Type 8026, 8036, SE36 ELEMENT Installation → Install the fitting in the pipe so that the paddle-wheel axis of the 7.2.3. complete the installation device is horizontal (Fig. 4). → Wire the device (see chpt. 7.5). → Energize the device. → With the display module, set the K-factor or determine it through a Teach-In procedure (see chpt.
  • Page 19: Assemble The Type Se36 To The Type S030

    Type 8026, 8036, SE36 ELEMENT Installation 7.3.3. complete the installation Caution → Wire the device (see chpt. 7.5). risk of damage when installing the fitting. → Energize the device. ▶ Respect the installation instructions given in the Operating → With the display module, set the K-factor or determine it through Instructions of the fitting.
  • Page 20: Assemble The Type Se36 To The Type S070 Or Type S077

    Type 8026, 8036, SE36 ELEMENT Installation → Install the sensor-fitting in the pipe so that the oval gear axes are 7.4.2. assemble the Type SE36 to the Type in the horizontal plane (see Fig. 7). S070 or Type S077 1. Insert the flow transmitter in the correct sensor holder. 2. Turn the flow transmitter by a quarter SE36 turn.
  • Page 21: Wiring

    Type 8026, 8036, SE36 ELEMENT Installation 7.5. Wiring 7.5.1. Mating connector with article number 917116 Danger To wire the product, you can use mating connectors from Bürkert. For example, you can use the 5-pin M12 female connector with risk of injury due to electrical voltage. article number 917116. ▶ Before carrying out work on the system or the device, discon- nect the electrical power for all the conductors and isolate it.
  • Page 22 Type 8026, 8036, SE36 ELEMENT Installation Proper earthing is performed by earthing together the metallic equipment such as pumps or valves, that is as close as possible to the device. Power Power supply supply 4) Equipment such as valves, pumps,... Fig. 10:  Equipotentiality skeleton diagram with pipes in plastic Fig. 9:  Equipotentiality skeleton diagram with pipes in metal English...
  • Page 23: Device Variant With 1 Connector, 1 Npn Transis- Tor Output And 1 Current Output

    Type 8026, 8036, SE36 ELEMENT Installation 7.5.3. Device variant with 1 connector, 1 Load NpN transistor output and 1 current output NPN transistor output (TR1) white blue brown V+ (14...36 V DC) grey or green/ Not connected yellow Fig. 11:  Pin assignment of the male connector pin of the m12 female cable available as colour of the wire an accessory (article number 438680) brown white blue 14-36 VDC black Power supply 4...20 mA input (external...
  • Page 24: Outputs And 1 Current Output

    Type 8026, 8036, SE36 ELEMENT Installation 7.5.4. Device variant with 1 connector, Load 1 4...20 mA input (external instrument) 2 transistor outputs and 1 current output white Transistor output 1 (TR1) brown black V+ (14...36 V DC) green/yellow blue or grey Transistor output 2 (TR2) 14-36 V DC Load 2 Power supply Fig. 13:  Pin assignment of the male connector Fig. 14: ...
  • Page 25: Device Variant With 2 Connectors

    Type 8026, 8036, SE36 ELEMENT Installation Transistor output 1 (TR1) 4...20 mA input (external instrument) Load 1 V+ (12...36 V DC) white blue brown black Current output 1 (AC1) male connector green/yellow Transistor output 2 (TR2) or grey Load 2 14-36 V DC V+ (12...36 V DC) Power supply Fig. 15: ...
  • Page 26 Type 8026, 8036, SE36 ELEMENT Installation Load 1 Load 2 Load 1 Load 2 white white white white blue brown brown blue brown blue green/yel- green/yel- black black low or grey black low or grey black 12-36 V DC 12-36 V DC Power supply 4...20 mA input...
  • Page 27: Adjustment And Commissioning

    Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning aDjuSTMENT aND Warning coMMiSSioNiNG Danger due to non-conforming commissioning. You need a display module to adjust the device parameters. The Non-conforming commissioning could lead to injuries and damage display module is not equipped on all devices. The display module the device and its surroundings.
  • Page 28: Mount The Display Module

    Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning 8.2.1. Mount the display module 8.2.2. icons and LEDs → Remove the housing lid. 20° → Set the display module at an angle of about 20° in relation to the desired position. flow_l 600.0l/h flow_m3 0.60/h Red LED: shows The display module can be not used an error.
  • Page 29: Navigation Button

    Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning 8.2.3. Navigation button • The LEDs of the display module are duplicated on the electronic board that is located under the display module: these LEDs become visible when the device is not equipped with the display module. Symbolized by this quickstart •...
  • Page 30 Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning you want to... press... you want to... press..browse in Process level ...browse in the dynamic func- • next function: tions bar (MEAS, BACK, • next screen: ABORT, OK, YES, NO) • previous function: ...confirm the highlighted • previous screen: dynamic function •...
  • Page 31: Dynamic Functions

    ...go back to the Process level, dynamic function "MEAS" the use of the other functions, refer to the Operating Instructions without validating the modifica- available at: country.burkert.com. tions made Do not remove the display module while making the settings ...confirm the entering dynamic function "OK"...
  • Page 32: Set The Data Displayed In Process Level

    Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning 8.4. Set the data displayed in process level Param Display Line 1/Line2: Enabled Line1 / Line2 Disabled This is This is when the when the device is be- device is be- ing parame- ing parame- Flow_L PVar: tered.... tered............ Flow_m3 Flow_gal Flow_Igal Freq.
  • Page 33: Choose The Units For The Totalizers Displayed In Process Level

    Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning 8.5. choose the units for the totalizers displayed in process level The totalizers are saved if a power cut occurs. Display Param Totalizers Total1 / Total 2 Unit Liter This is This is when the when the device is be- device is be- ing parame- ing parame- tered....
  • Page 34: Set The Parameters Of The Current Outputs

    Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning 8.7. Set the parameters of the current outputs The 2nd current output "AC2" is only available on a device variant with 2 current outputs. Param Outputs AC1 / AC2 PVar: Flow_L This is Flow_m3 This is when the when the device is be- device is be-...
  • Page 35: Set The Parameters Of The Transistor Outputs

    Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning 8.8. Set the parameters of the transistor outputs The 2 transistor output "TR2" is only available on a device variant with 2 transistor outputs. Outputs Param TR1 / TR2 PVar: Flow_L Flow_m3 This is This is when the when the device is be- device is be-...
  • Page 36: Activate Or Deactivate The Hold Function

    Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning Outputs Param TR1 / TR2 Mode: Hysteresis Window This is This is when the when the device is be- device is be- Pulse ing parame- ing parame- If "PVar" ≠ "Warning" tered.... tered............ Low: INPUT High: INPUT If "Mode"...
  • Page 37: Adjust The Current Outputs

    Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning 8.10. adjust the current outputs Warning risk of injury due to wrong adjustment. ▶ Make sure that the Hold mode is disabled (see chpt. 8.9). Calib Outputs AC1 / AC2 4mA: INPUT 20mA: INPUT The entered values are not memorised in this menu. Only the values emitted on the current outputs are adjusted after pressing “OK”...
  • Page 38: Enter The K-Factor Or Use A Teach-In Procedure

    Type 8026, 8036, SE36 ELEMENT Adjustmentandcommissioning 8.11. Enter the k-factor or use a Teach-in procedure Calib Sensor K.fact. INPUT Litre Vol.Teach PVar: Igal Start Teach Meas.Progress Input Vol. Cal. Result Flow Teach PVar: Flow_L Flow_m3 Flow_gal Flow_Igal Freq. Start Teach Measure Flow Teach Cal. Result English...
  • Page 39: Maintenance And Troubleshooting

    Type 8026, 8036, SE36 ELEMENT Maintenanceandtroubleshooting MaiNTENaNcE aND Danger TrouBLEShooTiNG risk of burns due to high fluid temperatures. ▶ Use safety gloves to handle the device. 9.1. Safety instructions ▶ Before opening the pipe, stop the circulation of fluid and drain the pipe. Danger ▶ Before opening the pipe, make sure that the pipe is completely risk of injury due to electrical voltage.
  • Page 40: Packaging, Transport

    ▶ Store the device in a dry place away from dust. ▶ Storing temperature for Type 8026: –10...+60 °C. ▶ Storing temperature for Type SE36: –10...+60 °C. ▶ Storing temperature for the fitting: refer to the related Operating...
