Next Level Racing FLIGHT SIMULATOR LITE Instruction Manual page 5

support@nextlevelracing.com
1.0

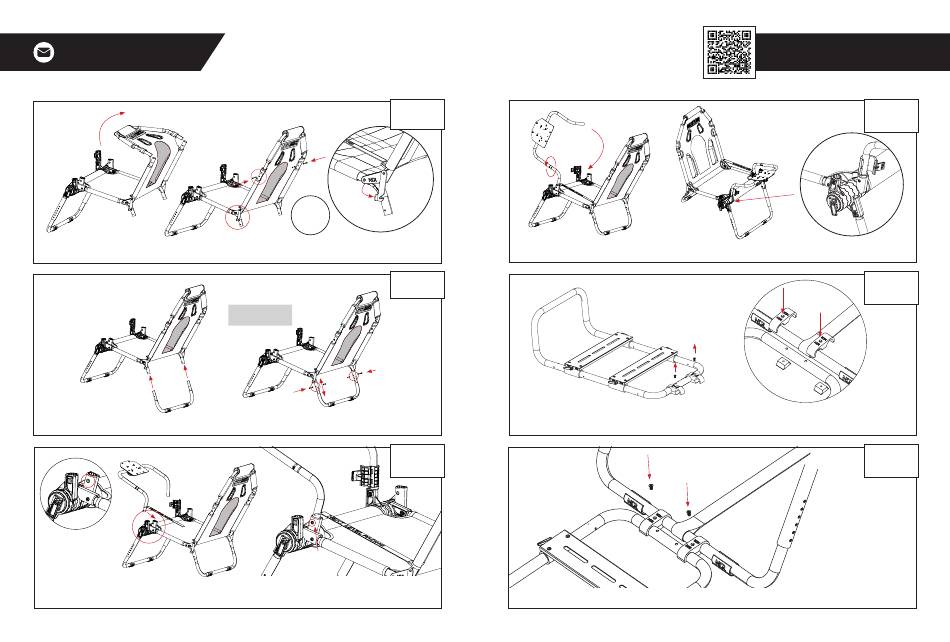

1.0 Install the head rest to the back rest as shown and secure with a nut, bolt and washer from
plastic bag. 1.1 Fasten the latch in place to secure the backrest.
2.0 Install the back leg into the chair frame as shown and adjust to your desired height. Install a
nut, bolt and washer from plastic bag to lock it in place.
3.0 Remove the pre-installed bolt and nut from the plastic hub, then install the steering bar into the plastic
hub securing with the bolt and nut previously removed in this step.
PARTS
2 X M5 30MM BOLT
2 X M5 NUT
2 X M5 WASHER
1.1
Repeat on
other side
PARTS
2 X M5 30MM BOLT
2 X M5 NUT
2 X M5 WASHER
Note: Open chair frame
to the same width as the
back leg
PARTS
NIL
8
4.0 Open the red latch on the steering clamp, rotate the pole into the clamp then close the clamp.
5.0 Remove the pre-installed bolts from the pedal clamps. Align the clamps with the chair and
pedal frame.
6.0 Re-install bolts from step 5.0.
Video Instruction: bit.ly/nlrbuild
PARTS
NIL
PARTS
NIL
PARTS
NIL
9
