SDI Fiber-Optical Video Output Extension Card Installation Guide
1. SDI fiber-optical video output expansion card and optical module installation steps
Note:
Must be operated in the power-off status when installing the SDI fiber-optical video output expansion card and optical module
1
2
3
4

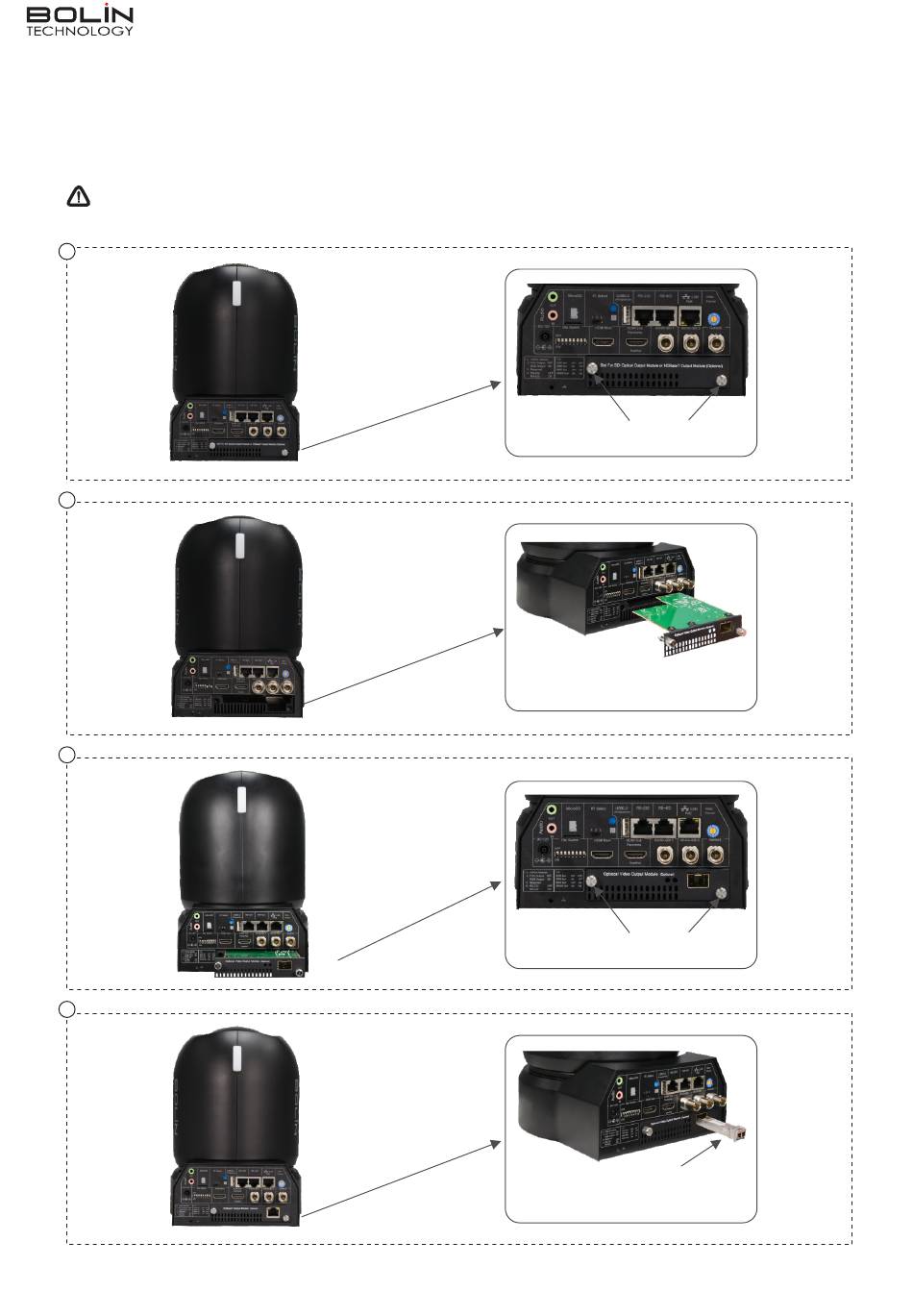

Loose the screw (no need to unscrew it off) and
pull it out in parallel
Insert the SDI fiber-optical video output extension
card into the slot in parallel
Push it in parallel, then tighten the screws
Insert the optical module into the SDI fiber-optical
video output expansion card.
Optical module: single-mode 1,310nm,
Connector: duplex LC
