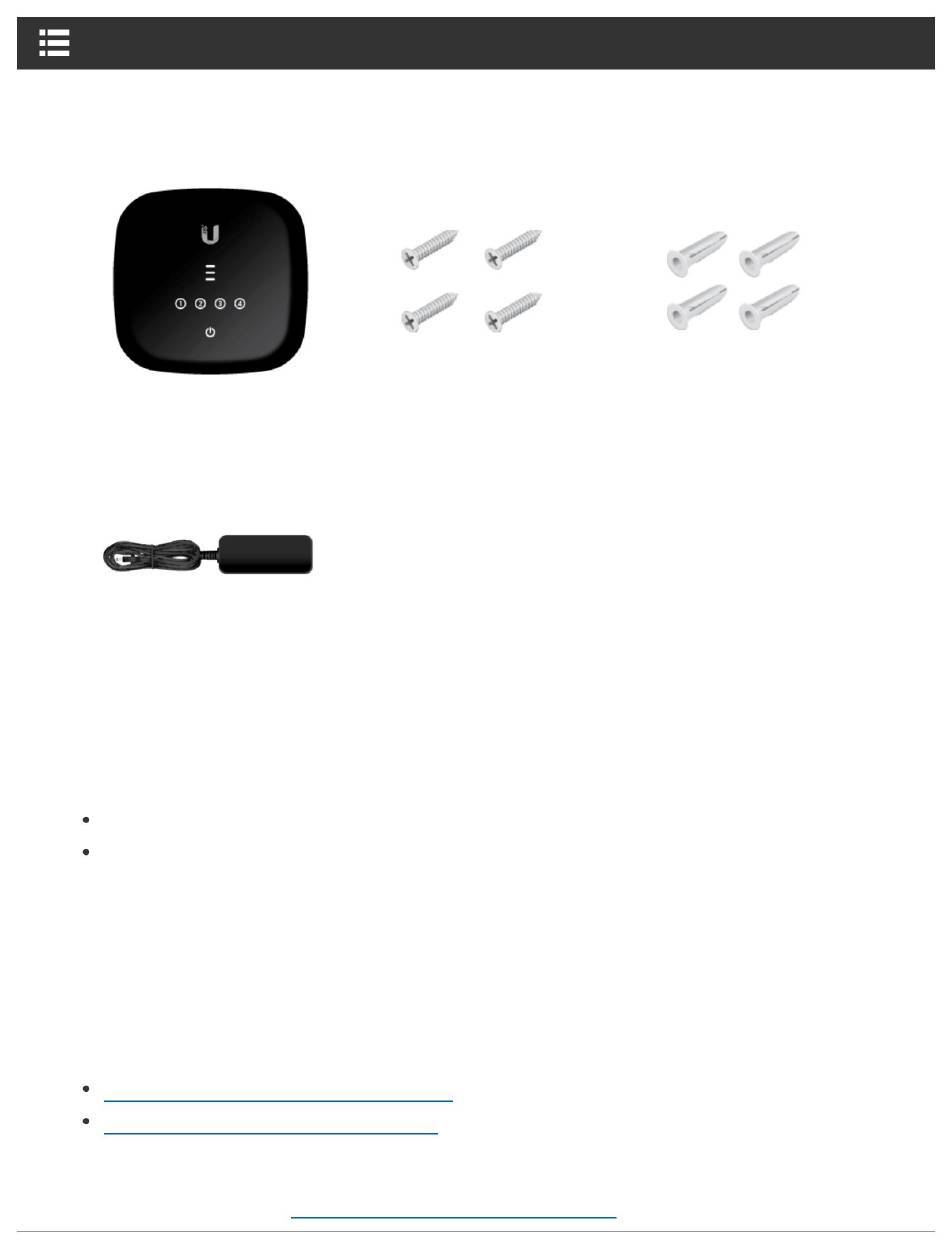

Package content
UFiber UF-WIFI
Power adapter (24
V, 0.5A)
System Requirements
Linux, Mac OS X o Microsoft Windows 7/8/10
Web browser: Google Chrome (other browsers may have limited functionality)
Before starting
Designing your first deployment of a GPON network requires specific planning and
knowledge. For more information on designing and installing a GPON network, including
important considerations and best practices, see:
ubnt.link/UFiber-GPON-Getting-Started
ubnt.link/Designing-a-GPON-Network
To learn how to configure UFiber devices for the first time to allow the LAN ports of
the Optical Network Unit (ONU) to provide connectivity, see:
Configuration
UF-WIFI Quick Start Guide
Screws (qty: 4)
Screw plugs (qty: 4)
ubnt.link/UFiber-Initial-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFiber UF-WIFI and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti UFiber UF-WIFI

Summary of Contents for Ubiquiti UFiber UF-WIFI

  • Page 1 UF-WIFI Quick Start Guide Package content UFiber UF-WIFI Screws (qty: 4) Screw plugs (qty: 4) Power adapter (24 V, 0.5A) System Requirements Linux, Mac OS X o Microsoft Windows 7/8/10 Web browser: Google Chrome (other browsers may have limited functionality)

  • Page 2: Hardware Overview

    UF-WIFI Hardware Overview Quick Start Guide Puerto PON The GPON SC/APC port supports 2.488 Gbps downstream and 1.244 Gbps upstream WAN connections. LAN (ports 1 - 4) The RJ45 Ethernet LAN ports support 10/100/1000 Mbps connections. Port 1 also supports 24V passive PoE to power the device. Reset button The Reset button has two functions for the UF-WIFI: Reset –...
  • Page 3 UF-WIFI Quick Start Guide power port The power adapter connects to this port to supply power. With ethernet connection White LED signal indicators disabled Beginning Signal strength: low ÿ -28 dBm Signal strength: good ÿ -25 dBm Signal strength: strong ÿ...
  • Page 4 No Authority UF-WIFI Quick Start Guide The UF- WIFI has not been authorized or it cannot communicate with the OLT. Check passwords and OLT settings. LED the Ethernet disabled No ethernet connection With ethernet connection White Blinking indicates activity Power LEDs disabled White Switched on...
  • Page 5 UF-WIFI Quick Start Guide...
  • Page 6 UF-WIFI Quick Start Guide...

  • Page 7: Fiber Connection

    UF-WIFI Quick Start Guide fiber connection WARNING: Never look directly into the ends of the fiber or modules. The light they emit can cause eye damage. WARNING: Until ready to use, keep fiber patch cables and modules covered with the included protective caps to ensure connections remain clean.

  • Page 8: Power Connection

    UF-WIFI Quick Start Guide Power connection Note: 24V Passive PoE is required to power the device. WARNING: The PoE switch must meet the power specifications listed in the Specifications section of this quick start guide.
  • Page 9 UF-WIFI Quick Start Guide Access to the configuration interface 1. Make sure your computer (or other host system) is connected to the device. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.

  • Page 10: Specifications

    UF-WIFI Quick Start Guide Customize the settings as needed. For more information, see UFiber's resources, which are available at: http://ubnt.link/UFiber-Support Specifications UF-WIFI Dimensions 126,34 x 126,09 x 31,65 mm (4,97 x 4,96 x 1,25") Weight 190 g (6,70 oz) Interfaces de red (1) WAN GPON SC/APC (4) LAN Ethernet Gigabit RJ45 (1) Wi-Fi, 802.11n...

  • Page 11: Safety Instructions

    UF-WIFI UF-WIFI Quick Start Guide maximum power consumption De 20 and 28 V Supported voltage range MIPS, 900 MHz processor specifications memory information DDR 256 MB Button (1) Reset Operating temperature -10° C to 45° C (14° F to 113° F) operating humidity 10 to 90% non-condensing Certifications...
  • Page 12 UF-WIFI Quick Start Guide Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions.

  • Page 13: Australia And New Zealand

    UF-WIFI Quick Start Guide zealand Australia and New Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment, this equipment may cause radio interference. Brazil Note: This equipment is not entitled to protection against harmful interference and may not cause interference in authorized systems.

  • Page 14: Online Resources
