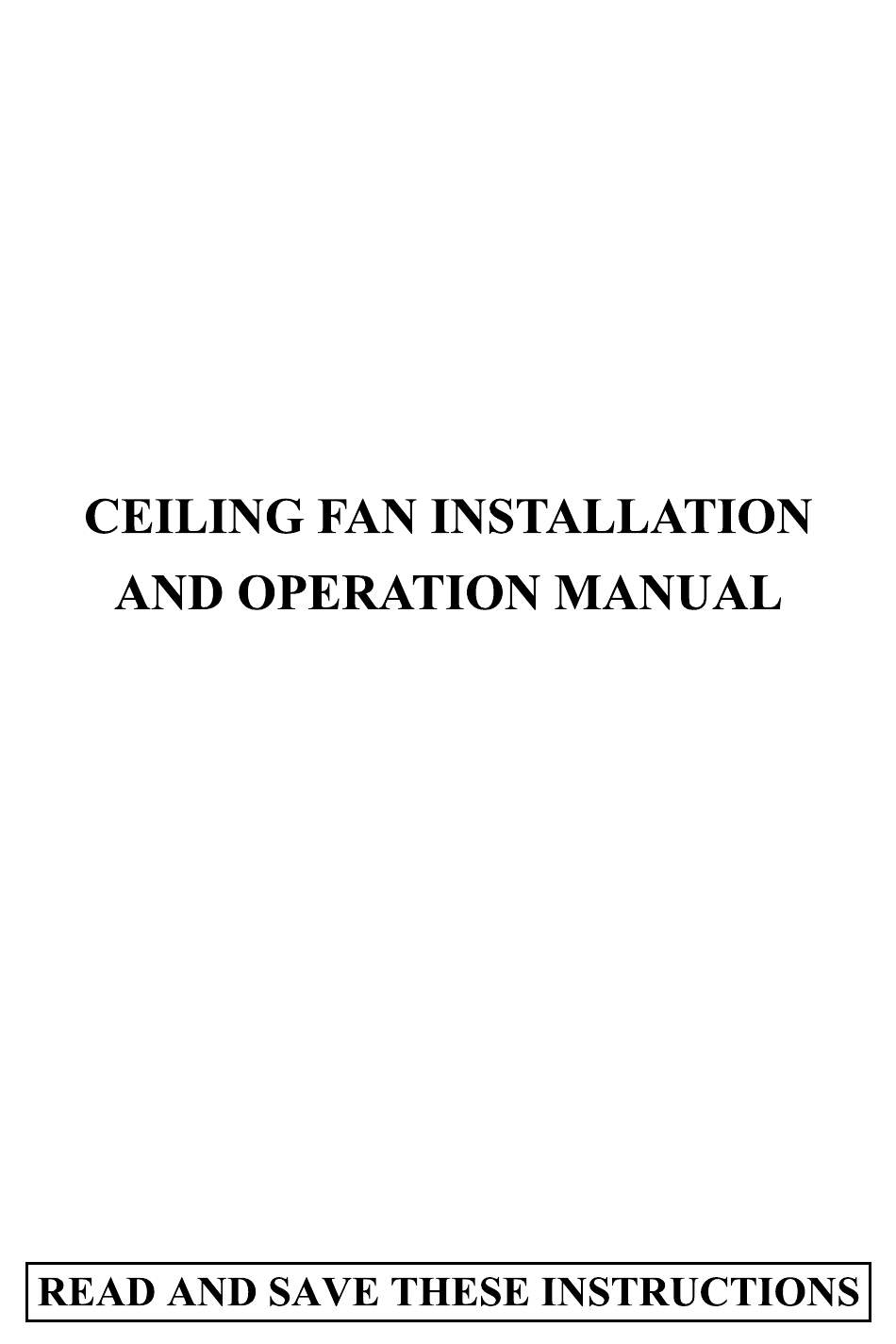

  • Page 1 (MODEL NUMBER:AC-16652)

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS WARNING-INSTALLATION SHOULD BE PERFORMED BY A QUALIFIED ELECTRICAN 1. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning. 2. All electrical connections must be in accordance with local codes, ordinances or National Electrical Code.
  • Page 3 Putting Your Fan Together 1. Insert the downrod through the center HANGER opening in the canopy and route the BALL motor leads through the hanger ball/ CANOPY downrod assembly. Align the clevis pin holes in the downrod with the holes in COUPLING the motor coupling.

  • Page 4: Wiring Your Ceiling Fan

    Wiring Your Ceiling Fan Caution : To avoid possible electrical BLUE BLACK BLACK shock, be sure electricity is turned off at the main fuse box before wiring. WHITE 1. If you are not sure that the electrical box GROUND is grounded, contact a licensed electrician GROUND WHITE for advice.
  • Page 5 The light pull chain has two positions. One pull turns the light on, two turns the light REVERSE kit off. The fan pull chain has four posit- SWITCH ions. One pull is high, two is medium, th- LIGHT ree is low and four to turn it off. (see Fig.10) PULL CHAIN SPEED PULL...

  • Page 6: Operating In Winter

    Operation in Summer In warm weather, the reverse switch should be set to produce a downward flow of air. The constant, gentle breeze will transfer heat from your body; thus, you will feel cooler even if the temperature remains unchanged. This cooling effect is referred to as a wind-chill factor.

  • Page 7: Care Of Your Fan

    CARE OF YOUR FAN Here are some suggestions to help you maintain your fan. 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2.

  • Page 8: Troubleshooting

    TROUBLESHOOTING Problem Solution Fan will not start. 1. Check main and branch circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
