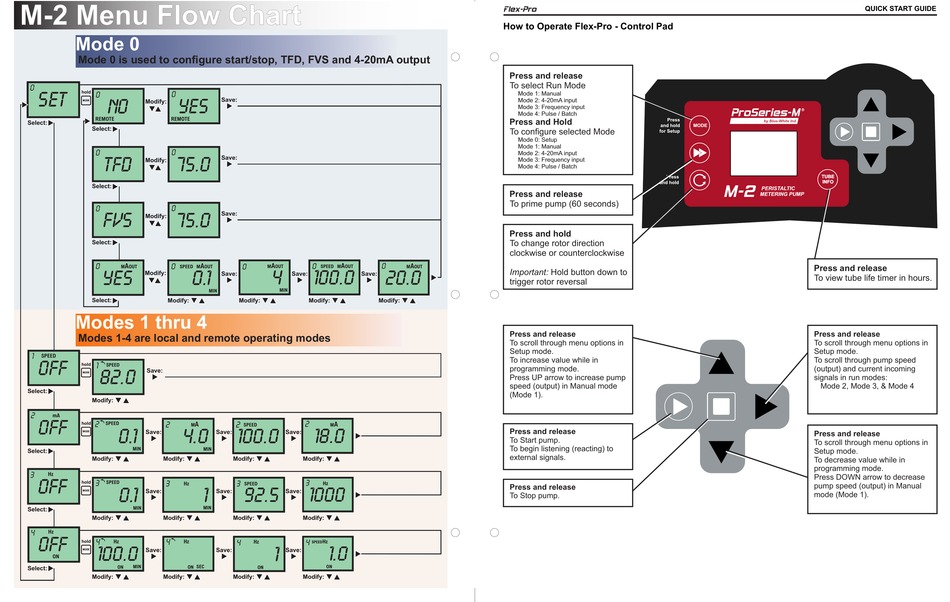

Blue-White Flex-Pro Pro M Series Quick Start Manual

M-2 Menu Flow Chart
Mode 0
Mode 0 is used to configure start/stop, TFD, FVS and 4-20mA output
0
SEt
0 0
hold
no yes
MODE Modify:
REMOTE REMOTE
Select:
Select:
0 0
tfd 75.0
Modify:
Select:
0 0
FVS
75.0
Modify:
Select:
0 0
yes A 0.1
M OUT SPEED M OUT
Modify:
Select:
Modify:
Modes 1 thru 4
Modes 1-4 are local and remote operating modes
1
OFF SPEED
1
hold 82.0 SPEED
Save:
MODE
Select:
Modify:
2
OFF mA
2 2
hold SPEED 0.1 4.0 A
M
Save:
MODE
MIN
Select:
Modify: Modify:
3
Hz
OFF
3 3
hold SPEED 0.1
Hz
Save:
MODE
MIN
Select:
Modify: Modify:
4
Hz
OFF
4 4
hold 100.0 Hz Hz
Save:
MODE
ON
ON MIN ON SEC
Select:
Modify: Modify:
Save:
Save:
Save:
0 0
A 4 A 100.0 A
M OUT SPEED M OUT
Save: Save: Save:
MIN MIN
Modify: Modify: Modify:
2 2
100.0 18.0 A
SPEED M
Save: Save:
MIN
Modify: Modify:
3 3
1 92.5 1000
SPEED Hz
Save: Save:
MIN
Modify: Modify:
4 4
Hz 1 Hz 1.0
SPEED
Save: Save:
ON
ON
Modify: Modify:
Flex-Pro
How to Operate Flex-Pro - Control Pad
Press and release
To select Run Mode
Mode 1: Manual
Mode 2: 4-20mA input
Mode 3: Frequency input
Mode 4: Pulse / Batch
Press and Hold
To configure selected Mode
Mode 0: Setup
Mode 1: Manual
Mode 2: 4-20mA input
Mode 3: Frequency input
Mode 4: Pulse / Batch
Press and release
To prime pump (60 seconds)
Press and hold
To change rotor direction
clockwise or counterclockwise
0
20.0 A
M OUT
Important: Hold button down to
trigger rotor reversal
Press and release
To scroll through menu options in
Setup mode.
To increase value while in
programming mode.
Press UP arrow to increase pump
speed (output) in Manual mode
(Mode 1).
Press and release
To Start pump.
To begin listening (reacting) to
external signals.
Press and release
To Stop pump.
QUICK START GUIDE
MODE
TUBE TUBE TUBE
INFO INFO INFO
M-2
PERISTALTIC
METERING PUMP
Press and release
To view tube life timer in hours.
Press and release
To scroll through menu options in
Setup mode.
To scroll through pump speed
(output) and current incoming
signals in run modes:
Mode 2, Mode 3, & Mode 4
Press and release
To scroll through menu options in
Setup mode.
To decrease value while in
programming mode.
Press DOWN arrow to decrease
pump speed (output) in Manual
mode (Mode 1).
