Safe Fleet Prime Design FBM-1027 Assembly Instructions Manual

90 sidewall mount frame base mounting kit

Advertisement

Quick Links

90° Sidewall Mount Frame Base Mounting Kit
Page 2
Packaging Contents
Pages 3-6
Utility Roof Mountings
PRIME DESIGN, A SAFE FLEET BRAND
Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK
Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the Prime Design FBM-1027 and is the answer not in the manual?

Questions and answers

Summary of Contents for Safe Fleet Prime Design FBM-1027

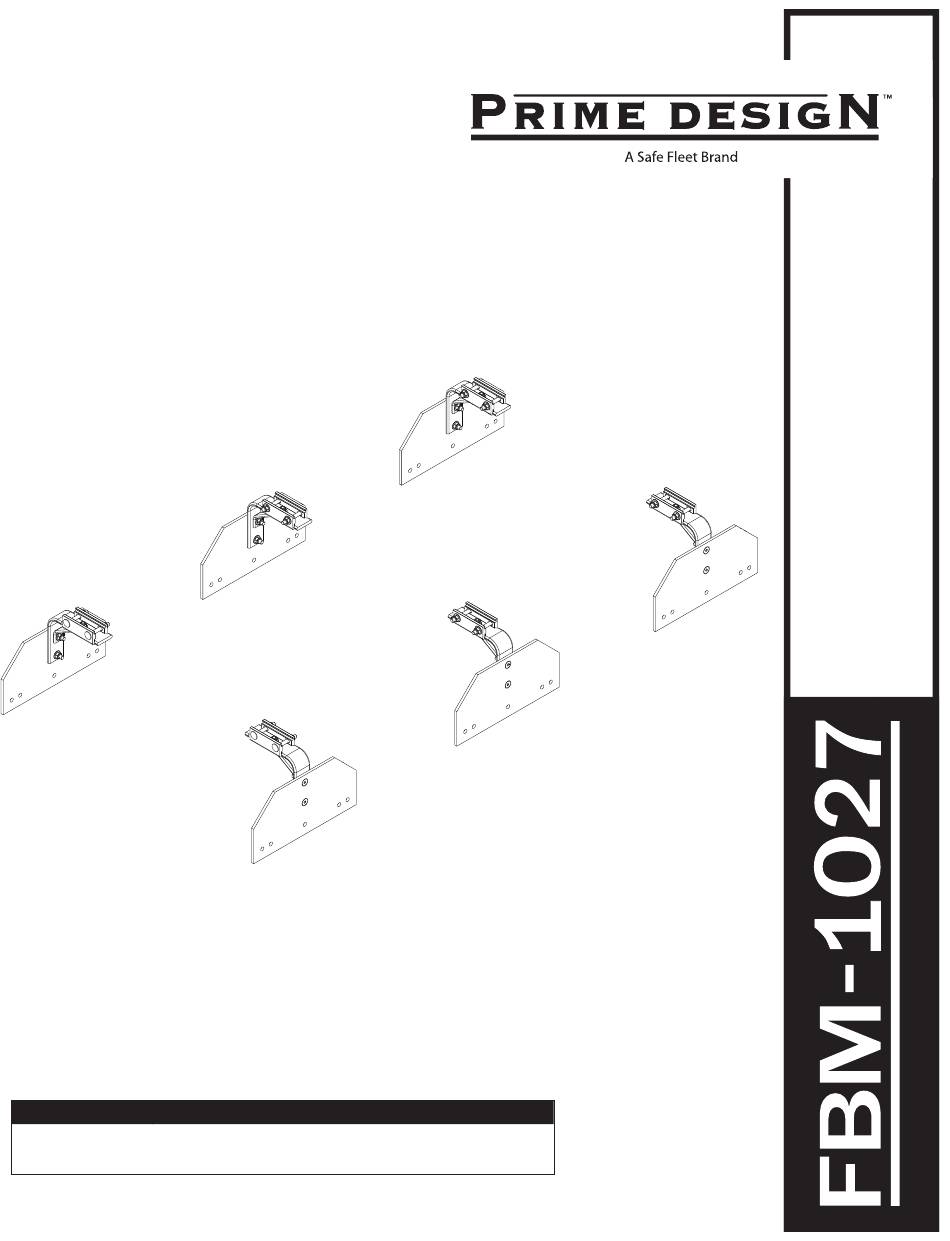

  • Page 1 90° Sidewall Mount Frame Base Mounting Kit Page 2 Packaging Contents Pages 3-6 Utility Roof Mountings PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
  • Page 2: Contents Overview

    CONTENTS OVERVIEW Installer’s Note: Due to the variety of different applicable vehicles and cargo bodies, this Rack model does not come with included body fastening hardware, and must be supplied by the installer. 1—FBM-1027 ............(Qty 1) Sidewall Mounts, 90° with HKT-8418 Crossbar Mounting Bracket, Pair (6X) Mounting Brace (6X) Side Wall Mounting Bracket, 90°...
  • Page 3 BRACKET PRE–ASSEMBLY Attach all six Mounting Brackets to the Mounting Plates using the M8 Allen Flat Head Screws, Flat Washers and Locknuts as Attach all six Mounting Braces to the Mounting Brackets using shown, and tighten. the M8 x 25MM Bolts, Flat Washers and Locknuts as shown. Torque to 90 in-lbs.
  • Page 4 The Mounting Bracket must sit flush against the vehicle’s body. To prevent water intrusion into the vehicle from behind Remove as many bolts or rivets from the area directly behind the Mounting Bracket, it is recommended to apply a the Mounting Bracket as needed for a flush fit. small bead of silicone sealant (not included) around the holes of all removed bolts or rivets.
  • Page 5 This rack model can be set for a Crossbar spacing distance of 6’ to 8’. Dimensions F and G illustrates the Rear to Center, and Center to Front Crossbar allowable spacing. Dimension H illustrates the maximum allowable Crossbar spacing from the Rear to the Front Crossbars. (F) 4–6’...
  • Page 6 FBM ASSEMBLY SEQUENCE NOTE: LH/RH Rotation and Crossbar features are shown for illustrative purposes only. These features are not included with this Base Mounting Kit, and must be purchased separately. CROSSBARS CROSSBAR ADJUSTMENT Front Even Even Center Even Rear Even Even Torque all Crossbar Clamp nuts to 90 in-lbs...
  • Page 7 Page Intentionally Left Blank...
  • Page 8 USAM-FBM1027-US01 Rev-A 0720...
