bora Pro Tepan PKT3 Operating And Installation Instructions

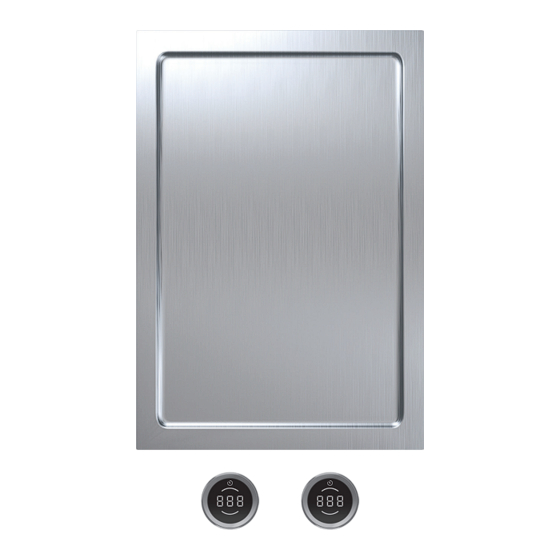

Stainless steel grill with 2 cooking zones
Hide thumbs
Also See for Pro Tepan PKT3:
- Installation instructions manual (44 pages) ,
- Operating instructions manual (56 pages)
Related Manuals for bora Pro Tepan PKT3
Summary of Contents for bora Pro Tepan PKT3

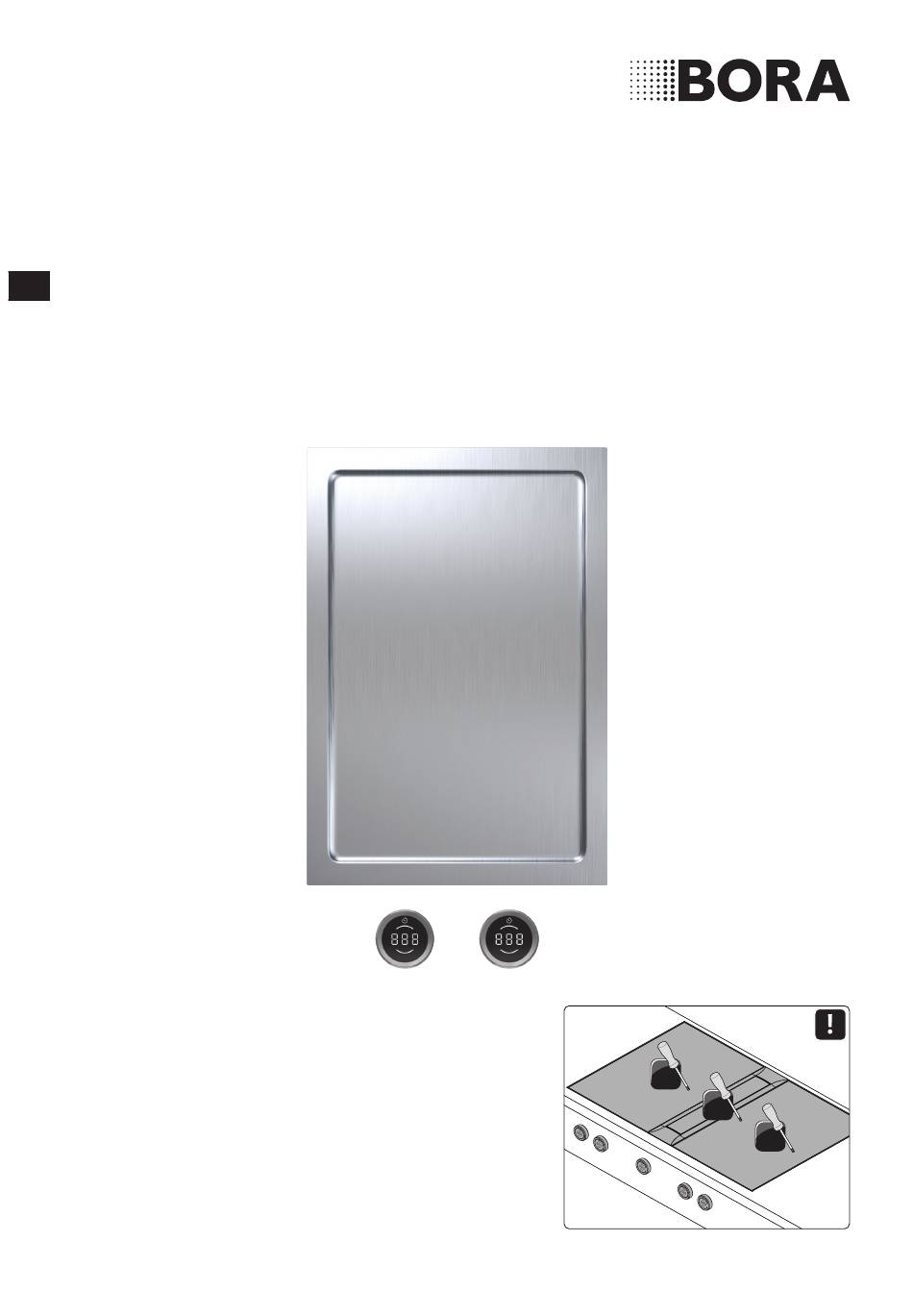

- Page 1 Operating and installation instructions PKT3 BORA Pro Tepan stainless steel grill with 2 cooking zones PKT3UMIMEN-102 1044860 - 32 www.bora.com...
-
Page 2: Table Of Contents
Safety instructions – disassembly and disposal ..8 6.3.5 Bridging function ............24 Technical data Function menu ...............24 BORA Pro Tepan stainless steel grill PKT3 ....9 6.4.1 Cleaning function ............24 BORA Professional 3.0 control knob dimensions ..9 Cleaning and maintenance Appliance description Cleaning agents .............26... -
Page 3: General Information
APAC Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter Safety and warning instructions referred to as BORA – does not assume any liability for damage arising from disregard for or non-adherence to the documents The safety and warning instructions in this manual are included in the scope of delivery! emphasised with symbols and signal words. -
Page 4: Safety
Only use stove guards and covers that are BORA does not assume any liability for approved by the appliance manufacturer; damages caused by improper use or incorrect otherwise, there is a risk of accidents. -
Page 5: Safety Instructions For Installation
LS switch, fuses, automatic circuit appliances (particularly in the case of hard and breakers or contactor. sharp objects). Never use the appliances as work Contact BORA Service. or storage surfaces. Keep hard or sharp objects away from the WARNING! appliance surfaces. -
Page 6: Safety Instructions - Operation
Make sure that technical equipment is provided to enable all of the appliance’s poles to be disconnected from the mains with a contact opening width of at least 3 mm (LS switch and automatic circuit breakers, fuses, contactor). www.bora.com... -
Page 7: Safety Instructions - Cleaning And Maintenance
Liquid between the cooking zone and the pan base conducted by trained electrical personnel. can evaporate and cause burns. Before any repair work, safely disconnect the Make sure that the cooking zone and the pan appliance from the mains supply. base are always dry. www.bora.com... -
Page 8: Safety Instructions - Disassembly And Disposal
LS switches, fuses, automatic circuit breakers or contactors. Use an authorised measuring device to ensure that there is no power to the appliance. Do not touch exposed contacts on the electronic unit as they may contain residual charge. www.bora.com... -
Page 9: Technical Data
Technical data Technical data BORA Pro Tepan stainless steel grill PKT3 Parameter Value Supply voltage 380–415 V 2N 18,5 Frequency 50/60 Hz Power consumption 4.8 kW Fuse protection 2 x 16 A Fig. 3.3 PKT3 appliance dimensions side view Dimensions (width x depth x height) 370 x 540 x 73 mm... -
Page 10: Appliance Description
Cooktop appliance description 4.2.1 Display and symbols The power levels and cooking functions of each cooking zone are shown in the control knob display on the corresponding control knob. Fig. 4.2 Control knob operating elements Knob ring Touch surface www.bora.com... -
Page 11: How The Tepan Stainless Steel Grill Pkt3 Works
23 0 The power is adjusted via temperature ranges that are shown in Tab. 4.4 the operating panel display in °C (temperature indicator). Safety shut-down on the different power levels After 10 minutes, the power setting automatically reverts to ‘230°C’. www.bora.com... -
Page 12: Residual Heat Indicator
After a sufficient cooling period, the cooktop can be used again. 4.3.4 Childproofing feature If a single cooktop is operated without a cooktop extractor, removal of the knob ring can prevent the appliance from being switched on accidentally or without permission. www.bora.com... -
Page 13: Installation
Make sure the delivery is complete and check it for damage. Minimum distance If there are any missing or damaged parts, please notify the BORA After Sales Service. Minimum clearance of 50 mm at the back from the worktop cut- Do not under any circumstances install parts which are out to the rear edge of the worktop. -
Page 14: Minimum Installation Dimensions (Standard Set-Up)
B O R A L Ü F T U N G S F I B E L 5.4.3 Worktop and kitchen units Create the worktop cut-out taking into account the specified cut-out dimensions. Make sure that the cut surfaces of the worktops are properly sealed. Comply with the instructions of the worktop manufacturer. www.bora.com... -
Page 15: Flush Installation
A in mm B in mm 1310 1338 1310 1681 1709 1681 Tab. 5.3 Cut-out dimensions of the appliance combinations in Tab. 5.2 Cut-out dimensions of the appliance combinations in the case of surface mounting the case of flush installation www.bora.com... -
Page 16: Installing The Control Knob In The Floor Unit Front Panel
Knob ring Wave spring In the case of steel fronts, wave springs must not be used. The corresponding installation steps are to be ≥70 ≥40 omitted. Fig. 5.11 Drilling pattern for 2 cooktops, 1 cooktop extractor and 2 sockets www.bora.com... -
Page 17: Installing The Cooktops
A clearance of two millimetres should be planned around the built-in appliances. It is recommended to install a mounting rail between adjacent cooktops (mounting rail PZMS available as an accessory). The cooktop can also be installed rotated by 180°. www.bora.com... -
Page 18: Installation Rotated By 180° (Alternative Installation Variation)
If the mains supply cable has been damaged this must be Front cooking zone control knob port (zone 1) replaced. Extractor electronics interface port Rear cooking zone control knob port (zone 2) The appliance components are linked by the ribbon cable provided. www.bora.com... -
Page 19: Establishing Contact Between The Cooktop Extractor And Cooktops
Connecting the cooking zones when the cooktop is power supply by certified specialists. The specialist also installed rotated by 180° and the ports are on the assumes responsibility for the proper installation and rear of the appliance (PKT3) commissioning. www.bora.com... -
Page 20: Basic Configuration
5.10 Initial operation Connecting the cooktop to the power supply The power supply cable to be used (already pre-installed) must Detailed information on how to use the BORA comply with certain, appliance-specific requirements. Professional 3.0 system can be found in the cooktop A damaged power supply cable must be replaced by extractor’s operating instructions.. -
Page 21: Sealing The Appliances
Explain all safety-related aspects of operation and handling to the user. Affix the supplied nameplate to the back of these instructions. Provide the user with the accessories and all accompanying documents, which are to be kept in a safe place. www.bora.com... -
Page 22: Functions And Operation
Diagram of the touch commands Switching the appliances off Turn the knob ring anticlockwise to power level 0. Tap command diagram Long press diagram Any active additional functions will be deactivated and the appliance will be switched off. Extra-long press diagram www.bora.com... -
Page 23: Operating The Cooktops
During grilling or heating on a high power level, the griddle may adopt a light brown colour. The full range of functions is only available for BORA Professional 3.0 system cooktops in combination with 6.3.3 Setting cooking zone power levels the corresponding cooktop extractors PKA3/PKA3AB and PKAS3/PKAS3AB. -
Page 24: Bridging Function
As soon as the cleaning temperature is reached, the cooking zone indicators are permanently lit and it is possible to start touch command on both control knobs at the same time. cleaning. An acoustic signal can be heard and the bridging function is deactivated. www.bora.com... - Page 25 The cleaning function is automatically deactivated after 10 minutes. When the knob ring is turned clockwise, a higher power level is activated and cleaning must be stopped immediately (risk of burns). www.bora.com...
-
Page 26: Cleaning And Maintenance
Only use suitable cookware on the appliance (see the Appliance description chapter). Do not use stainless steel care products on the stainless steel surfaces or the stainless steel grill surface. www.bora.com... -
Page 27: Cleaning The Control Knobs
7.4.2 Cleaning the touch surface and the knob housing Remove the knob ring. Clean the touch surface and the knob housing with a soft, damp cloth. Dry the touch surface and the knob housing carefully. Place the knob ring on the knob housing. www.bora.com... -
Page 28: Troubleshooting
Tab. 8.1 Resolving a fault Acknowledge the error by tapping the control knob. In all other cases, contact the BORA Service Team (see „10 Warranty, technical service, spare parts, accessories“) and enter the error number displayed and the appliance type. www.bora.com... -
Page 29: Decommissioning, Disassembly And Disposal
Never put your old appliance in domestic waste. Take the old appliance to a regional collection point for return and recycling electrical and electronic components and other materials. www.bora.com... -
Page 30: Warranty, Technical Service, Spare Parts, Accessories
The manufacturer’s warranty starts as soon as the BORA 10.2 Service product is handed over to the end customer by an authorised BORA dealer and is valid for 2 years. By registering on www. BORA Service: bora.com/registration the end customer has the possibility of extending the manufacturer’s warranty. -
Page 31: Notes
Notes 11 Notes www.bora.com... - Page 32 Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes. © BORA Vertriebs GmbH & Co KG All rights reserved.
