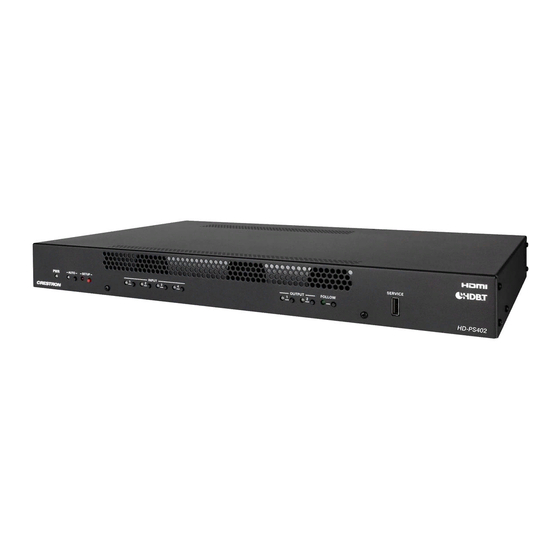

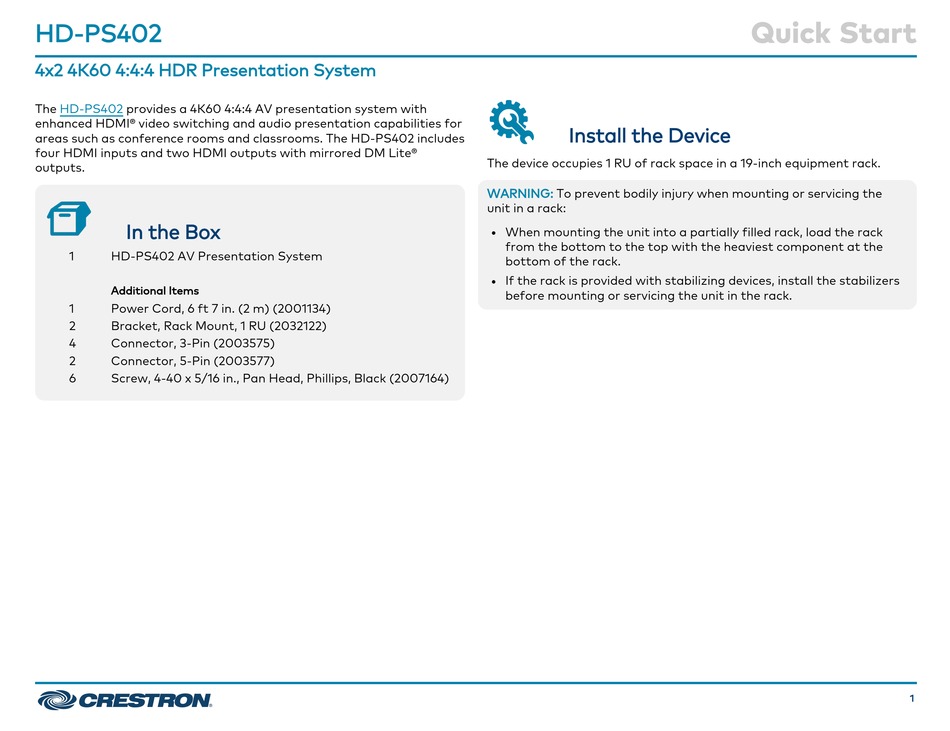

HD-PS402
4x2 4K60 4:4:4 HDR Presentation System
The
HD-PS402
provides a 4K60 4:4:4 AV presentation system with
enhanced HDMI® video switching and audio presentation capabilities for
areas such as conference rooms and classrooms. The HD-PS402 includes
four HDMI inputs and two HDMI outputs with mirrored DM Lite®
outputs.
In the Box
1
HD-PS402 AV Presentation System
Additional Items
1
Power Cord, 6 ft 7 in. (2 m) (2001134)
2
Bracket, Rack Mount, 1 RU (2032122)
4
Connector, 3-Pin (2003575)
2
Connector, 5-Pin (2003577)
6
Screw, 4-40 x 5/16 in., Pan Head, Phillips, Black (2007164)
Install the Device
The device occupies 1 RU of rack space in a 19-inch equipment rack.
WARNING:
To prevent bodily injury when mounting or servicing the
unit in a rack:
When mounting the unit into a partially filled rack, load the rack
l
from the bottom to the top with the heaviest component at the
bottom of the rack.
If the rack is provided with stabilizing devices, install the stabilizers
l
before mounting or servicing the unit in the rack.
Quick Start
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crestron HD-PS402
Summary of Contents for Crestron HD-PS402
- Page 1 HDMI® video switching and audio presentation capabilities for Install the Device areas such as conference rooms and classrooms. The HD-PS402 includes four HDMI inputs and two HDMI outputs with mirrored DM Lite® The device occupies 1 RU of rack space in a 19-inch equipment rack.
- Page 2 Quick Start HD-PS402 4x2 4K60 4:4:4 HDR Presentation System Rack Mounting Safety Precautions To mount the device into a rack: Elevated Operating Ambient Temperature: If installed in a closed or 1. Attach the two included rack mount brackets to the device using the multi-unit rack assembly, the operating ambient temperature of the six included 4-40 x 5/16 in.
- Page 3 HD-PS402 Quick Start 4x2 4K60 4:4:4 HDR Presentation System Connect the Device Connect the front and rear panels of the device as required for the application. Front Panel Connection...
- Page 4 Quick Start HD-PS402 4x2 4K60 4:4:4 HDR Presentation System Rear Panel Connections...
- Page 5 HD-RX-4K-410-C-E, HD-RX-4K-410-C-E-SW4, HD-RX-4K-510-C-E, Shield/ground Common ground and HD-RX-4K-510-C-E-SW4) is provided for the extension of audio R+ Out and video signals only. The HD-PS402 web interface does not support configuration of connected HD-RX-201-C-E receivers or Open DMPS Lite switchers. Those devices require a separate LAN connection and must be configured using the web interface of each device.
- Page 6 XiO Cloud User Guide. NOTE: By default, the IP address of an HD-PS402 device is assigned by Select the device from the cloud interface to view its status and a DHCP server on the network. If a DHCP server does not exist on the settings.
- Page 7 Quick Start HD-PS402 4x2 4K60 4:4:4 HDR Presentation System Observe the LED Indicators Visit the Product Page Refer to the following table for information about the LED indicators on Scan the QR code to visit the product page. the device. HD-PS402...
- Page 8 Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource. Crestron, the Crestron logo, DM Lite, DMPS Lite, and XiO Cloud are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDBaseT and the HDBaseT Alliance logo are either trademarks or registered trademarks of the HDBaseT Alliance in the United States and/or other countries.
