ALIBI ALI-NS4036R Quick Installation Manual

ALI-NS4036R, ALI-NS4036RB 6MP
120 ft IR Fixed Bullet IP Camera
Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-NS4036R and
ALI-NS4036RB IP bullet cameras. These cameras are identical except for the exterior color (see below).
These camera feature:
3072 × 2048 pixel 1/2.4" Progressive Scan CMOS sensor
•
H.265+ / H.265 / H.264+ / H.264 compression
•
2.8 mm lens with 99° horizontal field of view
•
120 dB Wide Dynamic Range
•
Low light 0.008 lux color minimum illumination
•
120 ft Full Frame Illumination Smart IR array,
•
Supports onboard microSD/SDHC/SDXC card storage up to 128GB (card not included)
•
IP67, IK10 rated, −22 °F ~ 140 °F temperature range
•
ONVIF Profile S & Profile G, ISAPI compatible
•
Compatible with ALI-AJ1 junction box, ALI-AJ6 junction box
•
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ Witness 2.0 App for Android Quick Start Guide
•
ALIBI™ IP Camera Firmware Version 5.4 User Manual (or later) provided at:
•
AlibiSecurity.com/resources

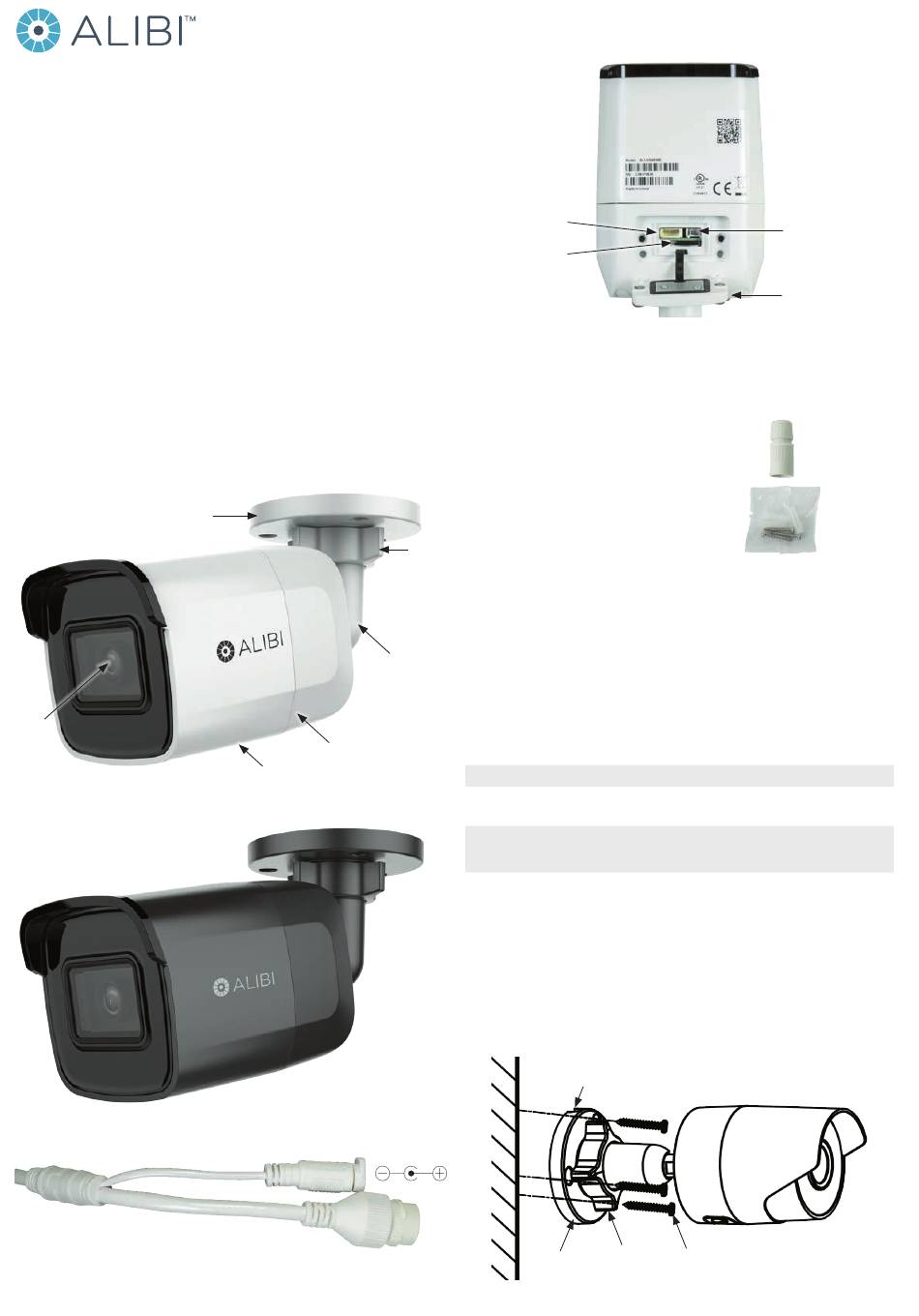

Mounting base
Lens

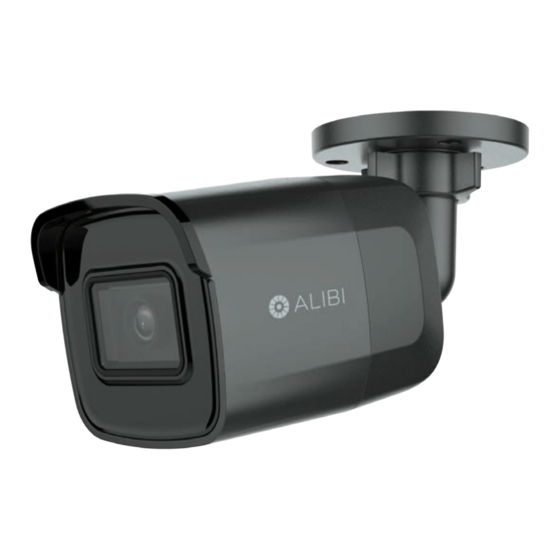

ALI-NS4036R camera
ALI-NS4036RB camera
Camera drop cables
1 www.observint.com
Articulated
mounting
bracket
Camera body
Access to microSD slot and Reset button*
12 Vdc Power connector with plug
Ethernet connector -
PoE capable
Test connector
(not used)
microSD
card slot
* Reset: To restore the camera with its default configuration (including user name, password, IP address, etc.) press and hold
the Reset button for 10 s when the camera is power on or rebooting.
What's in the box
Your camera includes:
This document
•
Drill template
•
Waterproof Ethernet fitting
•
Mounting screws and wall inserts
•
Security L-wrench
•
IP camera networking guide
•
Lock nut

Install the camera

Step 1. Install a microSD card (optional)
A microSD card provides local storage for alarm and video data. Refer to the Specifications section near
the end of this document for compatible microSD card types and capacity.
1. Use the security L-wrench provided to remove the maintenance panel cover on the underside of
the camera. See the photo to the right.
2. Push the microSD card all the way into the card slot, and then release it. It should lock into place.
(To remove the card, push it all the way into the slot, and then release it. It should pop out.)
NOTE
The microSD card should slide in smoothly. If it does not, flip it over, and try again.
4. Reinstall the cover.
The microSD card may need to be initialized before it can be used to record data. Refer to the ALIBI™
NOTE
IP Camera Firmware User Manual provided at AlibiSecurity.com/resources for instructions to
initialize the card.
Step 2. Mount the camera onto a wall or ceiling
Camera drop cables can be routed through the mounting surface, or through the cable channel in the
mounting base. The camera can be powered through the LAN cable with PoE. Refer to the Specifications
section for power requirements
To install the camera:
1. Acquire the best fasteners for securing the camera mounting base to mounting surface. The
mounting hardware provided is be suitable for many surfaces.
Mounting
surface
Cable channel
Mounting base
Reset
button*
Maintenance
panel access
cover
Underside of camera body
Weatherproof
Ethernet
Fitting
Lock nut
Mounting screws (3)
Mounting
hardware
ALI-NS4036R-RB_CQ
