This document guides you through the basic steps to install and configure the ALI-NS4112R network
vari-focal bullet camera. This camera features:
1/2.8" 1920 × 1080 pixel Progressive Scan CMOS
•
2.8 ~ 12 mm motorized vari-focal lens
•
H.265, H.265+, H.264+, H.264 video compression
•
120 dB Wide Dynamic Range
•
Back light compensation (BLC) / 3D dynamic noise reduction (DNR) / region of interest (ROI)
•
IP67, IK10 vandalproof rated
•
4 behavior analyses and face detection
•
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ Tools Utility Installation and User Manual
•
ALIBI™ Witness 2.0 r3 App for Android or iOS Quick Start Guide
•
ALIBI™ IP Camera Firmware Version 5.4 User Manual (or later) provided at:
•
AlibiSecurity.com/resources

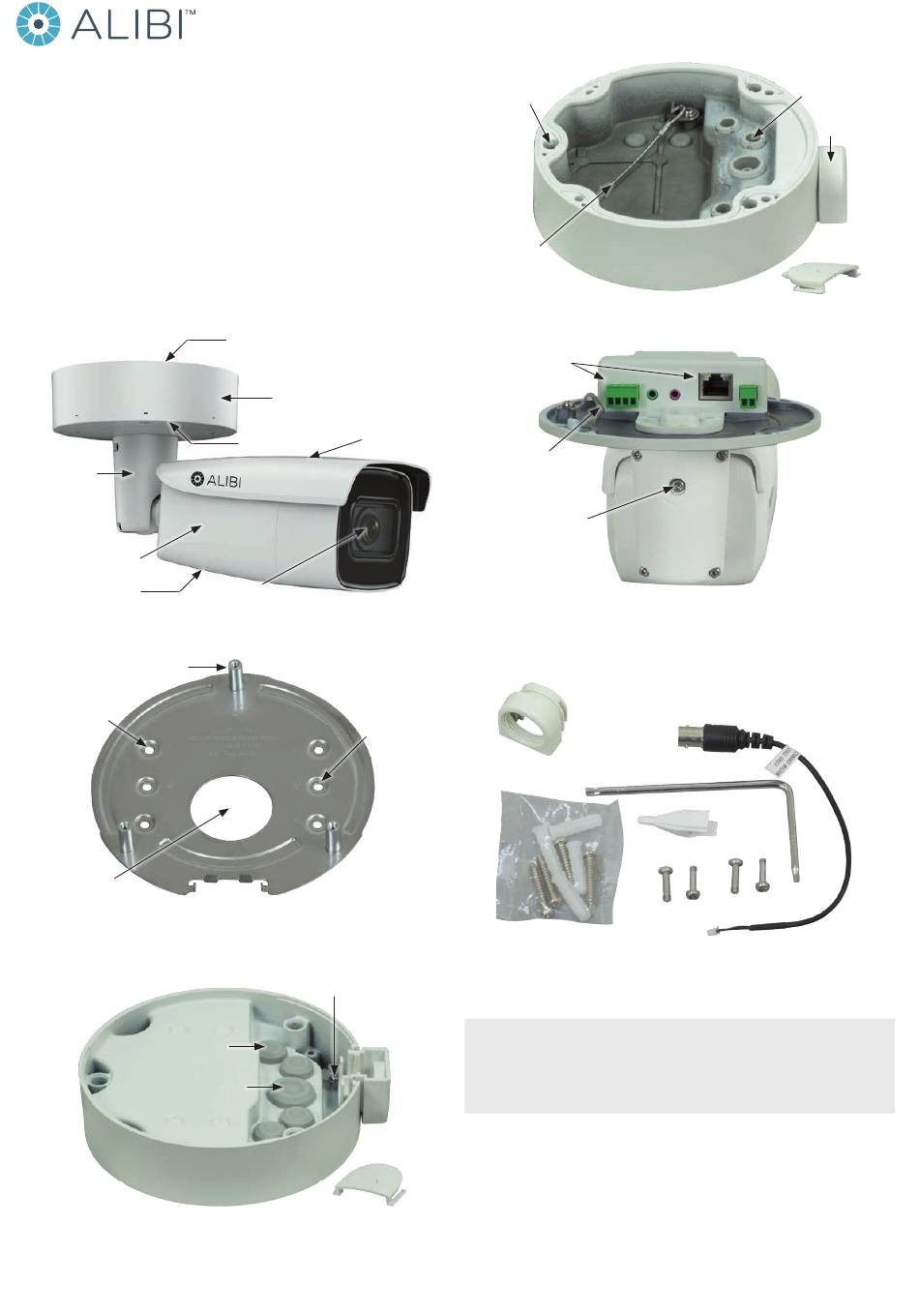

Adjustment
bracket
Camera body
Maintenance panel
\
Screw stud for
junction box (3)
Holes (4) for
surface mounting
or double-gang
box (#1)
Hole for surface
or gang box
cable routing
Sealing plug
for interface wiring (5)
Sealing plug
for LAN/PoE cable
Junction box (adapter plate side)
1
www.observint.com
ALI-NS4112R 2MP Vari-focal IP Bullet Camera Quick Installation Guide
Adapter plate
Junction box
Junction box
Sun shield
screw (4)
Lens
Holes (2) for
single-gang box
mounting (#2)
Adapter plate
Ground terminal
Side inlet with
conduit adapter
Side inlet
cover
Captive screws
connect to
adapter plate (3)
Safety cable
Junction box (inside view)
Interface terminals
for alarms, audio,
LAN, power
Hook for safety cable
Adjustment
bracket lock
screw
Back of camera (junction box removed)
What's in the box
Your camera includes the items shown below.
Conduit adapter
Security L-wrench
Mounting hardware
Junction box screws
Step 1.
Route wiring to the camera
Interface cables can be routed into the camera either through the adapter plate (through the mounting
surface or through a gang box), through the side inlet of the junction box, or through conduit.
When selecting a mounting location for the camera
• Make sure that there are no reflective surfaces near to the camera lens. IR light from the camera may
bounce back onto the lens causing reflections.
NOTE
• Determine how wiring is routed into the camera. The cable can be routed through conduit
(a threaded conduit adapter is provided), through the mounting surface and access hole in the
mounting plate, or through the side inlet.
See photos above. The camera includes connectors for the following:
Ethernet (required): The Ethernet drop cable can connect to a LAN extension cable from a
•
switch or Network Video Recorder. The camera can be powered across the LAN using power over
Ethernet (PoE) injection. See the Specifications section at the end of this document for power
requirements.
12 Vdc power input (optional if PoE powered, required if not): If powering the camera
•
with a long power extension cable, refer to the tables at the end of this guide for wire gauge
requirements. Voltage input at the camera can be within the range 12 Vdc ± 25%.
Sealing plug
for interface
wiring (5)
Conduit
adapter
Side inlet
cover
BNC video
maintenance
cable
Insertion tool
ALI-NS4112R_CQ
180507
