Badger Basket Wild Power WB26BCI Operator's Manual page 9

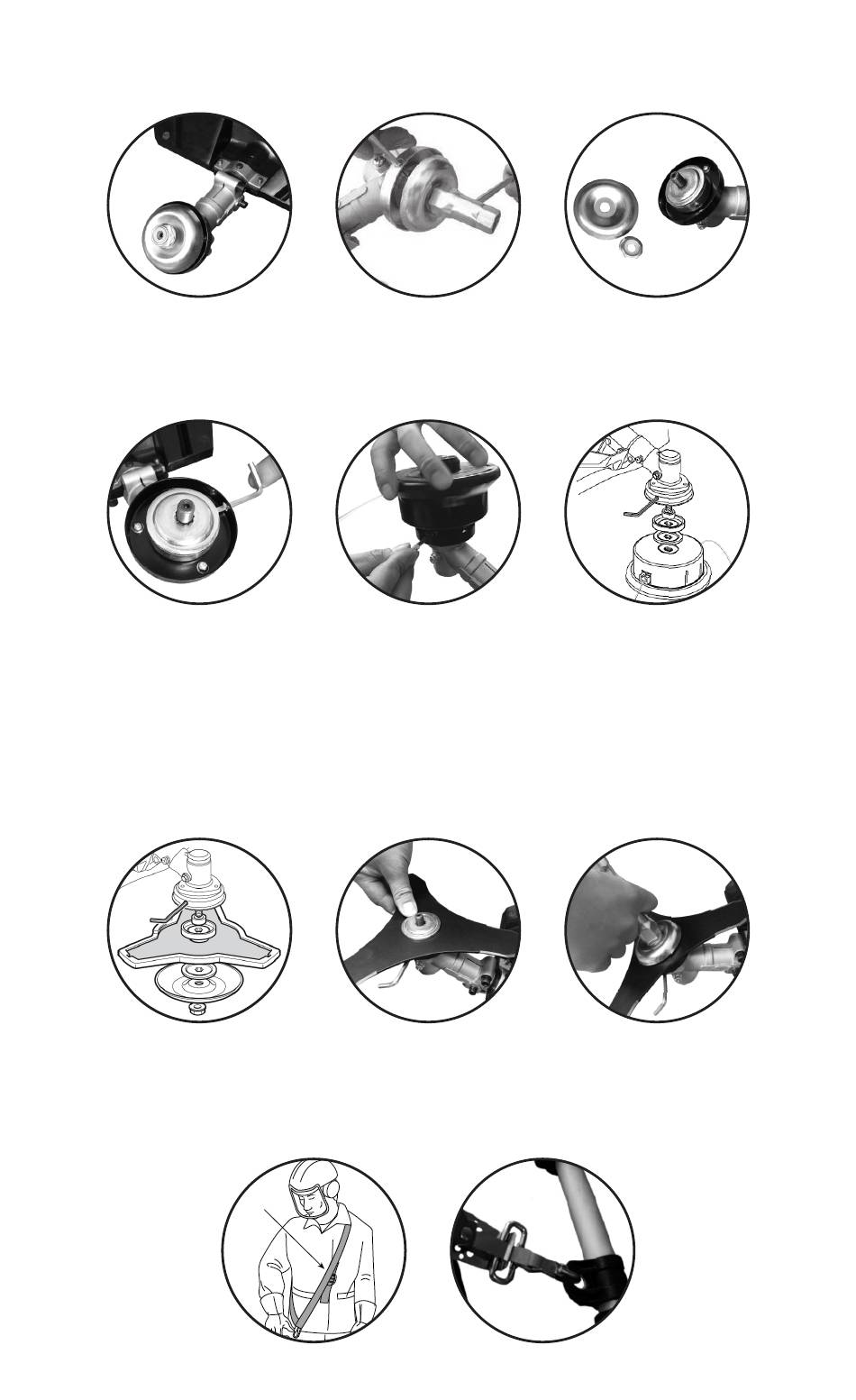

4. Attach/detach cutting heads:
a) Remove the brush cutting blade nut and flange. Line up the holes of flange and shield, use the
hex key included to prevent the shaft from turning. Turn the included socket wrench clockwise.
b) Attach/detach the string trimmer head. Line up the holes of flange and shield, use the hex key
included to prevent the shaft from turning. To attach the string trimmer head turn clockwise until
snug. To detach the string trimmer head turn counter-clockwise until it is released from the shaft.
c) Attach/detach the brush cutting blade. Remove the nut and outer flange. Place the blade, outer
flange, shield and nut on the trimmer head in the order as shown. Note the blade rotation direction
must match arrows marked on the blade. Line up the holes of the flange and shield, use the hex key
included to prevent the shaft from turning. Turn counter-clockwise, ensuring the nut is tight. To
detach the brush cutting blade turn the nut clockwise until it is released from the shaft and remove
the blade.
WARNING: Verify the cutting head is tight and has been assembled correctly before every use!
5. Fit/attach the shoulder harness:
Place strap over the operators head and one shoulder. Adjust the harness length to the operators
arm reach. Clip harness to the harness hanger on the trimmer.
WILD BADGER POWER 9
