Badger Basket WB31GTF Operator's Manual

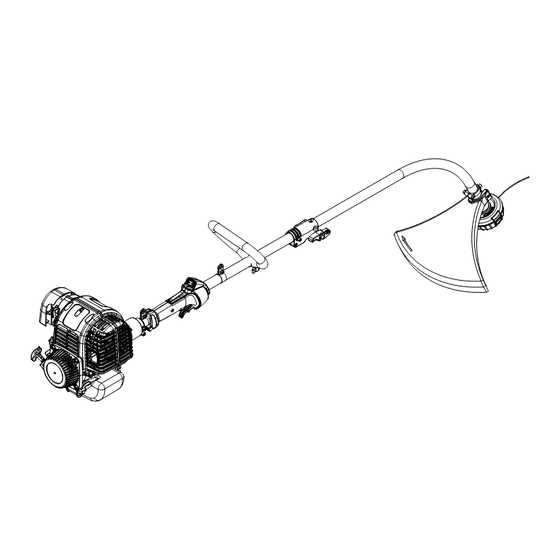

4-cycle trimmer, 4-cycle brush cutter
Hide thumbs

Advertisement

Table of Contents

WB31GTF
WB31BCF
CUSTOMERSERVICE@BADGERPOWERPRODUCTS.COM
WB31GTF/WB31BCF
2019/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WB31GTF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Badger Basket WB31GTF

Summary of Contents for Badger Basket WB31GTF

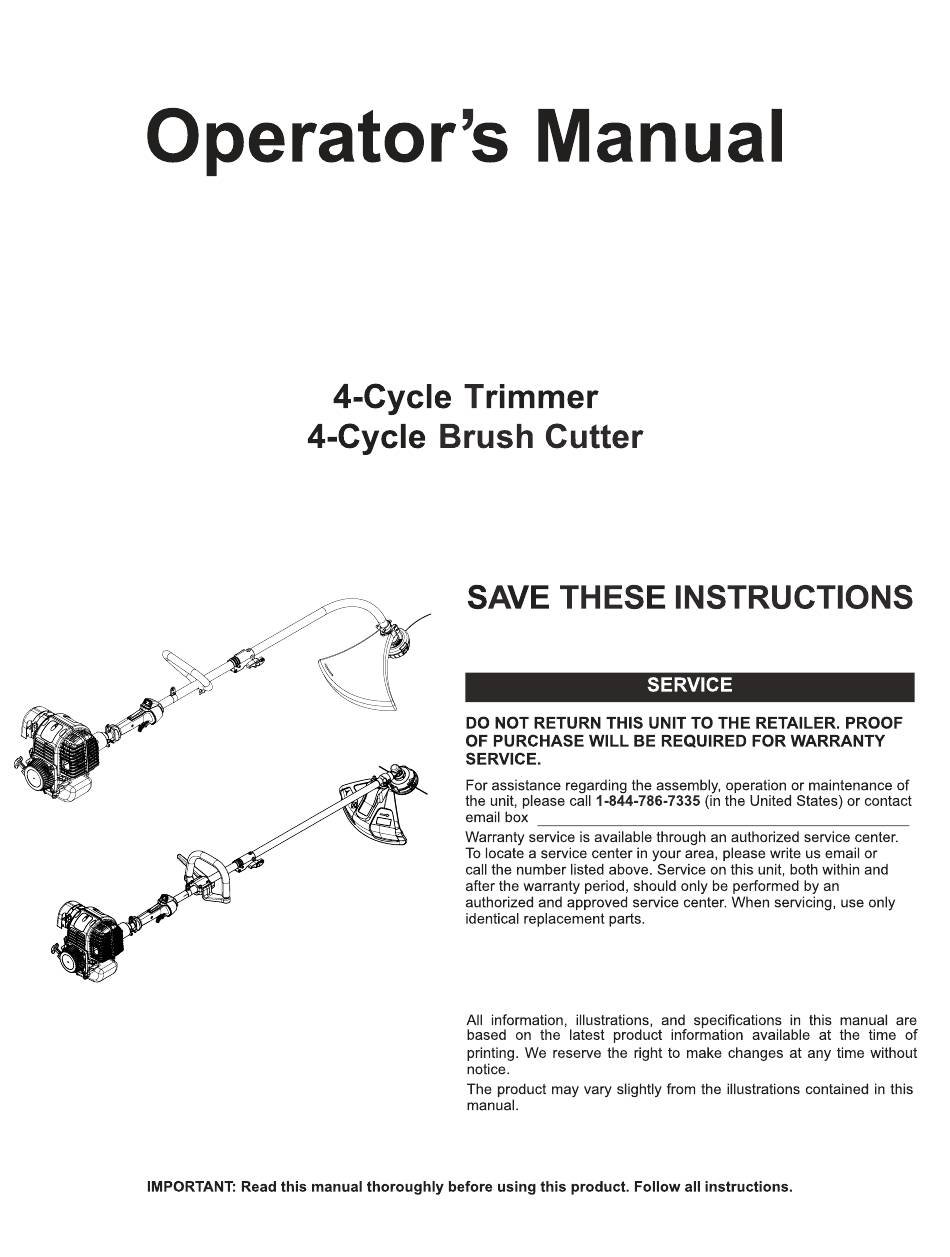

  • Page 1 WB31GTF WB31BCF CUSTOMERSERVICE@BADGERPOWERPRODUCTS.COM WB31GTF/WB31BCF 2019/05...
  • Page 4 • SAFETY & INTERNATIONAL SYMBOLS • This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL MEANING SYMBOL MEANING •...
  • Page 5 Shaft Housing Coupler Cutting Head On/Off Switch Spark Plug Air Filter Throttle Lockout Cover Handle Choke Lever Cutting Head Shield Primer Bulb Throttle Starter Rope Grip Control Rear Handle Muffler cover Cutting Head Fuel tank Shaft Housing Coupler Cutting Head Shield Throttle Lockout Spark Plug...
  • Page 6 WB31GTF WB31BCF...
  • Page 8 c) Release the Nylon cutting head. Use screw driver to hold flange and then rotate the Nylon cutting head clockwise, it will be replaced. d) Fit the blade. Take the outer flange off after release the nut, then put the blade, outer flange, shield and nut according to priority as below picture.

  • Page 9: Operation

    . t l t i f . l l OPERATION When operating this machine, please follow the instructions for operations steps. Before starting the equipment Each time before use, check the following: • That there are no leaks in the fuel system. •...

  • Page 10: Filling With Fuel

    Filling with fuel Danger of injury! Fuel is explosive! - Turn off and cool the motor down before filling the tank with fuel. - You must observe all safety instructions relating to handing fuel. Risk of device damage! The device is supplied without motor or gearbox oil. Before operating, you must fill it with fuel.

  • Page 11: Check Before Use

    Start on the unit Do not start the unit until it has been completely assembled. Before switching on the unit, always check the oil. Check before use! Danger of injury! Do not operate the device unless you did not find any faults. If a part has become defective, make sure to replace it before you use the device again.
  • Page 12 3. Pull the recoil starter handle 3-5 times to start the engine. Hold the machine firmly on the ground with one hand on the power unit, in order not to lose control of the machine during startup as following picture. 4.
  • Page 13 6. When the engine is running and idling, the throttle lever on handle is as below picture. First press the lock off lever and then switch the throttle lever on, the machine will be working. 7. Adjusting line length when working: This machine is fitted with a “Tap & Go”head.To release more line, tap the cutting line head against the round with engine at top speed: the line will be released automatically and the knife cut off the excess length.
  • Page 14 11.WARNING! Do not use the machine for sweeping, tilting the cutting line head. The power of the engine could throw objects and small stones 15 metres or more, causing damage or injuries to people. Note: 1. Do not start the motor in tall grass 2.

  • Page 15: Maintenance Schedule

    Before performing any maintenance or cleaning work, always turn off the engine. 1. Do not spray the unit with water. Ingress of water may damage the engine and electrical connection. 2. Clean the unit with a cloth, hand brush, etc. WARNING! During maintenance operations: –...

  • Page 16: Clean The Air Filter

    Change and clean the spark plug -Periodically remove and clean the spark plug using a metal brush to get rid of any deposits. -Check and reset the correct distance between the electrodes. -Replace the spark plug and fasten it firmly using the supplied wrench. -The spark plug must be replaced with one with the same characteristics whenever the electrodes have burnt or the insulation has worn, and in any case every 100 working hours.

  • Page 17: Cleaning And Storage

    Head line replacement SHARPENING THE LINE CUTTING KNIFE Remove the line cutting knife (1) from the guard (2) by unscrewing the screws (3). Fix the line cutting knife in a vice and sharpen it using a flat file, being careful to retain the original cutting angle.

  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION THE ENGINE WILL NOT START The fuel tank is empty Fill the fuel tank with properly-mixed fuel The primer bulb was not pressed enough Press the primer bulb 10 times or until fuel is visible Squeeze the throttle control and pull the starter rope until the The engine is flooded engine starts The fuel is old (over 30 days) and/or improperly mixed...
  • Page 19 NOTES...

  • Page 20: Manufacturer's Limited Warranty

    MANUFACTURER’S LIMITED WARRANTY The limited warranty set forth below is given by Badger with respect to new merchandise purchased and used in the United States, its possessions and territories. Badger warrants this product against defects in material and workmanship for a period of six (6) years for home use and three (3) years for commercial use commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship.
