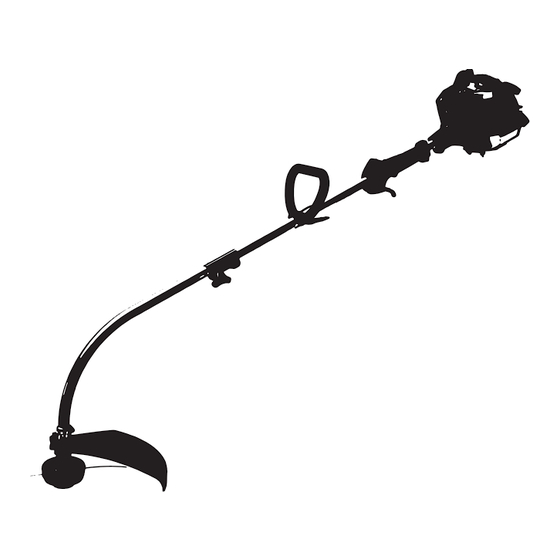

OPERATOR'S MANUAL
CURVED SHAFT
GRASS
TRIMMER
MODEL: WB26GTC
SAVE THESE INSTRUCTIONS
DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF
PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.
For assistance regarding the assembly, operation or maintenance of the unit, please call 1-844-786-7335 or
1-833-822-0145 (in the United States and Canada) or contact email box CUSTOMERSERVICE@BADGERPOWER
PRODUCTS.COM or CUSTOMERSUPPORT@WILDBADGERPOWER.COM.
Warranty service is available through an authorized service center. To locate a service center in your
area, please email us or call the number listed above. Service on this unit, both within and after the
warranty period, should only be performed by an authorized and approved service center. When
servicing, use only identical replacement parts. For additional information visit wildbadgerpower.com.
All information, illustrations, and specifications in this manual are based on the latest product
information available at the time of printing. We reserve the right to make changes at any time
without notice. The product may vary slightly from the illustrations contained in this manual.
IMPORTANT: Read this manual thoroughly before using this product. Follow all instructions.
WILD BADGER POWER • WILDBADGERPOWER.COM
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Badger Basket WB26GTC
Summary of Contents for Badger Basket WB26GTC
- Page 1 OPERATOR’S MANUAL CURVED SHAFT GRASS TRIMMER MODEL: WB26GTC SAVE THESE INSTRUCTIONS DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE. For assistance regarding the assembly, operation or maintenance of the unit, please call 1-844-786-7335 or 1-833-822-0145 (in the United States and Canada) or contact email box CUSTOMERSERVICE@BADGERPOWER PRODUCTS.COM or CUSTOMERSUPPORT@WILDBADGERPOWER.COM.
-
Page 2: Basic Assembly
START position. 4. PULL 3-5X 5. MOVE CHOKE TO RUN 6. PULL UNTIL THE Until the engine By moving the priming lever ENGINE STARTS begins to try to start. down to the RUN position. WB26GTC CURVED SHAFT GRASS TRIMMER... -
Page 3: Symbol Meaning
SAFETY The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures. -
Page 4: While Operating
Do not extend the trimming line beyond the length of the shield. • The cutting head should remain stationary when the engine idles. If it does not, refer to Adjusting WB26GTC CURVED SHAFT GRASS TRIMMER... -
Page 5: Other Safety Warnings
the Idle Speed. • Adjust the handle to provide the best grip, if applicable. • Make sure the cutting head is not in contact with anything before starting the unit. • Use the unit only in daylight or good artificial light. •... - Page 6 Min. 50 Min. 50 KEEP BYSTANDERS AWAY WARNING: Keep all bystanders especially children and pets, at least 50 feet (15 m) from the operating area. 15 m 15 m 15 m 15 m 15 m WB26GTC CURVED SHAFT GRASS TRIMMER...
-
Page 7: Know Your Unit
Min. 50 Min. 50 Min. 50 15 m 15 m 15 m HOT SURFACE WARNING: Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot from operation. When turned off, they remain hot for a short time. -
Page 8: Specifications
We reserve the right to make changes at any time without notice. Model name ....WB26GTC Volumes of fuel tank ..17 oz. (500ml) Engine type. - Page 9 3. Attaching the blade guard: Secure the guard (3) facing the operator to the support above the trimmer head on the lower shaft (4) using the supplied bolt (5). Warning! Use only original manufacturer’s replacement parts, accessories and attachments. Failure to do so can cause poor performance, possible injury and may void your warranty.
-
Page 10: Before Operation
WARNING! Always close the fuel tank cap firmly. WARNING! Immediately clean all traces of fuel which may have dripped on the machine or the ground and do not start the engine until the petrol fumes have dissipated. WB26GTC CURVED SHAFT GRASS TRIMMER... -
Page 11: Starting Procedures
STARTING PROCEDURES Do not start the unit until it has been completely assembled. Before starting the unit, always check the oil. 1. Inspect the device before use Do not operate the device if you find any faults. If a part has become damaged or defective, make sure to replace it before you use the device again. - Page 12 The machine will stop running. If the machine is still warm from running, warm start the engine as follows: 1. Stay the airfilter choke lever to the RUN position 2. Pull the starting cord to start the engine. WB26GTC CURVED SHAFT GRASS TRIMMER...
-
Page 13: Routine Maintenance
WARNING! Always make sure your work area is clear. Loose objects and small stones may be thrown by the unit during regular use. Always maintain a minimum working area of 50 feet (15 meters) or more. WARNING! Do not use the machine for sweeping or edging by tilting the cutting head. This could throw loose objects and small stones 15 meters or more, causing damage or injury to people. -
Page 14: Cleaning The Engine
• Wash the filter with soap and water. Do not use petrol or other solvents. • Leave the filter to dry in the open air. • Fit the filter and the cover back on, tightening the knob again WARNING! Never run the engine without the air filter installed. WB26GTC CURVED SHAFT GRASS TRIMMER... -
Page 15: Replacing The Trimmer Line
REPLACING THE TRIMMER LINE 1. Remove trimmer head top cap and remove spool 2. Cut a length of trimmer line, find the centre point and hook it to the notch in the middle of the spool 3. Wind the trimmer line around the spool clockwise keeping each end separated 4. - Page 16 Reinstall the spark plug. NOTE: Do not use fuel that has been stored for more than 30 days. Dispose of old fuel and oil according to federal, state and local regulations. WB26GTC CURVED SHAFT GRASS TRIMMER...
-
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION THE ENGINE WILL NOT START The fuel tank is empty Fill the fuel tank with properly-mixed fuel The priming bulb was not pressed enough Press the primer bulb 7 times or until fuel is visible The engine is flooded Squeeze the throttle control and pull the starter rope until the engine starts The fuel is old (over 30 days) and/or improperly... -
Page 18: Manufacturer's Limited Warranty
MANUFACTURER’S LIMITED WARRANTY The limited warranty set forth below is given by Badger with respect to new merchandise purchased and used in the United States, its possessions and territories . Badger warrants this product against defects in material and workmanship for a period of one (1) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in material or workmanship.
