SPECIFICATIONS

All specifications are based on the latest product information available at the time of printing. We
reserve the right to make changes at any time without notice.
Model name . . . . . . . . . . . . . . . . . BCI 26
Engine type . . . . . . . . . . Air-Cooled, 2-Cycle
Engine displacement . . . . . 25.4cc (1.52 cu. in.)
Rated motor power . . . . . . . . . . 0.7kw 0.7kw
Lubrication . . . . . . . . . . . . Fuel/Oil Mixture
Fuel/Oil ratio . . . . . . . . . . . . . . . . . . . 40:1
ASSEMBLY
When assembling this machine, please follow the instructions for assembly steps.

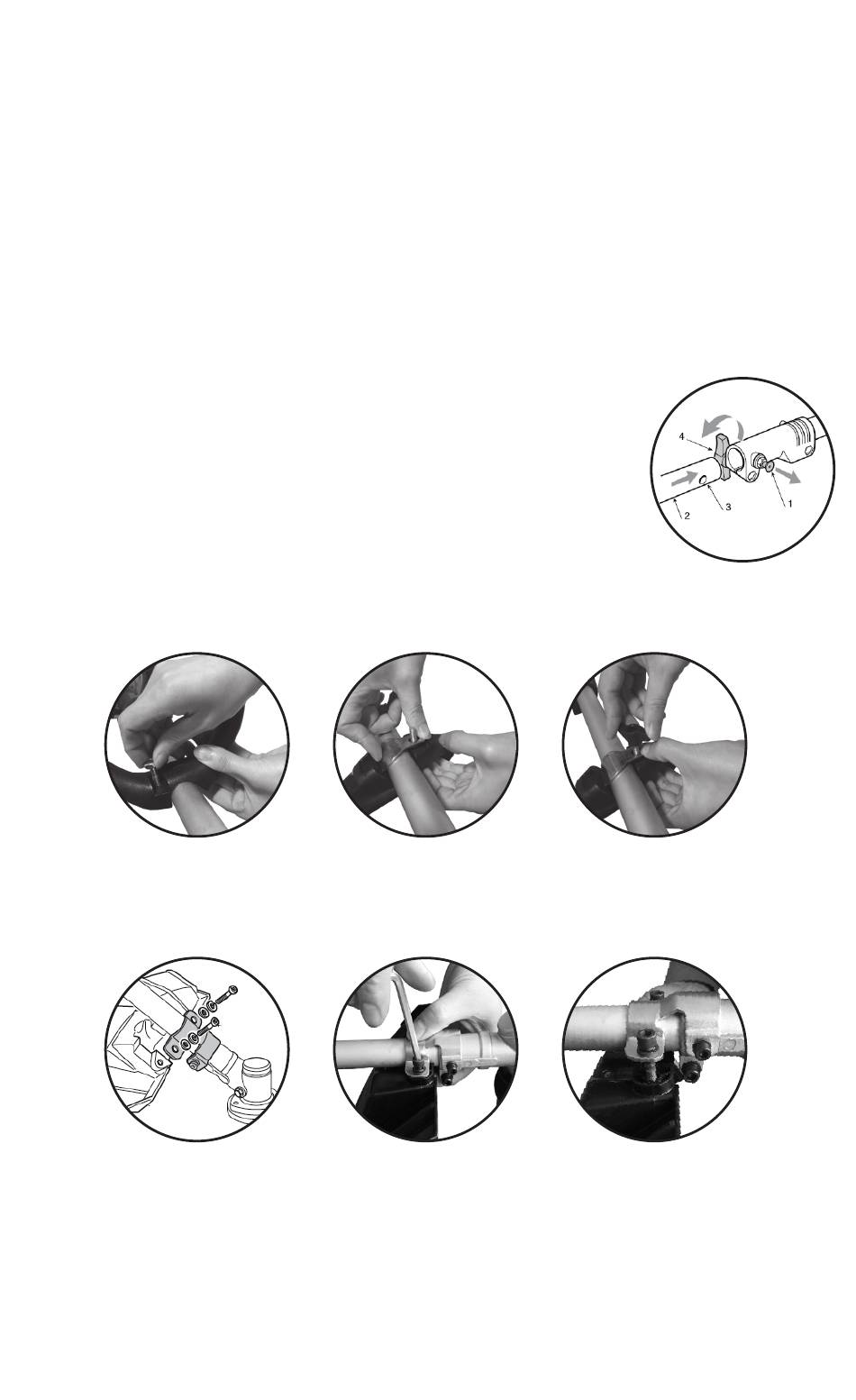

1. Connecting the upper and lower shafts:
Remove the rubber shaft plug and cap (1). Press in the spring-loaded pin
(2) and push the lower shaft (3) into the aluminum coupler (4) until the
spring loaded pin (2) clicks into the hole (3) of the aluminum coupler.
Once the spring-loaded pin is completely inserted, tighten the coupler
knob (4).
2. Attaching the handle:
Insert hex screws into the handle. Place the handle on the shaft. Insert the lower plate into the
handle (bottom), and tighten the knob.
3. Attaching the blade guard:
Attach the guard using the hex key included. The guard is attached to the lower shaft with two hex
screws facing the operator.
Warning! Use only original manufacturer's replacement parts, accessories and attachments. Failure
to do so can cause poor performance, possible injury and may void your warranty. Never use the
trimmer without the guard securely attached!
8
Volumes of fuel tank . . . . . . . . 20 oz. (600ml)
Trimmer mechanism . . . . . . . . . Bump Head
Cutting path diameter . . . . . . . .17in (430mm)
Trimming line. . . . . . . . . . . 0.095 in. (2.4mm)
Max. engine speed (with cutting
attachment, no-load) . . . . . . . . . . 9700/min
WB26BCI STRAIGHT SHAFT TRIMMER & BRUSH CUTTER
