GCS09084E

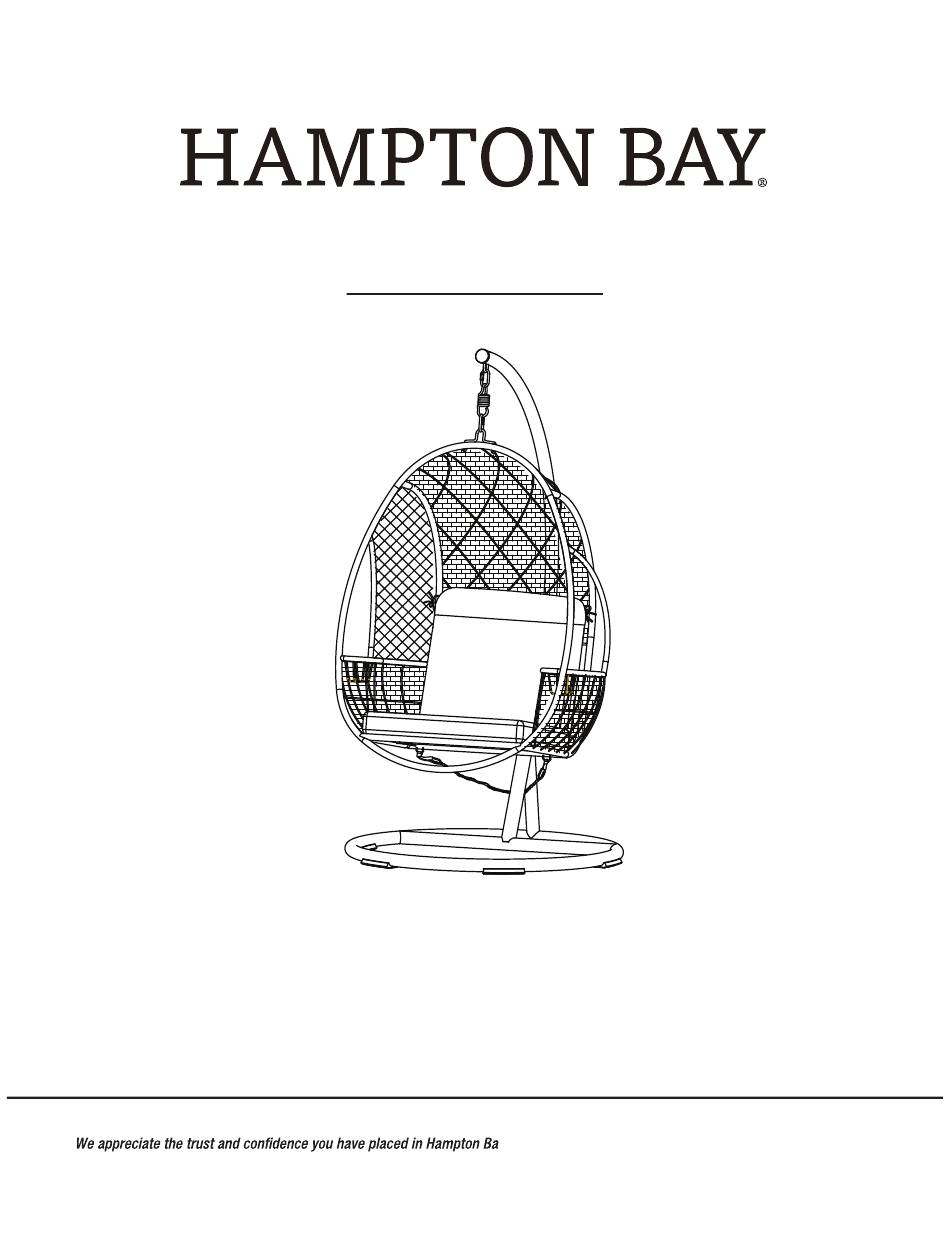

USE AND CARE GUIDE
STEEL WOVEN EGG SWING
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
y through the purchase of this swing. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY GCS09084E
Summary of Contents for HAMPTON BAY GCS09084E
- Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ...............3 Planning Assembly...............3 Important Safety Instructions ........2 Hardware icluded..............3 Save These Instructions ............2 Packaging Contents.............4 Read All Instructions Before Use ..........2 Assembly.................5 Warranty ................ .3 Care and Cleaning............9 What is Covered ........... -
Page 3: Warranty
Warranty 1 YEAR FRAME AND 1 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for one year, and a one year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Packaging Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Base Pole stand Swing frame Cushion... -
Page 5: Assembly
Assembly CONNECTING THE POLE STAND TO THE BASE Place the base (A) on a soft surface. Slide the pole stand (B) into the base (A), align the holes and using M8x60 bolts (AA),M8 washers (BB), M8 nuts (CC) and nut cap (DD). Once all of the bolts are in place, fully tighten the bolts using the hex wrench (FF) and the wrench (GG). - Page 6 Assembly (continued) HANGING THE SWING FRAME TO THE POLE STAND Open the spring with carabiners (EE) in the clockwise direction, as shown in step1. Hang the swing frame (C) to the pole stand (B) by hooking the spring with carabiners (EE) to the swing frame (C) and the pole stand (B), as shown in step 2.
- Page 7 Assembly (continued) CONNECTING THE SWING FRAME TO THE BASE Open the locked carabiner on the swing frame in the clockwise direction and take the safety strap out from the locked caraniner. Connect the swing frame to the base by placing the safety strap around the base and through the ring on the base. Place the safety strap to the locked carabiner on the swing frame and close in the counterclockwise direction.
- Page 8 Assembly (continued) PLACING THE CUSHIONS AND THE PILLOWS Placing the cushion (D) to finish the assembly of the swing. Ensure all connections are secure before use.
-
Page 9: Care And Cleaning
Assembly (continued) CHECKING THE SWING Make sure the swing frame is aligned correctly before sitting. Care Care and Cleaning □ □ For best results, clean the frame and cushions with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt For best results, clean the frame and cushions with a damp cloth and dry thoroughly. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
