Item #140 848
GSM00340A

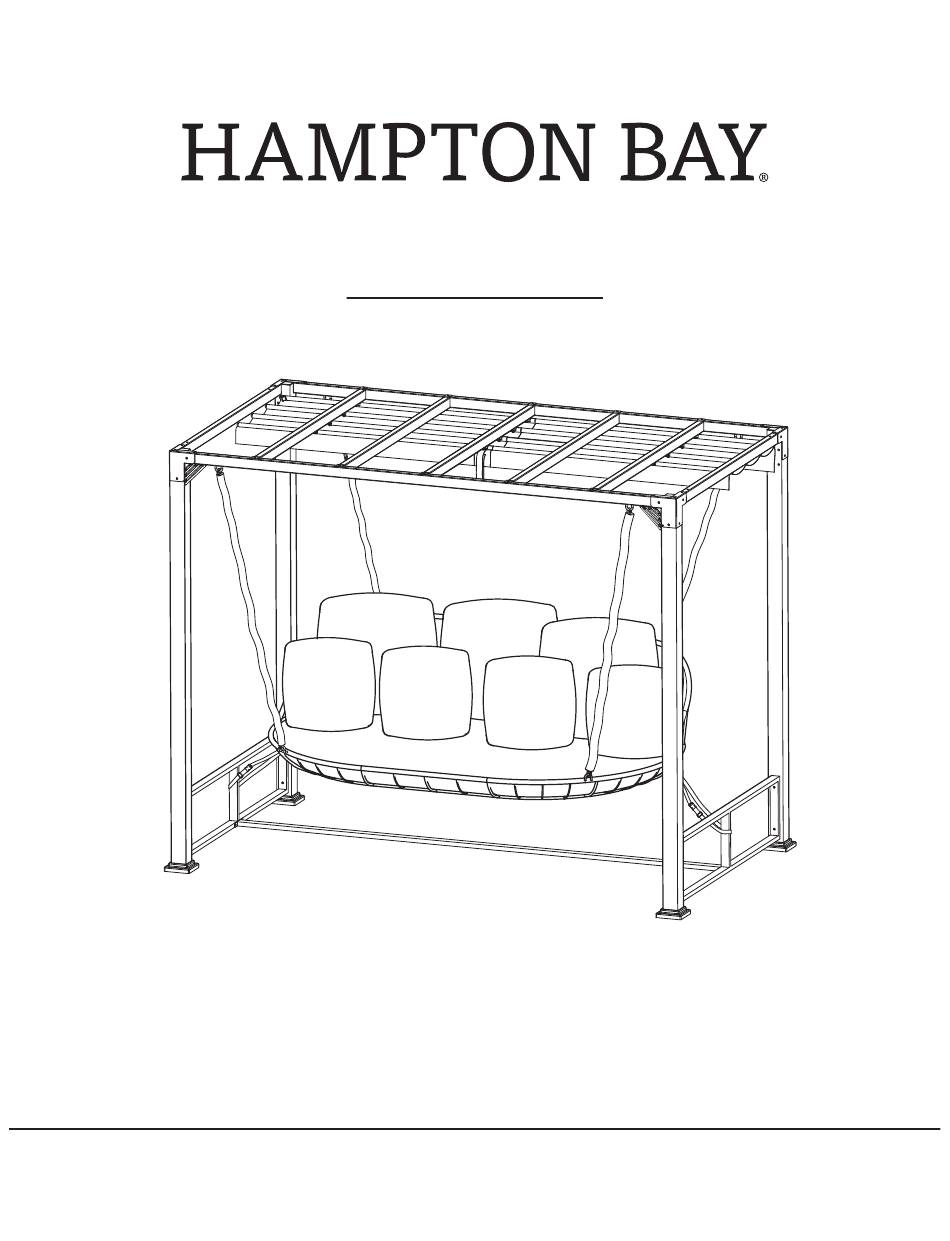

USE AND CARE GUIDE
SWING WITH CANOPY
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
01-800-00-46633
HOMEDEPOT.COM.MX
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this swing. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading

Related Manuals for HAMPTON BAY GSM00340A

Summary of Contents for HAMPTON BAY GSM00340A

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this swing. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents........2 Pre-Assembly.

  • Page 3: Warranty

    Warranty 1 YEAR FRAME AND 1 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for one year, and a one year limited warranty for the fabric. WHAT IS NOT COVERED Its remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Top Bar with Slide Groove Top Bar Side Top Bar Connector Top Bar Post 1 Post 2 Side Panel Support Bar Canopy with Tube and Wheel Post Base Cap Post Base Plate Corner Decorator Corner Connector Part Corner Support Part Swing Seat (Part S - Saftey Rope, Part U - Short Chain, Part T - Longer Chain)

  • Page 5: Assembly

    Assembly Attaching The Post Base Cap And The Post Base Plate To The Post Attach the post base caps (J) and the post base plates (K) to the posts (E&F) using M6x15 Combination Bolts (AA). Fully tighten the bolts using the hex wrench (DD). Insert the corner connector parts (M) into the posts (E&F).
  • Page 6 Assembly (continued) Attaching The Side Top Bar And The Side Panel To The Assembled Post Insert the side top bar (C) to the corner connector parts (M) which are on the assembled posts (E&F), align with the holes and secure by using M6x15 combination bolts (AA). Attach the side panel (G) to the assembled posts (E&F) using M6x30 combination bolts (BB).
  • Page 7 Assembly (continued) Attaching The Connector Top Bar To The Corner Connector Part, Attaching The Support Bar To The Side Panel Insert the connector top bars (D) into the corner connector parts (M) as shown below. Attach the corner support parts (N) to the corner connector parts (M) by using M6x15 combination bolts (AA).
  • Page 8 Assembly (continued) Attaching The Corner Decorator, Side Top Bar, And Connector Top Bar To The Assembled Frame Attach the corner decorators (L), side top bar (C) and the connector top bar (D) to the assembled frame using M6x15 combination bolts (AA) as shown below. Do not tighten the bolts at this step.
  • Page 9 Assembly (continued) Attaching The Top Bar With Slide Groove And The Top Bar To The Connector Top Bars Attach the top bars with slide groove (A) to the connector top bars (D) using M6x15 combination bolts(AA). Attach the top bars (B) to the connector top bars (D) using M6x15 combination bolts(AA). Once all bolts are in place, fully tighten all the bolts using the hex wrench (DD).
  • Page 10 Assembly (continued) Attaching The Canopy With Tube And Wheel To The Assembled Frame Slide the wheels of the canopy with tube and wheel (I) into the top bars with slide groove (A) one by one as shown below. Secure the canopy with tube and wheel (I) to the posts (E&F) using the hand knob (CC) in a clockwise direction as shown below. NOTE: Make sure that the pulling rope of the canopy with tube and wheel (I) face forwards.
  • Page 11 Assembly (continued) Hanging The Swing Seat To The Assembled Swing Frame Open the chain (U&T) loop of the swing seat (O) top in the clockwise direction. Hang the swing seat (O) to the connector top bar (D) and close the connector ring in the counterclockwise direction. HOMEDEPOT.COM.MX Please contact 01-800-00-46633 for further assistance.

  • Page 12: Care And Cleaning

    Assembly (continued) Tie The Safety Rope And Place The Cushion And The Pillow On The Swing Open the safety rope (S) on both sides of the swing seat (O), and fasten them through the side panels (G). Place the seat cushion (P), the big pillows (Q) and the small pillows (R) on the swing seat (O). Ensure that all connections are secure before use.
  • Page 13 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 01-800-00-46633 HOMEDEPOT.COM.MX Retain this manual for future use. For certification use only Factory ID# GSM00340A IMPORTER: SERVICES HOME DEPOT S.
