Summary of Contents for HAMPTON BAY CANE SWING A GSS00208A-5

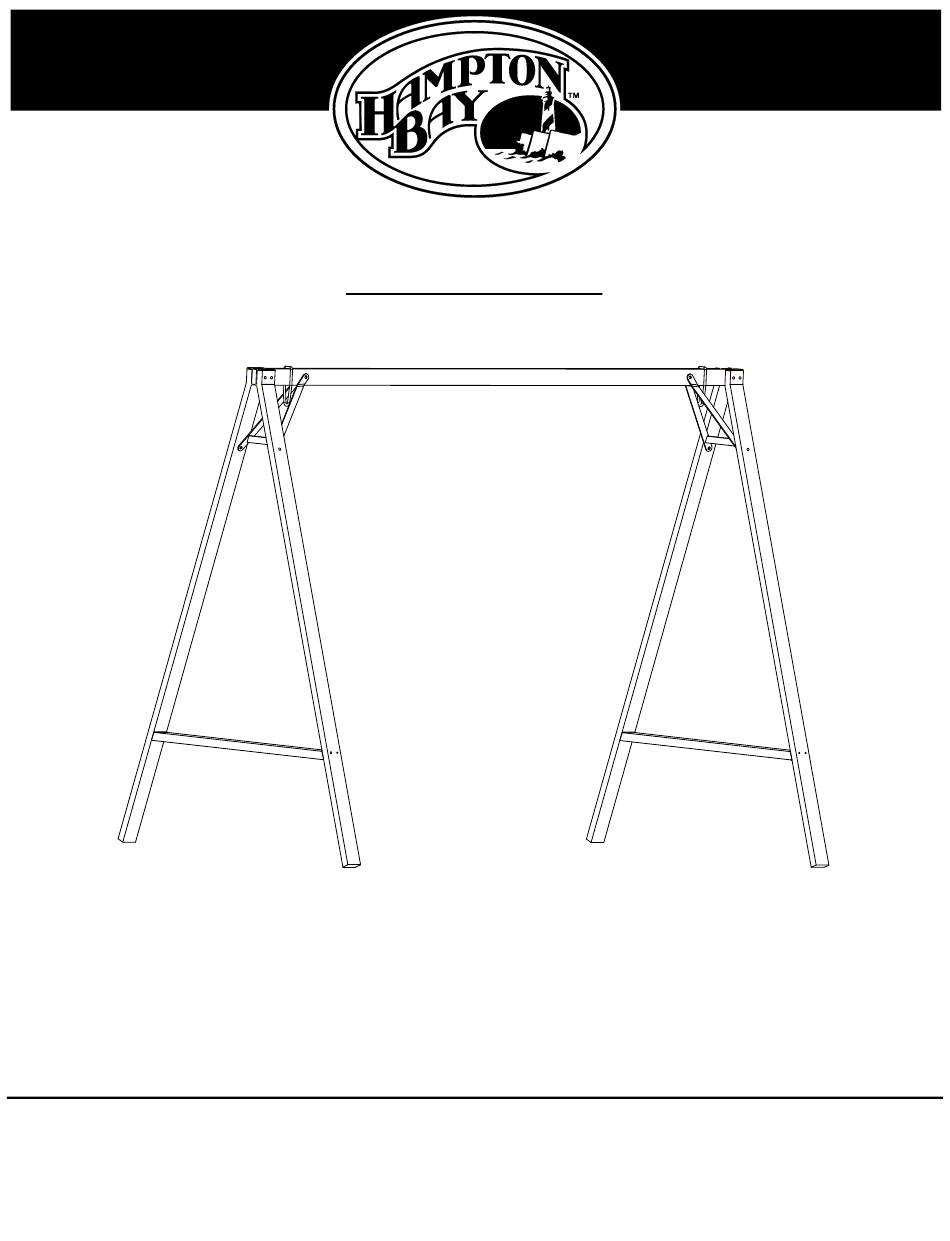

Page 1
THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this swing. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Page 2
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Package Contents ..............4 Assembly ............... 5 Warranty ................
Page 3
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...
Page 4
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Top bar Connector bar Side bar...
Page 5
Assembly Assembling the swing frame Attach two set of the legs (B) to the top bar (A) using M8x102 bolts and nuts (AA). Attach the two connector bars (C) to the legs (B) using M8x45 bolts and nuts (CC), as shown below. Attach the two connector bars (C) to the top bar (A) using M8x50 bolt and nut (BB).
Page 6
Assembly (continued) Assembling the swing frame Tightened all the bolts using Wrench (EE). Care and Cleaning For best results, clean the frame with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents.
Page 7
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
