HAMPTON BAY GSS00224C Use And Care Manual

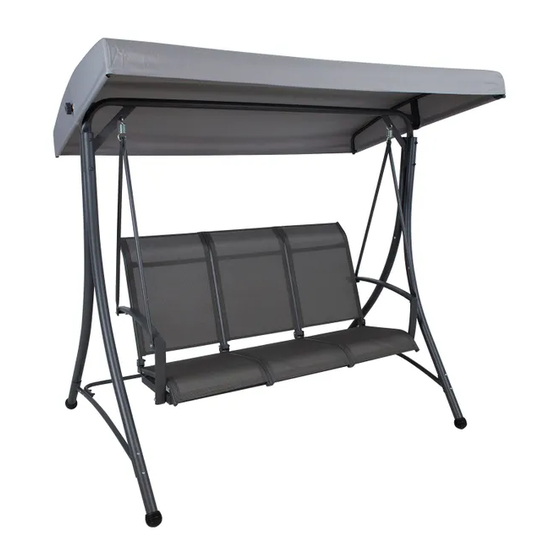

3 person steel sling swing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item #1001 025 586
1001 184 219
1001 390 698
Model # GSS00224C
GSS00224C-1
GSS00224C-G
USE AND CARE GUIDE
3 PERSON STEEL SLING SWING
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
y through the purchase of this swing. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSS00224C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY GSS00224C

Summary of Contents for HAMPTON BAY GSS00224C

  • Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Table Of Contents

    Table of Contents Pre-Assembly ..............3 Table of Contents ............2 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............3 Save These Instructions ............2 Package Contents..............4 Read All Instructions Before Use ..........2 Assembly.................

  • Page 3: Warranty

    Warranty 1 YEAR FRAME AND 1 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for one year, and a one year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Top bar Front leg Rear leg Leg connector Seat Backrest Front boom support / Side bar Rear boom support Top curved bar Top straight bar Canopy Screw knob Foot cap...

  • Page 5: Assembly

    Assembly Assembling the swing frame Attach the front legs (B) and the rear legs (C) to the top bar (A) using M8x95 combination bolts, washers and nuts (AA). Attach the two side bars (H) to the front legs (B) and rear legs (C) using M6x50 combination bolts, washers and nuts (DD). Attach the leg connector (D) to the rear legs (C) using M6x50 combination bolts, washers and nuts (DD).
  • Page 6 Attaching the swing seat and the backrest to the arms Attach the seat (E) to the arms (G) using M8x40 combination bolts (BB). Attach the backrest (F) to the arms (G) using M6x45 combination bolts and plastic washers (CC). Repeat these steps for the other side of the seat (E) and the backrest (F). Once all of the bolts are in place, fully tighten the bolts using the hex wrench (GG).
  • Page 7 Assembly (continued) Assembling the swing seat Attach the arms (G) to the front boom supports (H) using M6x50 combination bolts, washers and nuts (DD). Attach the arms (G) to the rear boom supports (I) using M6x50 combination bolts, washers and nuts (DD). Once all of the bolts are in place, fully tighten the bolts using the hex wrench (GG) and the wrench (HH).
  • Page 8 Assembly (continued) Assembling the swing seat to the swing frame Attach the assembled swing seat to the swing frame using the spring hooks (FF).
  • Page 9 Assembly (continued) Assembling the top frame and the canopy Attach the top straight bars (K) to the top curved bars (J) using M5x30 bolts (EE). Fully tighten all of the bolts using the hex wrench (GG) on the top frame before placing the canopy (L). the top curved bars (J) by affixing the velcro.
  • Page 10 Assembly (continued) Attaching the top frame to the top bar Attach the assembled top frame to the top bars (A) using the screw knobs (M) on both sides. Fully tighten the screw knobs (M) in the clockwise direction and ensure all connections are secure before use.

  • Page 11: Care And Cleaning

    Assembly (continued) Checking the swing Ensure the swing is tightly assembled and stable before use. Care and Cleaning For best results, clean the swing with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents.
  • Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
