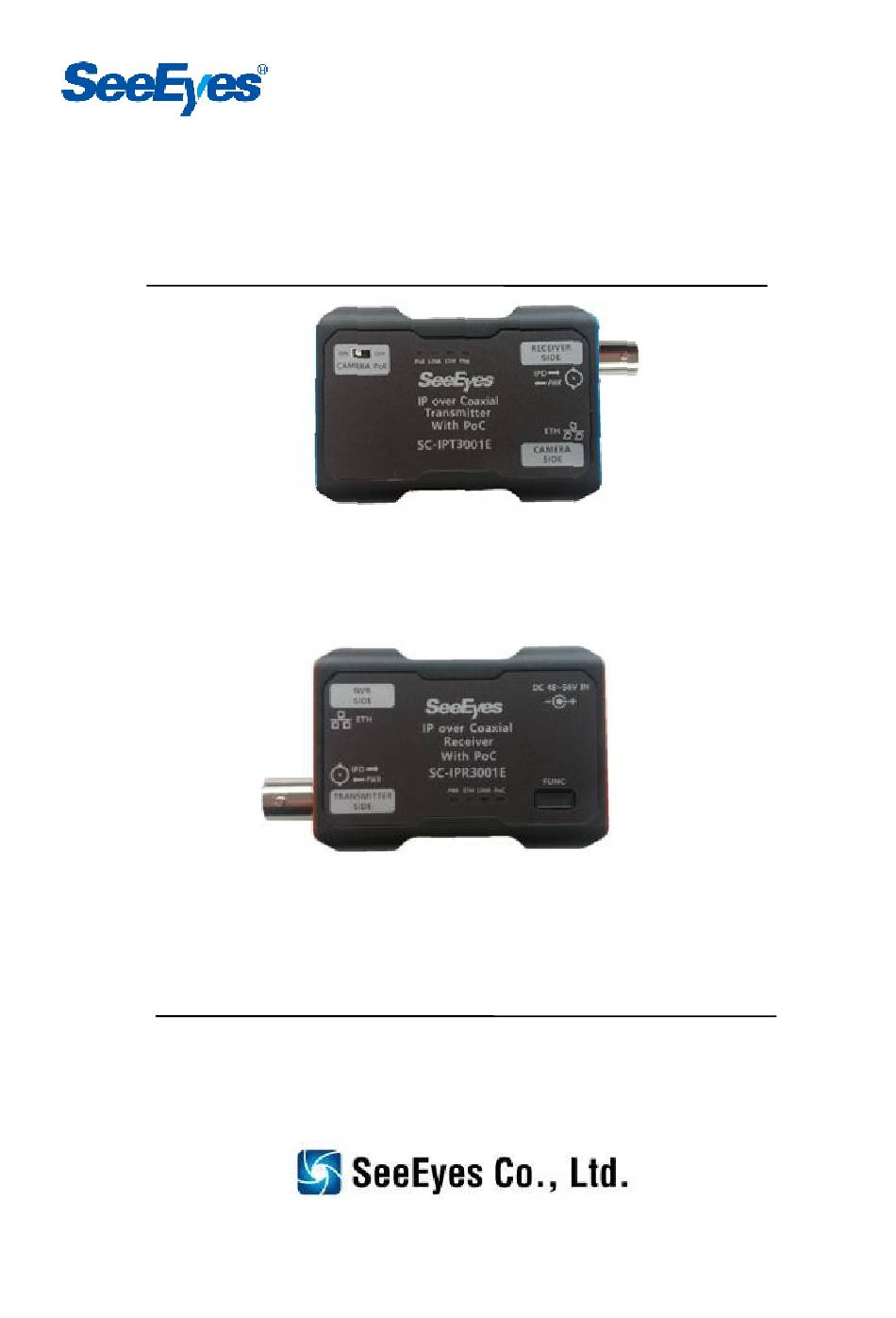

- Page 1 Release Version 1.8 1Channel IP over Coaxial Transmission Solution SC-IPT3001E, SC-IPR3001E User’s Manual SC-IPT3001E (1CH Transmitter) SC-IPR3001E (1CH Receiver)
- Page 2 Release Version 1.8 Precaution and Safety Guidelines The content of this guideline is to protect the safety of users and prevent property damage. Be sure to read this user’s manual thoroughly and use the device correctly. Warning (If you do not keep any of the below guidelines, you may get seriously injured or cause somebody’s death.) Be sure to install the product after unplugging power cord.
-
Page 3: Network Cable Diagram
Release Version 1.8 Caution (If you do not keep any of the below guidelines, you may get injured or suffer property loss.) ■ Proper ambient temperature and humidity are recommended. - Avoid extremely high temperatures(over 50°C) or low(below -10°C), and humid conditions. ■... - Page 4 1. Introduction 1-1. Overview SC-IPC3001E is a 1CH IP PoC transmission unit composed of SC-IPT3001E (Transmitter) and SC-IPR3001E (Receiver). With PoC function, this product supplies power to Transmitter and camera and power construction is unnecessary. In addition, since only coaxial cable construction is needed, construction period is shortened and installation cost is reduced.
- Page 5 Release Version 1.8 3. Product Parts and Functions 3-1. SC-IPT3001E (Transmitter) ① ② ③ ④ ① CAMERA PoE: Switch to set power supply to PoE IP camera ※ In case of connecting PoE IP camera, set CAMERA PoE switch as ON.
- Page 6 Release Version 1.8 3-2. SC-IPR3001E (Receiver) ② ① ③ ⑤ ④ ④ ① NVR SIDE: Port to connect NVR or PoE Hub ② DC 48~56V IN: Port to input DC adapter (48V or 56V) power ③ TRANSMITTER SIDE: Port to connect Transmitter and input video ④...
-
Page 7: Daisy-Chain Connection
Release Version 1.8 4. Daisy-Chain Connection 4-1. Overview Up to 3 transmitters can be configured with 1 receiver for Daisy-chain connection. 4-2. How to Use Daisy-Chain Connection <How to configure Daisy-Chain> a) Perform Pairing by connecting 1 Tx(Transmitter) to Rx(Receiver). b) Connect additional Tx to Paired Tx with t T-connector, etc. -
Page 8: Connection Diagram
(RG-6) Receiver) <Installation Guide> ① Set CAMERA PoE switch as ON from SC-IPT3001E(Transmitter). (PoE LED On) ※ In case of connecting non PoE camera, set CAMERA PoE switch as OFF from Transmitter. Set CAMERA PoE switch on Transmitter as OFF ②... -
Page 9: Specifications
Release Version 1.8 6. Specifications MODEL SC-IPT3001E PoC (Power input from SC-IPR3001E by PoC) Power Input Power Output Supports Non Standard PoE (Type B Only, PoE SW On/Off available) Transmission Speed PHY Rate 200Mbps RECEIVER SIDE BNC-F, 75Ω Connection Port... -
Page 10: Installation Precautions
Release Version 1.8 7. Transmission Distance Depending on Coaxial Cable Type (unit: m) Power Loop Resistance ECX 5C-2V ECX 5C-2V RG-6 RG-6 RG-6 Watt by PoE (High) (Normal) (High) (Normal) (Low) 3.0W 70.0 Ω 1,650 1,680 6.0W 48.0 Ω 1,130 1,150 9.0W 36.0 Ω... -
Page 11: Troubleshooting
Release Version 1.8 9. Trouble Shooting Symptom Checking Method <Transmitter> • Check if PoC LED on Receiver and PWR LED on Transmitter is ON. • Check the connection status of coaxial cable. There is <Receiver> no power input. • Check if the PWR LED is working properly. •... -
Page 12: Warranty Certificate
Release Version 1.8 10. Warranty Certificate Product No. Model No. Date of Purchase Place of Purchase Name Purchaser Address & Contact No. Name Distributor Address & Contact No. Warranty Period Two(2) years from the date of purchase Any failure that occurs in the normal use for only two years after purchase will be repaired free of charge. - Page 13 Release Version 1.8 [MEMO]...
- Page 14 Release Version 1.8 [MEMO]...
- Page 15 Release Version 1.8 [MEMO]...
- Page 16 Release Version 1.8 SeeEyes Co., Ltd #503~509, 511~512, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5833 FAX: +82-(0)31-777-3512 EMAIL: overseas@sscctv.com http://www.sscctv.com/eng...
