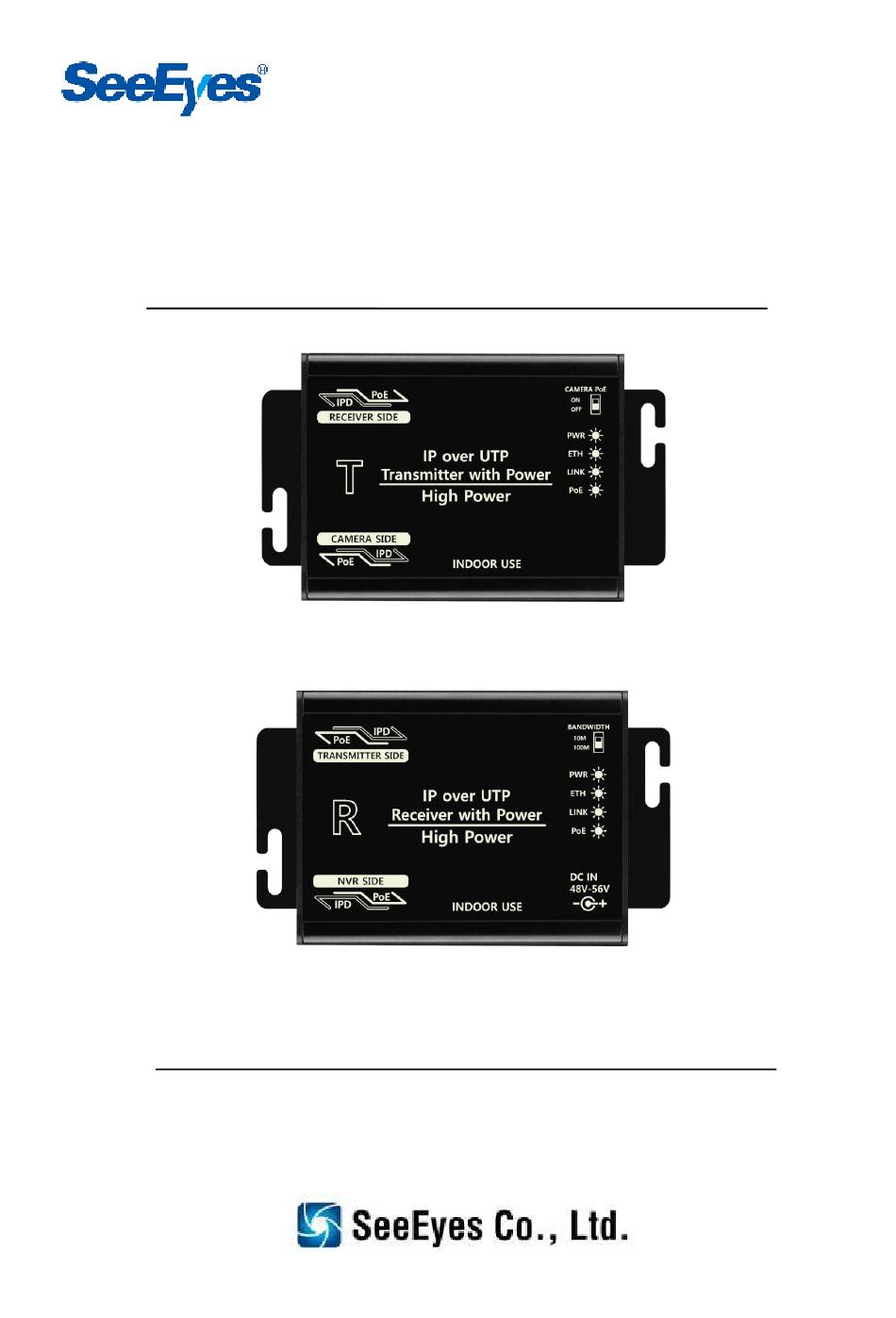

- Page 1 Release Version 1.0 High Power IP Over UTP Transmission Solution SC-IPU601(SC-IPU601T, SC-IPU601R) User Manual SC-IPU601T (1CH Transmitter) SC-IPU601R (1CH Receiver)
- Page 2 Release Version 1.0 Precaution and Safety Guidelines The content of this guideline is to protect the safety of users and prevent property damage. Be sure to read this user’s manual thoroughly and use the device correctly. Warning (If you do not keep any of the below guidelines, you may get seriously injured or cause somebody’s death.) Be sure to install the product after unplugging power cord.
-
Page 3: Network Cable Diagram
Release Version 1.0 Caution (If you do not keep any of the below guidelines, you may get injured or suffer property loss.) ■ Proper ambient temperature and humidity are recommended. - Avoid extremely high temperatures(over 50°C) or low(below -10°C), and humid conditions. ■... - Page 4 The 1-channel High Power IP Over UTP Transmission Solution consists of the transmitter(SC- IPU601T) and the receiver(SC-IPU601R). Among SeeEyes’ IP transmission device series, this product was developed as a High Power supporting product of SC-IPC07PU, and the PoE output of the transmitter (SC-IPU601T) supports up to 70Watt, enabling high-performance and high-capacity IP cameras over long distances with PoE technology.
- Page 5 Release Version 1.0 3. Product Parts and Functions 3-1. SC-IPU601T(Transmitter) ① ③ ② ④ ① CAMERA PoE: Switch to set power supply to PoE IP camera. ※ In case of connecting PoE IP camera, set CAMERA PoE switch as ON. ※...
- Page 6 Release Version 1.0 3-2. SC-IPU601R(Receiver) ⑤ ④ ③ ④ ④ ① ② ① NVR SIDE: Port to connect NVR or PoE Hub. ② DC 48-56V IN: Port to input DC adapter (48V or 56V) power. ③ TRANSMITTER SIDE: Port to connect Transmitter and input video. ④...
-
Page 7: Connection Diagram
Release Version 1.0 4. Connection Diagram 4-1. In case of connecting PoE IP Camera (TX’s PoE Switch ON) < Installation Guide > ① Set SC-IPU601T’s CAMERA PoE switch to ON. (PoE LED On) ※ In case of connecting non PoE camera, set transmitter’s CAMERA PoE switch to OFF. ②... -
Page 8: Specifications
Release Version 1.0 6. Specifications MODEL SC-IPU601T Power Input PoE from SC-IPU601R Power Output Midspan PoE (Type B Only, PoE SW On/Off) Transmission Bandwidth 10/100Mbps RECEIVER SIDE RJ-45 (TIA/EIA568B Type) Connection Port CAMERA SIDE RJ-45 (TIA/EIA568B Type) RED LED GREEN LED LED Indicator LINK GREEN LED... - Page 9 Release Version 1.0 7. Maximum supplyable power Distance PoE(802.3bt, Bandwidth DC 56V 2A DC 48V 1A CAT.5e DC 54V) 50m(164ft) 100Mbps 100m(328ft) 100Mbps 200m(656ft) 100Mbps 300m(984ft) 100Mbps 22.5W 400m(1312ft) 100Mbps 25.5W 17.5W 500m(1640ft) 100Mbps 24.5W 20.5W 600m(1968ft) 10Mbps 20.5W 11.5W 700m(2296ft) 10Mbps 17.5W...
-
Page 10: Troubleshooting
Release Version 1.0 8. Trouble Shooting Symptom Checking Method <Transmitter> • Check if PoE LED on Receiver and PWR LED on Transmitter is ON. • Check the connection status of UTP cable. No Power <Receiver> • Check if the PWR LED is working properly. •... -
Page 11: Warranty Certificate
Release Version 1.0 9. Warranty Certificate Product No. Model No. Date of Purchase Place of Purchase Name Purchaser Address & Contact No. Name Distributor Address & Contact No. Warranty Period Two(2) years from the date of purchase Any failure that occurs in the normal use for only two years after purchase will be repaired free of charge. - Page 12 Release Version 1.0 SeeEyes Co., Ltd #5F, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5833 FAX: +82-(0)31-777-3512 EMAIL: global@sscctv.com http://www.sscctv.com/eng...
