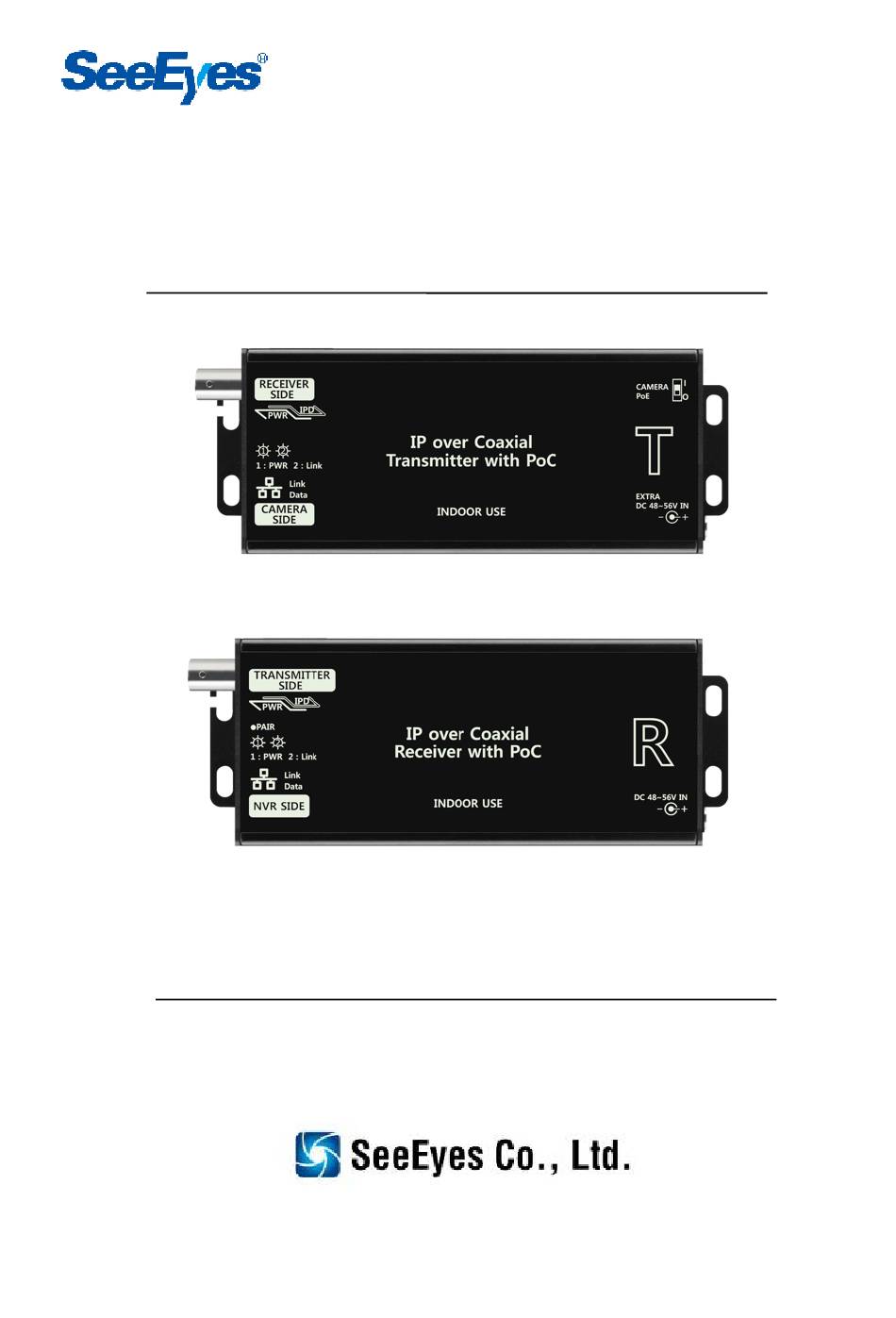

- Page 1 Release Version 1.0 1-channel IP 1Giga Uplink Transmission System SC-IPC3001G User Guide SC-IPT3001G SC-IPR3001G...
- Page 2 Release Version 1.0 Precautionary and Safety Guidelines The content of this guideline is intended to protect the safety of the user and prevent damage to property. Please read these operating instructions carefully and use the device as intended. Warning (Failure to adhere to any of the following guidelines could result in serious injury or death for someone.) ■...
- Page 3 Release Version 1.0 Caution (Failure to comply with any of the following guidelines may cause injury or property damage.) ■ The correct ambient temperature and humidity are recommended. - Avoid extremely high temperatures (above 50 ° C) or low (below -10 ° C) and humid conditions. ■...
- Page 4 Release Version 1.0 1. Introduction 1-1. summary The pair consists of SC-IPT3001G (Tx.) And SC-IPR3001G (Rx.) As IP-PoE kit (supply of the camera via PoE by sending / receiving PoC) Since the PoC (Power over Coaxial) function is installed, it is possible to supply the transmitter and camera with power, so that no separate power line construction is required.
-
Page 5: Names And Functions Of Each Part

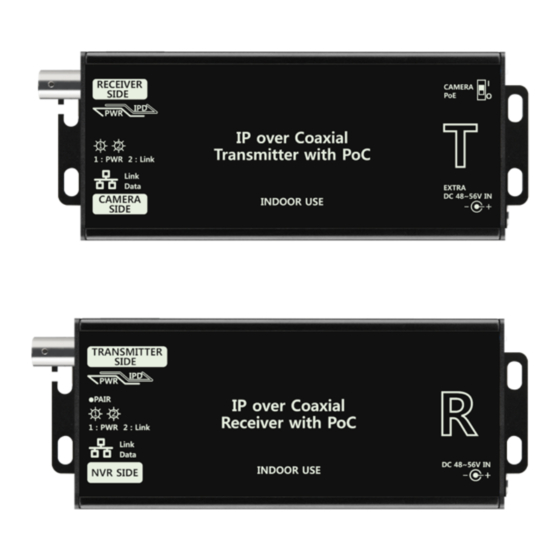

Release Version 1.0 3. Names and functions of each part 3-1. SC-IPT3001G ④ ① ② ② ③ ⑤ ① Receiver Side: Receiver connection terminal and video output terminal. ② Status LED Location Name LED status indication function No Link Link Poor Link Green Blink Link OK / Act OK... - Page 6 Release Version 1.0 3-2. SC-IPR3001G ① ② ③ ④ ⑤ ① Transmitter Side: Transmitter connection terminal and video input terminal. ② Pair: The pairing button (enables the transmitter and receiver to be connected and operated). Button press time LED status (PWR LED) function 2-5 seconds Flashes once every 0.5...
- Page 7 Release Version 1.0 4. Product configuration example 4-1. 24 cameras via PoE Switch Hub 5. Transmission distance per cable 5-1. 1 to 1 configuration Product SC-IPC3001G Max. transmission distance Max. 900m (RG-59) Specificati Power consumption Max. 4W Power maximum output Max.
- Page 8 Release Version 1.0 ※ The transmission distance may vary slightly depending on the quality of the coaxial cable used and the quality of the connector connection. ※ Depending on the power specifications of the camera to be used, there may be a difference of approx.
- Page 9 Release Version 1.0 ※ CABLE PIN Array (1000, Mode B) Number Color 10/100/1000 Mode B T568A T568B White + Green White and TxRx A+ orange. Green Orange TxRx A- TxRx B+ White + Orange White + Green Blue Blue TxRx C+ TxRx C- White + Blue White + Blue...
-
Page 10: Troubleshooting
Release Version 1.0 6. Troubleshooting Symptom Identification method • Check the power supply input. • Make sure that the dedicated adapter is used. No power. • Check if the PWR LED of the product works normally. • Check the coaxial cable connection. •... -
Page 11: Specification
Release Version 1.0 7. Specification MODEL SC-IPT3001G Midspan PoE supported (Type B Only, PoE SW On/Off) Power output 1Gbps (PHY RATE) Transmission bandwidth RECEIVER SIDE BNC-F, 75Ω CAMERA SIDE RJ-45 (TIA/EIA568B Type) Connection port EXTRA POWER DC-Jack PORT 1Pin: TX +, 2Pin: TX-, 3Pin: RX+, 4Pin: PWR+ RJ-45 Connector 5Pin: PWR+, 6Pin: RX-, 7Pin: PWR-, 8Pin: PWR- Green On: Successful connection... - Page 12 Release Version 1.0 MODEL SC-IPR3001G DC 48V/56V Adapter or PoE(IEEE802/3at) power input Power Consumption Maximum RG-59 Separate camera power supply: 900m transmission (Based on 30W camera power supply: 200m (56V) distance 10Ω/200m) Transmission bandwidth 1Gbps (PHY RATE) TRASMITTER SIDE BNC-F, 75Ω Connection port NVR SIDE RJ-45 (TIA/EIA568B Type)
-
Page 13: Warranty Certificate
Release Version 1.0 8. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two (2) year from the date of purchase Name... - Page 14 Release Version 1.0 SeeEyes Co., Ltd #503~509, 511~512, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5834 FAX: +82-(0)31-777-3512 EMAIL: overseas@sscctv.com http://www.sscctv.com/eng...
