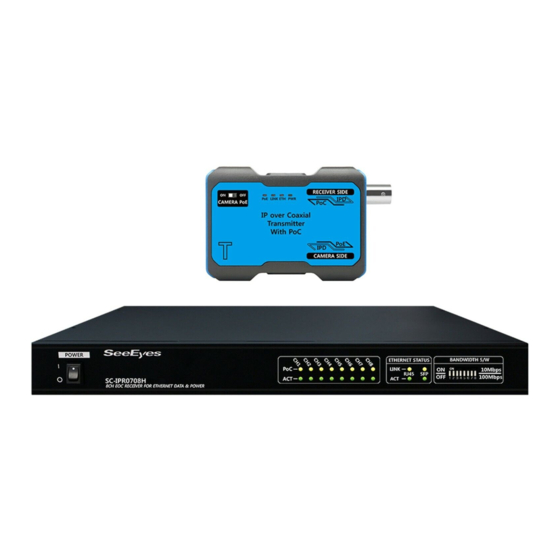

- Page 1 Release Version 1.1 8-channel EoC transmission device with built-in Switch HUB SC-IPC0708H User Guide SC-IPT07P SC-IPR0708H...
- Page 2 Release Version 1.1 Precaution and Safety Guidelines The content of this guideline is intended to protect user safety and prevent property damage. Please read these operating instructions carefully and use the device properly. Warning (If you do not keep any of the below guidelines, you may get seriously injured or cause somebody’s death.) ■...
- Page 3 Release Version 1.1 ■ When thunder or lightning strikes, please pay attention to the safety and unplug the power cord. Caution (Failure to follow any of the following guidelines could result in personal injury or property damage.) ■ Avoid installing near strong magnetic fields or radio waves and wireless devices such as radio or TV. - Install in a place that is free from magnetic, radio, or excessive vibration.
-
Page 4: Product Composition
Release Version 1.1 -This device is a business grade electromagnetic wave device (Class A). The seller or user is advised to take note of this, and the device is not intended for household use ■ Insulate the part where the cable connects to the connector so that the metal part is not exposed. 1. -
Page 5: Name And Function Of Each Part
Release Version 1.1 3. Name and function of each part 3-1. SC-IPR0708H(Receiver) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ① POWER: Power ON/OFF switch ② 1~8-channel Status LED: View the power status of each channel and the Link / Act information Name Status Status Description... - Page 6 Release Version 1.1 3-2. SC-IPT07P(Transmitter) ① ② ③ ④ ① Camera PoE: Set-up switch for the IP PoE camera power supply. ※ When connecting an IP PoE camera, Select ON. ※ The PoE switch is set to ON when the product is shipped. ※...
- Page 7 Release Version 1.1 4. CABLE PIN Arrangement Number Color Color function Orange + white White Orange Orange Orange Green + white White Green blue PWR+ Blue Blue + white White Blue PWR+ green Green Brown + white PWR- White Brown Brown PWR- Brown...
-
Page 8: Installation Precautions
Release Version 1.1 6. Transmission distance by coaxial cable (transmission bandwidth / maximum power output) 5C-HFBT 5C-2V 3C-2V RG-58 RG-59 200m 100Mbps / 12W 100Mbps / 12W 100Mbps / 12W 100Mbps / 12W 100Mbps / 12W 300m 100Mbps / 12W 100Mbps / 12W 100Mbps / 10W 100Mbps / 12W... -
Page 9: Product Specification
Release Version 1.1 8. Product specification Model SC-IPT07P Power input PoC from SC-IPR0708H Power output Midspan PoE support (Type B Only, PoE SW On/Off available) Maximum transmission bandwidth 100Mbps Full duplex (based on RG-59) Rx Side Ω Connection BNC-F, 75 Ports CAM Side RJ-45 (TIA/EIA568B Type) -
Page 10: Troubleshooting
Release Version 1.1 9. Troubleshooting Symptom Checking points < transmitter > • Check if the receiver's PoC LED is on and the transmitter's PWR LED is on. • Check the coaxial cable connection. No power. < receiving set > • Check the AC power cable. •... -
Page 11: Warranty Certificate
Release Version 1.1 10. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two (2) year from the date of purchase Name... - Page 12 Release Version 1.1 SeeEyes Co., Ltd #503~509, 511~512, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5834 FAX: +82-(0)31-777-3512 EMAIL: overseas@sscctv.com http://www.sscctv.com/eng...
