Release Version 1.0
8-channel EoC transmitter/receiver with Built-in Switch HUB
SC-IPC1208EH
User Manual
SC-IPT3001E
SC-IPR1208EH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-IPT3001E and is the answer not in the manual?

Questions and answers

Related Manuals for SeeEyes SC-IPT3001E

Summary of Contents for SeeEyes SC-IPT3001E

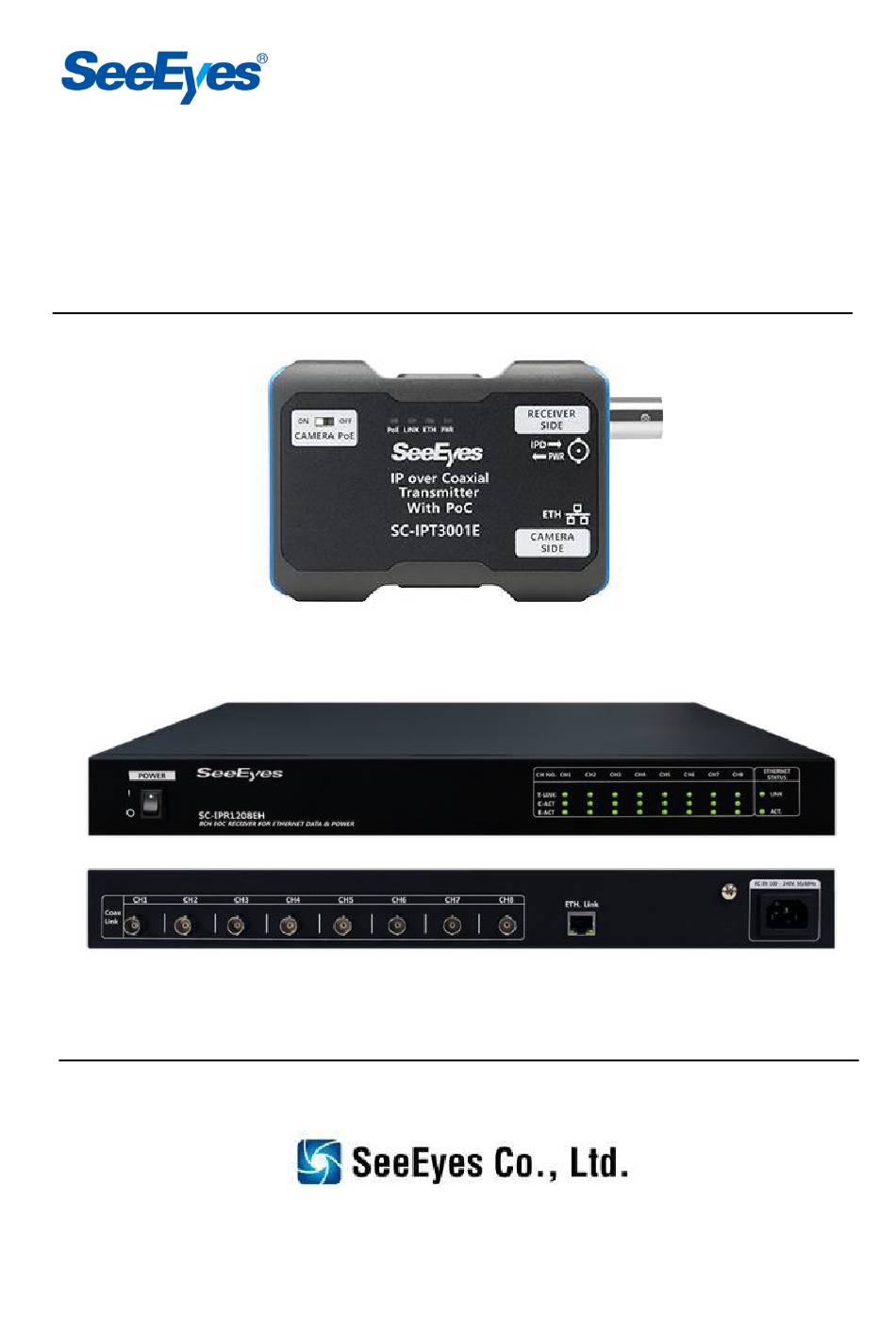

  • Page 1 Release Version 1.0 8-channel EoC transmitter/receiver with Built-in Switch HUB SC-IPC1208EH User Manual SC-IPT3001E SC-IPR1208EH...

  • Page 2: Precaution And Safety Guidelines

    Release Version 1.0 Precaution and Safety Guidelines The content of this guideline is intended to protect user safety and prevent property damage. Please read these operating instructions carefully and use the device properly. Warning (If you do not keep any of the below guidelines, you may get seriously injured or cause somebody’s death.) ■...
  • Page 3 Release Version 1.0 ■ Concerning the input voltage for operating this device, a voltage range must be within 10% of rated voltage. Also, do not use a heat source such as a hair dryer, iron and refrigerator to the same power unit. - It may cause abnormal heat, fire and electric shock.
  • Page 4 1. Introduction 1-1. Overview This product consists of the SC-IPT3001E (transmitter), a 1-channel PoC-IP transmission device, and an 8-channel receiver for EoC (Ethernet over Coax.) with an integrated switch HUB function. Existing coaxial cables can be used to carry power to the transmitter and IP camera over a coaxial cable while receiving signals from the IP camera and transmitting multi-channel IP camera data to an NVR port, resulting in shorter construction times and lower construction costs.
  • Page 5 ② ③ ⑦ ⑥ ① COAX. LINK From TRANSMITTER : SC-IPT3001E connection port (BNC 8 Ports). ② Program update port (for manufacturer only): Port for product update. ③ NVR SIDE : Port for connecting NVR or Network device(RJ-45 1Port). ④ Ground Port : Provided for when earth grounding is required.

  • Page 6: Communication Setting

     Move switch #5~8 as ON↔OFF to set BAUD RATE.  PROTOCOL Switch BAUD RATE Switch Control Protocol Data Rate SeeEyes 9600bps 2400bps 4800bps 19200bps 3-4. SYSTEM ID Setting Set device number when controlling by RS-485. Move DIP switch #1~8 as ON↔OFF to set ID value.

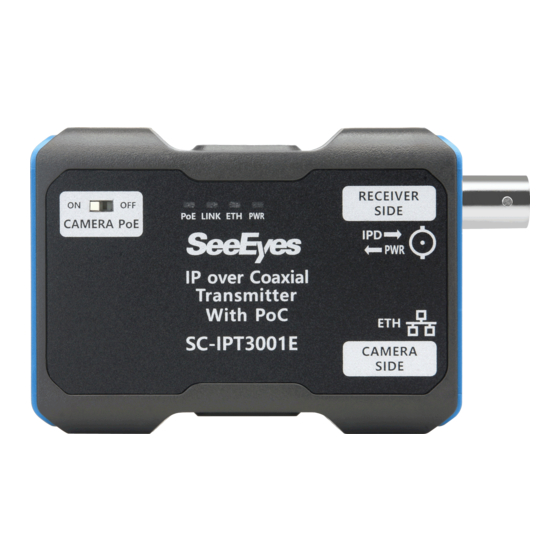

  • Page 7 0xA0 0x08 0x00 0x08 0x01 0x11 All CH OFF 0xA0 0x08 0x00 0x09 0x00 0x11 All CH ON 0xA0 0x08 0x00 0x09 0x01 0x12 3-7. SC-IPT3001E (Transmitter) ② ① ③ ④ ① CAMERA PoE: Switch to set PoE IP camera power supply ※...
  • Page 8 Release Version 1.0 Blink Connected with Receiver LINK Green Not connected with Receiver Supplying PoE to IP camera Blink IP camera overcurrent Not supplying PoE to IP camera ③ RECEIVER SIDE: Port to connect receiver and output video ④ CAMERA SIDE: IP camera connection port ※...

  • Page 9: Connection Diagram

    Release Version 1.0 5. Connection Diagram Max. 1800m / RG-6 6. Transmission Distance by Coaxial Cable Types (Loop resistance : Coax. cable) Loop Resistance ECX 5C-2V ECX 5C-2V RG-6 RG-6 RG-6 Power by PoE (High) (Mid.) (High) (Mid.) (Low) 3.0W 70.0 Ω...

  • Page 10: Specifications

    Release Version 1.0 7. Specifications Model No. SC-IPT3001E Power Output PoE Type B Supported Max. Transmission 1,800m Distance (RG-6) Max. Transmission 200Mbps(Phy Rate) / 75Mbps(TCP Rate) Bandwidth (RG-6) PoE Max. Transmission 1,400m(8W) Distance (RG-6) Rx Side Ω Connection BNC-F, 75...

  • Page 11: Troubleshooting

    • Check the power cable connection status. • Check the connection status of coaxial cable. No power. • Check the cable connection status of SC-IPT3001E. • Check the CABLE PIN configuration status. • Check the UTP CABLE PIN configuration status.

  • Page 12: Warranty Certificate

    Release Version 1.0 9. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two (2) year from the date of purchase Name...
  • Page 13 Release Version 1.0 MEMO...
  • Page 14 Release Version 1.0 MEMO...
  • Page 15 Release Version 1.0 MEMO...
  • Page 16 Release Version 1.0 SeeEyes Co., Ltd #503~509, 511~512, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5831/5833 FAX: +82-(0)31-777-3512 EMAIL: overseas@sscctv.com http://www.sscctv.com/eng...
