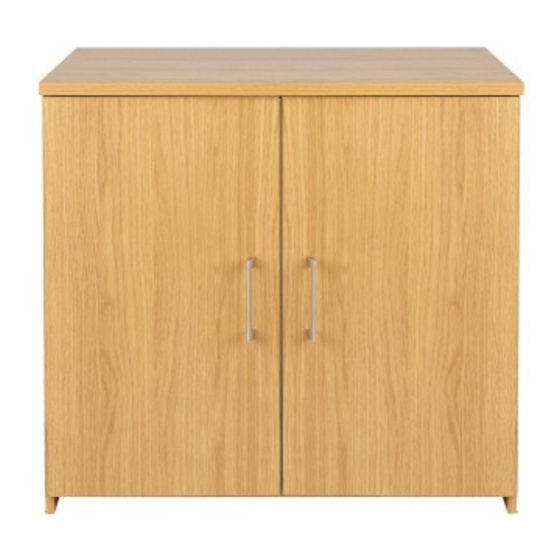

Walton - 2 Door Cupboard
Assembly Instructions -
Dimensions
Width - 80.5cm
Depth - 59.5cm
Height - 74cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
145/0233
MADE IN
BRITAIN
Issue 1 - 16/10/13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Walton 145/0233
Summary of Contents for Argos Walton 145/0233
- Page 1 Walton - 2 Door Cupboard Assembly Instructions - 145/0233 Please keep for future reference Dimensions Width - 80.5cm Depth - 59.5cm MADE IN Height - 74cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 16/10/13...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 31kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side (D2255A) (D2256A) (D2254A) (718 x 570mm) (718 x 570mm) (802 x 593mm) Base...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the left side Tap 2 wooden dowels 10mm into the left side Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.
- Page 6 Assembly Instructions Step 3 Prepare the base Tap 4 wooden dowels into the base Insert 4 large locking nuts into the base Finished front edge Step 4 Join the right side and base Push the base onto the right side Use a screwdriver to tighten the 2 large locking nuts...
- Page 7 Assembly Instructions Step 5 Fit the left side Push the left side onto the base Use a screwdriver to tighten the 2 large locking nuts fitted to the base Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
- Page 8 Assembly Instructions Step 7 Fit the top Push the top onto the left side and right side Use a screwdriver to tighten the 4 large locking nuts fitted to the left side and right side Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
- Page 9 Assembly Instructions Step 9 Fit the shelf studs Insert 4 shelf studs the required height. Step 10 Fit the shelf Lower the shelf down onto the shelf studs Finished front edge Step 11 Prepare the 2 doors Push fit 2 hinges into each of the doors Secure each hinge with...
- Page 10 Assembly Instructions Step 12 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinge. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 11 Assembly Instructions Step 13 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 12 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2913...
