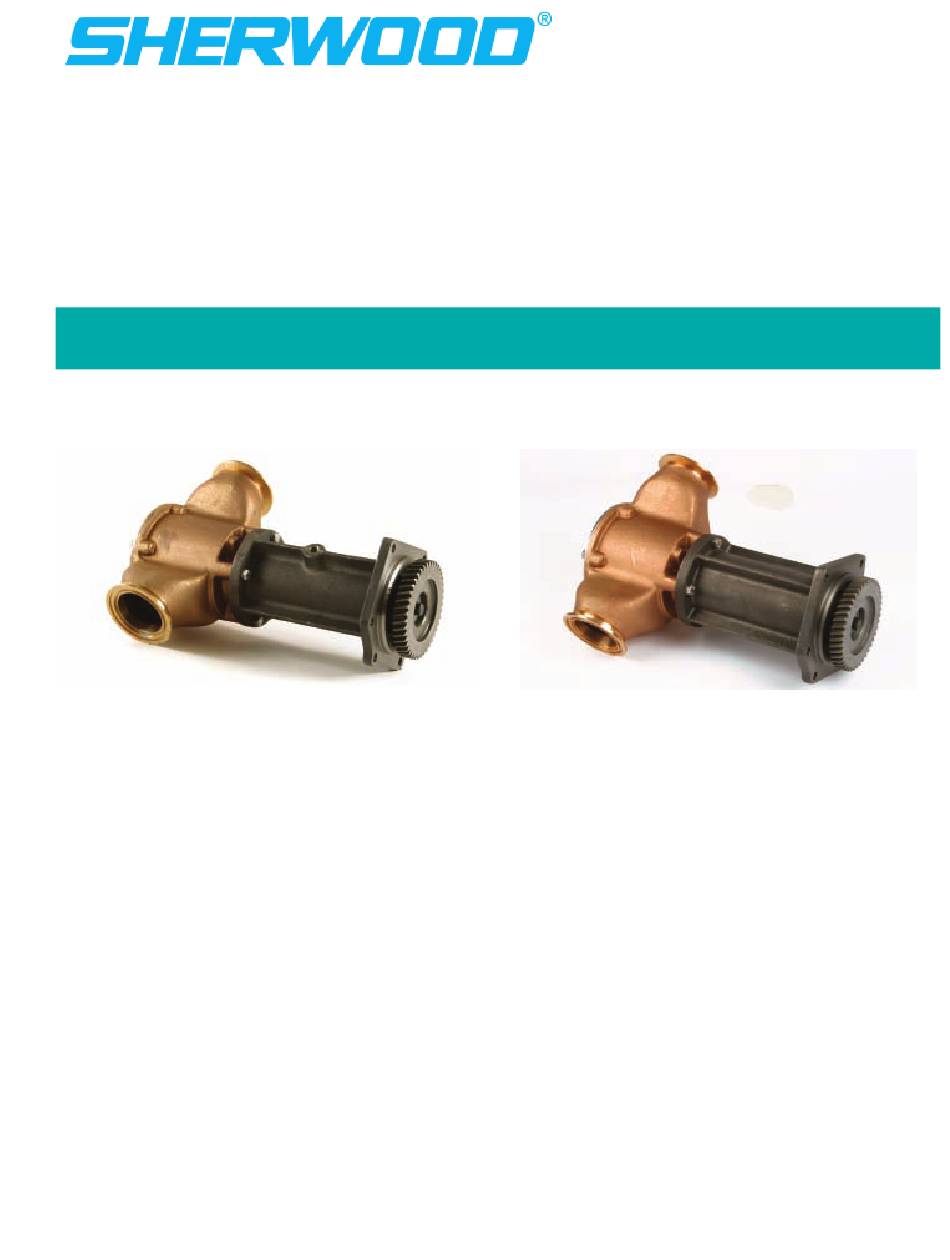

- Page 1 The Original Engine Cooling Pump Since 1921 www.sherwoodpumps.com 22000 Pump Series Technical Guide Identification G2201 and G22011 G22012 and G22012X...
- Page 2 Assembly / Disassembly Instructions 10/14 The following assembly/disassembly procedures apply to all G22000 Series pumps. Pump numbers can be found stamped into the cover plate of the pump. Disassembly A. Remove the bolts (1) and lockwashers (2) from the cover (3). B.
- Page 3 Assembly / Disassembly Instructions (continued) Assembly A. The lip seal (22) should be pressed in the body (12) with the metal backing ring of the lip seal toward the housing (13) and away from the engine. Caution: For the G22012-01 and G22012X, when pressing the lip seal in the body from the impeller end, the lip seal should be pressed 0.065”...
- Page 4 Assembly / Disassembly Instructions (continued) Sherwood # G2201 G22011-01 G22012-01 G22012X Item Cap Screw 19626 19626 19626 19626 Lockwasher 15944 15944 15944 15944 Cover Plate 23113 23113 23113 23113 Quad Ring 23111 23111 23111 23111 Impeller 22000 22000 22000 22000 24160 24160 24160...
-
Page 5: Preventative Maintenance
Preventative Maintenance The #1 reason for premature engine wear is overheating. To maintain engine performance, insist upon genuine Sherwood impellers and service kits. Pleasure Boating Commercial/Fishing Use (Low Hours) (High Hours) Maintenance Schedule Light Duty Severe Duty Heavy Duty Severe Duty (High RPM, Silt or Sand) (High RPM, Silt or Sand) Every year... - Page 6 Inspection The #1 reason for premature engine wear is overheating. To maintain engine performance, insist upon genuine Sherwood impellers and service kits. Recommended inspection to be performed at any service interval: Impeller ..Inspect for cracks or tears. Also, inspect for excessive abrasion of vane ends. Replace annually or if any of the conditions exist, as in the picture below.* Wear Plate .
