Meritor PreSet Maintenance Manual page 16

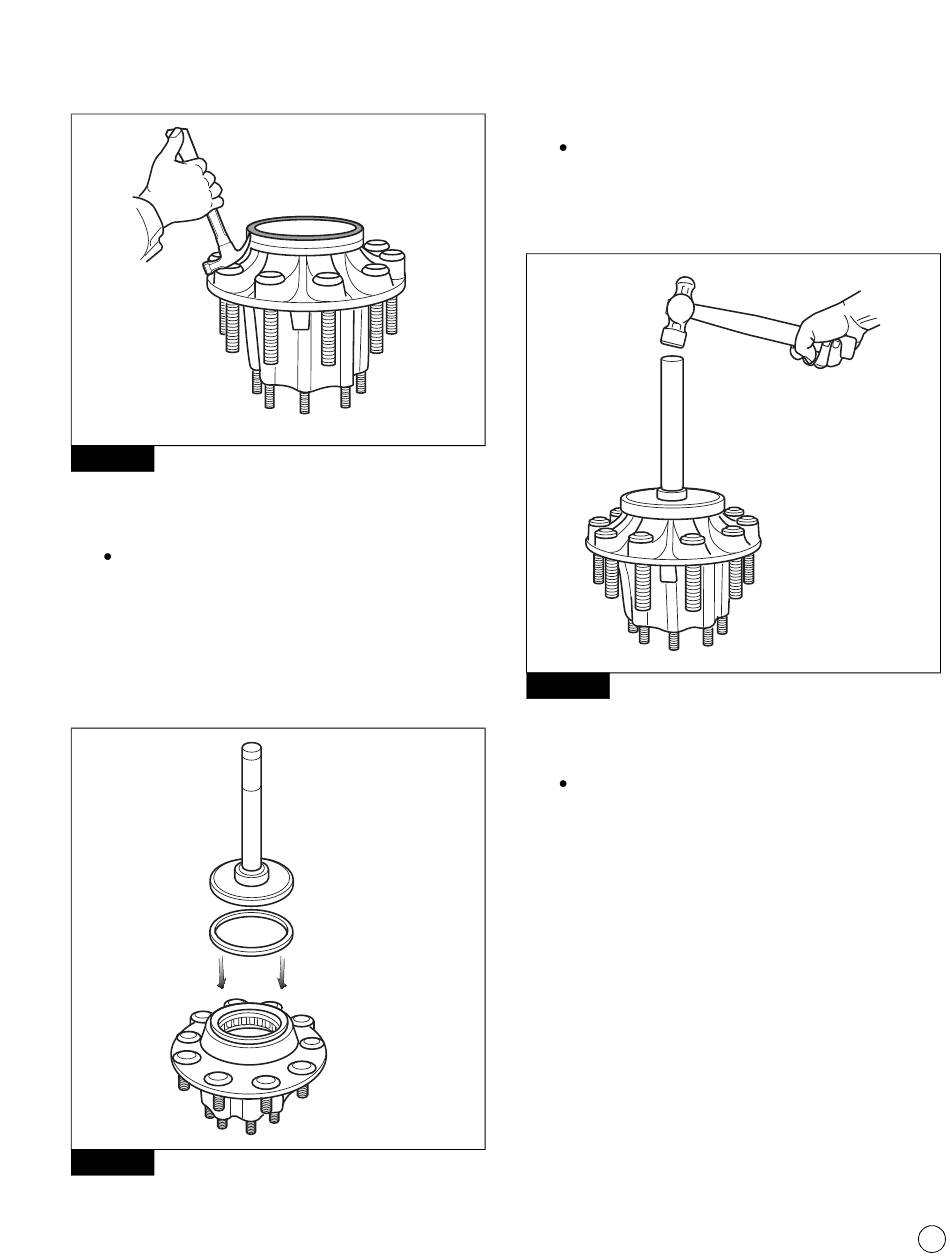

Figure 4.7
Figure 4.7
4. Thoroughly clean and degrease the ABS tooth wheel seat on
the hub with a nonflammable solvent.
If the ABS tooth wheel seat on the hub is damaged:
Replace the hub.
5. Place the hub into a press and place the new ABS tooth wheel
onto the hub ABS tooth wheel seat.
6. Center the appropriate driver over the ABS tooth wheel.
Figure 4.8.
Figure 4.8
Figure 4.8
4005743a
4005744a
4 Prepare Parts for Assembly
7. Press the ABS tooth wheel onto the hub.
If a press is not available: Use a brass or synthetic mallet
to drive the tooth wheel onto the hub until it is on the hub.
Use care to ensure the tooth wheel is not damaged.
Figure 4.9.
Figure 4.9
Figure 4.9
8. Inspect the ABS tooth wheel to verify that the wheel is
completely seated on the hub.
If the ABS tooth wheel is not completely seated:
Continue to press or drive the tooth wheel onto the hub until
it is completely seated.
