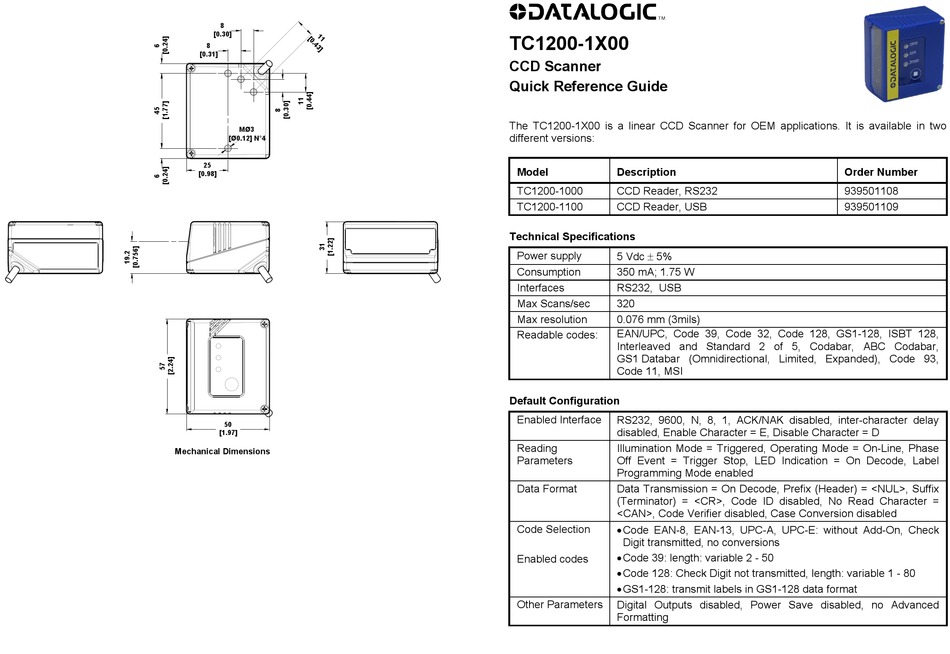

Datalogic TC1200-1 00 Series Quick Reference Manual

8
[0.30]
8
[0.31]
MØ3
[Ø0.12] N°4
25
[0.98]
50
[1.97]
Mechanical Dimensions
TC1200-1X00

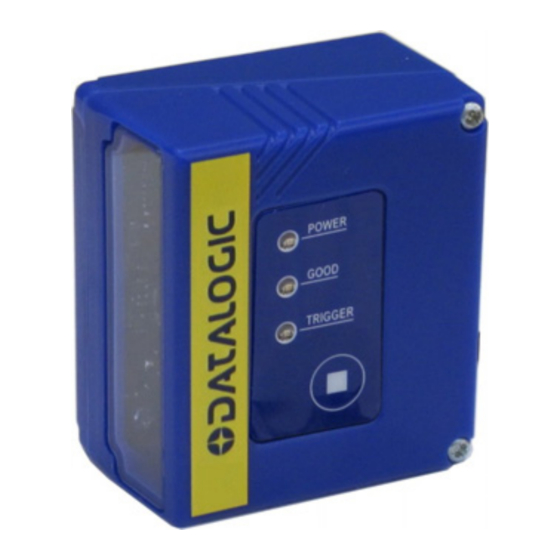

CCD Scanner
Quick Reference Guide
The TC1200-1X00 is a linear CCD Scanner for OEM applications. It is available in two
different versions:
Model Description
TC1200-1000 CCD Reader, RS232
TC1200-1100 CCD Reader, USB
Technical Specifications
Power supply 5 Vdc  5%
Consumption 350 mA; 1.75 W
Interfaces RS232, USB
Max Scans/sec 320
Max resolution 0.076 mm (3mils)
EAN/UPC, Code 39, Code 32, Code 128, GS1-128, ISBT 128,
Readable codes:
Interleaved and Standard 2 of 5, Codabar, ABC Codabar,
GS1 Databar (Omnidirectional, Limited, Expanded), Code 93,
Code 11, MSI
Default Configuration
Enabled Interface RS232, 9600, N, 8, 1, ACK/NAK disabled, inter-character delay
disabled, Enable Character = E, Disable Character = D
Reading Illumination Mode = Triggered, Operating Mode = On-Line, Phase
Parameters Off Event = Trigger Stop, LED Indication = On Decode, Label
Programming Mode enabled
Data Format Data Transmission = On Decode, Prefix (Header) = <NUL>, Suffix
(Terminator) = <CR>, Code ID disabled, No Read Character =
<CAN>, Code Verifier disabled, Case Conversion disabled
Code Selection  Code EAN-8, EAN-13, UPC-A, UPC-E: without Add-On, Check
Digit transmitted, no conversions
 Code 39: length: variable 2 - 50
Enabled codes
 Code 128: Check Digit not transmitted, length: variable 1 - 80
 GS1-128: transmit labels in GS1-128 data format
Other Parameters Digital Outputs disabled, Power Save disabled, no Advanced
Formatting
Order Number
939501108
939501109
