ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
Flexible Appliance Conduit
Wall Oven Cabinet

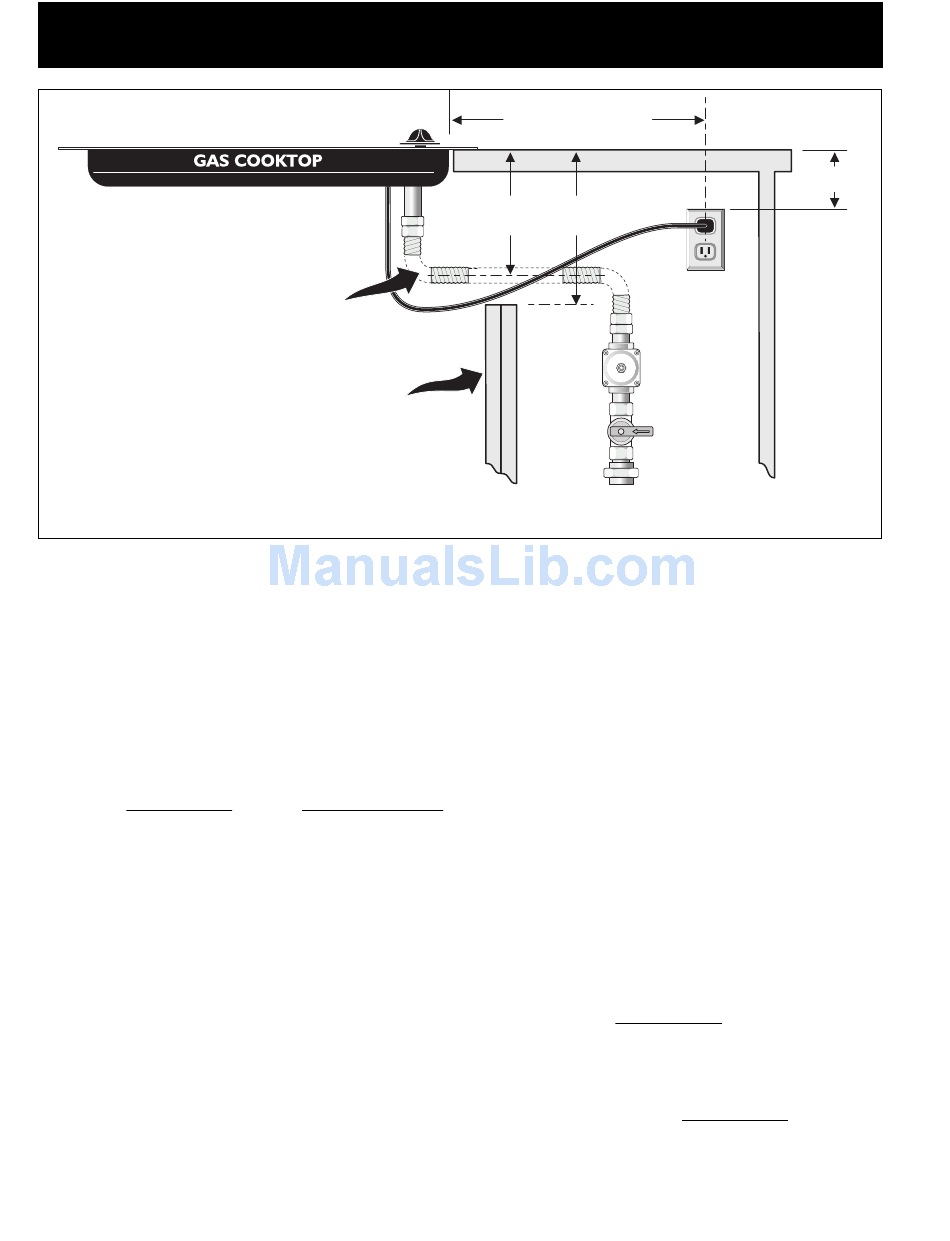

Figure 7 - TYPICAL UNDER COUNTER INSTALLATION OF AN ELECTRIC BUILT-IN OVEN

6. Checking Operation

Some wall ovens model have Manually Operated
Control Knobs to set the clock and the oven bake, broil
convection (some models) or clean functions. Refer to
the "Owner's Guide" or to the "Oven Control Guide"
supplied in the literature package and check all controls
for correct operation.
If your model is equipped with an Electronic Oven
Control. Each of the functions has been factory checked
before shipping. However, it is suggested that you verify
the operation of the electronic oven controls once more.
Refer to the Owner's Guide or to the Oven Control Guide
for operation. Follow the instructions for the Clock,
Timer, Preheat, Bake, Broil Convection (some models)
and Clean functions.
Bake–After setting the oven to 350°F/177°C for baking,
the lower element in the oven should become red.
Broil–When the oven is set to BROIL, the upper element
in the oven should become red.
Clean–When the oven is set for a self-cleaning cycle, the
upper element should become red during the preheat
portion of the cycle. After reaching the self-cleaning
temperature, the lower element will become red.
(and Optional Electric or Gas Cooktop Combination)
Flare
Union
Cabinet sides or
filler panel
WITH A GAS COOKTOP ABOVE
18"(45.7 cm) Max.
6 1/2" Min.
5" Max.
(12.7 cm) (16.5 cm)
Flare
Union
Convection (some models )–When the oven is set for a
convection baking or roasting, both elements cycle on
and off alternately and the convection fan will turn. The
convection fan will stop turning when the oven door is
opened during convection baking or roasting.
IMPORTANT NOTE: A fan inside the upper rear part
above the oven (some models) provides additional
cooling of the oven electrical and electronic components.
The fan will continue to run after the oven has been
operating at high temperatures.

Model and Serial Number Location

The serial plate is located along the side of the oven
door in the open position.
When ordering parts for or making inquires about your
oven, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
on your oven.

Before You Call for Service

Read the Avoid Service Checklist and operating
instructions in your Owner's Guide. It may save you time
and expense. The list includes common occurrences that
are not the result of defective workmanship or materials
in this appliance.
Refer to the warranty in your Owner's Guide for our toll-
free service number and address. Please call or write if
you have inquiries about your product and/or need to
order parts.
