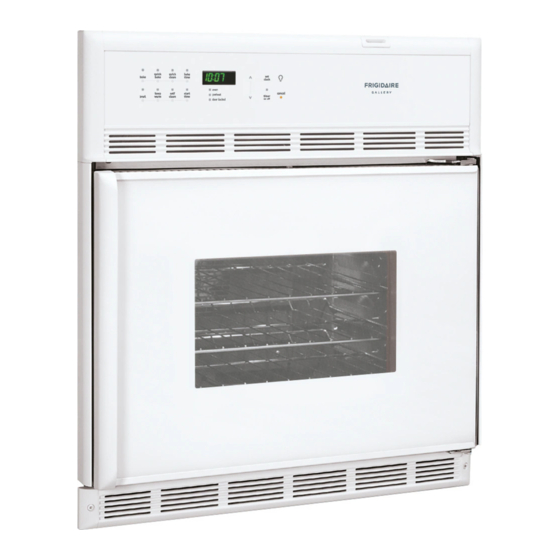

Frigidaire FEB786CESH Installation Instructions Manual

ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
Your new wall oven has been designed to fit a limited variety of cutout sizes to make the job of installing
easier. The first step of your installation should be to measure your current cutout dimensions and
compare them to the cutout dimensions chart below for your model. You may find little or no cabinet
work will be necessary.
Do not remove spacers (if equipped) on the side walls and/or on the back of the built-in oven.
These spacers center the oven in the space provided. The oven must be centered to prevent excess heat buildup
that may result in heat damage or fire.
Cutout openings
Do not install the oven
closer than the
dimension "K" (see
table) to any adjoining cabinetry or
walls on the door hinge side. This will
interfere with oven rack removal.
Figure 2
NOTE:
- Self-clean Models: Allow at least 27 ¼" (69.2 cm)
clearance for door depth when it is open.
- Easy-clean Models: Allow at least 26 ¼" (66.7 cm)
clearance for door depth when it is open.
NOTE: For a cutout height greater than 29" (73.6 cm) add
one 2" (5 cm) wide wood spacer to each side of the opening
under the appliance side rails.
MODEL
27" (68.6 cm) Easy Clean
27" (68.6 cm) Self Clean
MODEL
27" (68.6 cm) Easy Clean 24 7/8 (63.2)
24 7/8 (63.2)
27" (68.6 cm) Self Clean
All dimensions are in inches (cm).
Some models are not available in Canada.
Printed in United States
(Side Swing Door Models)
* Suggested distance from floor is 31" (78.7 cm)
Minimum required distance is 4 1/2" (11.4 cm)
for self-clean models.
Minimum required distance is 10" (25.4 cm)
for easy-clean models.
B
Door
Open
A
PRODUCT DIMENSIONS
A
26 7/8 (68.2)
26 7/8 (68.2)
CUTOUT DIMENSIONS
Min. F Max.
25 5/32 (63.9)
25 1/4 (64.1)
1 1/2"
(3.8 cm)
Min.
C
28 3/32"
(71.4 cm) H
Spacer
31"*
(78.7 cm)
D
2" (5 cm) Wide Wood
Spacer if Needed
NOTE: Base must be capable of supporting 150 pounds (68 Kg).
Figure 1
B C (wrapper)
24 11/16 (62.7)
30 9/16 (77.6)
31 1/8 (79.1) 24 11/16 (62.7)
G (Min.)
Min.
23 1/2 (59.7) 28 1/8 (71.4)
23 1/2 (59.7) 28 1/8 (71.4)
1
27" Min.
Electrical Junction box
(68.6 cm)
location and Hole for
Cable space 2"(5.1 cm)
from left wall for Self-
Clean Models.
Electrical junction box
and Hole for Cable
space 2" (5.1 cm)
G
from right wall for
Easy Clean Models.
F
3"(7.6 cm)
Max.
Electrical junction box
2" (5.1 cm)
(right or left side
Min.
depending of model)
D
24 1/4 (61.6)
25 3/8 (64.5)
Figure 2
. K (Min.)
H Max
29 5/8 (75.2)
3 (7.6)
30 1/8 (76.5) 4 1/2 (11.4)
P/N 318201508 (0410) Rev. F
English – pages 1-9
Español – páginas 10-18
Français – pages 19-27
