R
Assembly Instructions

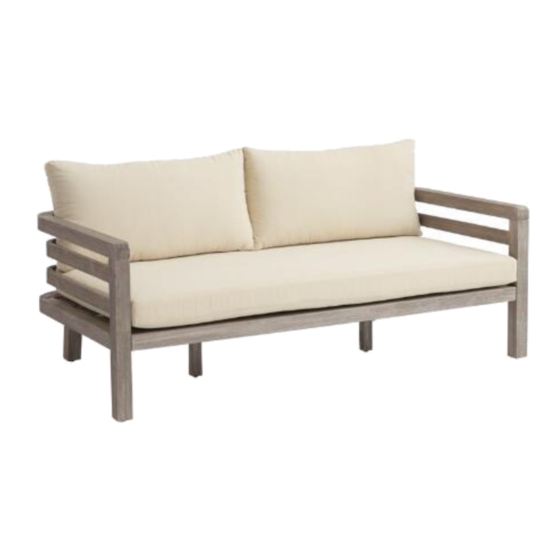

Marciana Deep Bench
SKU - 582733
THANK YOU FOR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST COST PLUS WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
Page 1
Advertisement
Table of Contents
Related Manuals for World Market Marciana 582733
Summary of Contents for World Market Marciana 582733
- Page 1 THANK YOU FOR PURCHASE. IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
- Page 2 Component List LABEL PICTURE DESCRIPTION Seat Frame Left Leg Frame Right Leg Frame Back Upper Crossbar Back Middle Slat Support Leg Back Cushion Seat Cushion Hardware LABEL PICTURE DESCRIPTION Allen Bolt (M8 x 40mm) Long Allen Screw (M6 x 80mm) Short Allen Screw (M6 x 40mm) Allen Key...
- Page 3 Do not assemble on flooring or carpet- Assemble on a clean non-marring surface (packing foam)- Save all packaging until finished- In case of missing parts, please contact nearest Cost Plus World Market store or our customer service call center 877-967-5362. Page 3...
- Page 4 Assembly Steps NOTE:It is strongly recommended that two adults are on hand for the assembly of this product. Step 1 (H-1) Allen Bolt x 3 FRONT Allen key x1 (H-4) Place the Right Leg Frame (C) down onto a padded, non-marring surface as shown. Using a second person to assist you, align Seat Frame (A) with the corresponding holes on Right Leg Frame (C) and secure using 3 Allen Bolts (H-1) and Allen Key (H-4).
- Page 5 Assembly Steps Step 3 FRONT Using a second person to assist you, insert the slotted pegs on the end of both Back Middle Slats (E) into the corresponding slots on Right Leg Frame (C) as shown. Step 4 (H-1) Allen Bolt x 3 (H-2) Long Allen Screw x 1 Allen key x1 (H-4)
- Page 6 Assembly Steps Step 5 (H-3) Short Allen Screw x 4 (H-4) Allen key x1 FRONT Using a second person to assist you, align the holes on Support Leg (F) with the corresponding pre-drilled holes on the underside of Seat Frame (A) as shown. Each Support Leg (F) is secured using 2 Short Allen Screws (H-3).
- Page 7 Assembly Steps Step 7 NOTE: Levelers can be used for additional adjustment if needed. Insert Seat Cushion (H) onto Seat Frame assembly as shown, making sure the cushion sits flush along the back of the frame assembly. Next, place both Back Cushions (G) against the back assembly.
- Page 8 Care & Maintenance Do not put hot items directly on furniture surface. Do not clean furniture with harsh cleansers or polish. Do not place furniture near heating or cooling vents. Do not write on furniture without a padded barrier to protect the surface. Store furniture or use an appropriate furniture cover during cold or inclement weather.
