Assembly Instructions

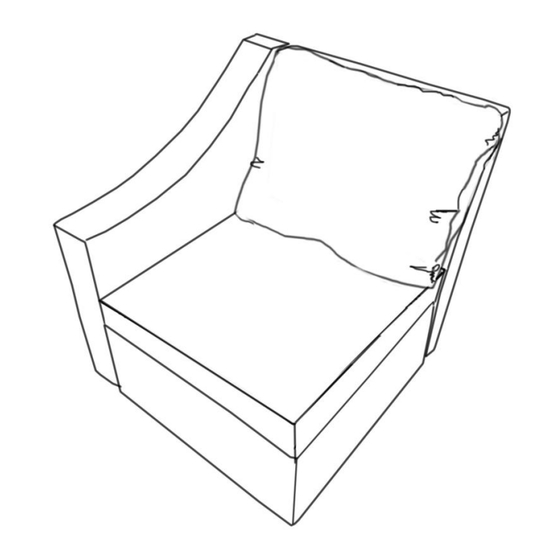

VERACRUZ ALL WEATHER WICKER
SECTIONAL RIGHT ARM CHAIR
SKU-535923
THANK YOU FOR PURCHASING OUR QUALITY PRODUCT. IF YOU
HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS
FURNITURE PIECE, CONTACT YOUR NEAREST COST PLUS
WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE
CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT
877-967-5362 FOR ASSISTANCE.
Page 1
Advertisement
Table of Contents
Related Manuals for World Market Veracruz 53592
Summary of Contents for World Market Veracruz 53592
- Page 1 THANK YOU FOR PURCHASING OUR QUALITY PRODUCT. IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, CONTACT YOUR NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
- Page 2 Component List Label Picture Description Right Arm Panel Back Panel Seat Seat Cushion Back Cushion Hardware List Label Picture Description Label Picture Description Screw Bolt Flat Washer M6 × 50mm Spring Connecting Washer Plate Tool List Label Picture Description Allen Key Page 2...
- Page 3 ﹒Have 2 adults on hand for assembly- ﹒Do not assemble on flooring or carpet- ﹒Assemble on a clean non-marring surface (packing foam)- ﹒Save all packaging until finished- ﹒In case of missing parts, please contact your nearest Cost Plus World Market store. Page 3...
- Page 4 Assembly Steps Step 1 Lay the Right Arm Panel (A) with holes facing up on padded, non-marring surface. Attach Back Panel (B) to right arm panel on desired side by inserting the hook into the hole of Right Arm Panel (A).
- Page 5 Step 3 H-1 Screw Bolt x 4 H-2 Spring Washer x 4 H-3 Flat Washer x 4 Turn the chair so Back Panel (B) is down. Secure Seat (C) to Back Panel (B) with Screw Bolt (H-1), Spring Washer (H-2) and Flat Washer (H-3) and tighten using Allen Key (T-1). Fully tighten all bolts in this and the previous step.
- Page 6 Care & Maintenance ● Do not put hot items directly on furniture surface. ● Do not clean furniture with harsh cleansers or polish. ● Do not place furniture near heating or cooling vents. ● Do not write on furniture without a padded barrier to protect the surface. ●...
