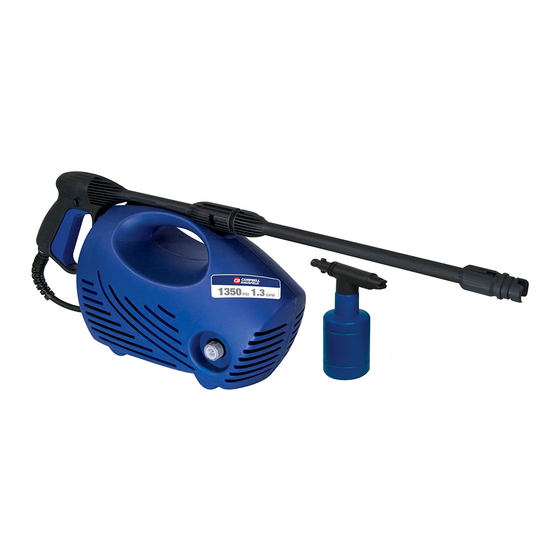

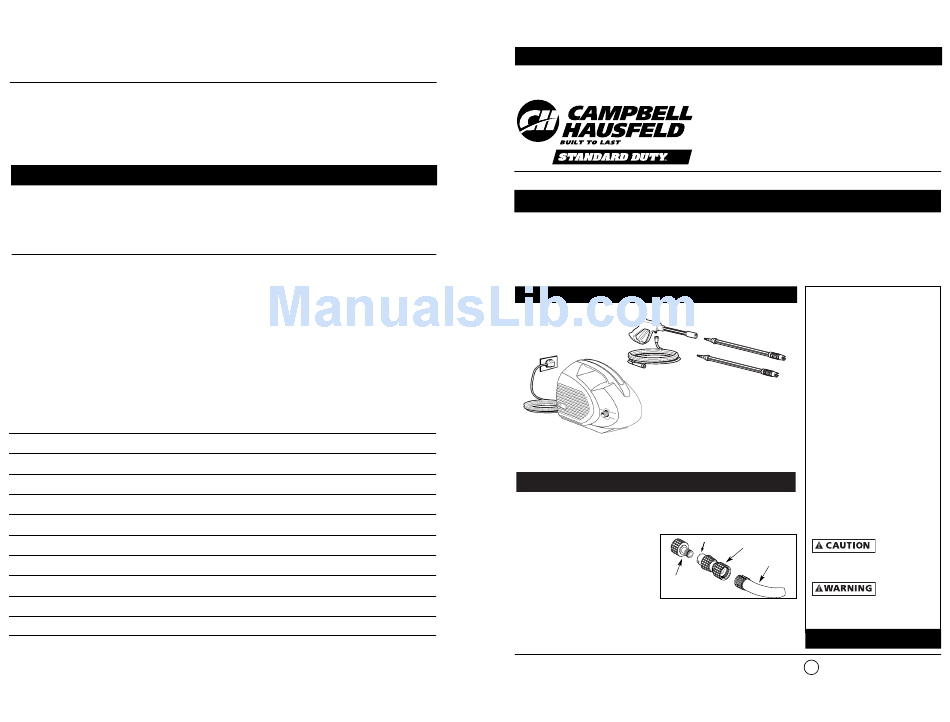

Campbell Hausfeld PW1345 Assembly Instructions And Parts List

Instrucciones de montaje y lista de piezas
Para ordenar repuestos, sírvase llamer al 1-800-330-0712 (En
los Estados Unidos, o llame a su distribuidor local)
Sírvase proporcionar la siguiente información:
-Número de modelo
-Número de serie (si lo hubiera)
-Descripción y número del repuesto, según se indica en la lista de repuestos.
No. de
Ref. Descripción
Lanza regulable
1
Lanza turbo
* 2
3 Manguera
4 Pistola
Niple adaptador
5
Conector rápido
6
7 Limpiador de puntas
8 Aplicador de detergente
* 9 Juego de ruedas (2)
*10 Mango
*11 Tapa de la caja de herramientas
*12 Caja de herramientas
* Equipo opcional, tal vez no se suministre con todos los modelos.
Notas
PW1345, PW1346, PW1350, PW1375, y PW1376
Dirija su correspondencia sobre repuestos a:
The Campbell Group / Parts Dept.
100 Production Drive
Harrison, OH 45030 U.S.A.
Número del
Repuesto
PM035101AV
PM022621AV
PM012902AV
PM037201AV
PM022100AV
PM020600SV
PM008500AV
PM014700SV
PM014100SJ
PM014200SV
HV601500SV
HV601600SV
Assembly Instructions and Parts List
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or prop-
erty damage! Retain instructions for future reference.
Ctd.
Specifications
1
Max Pressure with
Model Standard Lance
1
PW1345 1300 psi
1
PW1346 1300 psi
1
PW1350 1300 psi
1
PW1375 1300 psi
PW1376 1300 psi
1
1
1

Assembly Instructions

1
1
1
1
Figure 1
Garden Hose Connection
GARDEN HOSE CONNECTION
INSTRUCTIONS
1. Attach nipple adapter to inlet fit-
ting on the unit (this may already be
attached to the pump).
2. Attach quick connect fitting to
garden hose.
3. Pull side "A" of quick connect fit-
ting toward garden hose and push
onto nipple adapter.
© 1999 Campbell Hausfeld
PW1345, PW1346, PW1350 , PW1375, and PW1376
Electric Pressure
Washer
NOTE: REFER TO PRODUCT MANUAL FOR
ALL SAFETY INSTRUCTIONS
Effective Pressure Maximum Motor Power
w/Turbo Lance Capacity (Single Phase) Voltage
— 1.8 GPM 13 Amps
— 1.8 GPM 13 Amps
— 1.8 GPM 13 Amps
1750 psi 1.8 GPM 13 Amps
1750 psi 1.8 GPM 13 Amps
4. Push side "A" of quick connect fit-
ting towards nipple adapter and
release.
"A"
Quick Connect Fitting
Garden Hose
Nipple
Adapter
Figure 2 - Garden Hose Connection
For parts, product & service information
visit www.campbellhausfeld.com
Maximum Inlet Unit
Water Temperature Weight
120V 100˚F 25 lbs.
120V 100˚F 25 lbs.
120V 100˚F 25 lbs.
120V 100˚F 25 lbs.
120V 100˚F 25 lbs.
! IMPORTANT !
This pressure washer maybe
equipped with a microswitch sensi-
tive to water flow. This Instant
Start/Stop switch (ISS) senses water
flow in the pump. When the trigger
is released, water stops flowing
through the pump. The ISS then
automatically turns the motor off to
protect pump from overheating.
OPERATION
1. Turn the "ON/OFF" switch to
"ON".
2. Pull trigger on gun to begin
spraying water.
3. Release trigger. The pressure
washer motor will stop running.
4. To spray again, pull trigger and
motor and pump will restart.
Note: Occasionally the motor may
run for a short time to bring fresh,
cool water into the pump even if
trigger is released. This is part of
normal operation and will not dam-
age the unit.
Always turn the
"ON/OFF" switch
to "OFF" then trigger gun to release
hose pressure before unplugging
power cord.
Risk of Injection.
Unit will start
spraying when trigger is squeezed if
on/off switch is in "ON" position.
Always point gun in safe direction.
Call 1-800-330-0712
for Technical Service
Approved
U L IN456800AV 10/99
#7P64
