Campbell Hausfeld PW1310 Assembly Instructions Manual

Instrucciones de montaje y lista de piezas
Lista de Repuestos
Para ordenar repuestos,
sírvase llamer al
1-800-330-0712
(En los Estados Unidos,
o llame a su distribuidor
local)
3
4
5
No. de
Ref. Descripción
1 Lanza de presión ajustable
2 Lanza turbo
3 Pistola /Manguera
4 Adaptador de manguito
5 Conector rápido
6 Limpiador de puntas
7 Aplicador de detergente
8 Anillo en O
Sírvase proporcionar la siguiente información:
-Número de modelo
-Número de serie (si lo hubiera)
-Descripción y número del repuesto, según se
indica en la lista de repuestos.
Dirija su correspondencia sobre repuestos a:
Campbell Hausfeld
Attn: Customer Service
100 Mundy Memorial Drive
Mt. Juliet, TN 37122 U.S.A.
8
1
8
7
2
6
Número del
Repuesto
PM342010SV
PM022621AV
PM342000SV
PM022100AV
PM020600SV
PM008500AV
PM014700SV
PM232200SV
12 Sp
Assembly Instructions and Parts List
PW1310
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by
observing all safety information. Failure to comply with instructions could result in per-
sonal injury and/or property damage! Retain instructions for future reference.

Specifications

Cleaning
Model Power
PW1310 1820

Assembly Instructions

Ctd.

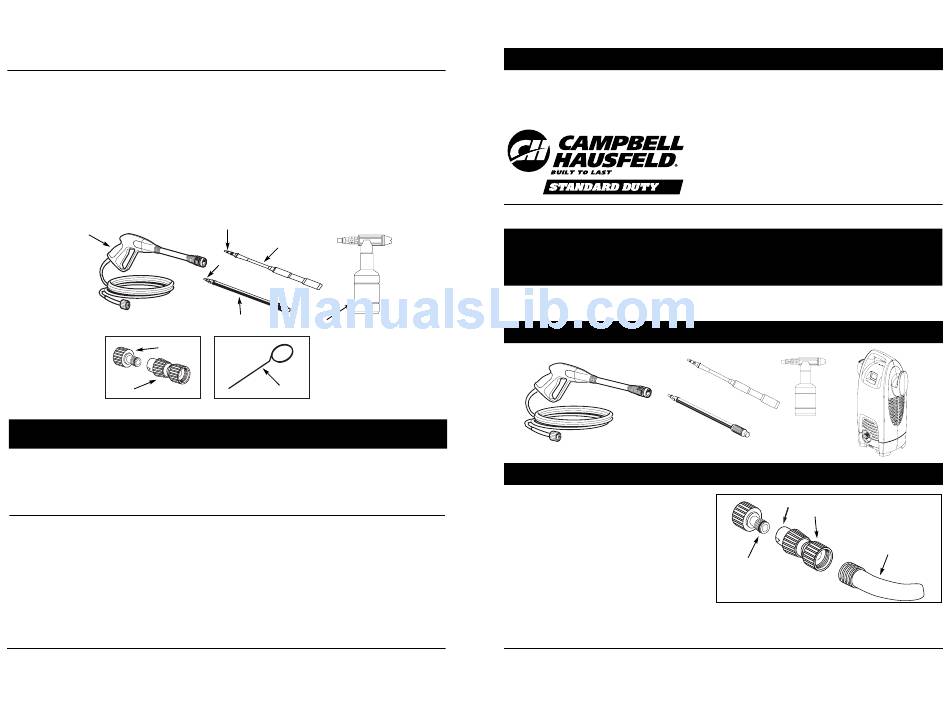

Figure 1
1
Garden Hose Connection Instructions
1
1
1. Attach nipple adapter to inlet
1
fitting on the unit (this may already
1
be attached to the pump).
1 2. Attach quick connect fitting to
garden hose.
1
3. Pull side "A" of quick connect
1
fitting toward garden hose and
push onto nipple adapter.
4. Push side "A" of quick connect
fitting towards nipple adapter and
release.
© 2004 Campbell Hausfeld/Scott Fetzer
Electric Pressure
Washer
NOTE: REFER TO PRODUCT MANUAL FOR
ALL SAFETY INSTRUCTIONS
Max Pressure Motor
with Power
Standard Maximum (Single
Lance Capacity Phase)
1300 psi 1.4 GPM 13 Amps
"A"
Nipple Adapter
Figure 2 - Garden Hose Connection
For parts, product & service information
visit www.chpower.com
PW1310
Maximum
Inlet
Water Unit
Voltage Temp. Weight
120V 100˚F 20 lbs.
Quick Connect Fitting
Garden Hose
IN464800AV 10/04
