Static Power iSTS R Quick Start Manual

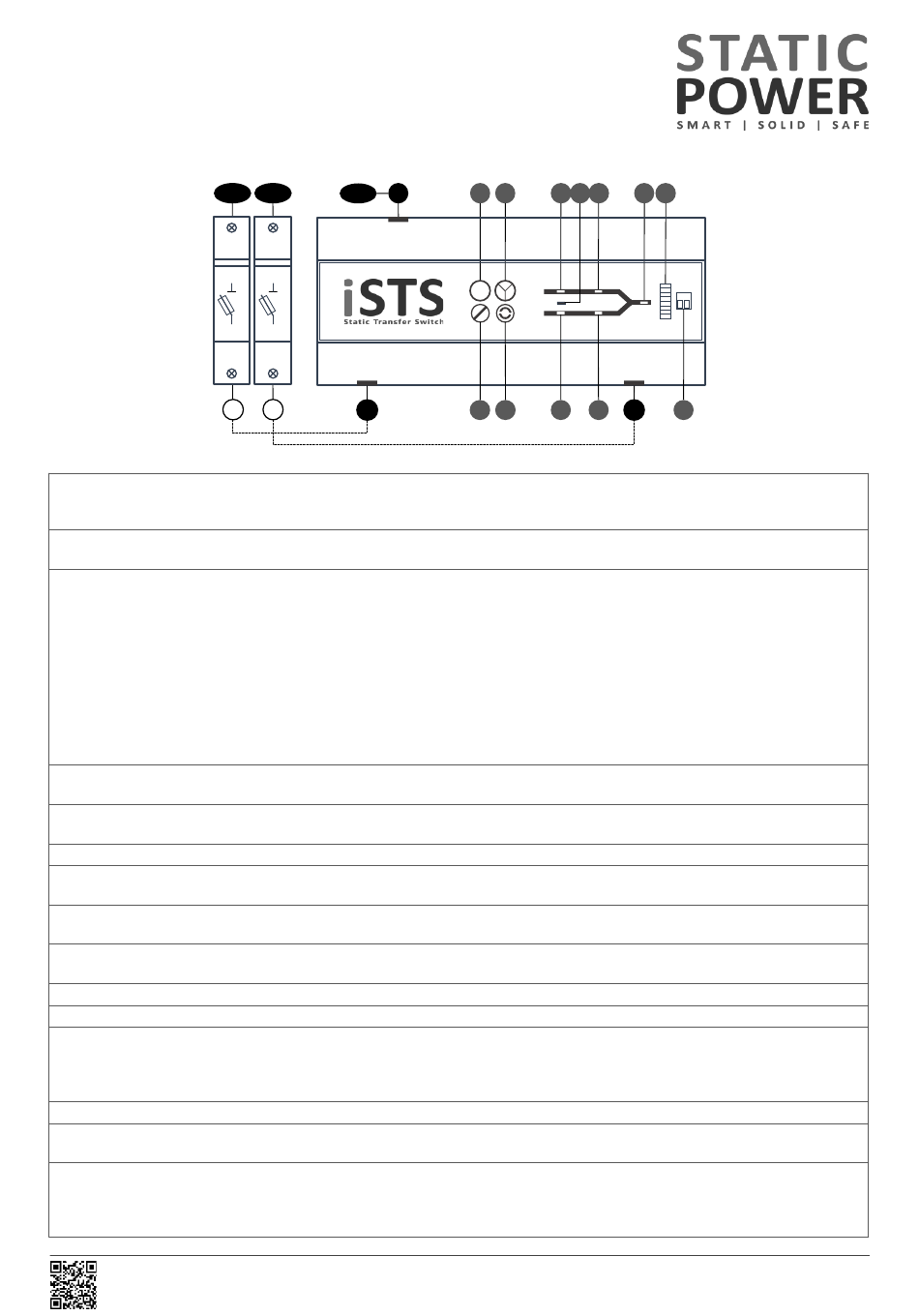

iSTS R
IN1
1 Supply 1 Input
2 Output Terminal
3 Alarm LED
4 Alarm Cancellation Button
5 Preferred Indicator
6 Preferred Button
7 Supply 1 Okay LED
8 Supply 2 Okay LED
9 Sync Okay LED
10 On Supply 1 LED
11 On Supply 2 LED
12 Supply 2 Input
13 Output Okay LED
14 Load LEDs
15 Remote Contact
STATIC POWER Pty Ltd
ABN 42 101 765 913
iSTS R – Quick Starter Guide R04
IN2 OUT 2
N L
N L
1F
1 12
1
Push-in terminal suits 4mm² cable, use a small blade type screwdriver in the top slot and press in; insert the
cable and release. DO NOT USE FERRULES OR TWIST THE WIRE ON THE PUSH IN CONNECTORS.
Repeat for the Neutral Conductor. Note the neutral is not fused. Bare the wire just 8mm.
Push-in terminal suits 4mm² cable, use a small blade type screwdriver in the top slot and press in; insert
the cable and release. Bare the wire just 8mm.
When there is an alarm that has not been acknowledged this LEDs will flash. If the alarm has been
acknowledged but the condition still exists, the LEDs will remain on.
The Alarm LED and the Remote Contact will be triggered when:
▪ On Supply 1 when priority is Supply 2
▪ On Supply 2 when priority is Supply 1
▪ Not in Synchronism
▪ Supply 1 or Supply 2 are not in spec.
▪ There is/was an overcurrent/overload/load fault condition or Overtemperature condition
▪ There has been a thyristor/SCR Fault
▪ The Auto retransfer to preferred source has locked out & max number of automatic re-transfers
has been exceeded.
Pressing this button acknowledges new alarms, causing the audible alarm to turn off and the LEDs to go
from flashing to solid.
These three LEDs indicate which supply is selected as the preferred supply. Supply 1 'I', Supply 2 'II' or
neither may be selected.
Pressing this button repeatedly will scroll through which supply is selected as the preferred supply.
Green/Red indicated that Supply 1 is within/out of tolerance. If fuse is open or blown or there is no
power present the power available LED will be Red.
Green/Red indicated that Supply 2 is within/out of tolerance. If fuse is open or blown or there is no
power present the power available LED will be Red.
Green/Red indicated whether Supply 1 and Supply 2 are within/not within enough degrees of
synchronisation of each other to perform a transparent transfer.
Green/Red indicates the load is on/not on Supply 1.
Green/Red indicates the load is on/not on Supply 2.
Push-in terminal suits 4mm² cable, use a small blade type screwdriver in the top slot and press in; insert the
cable and release. Repeat for the Neutral Conductor. Note the neutral is not fused. Bare the wire just 8mm.
The GND connection is optional but required when some accessories are connected to the expansion port.
BE SURE NOT TO ACCIDENTLY CONNECT THE NEUTRAL TO THE EARTH AND THE ACTIVE TO THE NEUTRAL.
Green/Red indicated the output is OK/faulty.
There are eight LEDs, the bottom six are Green and indicate roughly 10% - 90% loaded. The seventh LED
is orange and indicates 100% loaded. The eighth LED is Red and indicates that the iSTS is over loaded.
Voltage free alarm for integration into BMS. Do not connect any more than 50V/0.5A, not suitable for
230V . Contacts are Normally Closed. Contact is held Open when there is no alarm. When power fails
AC
the relay contact closes (fail safe). The Remote Contact and the Red Alarm LED are driven by the same
logic.
