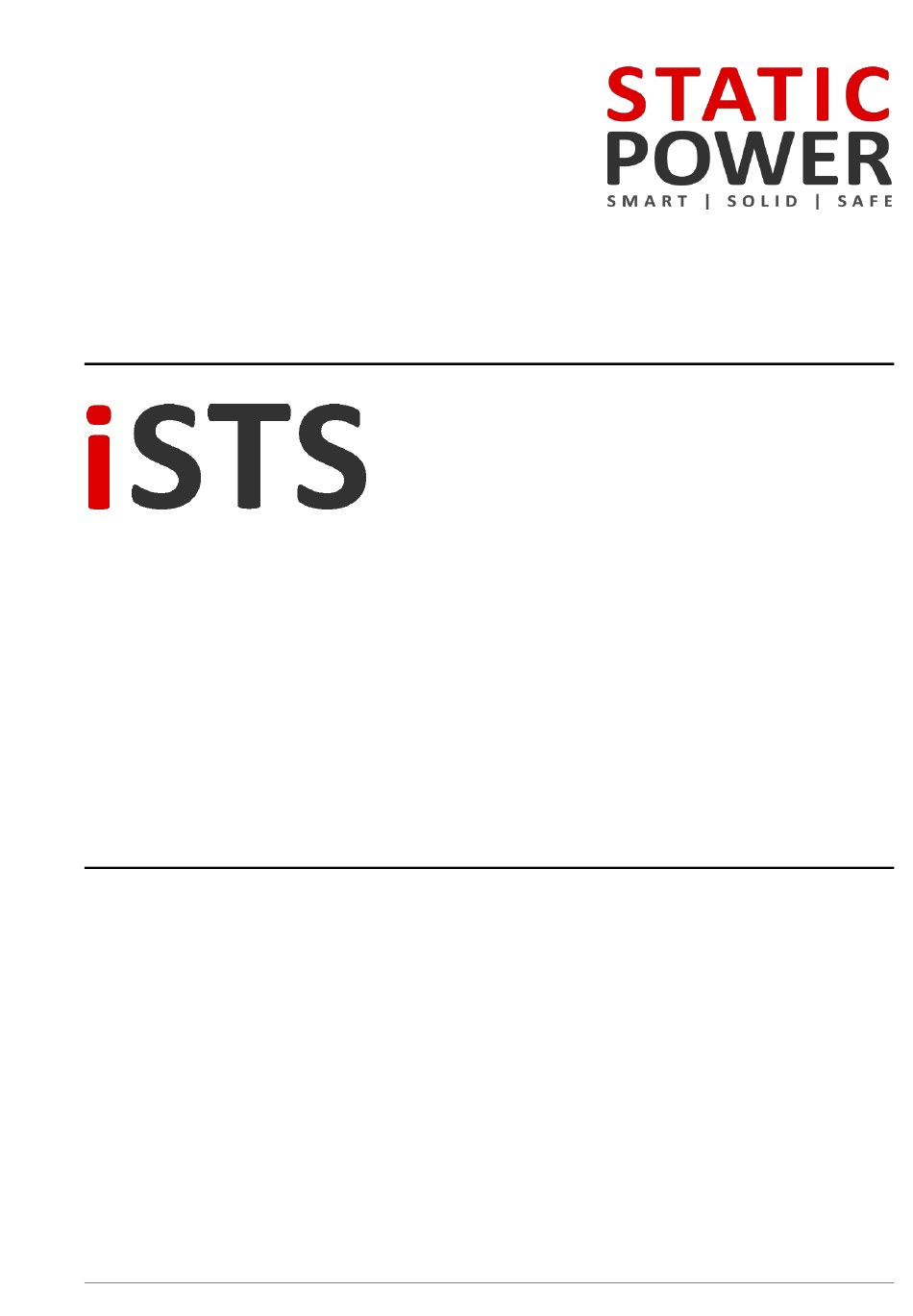

- Page 1 Model C User Manual Wall Mount Static Transfer Switch Last Updated 16/11/18 iSTS-Model-C-User-Manual-v4...
-
Page 2: Table Of Contents
Contents 1 Safety Instructions ........................3 1.1 Introduction ..........................3 1.2 Transport, Storage, Unpacking ....................3 1.3 Installation ..........................3 1.4 Electrical Connection ......................4 1.5 Synchronism ........................... 4 1.6 Fire Regulations ........................5 1.7 Standards Applied & Conformity ..................... 5 1.8 Warranty .......................... - Page 3 6 Web Browser Interface ......................24 6.1 Connecting to a PC ......................24 6.2 Connecting to the Web Server....................25 6.3 Control Panel ........................26 6.4 Email ............................ 28 6.5 Advanced Settings ........................ 29 6.6 Input Steady State Settings ....................30 6.7 Input Transient Settings ......................
-
Page 4: Safety Instructions
1 Safety Instructions 1.1 Introduction Some aspects of this manuals contents may differ to the equipment as supplied due to technical improvements, specific model variations etc. If in any doubt in respect to the procedures and safety issues consult the manufacturer and do not proceed until clarification is received. This manual contains important instructions that should be followed and fully understood before proceeding and commissioning and operation to prevent harm to personnel and equipment. -
Page 5: Electrical Connection
• When installing the STS strictly observe all information on technical data and operating conditions. Comply with all warnings, and strictly follow the procedures and practices as described in this manual. • This STS is intended to be used in a controlled indoor environment and free of conductive contaminants and protected against animal intrusion. -
Page 6: Fire Regulations
1.6 Fire Regulations Should a fire break out inside the system a fire extinguisher with CO2 or halogen must be used. Do not inhale vapours. 1.7 Standards Applied & Conformity This equipment conforms to the following standards and EC Directives: Standards to which conformity declared: EN 60950-1 Information technology equipment Safety - General requirements... -
Page 7: Warranty
Year of CE Marking 2015/2016 1.8 Warranty Static Power operating through its authorized agents warrants that the standard products will be free of defects in materials and workmanship for a period of 24 months after the date of invoice, or such other period as may be specified. -
Page 8: System Overview
2 System Overview 2.1 Description A Static Transfer Switch (STS) provides seamless switching between two power sources to provide interrupted power to a critical load. The STS continuously monitors the supply sources for failure or degeneration and switches automatically to the alternate source if the load will be affected. The break in the supply transition is so short that it is not seen by the critical load. -
Page 9: Single Line Diagram - Single-Phase 2-Pole Models
2.2 Single Line Diagram – Single-Phase 2-Pole Models 2.3 Single Line Diagram – Three-Phase 4-Pole Models... -
Page 10: Front Interview View
2.3 Front Interview View The STS includes a mechanically interlocked maintenance bypass via a 5 x circuit breaker array. -
Page 11: Installation
3 Installation 3.1 Environment Check It is important that the STS is installed into an environment that adheres to the following set of specifications: Environmental Parameters Temperature -20°C 40° Humidity • The STS unit should be bolted to the wall using the provided mounting rails. •... -
Page 12: Connecting To Terminals
3.2 Connecting to Terminals It is important that the cables are run in accordance with any local regulations. The cable entry space may be at the top or bottom depending on the unit. The gland plate covering the cable entry space must have a hole cut into it to fit the cable runs. All data cable is run to the User Interface panel. -
Page 13: Commissioning
3.3 Commissioning Power-up Test: This section covers the steps required for the initial power up of the STS. As always care should be taken when dealing with live voltages. A test load of at least 15A is required. You can use the Commissioning Checklist on the next page to assist you. 1. - Page 14 Environment Temperature Min: -20º Max: 40º Humidity Min: 5% Max: 90% IP rating Water and Dust hazards Situating Positioning Mounting Cabling Power Data Terminated Checked Power-up Test Input supplies and Breakers OFF Connect Load Turn on S1 L1 V= L2 V= L3 V= Electronics Turn off S1...
-
Page 15: User Interface Panel
4 User Interface Panel 4.1 Preferred Switch This switch allows the preferred source to be set to Supply 1, Supply 2 or None (0), which will take affect only when the preferred source is set to None (0) on the STS software. Refer to the Web Browser Interface section for instructions on changing the preferred source through LAN connectivity. -
Page 16: Remote Connection Port - High Density Da-26
4.3 Remote Connection Port - High Density DA-26 UI Breakout The relays can switch up to 220 DC, 250 AC. Remote contacts are wet contacts and do not require external voltage to be applied. PINS CONNECTION FUNCTION 1 to 2 Load Fault 3 to 2 Load Fault... -
Page 17: Display Screen Interface
5 Display Screen Interface 5.1 Front Panel Overview [A1] Name Description Supply 1 Okay LED Green/Red indicates that Supply 1 is within/out of tolerance Green/Red indicates whether Supply 1 and Supply 2 are within/not within Sync Okay LED synchronisation range to perform a transparent transfer Supply 2 Okay LED Green/Red indicates that Supply 2 is within/out of tolerance Green/Red the Supply 1 bypass is active/inactive. -
Page 18: Menu Screen Hierarchy
5.2 Menu Screen Hierarchy STATUS & ALARMS VARIABLES EVENT LIST 200 EVENTS PASSCODE SETTINGS 1 DATE &TIME SETTINGS 2 MODEL & VER SETTINGS 3 UTILISATION SETTINGS 4 CALIBRATION -B DIAGNOSTICS CALIBRATION -R CALIBRATION -W [A2] This is the LCD menu hierarchy structure. The button exits the hierarchal tree and returns to the Status Screen. -
Page 19: Status & Alarms Screen
5.3 Status & Alarms Screen [A3] The Status & Alarms Screen shows the status of the STS status and the most recent fault alarm. 5.4 Variables The Variables Menu shows the input and output variables including: • Output Voltage • Output Current •... -
Page 20: Events List
5.5 Events List The Events List shows 200 logged events that are recorded in real time. Once the buffer is full, the oldest events will fall from the buffer and get replaced by any new events. Refer to Event Codes section under Fault Diagnosis for an explanation of the codes. 5.6 Settings to move to the next digit and to change value. -
Page 21: Date & Time
The Settings menu is where the user can adjust STS settings and calibrations, however it is recommended to adjust these settings the using the Web Browser Interface. 5.7 Date & Time Entering the date and time should only be required once. We strongly encourage setting the correct time and date so that accurate real time event correlation can be undertaken. -
Page 22: Calibration
5.8 Calibration For fine adjustment of volts and current of each phase. 5.9 Communication Settings The Communication Settings allows the user to set the network settings of the STS. The IP address allocation can be assigned automatically or set manually. We recommend using the Web Browser Interface to set IP settings. -
Page 23: Diagnostics
5.10 Diagnostics The Diagnostic screen gives an analysis of each supply, including a list of how the STS is being affected. 5.11 Utilisation The Utilisation screen shows the total number of times certain events have occurred. - Page 24 [A4]...
-
Page 25: Web Browser Interface
6 Web Browser Interface 6.1 Connecting to a PC When connecting directly to a PC, both the STS and PC must have statically assigned IP addresses on the same subnet. Set the IP address of the STS in the Communications screen described earlier. -
Page 26: Connecting To The Web Server
6.2 Connecting to the Web Server To use a ping test to confirm the connection on a PC, run command prompt (CMD) and type ping (space) then the IP address of the device then press enter. Entering the IP address into the web browser address bar brings up the web server home page. If the DHCP / address have not yet been registered on your network you may need to remove the cable for 5 to 10 seconds and reconnect the cable, this in turn should re-register the device on the network. -
Page 27: Control Panel
6.3 Control Panel On the Control Panel page, many more options become available: • Viewing utilisation • Ability to transfer supply • Setting the preferred supply • Setting the name and location information • Adjusting the time and date • Setting the IP address NOTE:You must press update for the information to be saved on the device [L6] Control Panel screen... - Page 28 Transferring the Supply Clicking on the “Transfer Supply” will change to the alternate supply. If that supply is faulty the transfer will not occur. Set Preferred The STS will stay connected to the preferred supply until there is a failure. In the case of the supply failing, the STS will switch to the alternate supply and then switch back to the preferred after the fault is cleared.
-
Page 29: Email
6.4 Email The Email tab allows you to turn on the email notification service. When a certain event occurs the unit will send an email to notify the user. The email takes the following format: STS01 – LVL5 Supply 1 Fault - 05/05/2014 13:01:42 Server Settings This is the SMTP server that the unit will use to send the email. -
Page 30: Advanced Settings
6.5 Advanced Settings Settings screen NOTE: The STS has been shipped with factory defaults. These are the most reliable settings for correct stable operation. These settings should only be changed under the certain operating conditions and it is advised that you consult with us before doing so, as wrong settings can make the system unstable and damage equipment. -
Page 31: Input Steady State Settings
6.6 Input Steady State Settings These figures define the upper and lower limits of deviation from the nominal voltage and current of the input power that creates the fault condition to trigger the alarm and record the event. S1 steady state high value (%) Default value of 120%, can be changed from a nominal value of 105 to 125. - Page 32 NOTE: By default the unit operates with the intelligent out of sync delay. To turn off the intelligent sync delay DIP SW2 must be turned on. The below phase settings should only be changed when intelligent sync delay is off. Phase error detection normal (deg) This figure between 0 –...
-
Page 33: Input Transient Settings
6.7 Input Transient Settings These figures define the upper and lower limits of deviation from the nominal voltage and current of the input power that creates the fault condition to trigger the alarm and record the event. S1 transient high value (%) Default value of 130%, can be changed from a nominal value of 108 to 135. - Page 34 Re-transfer max attempts This setting refers to the number of times the device will transfer back to the preferred source. A lock out results after this but is re-set on a new fault alarm condition. A setting of “0” inhibits retries and device will not transfer back to the preferred source. NOTE: Adjustment may be required to the Transient values if the source supply voltages are distorted or above or below nominal.
-
Page 35: Output Settings
6.8 Output Settings Output steady state high value (%) Default value of 125%, can be changed from a nominal value from 108 to 135. This number will be set as percentage. Averaging time constant for this parameter is defined by “Steady state failure time” typically 1.5 seconds. - Page 36 Output transient low value (%) Default value of 60%, can be changed from a nominal value of 0 to 95. This number will be set as percentage. Transient time constant for this parameter is defined by “Transient over-sampling time constant 2 x 330 Micro Sec”...
-
Page 37: Maintenance Bypass
7 Maintenance Bypass 7.1 Overview Maintenance bypass mode allows the load to be connected to one supply without going through the power circuit of the STS. In this mode, transferring the load to an alternate supply is not possible. The maintenance bypass mode should only be used to select the presently operating source. -
Page 38: Reinstatement From Maintenance Bypass Procedure
4. Finally OPEN Q3 (The STS is now isolated from the output but the critical load is supplied from the Maintenance Bypass via Q4). Bypass to Supply 2 1. Use the TRANSFER pushbutton to transfer the load to the desired source (Supply 2). 2. - Page 39 9. Use the TRANSFER pushbutton on the front control panel to select the desired source. Check and ensure that this corresponds to the PREFERRED source selection, (located above the OVERRIDE switch). 10. Check that the LCD display and mimic correctly reflect the state of the system and that the ALARM LED is off.
-
Page 40: Fault Diagnosis
None - Contact Static COMMS 1/2/3/4/5/6/7/8 Dig Proc, Ana1, Ana2. Power CALIBRATION 1/2/3 Calibration of MSP required Contact Static Power LOW POWER MODE (Power LOW POWER LOW POWER MODE ON/ OFF Down Modes @ loss of MODES electronics power) Supply 1 or 2 OR 3 has Steady... - Page 41 Via User Inputs or REMOTE XFER 1, 2 2 requested Back feed voltage too high on BACK FEED 1 or 2 on (R, W, B) Contact Static Power S1 or S2 Remote Supply off Requested Via User Inputs or REMOTE POWER OFF/ON (EPO)
-
Page 42: Load Fault
8.2 Load Fault In case of sustained high current output load faults, the STS will inhibit a transfer to the alternate supply even if this means degradation or loss of source supply. It is therefore imperative that you ensure that the discrimination with downstream and upstream protective devices ensures that the downstream protective device always clears the fault first. -
Page 43: Maintenance
• Inspect cable / plug connections for overheating. • Units with fans need their fans changed every 3-5 years. This may need to be sooner if the environment is bad. Please contact Static Power for help with troubleshooting and parts replacement. -
Page 44: Specifications
10 Specifications Power Type 1-phase / 2-pole 3-phase / 3-pole* 3-phase / 4-pole* Current rating 63A to 160A Voltage rating All region-specific voltages selectable ±10% Safe install environment 20kA for 1 cycle, fuse-less design Frequency 50Hz and 60 Hz, ± 10 % Auto detection Max THDV 15 % (max allowable source voltage distortion) Power factor... -
Page 45: Operating Parameters
11 Operating Parameters Absolute Maximum Values Parameter Input Voltage (N-L) 200V 265V Load Current 160A Input Synchronisation -180° 180° Ambient Temperature -20°C 45° Recommended Values Parameter Input Voltage 210V 255V Load Current 160A Input Synchronisation -15° 15° Ambient Temperature 0° 30°... -
Page 46: Contact Information
The information contained in this user manual may be superseded at any time. For the latest information check the website at: http://www.staticpower.com.au/ This document is property and copyright of Static Power Pty. Ltd. iSTS Manufacturing is a subsidiary of STATIC POWER PTY. LTD.
