KANE 400 QUICK REFERENCE GUIDE

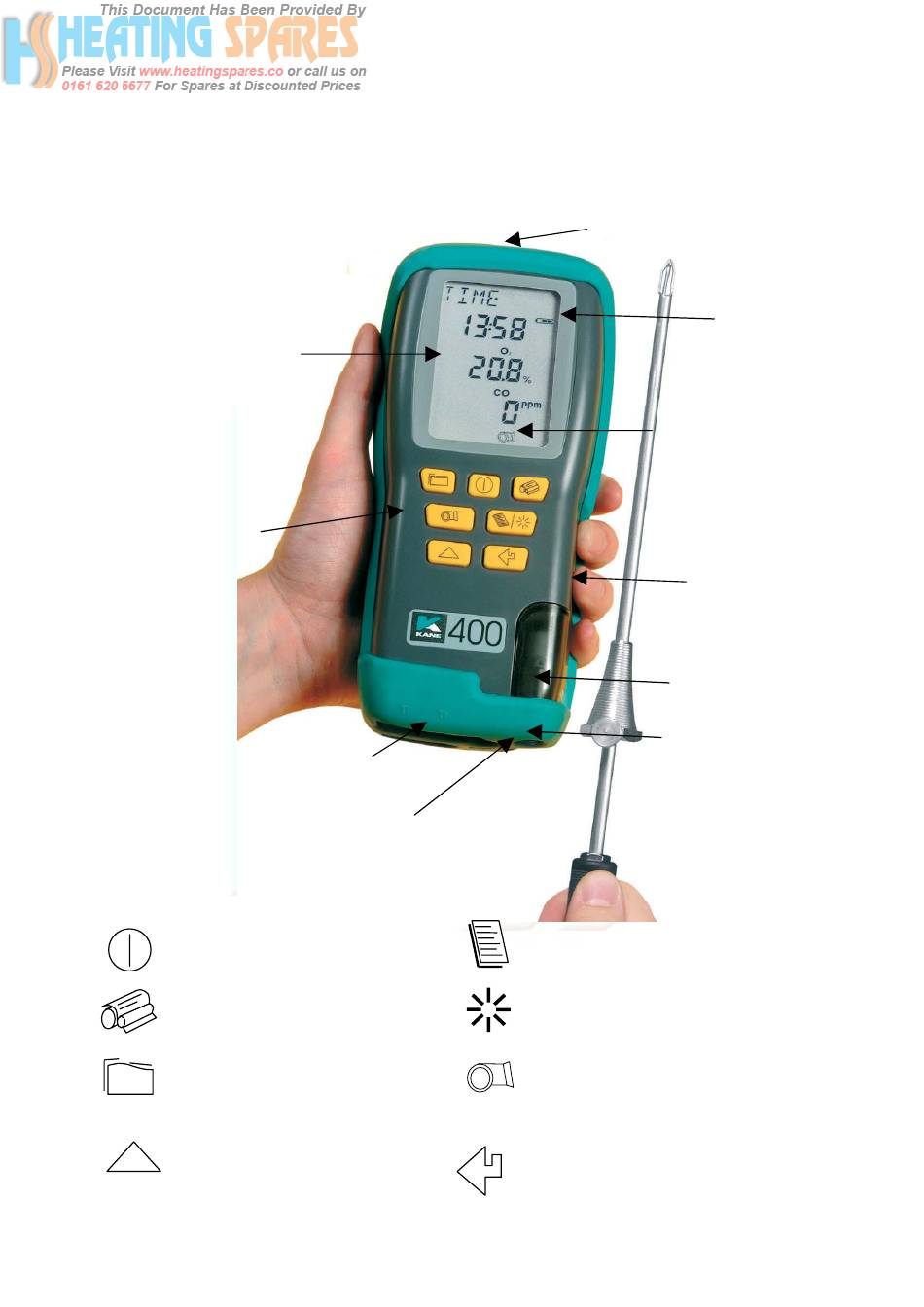

INSTRUMENT FEATURES AND KEYPAD
Display
Keypad
Analyser Connections
(Tf = Flue Temperature socket)
(must be fitted into 4mm diameter hole)
ON / OFF
Turns analyser ON and OFF
PRINT
Print 'live' or stored data
STORE
Access the data memory
menu
UP
Changes TOP line of display.
Stock No: 17998
Supplied By www.heating spares.co Tel. 0161 620 6677
Water Trap Drain Plug
Infra-red Printer emitter
Battery Status
Mode Indicators
Particle Filter
Water Trap
Flue Gas Inlet
MENU
Allows access to all menu functions
BACK-LIGHT
Hold to toggle back-light ON or OFF
PUMP
Turns pump ON and OFF
ENTER
Changes BOTTOM two lines of
display.
Indicator
Advertisement
Table of Contents
Related Manuals for Kane 400
Summary of Contents for Kane 400
- Page 1 KANE 400 QUICK REFERENCE GUIDE INSTRUMENT FEATURES AND KEYPAD Infra-red Printer emitter Battery Status Indicator Display Mode Indicators Keypad Particle Filter Water Trap Flue Gas Inlet Analyser Connections (Tf = Flue Temperature socket) Water Trap Drain Plug (must be fitted into 4mm diameter hole)
- Page 2 BEFORE USING ANY ANALYSER CHECK THAT: The calibration date has not expired The particle filter is not dirty The water trap and flue probe hose are empty of water The water trap is fitted correctly to the instrument including the drain plug The flue probe hose is connected properly to the water trap The flue temperature plug is connected into Tf USING THE ANALYSER...
- Page 3 SETTING / CHANGING THE MAIN DISPLAY The top half of the display operates independently from the bottom half. Top Display Options Bottom Display Options To scroll press To scroll press FUEL TYPE and CO EFFICIENCY and diff Temp EXCESS AIR and flue Temp TIME CO2 and inlet Temp...
- Page 4 MENU OPTIONS HEADING OPTION FUEL NAT GAS PROPANE BUTANE L OIL PUMP HOLD HOLD ON HOLD OFF RESET PRESSURE Millibar InWG MmWG Enter number TEMPERATURE Centigrade Fahrenheit GAS UNITS Mg/m EFFICIENCY GROSS NETT SETUP CONTRAST FUEL TABLE HOURS MINUTES YEAR MONTH FORMAT LANGUAGE...
