Summary of Contents for SKF WEM-200

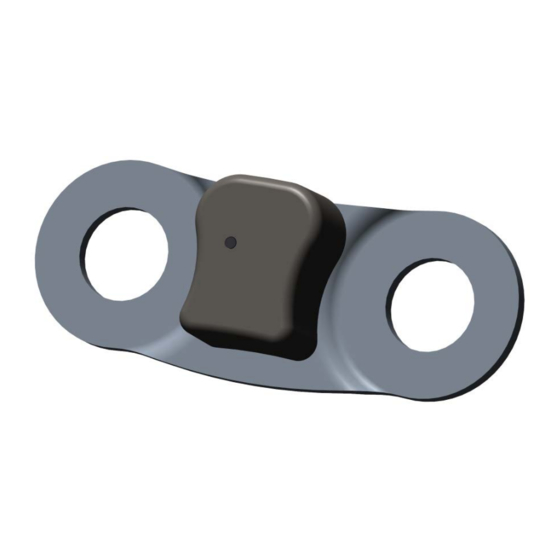

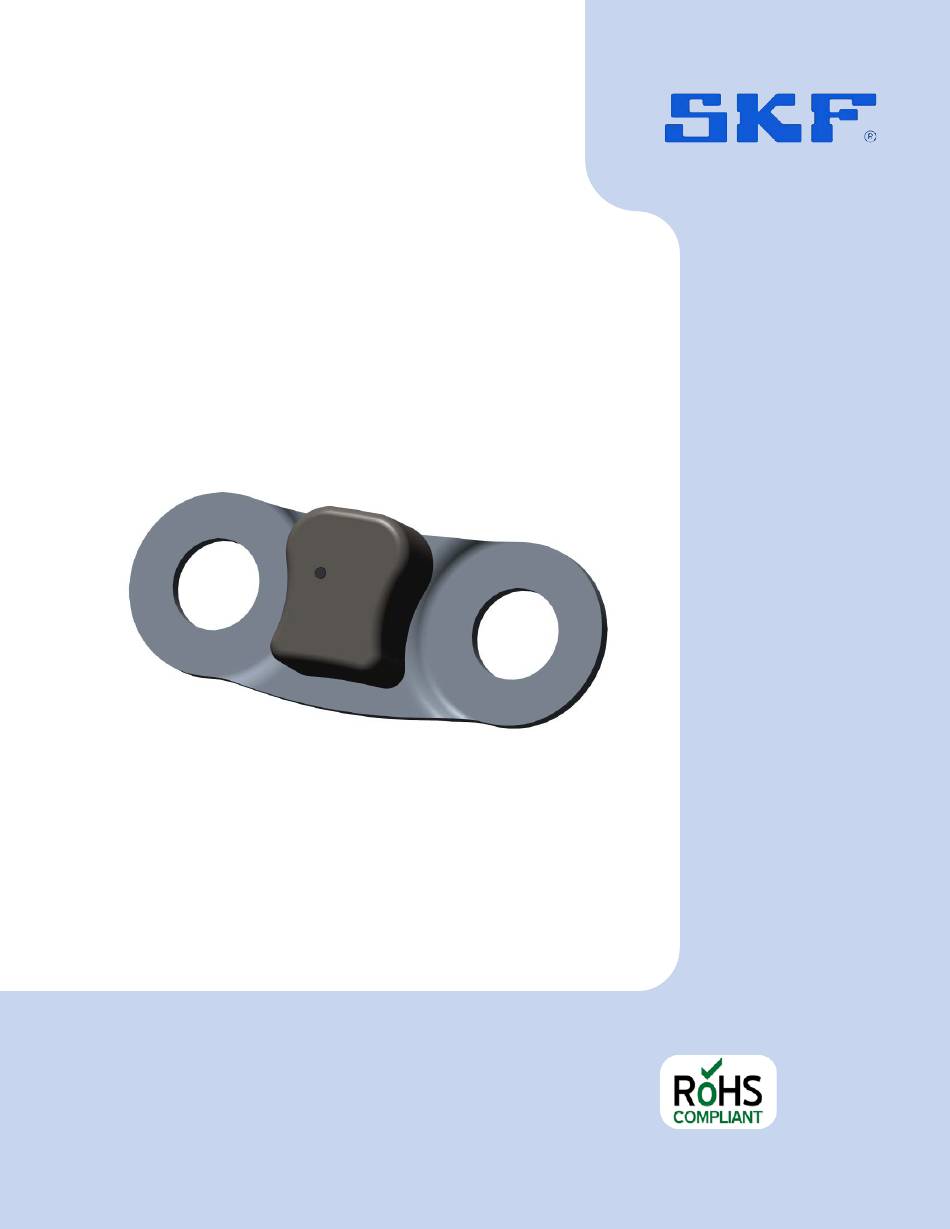

- Page 1 WEM-200 SKF Wheel End Monitoring User Manual – Quick Start Vsfv ;:df v;dfccc DO Saint Cyr WEM 200...
-
Page 2: Table Of Contents
WEM200 User Manual Table of Content 1 Description ........................4 2 WEM2 assembly .......................5 3 Product activation ....................6 4 Product modes ......................6 5 Download the Mobile application ................8 5.1 Application description..................8 5.1.1 “Vehicles” view ..................8 5.1.1.1 “All” page ............................8 5.1.1.2 “Alarms”... - Page 3 WEM200 User Manual– Version 1 – September 2019 Table of Content Aucune entrée de table d'illustration n'a été trouvée. Page 3 of 25 DO Saint Cyr User Manual WEM 200...
-
Page 4: Description
WEM200 User Manual 1 Description Product functionality: WEM200 (Wheel end Monitor) – is a condition monitoring device. It monitors wheel end bearing conditions by measuring and analyzing vibrations of the wheel end bearing of the vehicle. The vehicle is generally a truck, a trailer or a bus. -
Page 5: Wem2 Assembly
WEM200 User Manual– Version 1 – September 2019 2 WEM2 assembly Mechanical assembly on vehicle: Please respect below mounting instructions to ensure WEM to perform proper analysis 1. Remove the rim cover (if existing) 2. Unscrew two consecutive rim nuts 3. -
Page 6: Product Modes
WEM200 User Manual 3 Product versions Product is able to work in 2 ways depending of FW configuration requested by customer. Mobile : where Mobile App is the only user interface for all operations associated with WEM 200 sensor • •... -
Page 7: Product Activation
WEM200 User Manual– Version 1 – September 2019 4 Product activation and functions Product can have 3 different states : Transport Standstill Operating The product is initially received in transport mode : no BLE communication and no measurement Activation of the product is done while approaching the magnet from sensor housing in the “Magnet”... -
Page 8: Download The Mobile Application
A mobile application dedicated to iOS smart devices has been developed by SKF. This mobile Application is delivered by SKF in following ways: 1- Pilot customers: registered user of each company receives an e-mail from SKF providing a link for download of the mobile application... -
Page 9: Alarms" Page
WEM200 User Manual– Version 1 – September 2019 5.1.1.2 “Alarms” page It provides the list of vehicles were a WEM2 sensor alarm have been detected You can get access to each vehicle from the list to see its current state and detect if a sensor is still defective and its location. -
Page 10: My Ride" View
WEM200 User Manual 5.1.2 “My Ride” view It provides option to attach 2 vehicles for instance a truck and a trailer 5.1.3 “More” view It provides legend for icons used in mobile app and release version. Help & Privacy gives access to additional information. Page 10 of 25 DO Saint Cyr User Manual WEM 200... -
Page 11: Product Commissioning & Status
Unless product would be delivered preconfigured for a dedicated vehicle and a specific assembly position, commissioning has to be done by user. This operation has to be done using the SKF Mobile Application working on iOS smart device and transmitting data via Blue Tooth Low Energy (BLE) protocol. - Page 12 WEM200 User Manual Then the mobile App will load the company vehicles already registered into the system At that stage user has 2 options : Create new vehicle or access to an existing vehicle Page 12 of 25 DO Saint Cyr User Manual WEM 200...
-
Page 13: Create A New Vehicle
WEM200 User Manual– Version 1 – September 2019 Create a new vehicle : Press the “+” top right symbol Then enter related information : Page 13 of 25 DO Saint Cyr User Manual WEM 200... - Page 14 WEM200 User Manual Select the vehicle type in the list Fill in the vehicle information taking care of warnings for Vin ID and Vehicle type Page 14 of 25 DO Saint Cyr User Manual WEM 200...
- Page 15 WEM200 User Manual– Version 1 – September 2019 Then press Create vehicle button Each axle can then be configured by selecting driven or non-driven + specific T° threshold Page 15 of 25 DO Saint Cyr User Manual WEM 200...
- Page 16 WEM200 User Manual Page 16 of 25 DO Saint Cyr User Manual WEM 200...
-
Page 17: Access To An Existing Vehicle
WEM200 User Manual– Version 1 – September 2019 Access to an existing vehicle Click on the vehicle in the list will give access to this vehicle configuration menu : By clicking one of the + symbol you will see available sensor which are available and ready to add to the vehicle and related position selected Page 17 of 25 DO Saint Cyr... -
Page 18: Add Sensor To A Vehicle
WEM200 User Manual Add Sensor to a vehicle This operation is done by selecting add sensor from the menu. Following screens will display one by one up to the final screen where sensor is added to the vehicle at the specific selected location. -
Page 19: Sensor Status
WEM200 User Manual– Version 1 – September 2019 Sensor status click on the sensor icon Scroll down the page to view available parameters : Page 19 of 25 DO Saint Cyr User Manual WEM 200... - Page 20 WEM200 User Manual Following information are available : • T° : sensor is providing the last measured T° value and the Maximum T° recorded in its memory It is possible to configure T° Alarm threshold for each axle of the vehicle by pressing the vehicle axle type in the middle of the vehicle drawing: T°...
- Page 21 WEM200 User Manual– Version 1 – September 2019 • Sensor ID : unique number identifying the sensor Firmware Version • • Installation date • Resets : product could be re-initialized up to 3 times by using RESET SENSOR button on down side of the view Latest transmission : indicated last data transmission received from the sensor •...
-
Page 22: Precautions & Maintenance
The WEM200 hardware is maintenance free, non-repairable and users must not attempt to open the device. Firmware updates will be possible OTA by SKF dealer. WEM200 may need to be replaced if a fault occurs or when the battery is reaching the end of its life. - Page 23 WEM200 User Manual– Version 1 – September 2019 8 Technical specifications Operating temperature: from -40°C to 95°C IP rating: IP6K 9K Power supply: 3V Page 23 of 25 DO Saint Cyr User Manual WEM 200...
- Page 24 Registered Trademarks SKF and the SKF logo are registered trademarks of SKF SA. The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by SKF S.A. is under license. All other trademarks mentioned in this guide are protected and are the property of their respective owners.
- Page 25 WEM200 User Manual– Version 1 – September 2019 Copyright © SKF2019. All rights reserved. Page 25 of 25 DO Saint Cyr User Manual WEM 200...
