SM5/SC5 Touch Screen Console Quick Reference
Sheet

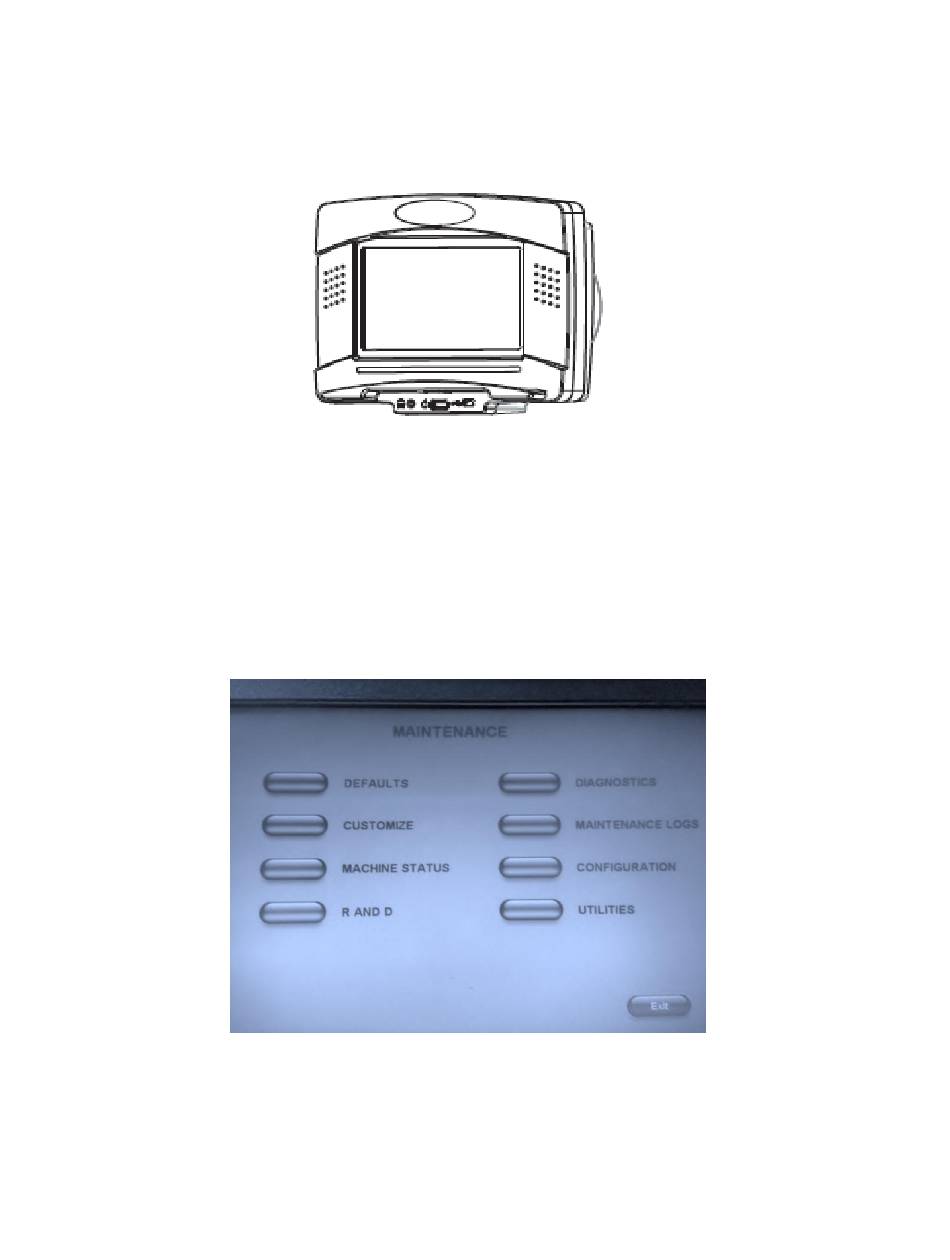

1. How to Access the Maintenance Menu
A. Touch the upper left corner of the touchscreen.
B. Touch the upper right corner of the touchscreen.
C. Touch the Stairmaster logo in the middle of the touchscreen.
D. The Maintenance Screen will display.
2 Maintenance Screen
Advertisement
Related Manuals for Stairmaster SM5
Summary of Contents for Stairmaster SM5
- Page 1 1. How to Access the Maintenance Menu A. Touch the upper left corner of the touchscreen. B. Touch the upper right corner of the touchscreen. C. Touch the Stairmaster logo in the middle of the touchscreen. D. The Maintenance Screen will display. 2 Maintenance Screen...
- Page 2 3 Defaults The Default screen allows the user to customize the defaults for Quick Start. Defaults are Weight – 173 Workout Time 20 Minutes Age 35 Target HR% 80 Start Level 1 Step Rate 20 Min 4 Customize Change Units - Allows the user to change the Units Metric/English Languages –...
- Page 3 6 R and D is not Available. 7 Diagnostics Diagnostics contains: Alt Test On/Off – Alternator test Tach Test 2000 Desired 0000Actual Heart Rate Test 8 Maintenance Logs Maintenance records Location 5 Slots 9 Configuration Equipment Type – StepMill/StepClimber Max Time 20- 180 CSAFE Cursor On/Off –...
- Page 4 10 Utilities TV Tuner Setup – TV configuration/Setup Load Software - Software load point USB Touch Screen Calibration – used to setup initial touch screen position Reset Configuration Resets configuration to factory Real Time Clock set up unit clock Day and Date 11 TV Tuner Setup A.
- Page 5 Programs Available Building Floors Option USB/Sound Jack CSAFE Connection...
