Mocka Hamptons Toy Box Assembly Instructions

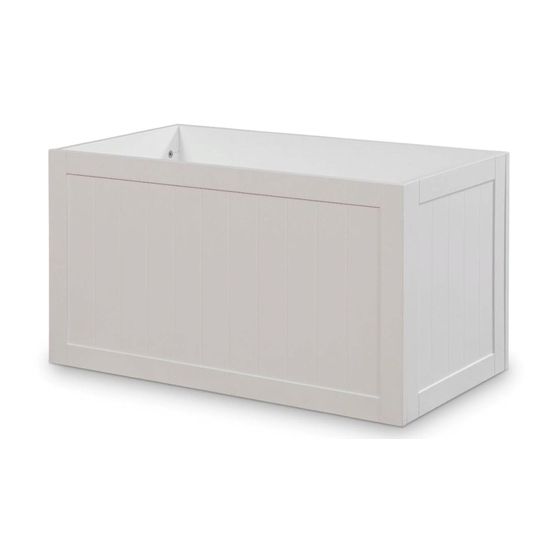

Hamptons Toy Box

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

bolt

locking

x 8

nut x8

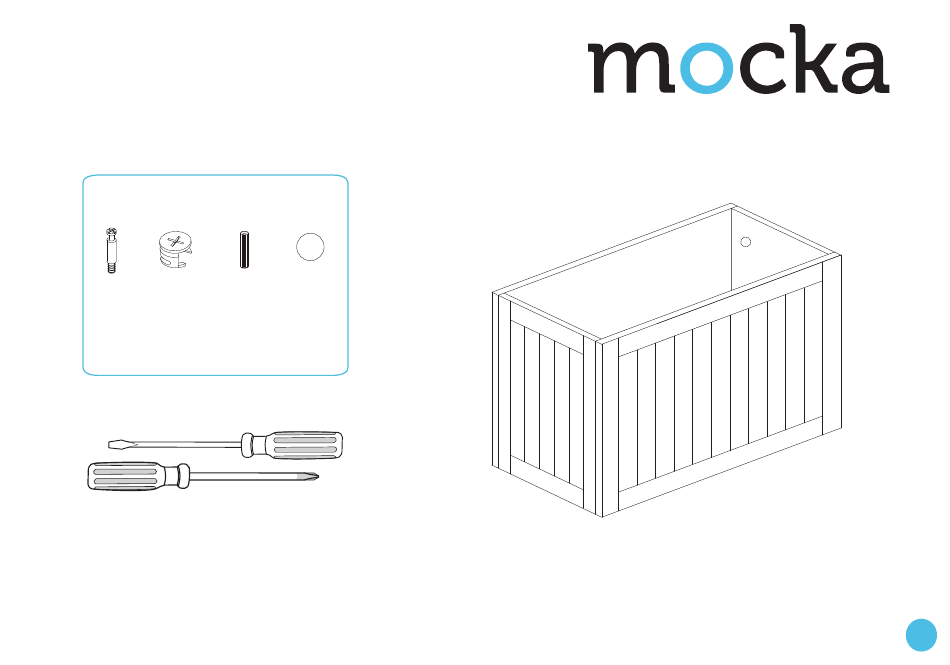

Hardware Supplied

Phillips & Flathead screwdrivers required

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

*W e recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.

Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.

mocka.co.nz | mocka.com.au

cover

dowel

x 8

Table of Contents

Do you have a question about the Hamptons Toy Box and is the answer not in the manual?

Page 1 Hamptons Toy Box Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. cover bolt locking dowel nut x8 Hardware Supplied Phillips & Flathead screwdrivers required For quicker assembly, we recommend the use of a power drill on a low-speed setting.
Page 2 Hamptons Toy Box Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Long sides panel (x2) Insert 4 x locking nut (B) into panels [2] . Attach 4 x dowel (C) to panel [1] and Secure 8 x bolts (A) .
Page 3 Hamptons Toy Box Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Slide panel [3] between the grooves on panels [1] and [2] to form the Insert 4 x locking nut (B) into panels [2] . Attach 4 x dowel (C) to panel [1] and boottom of the unit as shown.
